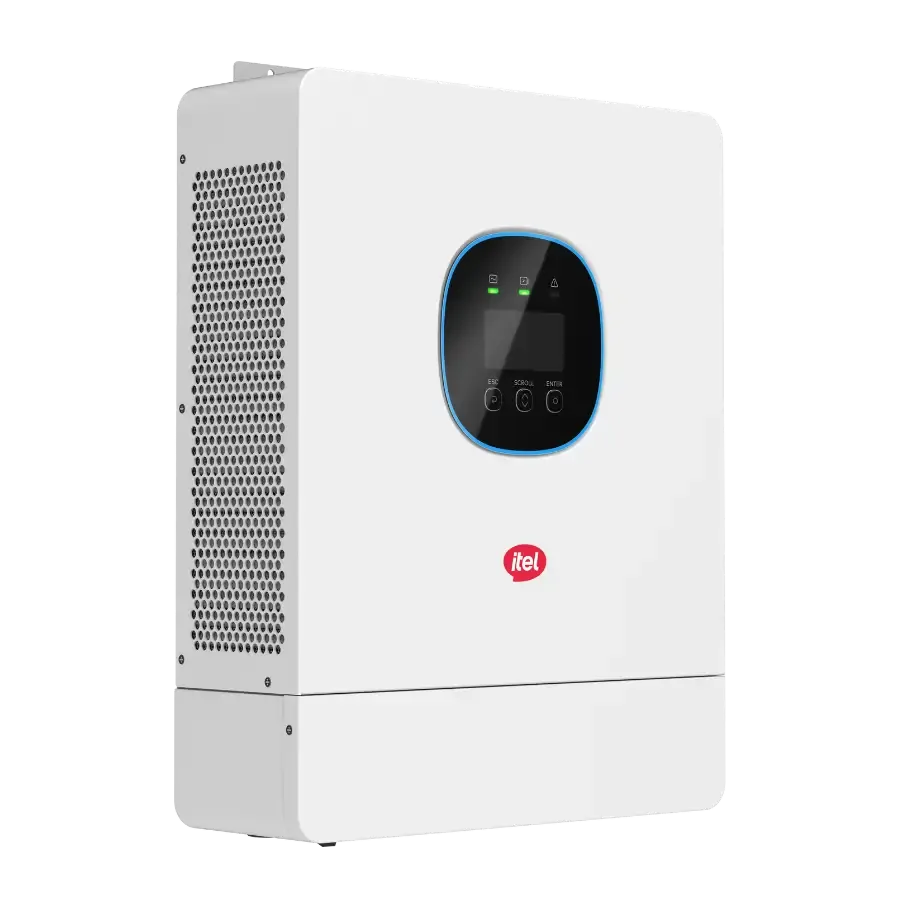

Itel 3KW Pro Hybrid Inverter Overview

The itel 3kw inverter is a single-phase hybrid inverter with a 3,000W nominal AC output and a 24V battery architecture. The itel 3kW hybrid inverter combines solar PV input, AC/grid input, battery storage and AC output in a single inverter, making it suitable for solar systems where battery backup is part of the system design.

One of its notable specifications is the 4,500W maximum PV input, which gives the inverter more PV input capacity than its 3kW nominal AC output. The unit uses one MPP tracker with a 70–425V MPPT voltage range and accepts up to 18A of PV input current.

On the battery side, the inverter supports lead-acid, lithium-ion and user-defined battery types, with a 20–30V battery voltage range. The manufacturer specifies up to 125A MPPT charging current and a maximum discharge current of 135A. For backup applications, the inverter has a stated 20ms switch time and short-duration overload capability of up to 6,000 VA for 2 seconds. The official itel 3kw hybrid inverter datasheet confirms these technical specifications.

Customers searching for the itel energy 3kW hybrid solar inverter can use the model number IPV-3K24U Pro to ensure they are checking the correct product documentation.

Why This Hybrid Inverter Stands Out

4,500W Maximum PV Input

The inverter is rated for up to 4,500W of PV input, while its nominal AC output is 3,000W. This distinction is important when designing the solar array because the inverter’s AC output rating and maximum permitted PV input are not the same specification.

The available PV capacity allows an installer to design a solar array above the inverter’s nominal AC output, provided the complete PV design remains within the manufacturer’s voltage and current limits. The same information is available in the iTel 3 kW Pro datasheet and should be reviewed before the final system design.

24V Battery System with High Current Capability

The IPV-3K24U Pro uses a 24V battery system and supports a 20–30V battery voltage range. The datasheet specifies a maximum MPPT charging current of 125A and a maximum discharging current of 135A.

This makes battery sizing and battery current capability important parts of system design. The selected battery bank must operate within the inverter’s voltage and current requirements. Customers researching the price of an itel 3kw lithium battery price in Pakistan should also confirm the battery’s voltage, capacity and BMS requirements rather than choosing a battery based on price alone.

20ms Switch Time for Backup Loads

The manufacturer specifies a 20ms switch time. This is relevant for systems where selected loads need to transfer to inverter/battery operation when the normal AC supply changes.

The actual behavior of individual appliances should still be considered, particularly for sensitive equipment, because a stated inverter switching time does not necessarily mean that every connected device will operate without interruption.

Short-Duration Surge and Overload Capability

The inverter has a stated 6,000VA surge power for 2 seconds. Its overload specification is 105%–150% for 10 seconds and 150%–200% for 2 seconds.

This can be useful when connected loads have short starting or surge demands, but the overload figures should not be treated as continuous operating power.

IP54 Protection

The enclosure carries an IP54 protection rating. The datasheet also lists overvoltage, short-circuit, over-temperature and overload protection, along with Type III DC and AC surge protection.

IP54 does not mean the inverter can be installed in any environment. Proper installation, ventilation and protection from unsuitable exposure remain important.

Best For

The itel 3kW Pro is worth considering for:

• Homes requiring a 3kW-class hybrid inverter with battery backup.
• Solar systems built around a 24V battery bank.
• Users considering either lead-acid or lithium-ion battery technology, subject to compatibility and installation requirements.
• Installations where the PV array may be designed up to the manufacturer’s 4,500W input limit.
• Solar systems where a relatively short stated 20ms transfer time is useful for backup loads.
• Installers looking for a compact inverter with one MPPT and high battery-side current specifications.
• Buyers researching the price of an itel 3kW inverter in Pakistan while comparing a 3kW hybrid system for home use.

Not Ideal For

This model may not be the right fit where:

• A three-phase inverter is required.
• The project requires an HV battery architecture.
• More than one MPPT tracker is needed for PV strings that are oriented separately or managed independently.
• Generator integration is a required part of the system, as the manufacturer documentation states Diesel Generator Support: No.
• Parallel operation is required, as the manufacturer specifies Number of Parallel: No.
• The planned PV array exceeds the inverter’s specified voltage or current limits.
• The required AC load is continuously above the inverter’s 3,000W rated output.

Solar PV Input and MPPT Performance

The IPV-3K24U Pro supports up to 4,500W maximum PV input power. Its maximum DC input voltage is 500V, with a 75V startup voltage and a 70–425V MPPT voltage range. The inverter has one MPP tracker and a maximum PV input current of 18A.

For installers, the single-MPPT design is particularly important. The complete solar array needs to be planned around a single tracker rather than treating the inverter as a multi-MPPT unit.

PV string design should consider the solar module’s:

• Voc;
• Vmp;
• Isc;
• operating temperature;
• number of modules in the string;
• total PV input current;
• inverter MPPT voltage limits.

The manufacturer’s voltage and current limits should be checked against the actual module datasheet before installation. The itel 3 kW inverter datasheet is useful for checking inverter-side limits before designing the PV string.

For buyers searching for an itel 3kw inverter datasheet PDF, the manufacturer documentation reviewed for this page identifies model IPV-3K24U Pro and provides the PV, battery, AC output and protection specifications.

Battery Compatibility and Energy Storage

The inverter uses a 24V battery architecture with a specified operating range of 20–30V. The manufacturer lists support for:

• Lead-acid batteries;
• Lithium-ion batteries;
• User-defined battery types.

The maximum MPPT charging current is 125A, the maximum mains/generator charging current is 125A, and the maximum discharging current is 135A.

Battery voltage alone should not be used to decide compatibility. For lithium battery installations, the battery’s BMS communication, operating voltage, current limits and any manufacturer-supported communication requirements should be checked before purchase and installation.

The search phrase “itel 3kwh lithium battery” refers to a battery energy capacity, whereas the manufacturer specifies this inverter as a 24V hybrid inverter. Battery capacity should therefore be selected based on the intended load and backup requirements, rather than assuming that a 3kWh battery is automatically required.

Verified Compatible Battery Options

The supplied manufacturer documentation identifies battery types as Lead-acid/Lithium-ion/User Defined, but it does not provide a specific list of battery brands or model numbers. Therefore, specific battery brands should not be treated as officially verified solely by this document.

Backup Power and Load-Shedding Performance

For Pakistani users, the backup function is an important part of choosing a hybrid inverter. The IPV-3K24U Pro has a 3,000W nominal AC output, a stated maximum apparent power of 3,600VA, and a 20ms switch time.

The manufacturer also specifies a 6,000VA surge power capability for 2 seconds and short-duration overload ranges. These figures can help accommodate temporary higher demand, but they should not be interpreted as permission to operate the inverter continuously above its rated output.

During load shedding, actual backup duration depends on factors including:

• usable battery capacity;
• connected load;
• battery state of charge;
• inverter efficiency;
• battery operating limits.

A 3kW inverter does not determine backup duration on its own. The battery bank and the actual connected load have a major effect on how long backup power can be maintained.

Monitoring and Communication

The manufacturer documentation lists RS485/RS232 communication for the IPV-3K24U Pro.

These communication interfaces can be relevant for system communication and integration. Still, the supplied datasheet does not identify a specific mobile application, cloud monitoring platform, Wi-Fi function or LAN monitoring system. Those features should therefore not be assumed without additional documentation from the manufacturer.

Technical Specifications

Solar PV Input

Battery

AC / Grid Output

Backup / EPS Output

General Specifications

Recommended Solar System Size

The manufacturer specifies a maximum PV input of 4,500W. This should not be confused with the inverter’s 3,000W nominal AC output.

A practical PV design must remain within all relevant inverter limits, including the 500V maximum DC input voltage, 70–425V MPPT range, 18A maximum input current and the applicable module operating characteristics.

The final array design should be based on the selected module’s Voc, Vmp and Isc, together with expected temperature conditions. A qualified installer should confirm the final string arrangement before installation.

Hybrid Inverter Use in Pakistan

For solar users in Pakistan, a hybrid inverter can be useful where daytime solar generation and battery backup need to work together. The 3KW Pro’s 24V battery architecture makes battery selection an important part of the system design, particularly when planning loads for periods of load shedding.

In Punjab and Lahore, summer installation conditions also deserve attention. The manufacturer gives an operating temperature range of -10°C to +55°C, with power derating above 45°C. The inverter should therefore be installed in a location that allows appropriate ventilation and does not unnecessarily expose the unit to excessive heat.

The IP54 enclosure and listed surge, over-temperature, short-circuit and overload protections provide useful protection features, but correct AC/DC protection, earthing, cable sizing and installation practices remain essential.

itel 3KW Pro Hybrid Inverter Price in Pakistan

The itel 3kw price in Pakistan can vary based on stock availability, exchange rates, distributor pricing and market conditions. The same applies when checking the itel 3kw price or the itel 3kw pro price in Pakistan. Check the latest price shown on this product page for Hajvery Solar’s current listed rate.

Customers specifically searching for itel 3kw hybrid inverter price in Pakistan, itel 3kw inverter price in Pakistan, or itel solar inverter 3kw price in Pakistan should check the current price on the product page, as solar equipment prices can change with market conditions.

For buyers comparing the itel inverter 3 5kW price in Pakistan, the 3KW Pro should not be treated as a 3.5kW model. Its manufacturer-rated AC output is 3,000W, so the exact model and rated capacity should be checked before purchase.

Searches such as itel inverter 3kw price in pakistan olx may show second-hand or independently listed products. Buyers should verify the exact model, physical condition, serial information, warranty status and included accessories before relying on any third-party listing.

Dealers, installers and bulk buyers can contact Hajvery Solar for current wholesale rates and quantity-based availability.

Hajvery Verified Product Information

Brand: itel Energy

Exact Model: IPV-3K24U Pro

Product Type: Hybrid Solar Inverter

Technical Data Source: Official Manufacturer Documentation supplied for review

Specification Status: Verified against the manufacturer documentation reviewed

Battery Compatibility Status: Battery types are specified as Lead-acid, Lithium-ion and User Defined; specific battery models require compatibility confirmation

Last Technical Review: August 2026

Hajvery Solar reviews available manufacturer documentation before publishing technical specifications. Product model, serial information, applicable warranty and battery compatibility can also be checked before purchase.

The supplied manufacturer document identifies a 3-Year Replacement Warranty and 5-Year Service Warranty for the Pro series.

For customers searching for the itel 3kw hybrid inverter datasheet, itel 3kw pro datasheet, or itel 3kw inverter datasheet, use the model number IPV-3K24U Pro when checking the technical documentation, so specifications from other itel models are not mixed with this inverter.

Warranty and After-Sales Support

Manufacturer / Official Warranty

The supplied manufacturer material states:

• 3-Year Replacement Warranty
• 5-Year Service Warranty

These warranty terms should be considered alongside the manufacturer’s applicable warranty conditions.

Hajvery Solar After-Sales Support

Hajvery Solar can assist customers with product information, compatibility checking and warranty/serial verification. Warranty claims remain subject to the applicable manufacturer and distributor terms, including requirements relating to installation, serial number, proof of purchase and operating conditions.

Before You Buy

1. Phase: Confirm that your property and required loads are suitable for this single-phase inverter.
2. Battery Architecture: Confirm that a 24V battery system matches your planned storage setup.
3. Backup Load: Identify which appliances must operate during a grid failure and maintain continuous demand within the inverter’s rated output.
4. PV Design: Confirm that the proposed solar array remains within the 500V DC, 70–425V MPPT and 18A input limits.
5. Battery Compatibility: Check battery voltage, current capability and BMS/communication requirements before installation.
6. Generator Requirement: This model is not documented as supporting a diesel generator.
7. Future Expansion: Parallel operation is not specified as supported, so future system expansion should be considered before purchase.
8. Installation Location: Provide suitable ventilation and account for the manufacturer’s temperature and IP54 requirements.

Frequently Asked Questions

Is the itel 3KW Pro Hybrid Inverter single-phase or three-phase?

The supplied documentation specifies a nominal AC output voltage of 220V and a 3,000W rated AC output. It is a single-phase hybrid inverter configuration; it is not documented as a three-phase model.

Does the iTel 3 kW Pro Hybrid Inverter support lithium batteries?

Yes. The manufacturer lists Lithium-ion, lead-acid, and user-defined battery types. The inverter uses a 24V battery architecture with a specified 20–30V battery voltage range. Compatibility with the specific lithium battery model should be confirmed before installation.

Which batteries are compatible with the itel 3KW Pro Hybrid Inverter?

The supplied documentation confirms support for lead-acid, lithium-ion, and user-defined battery types, but it does not specify any specific battery brands or models. Exact battery compatibility should therefore be confirmed using the battery’s voltage, current and BMS communication requirements.

How much solar PV can be connected to the iTel 3 kW Pro Hybrid Inverter?

The maximum PV input power specified by the manufacturer is 4,500W. The PV design must also stay within the 500V maximum DC voltage, 70–425V MPPT range and 18A maximum input current.

Can the itel 3KW Pro Hybrid Inverter provide backup during load shedding?

Yes, the hybrid design includes battery operation and a stated 20ms switch time. Actual backup duration depends on battery capacity, connected load, state of charge, inverter efficiency and battery operating limits.

Does the itel 3KW Pro Hybrid Inverter support a generator?

The supplied manufacturer documentation states Diesel Generator Support: No.

Can the itel 3KW Pro Hybrid Inverter be connected in parallel?

The manufacturer specifies Number of Parallel: No, so parallel operation should not be assumed for this model.

What is the price of the itel 3KW Pro Hybrid Inverter in Pakistan?

The current price of the itel 3kW Pro in Pakistan depends on stock levels and market conditions. The same applies to the itel 3kw price in Pakistan and the itel 3kw price generally. Check the price displayed on the Hajvery Solar product page for the latest listed rate.

Where can I find the itel 3KW Pro datasheet or manual?

For technical specifications, buyers can refer to the manufacturer documentation for model IPV-3K24U Pro. Searches for itel 3kw inverter manual, itel 3kw hybrid inverter datasheet, itel 3kw pro datasheet, and itel 3kw inverter datasheet pdf should be matched carefully to this exact model.
