Livoltek 6.2kW IP21 Hybrid Inverter

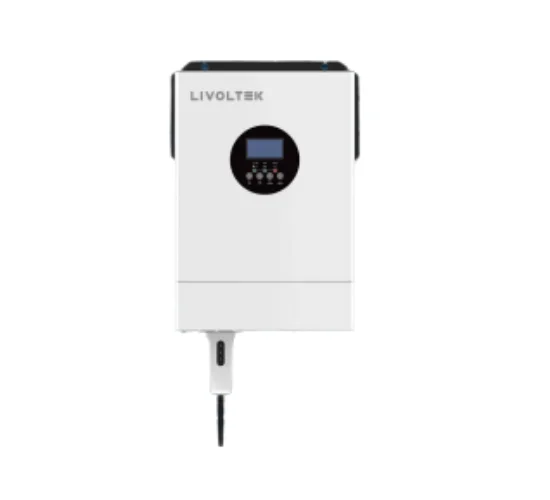

Livoltek 6.2kW Hybrid Inverter Overview

The Livoltek 6.2kW Hybrid Inverter is a solar inverter designed to manage power from solar panels, batteries and the utility supply. With a rated capacity of 6.2kW, it provides a practical option for users planning a solar system with battery backup.

Its maximum PV input capacity of 6500W allows the inverter to work with a substantial solar array within the permitted electrical limits. In addition, the built-in MPPT solar charger helps manage PV power, while the 48V battery architecture supports both lead-acid and lithium battery types.

The inverter also features pure sine wave output, adjustable output priority modes and LCD + APP monitoring. Together, these functions help users manage their solar power system according to their energy requirements.

Why Choose the Livoltek 6.2kW Inverter?

6500W Maximum Solar Input

The inverter supports up to 6500W maximum PV input power. This gives system designers flexibility when planning the solar array, provided the PV voltage and current limits are respected.

48V Battery Support

Its 48V battery architecture supports lead-acid and lithium batteries. Furthermore, the inverter offers lithium battery activation and RS485 communication, allowing supported lithium battery systems to communicate with the inverter.

High Solar Charging Current

The built-in MPPT charger supports up to 120A maximum solar charging current. This charging capacity helps manage energy generated by the connected solar panels and transfer it to the battery system within the inverter’s limits.

Pure Sine Wave Output

The inverter provides a pure sine wave output with a nominal AC voltage of 220/230V. This output waveform is suitable for electrical equipment designed to operate on a compatible AC supply.

Solar and Battery Monitoring

The LCD + APP display provides a way to monitor and manage inverter operation. As a result, users can keep track of system performance and operating information through the available monitoring interface.

For additional information click Livoltek Official Website.

Best Applications for Livoltek 6.2kW Solar Inverter

The Livoltek 6.2kW inverter can be considered for:

• Homes requiring solar generation with battery backup.
• Users planning a 48V battery-based solar system.
• Residential installations with suitable solar panel capacity.
• Users who need lead-acid or supported lithium battery options.
• Solar systems where adjustable output priority is useful.
• Small businesses with electrical loads within the inverter’s rated capacity.

However, the final system design should be based on the actual connected load, battery capacity and PV array configuration.

Where the Livoltek 6.2kW Inverter May Not Be Suitable

This inverter may not be suitable for every installation. Consider another system configuration if:

• Your installation requires a high-voltage battery architecture.
• Your planned PV array exceeds the inverter’s voltage or current limits.
• Your connected load is higher than the inverter’s rated output.
• Your project requires a specific three-phase arrangement that has not been verified for the selected variant.
• You need a particular battery brand or BMS protocol that has not been confirmed as compatible.

Solar PV Input and MPPT Performance

The Livoltek 6.2kW inverter supports a maximum solar input power of 6500W and a maximum PV open-circuit voltage of 500V DC. Its MPPT voltage range is 60–500V DC, with a start-up voltage of 120V DC.

The inverter uses one MPPT with one string per MPPT and supports a maximum solar input current of 27A.

These limits are important when selecting solar panels and arranging them into a PV string. The total string open-circuit voltage must remain within the maximum permitted voltage. Similarly, operating voltage and current must remain within the inverter’s input limits.

Correct string design should also account for the effect of low temperatures on panel open-circuit voltage. Therefore, final panel quantity and string configuration should be calculated using the selected panel’s electrical specifications.

Battery Compatibility and Energy Storage

The inverter uses a 48V DC battery system and supports lead-acid and lithium batteries. This provides flexibility for users selecting a suitable battery solution for their solar installation.

Its battery charging specifications include:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection Voltage: 63V DC
• Charging Method: CC/CV
• Lithium Battery Activation: Supported
• Lithium Battery Communication: RS485
• Solar Charger Type: MPPT
• Maximum Solar Charging Current: 120A
• Maximum AC Charging Current: 80A
• Maximum Combined PV + AC Charging Current: 120A

For lithium battery installations, confirm the battery’s nominal voltage, charging limits and BMS communication compatibility before installation. Although RS485 communication is available, compatibility with a particular battery brand or model should not be assumed without checking the supported configuration.

Backup Power and Load-Shedding Performance

The inverter provides a 220/230V AC output with a pure sine wave waveform. Its transfer time is 10ms for personal computers and 20ms for home appliances.

It also supports a 200% surge power rating. However, this surge figure should not be treated as continuous operating capacity. Actual load planning must consider the running power and starting requirements of connected appliances.

The inverter includes overload protection with the following response specifications:

• 5 seconds at 140% load or above.
• 10 seconds at 110% to 140% load.

For reliable backup operation, calculate the combined running and starting loads before connecting appliances. In particular, high-starting-current equipment may require additional consideration.

AC Input and Parallel Operation

The inverter supports AC input from a compatible utility supply. Its nominal AC input voltage is 230V AC, and its acceptable input voltage range is:

• 170–280V AC for personal computers.
• 90–280V AC for home appliances.

Additionally, the inverter supports 50Hz/60Hz frequency with automatic sensing.

Generator integration and parallel expansion should only be planned after confirming the exact model variant and its supported operating configuration. Not every 6.2kW version necessarily supports the same parallel or output-port functions.

Monitoring and Communication

The Livoltek inverter includes an LCD + APP display for monitoring and system management. It also supports RS485 lithium battery communication, which can be used with a compatible battery BMS configuration.

The inverter’s available output priority modes include:

• UTL
• SOL
• SBU
• SUB

These modes provide different ways to prioritise utility, solar and battery power according to system settings and user requirements.

Technical Specifications of Livoltek 6.2kW Inverter

Recommended Solar System Size

The inverter has a maximum PV input power of 6500W. This is the maximum PV input rating, not a recommendation to connect any panel combination without checking the electrical design.

Before selecting panels, installers should verify:

• Total PV array power.
• Maximum open-circuit voltage of the string.
• MPPT operating voltage range.
• Maximum solar input current.
• Panel voltage changes under local temperature conditions.
• Correct cable sizing and DC protection.

The final solar array should remain within the inverter’s permitted PV voltage and current limits. For safe and suitable operation, a qualified installer should check the panel electrical specifications and string calculations before commissioning.

Livoltek 6.2kW Inverter Use in Pakistan

A battery-based solar inverter can help households manage daytime solar generation and maintain backup power during load-shedding periods. The Livoltek 6.2kW inverter combines solar input, battery charging and AC power management in one unit.

Its 48V battery system gives buyers the option to consider compatible lead-acid or lithium storage. Moreover, the 6500W maximum PV input provides room for a solar array designed within the inverter’s electrical limits.

In Pakistan’s hot weather, correct installation is important. The inverter should be installed in a suitable location with proper ventilation, protection from direct environmental exposure and enough clearance for fan-based cooling.

Livoltek 6.2kW Hybrid Inverter Price in Pakistan

The current price of Livoltek 6.2kW Inverter in Pakistan is Rs. 95,000 per unit.

The final solar system cost depends on the selected solar panels, battery capacity, mounting structure, protection equipment, wiring and installation requirements. Therefore, contact Hajvery Solar Energy to discuss the inverter and check the system configuration required for your property.

Hajvery Verified Product Information

Hajvery Solar Energy is also a Livoltek authorized dealer. Before purchasing, buyers should check the product model identification, physical condition, included accessories and applicable warranty details.

For battery-based installations, confirm the battery voltage and BMS communication requirements before finalising the system. The inverter’s 48V battery architecture should be matched with a compatible battery configuration.

Warranty and After-Sales Support

The Livoltek 6.2kW Hybrid Inverter comes with a 2-year official warranty. Buyers should retain their purchase documents and confirm the applicable warranty process and conditions at the time of purchase.

Hajvery Solar Energy is the Official Livoltek Distributor and an authorized Livoltek dealer. Customers can contact the team for product purchasing guidance and assistance with checking system requirements.

Before You Buy

Before purchasing the Livoltek 6.2kW inverter, consider the following points:

• Confirm that your connected load is suitable for a 6.2kW inverter.
• Check the solar panel array against the 6500W maximum PV input.
• Keep PV open-circuit voltage within the 500V DC limit.
• Ensure the PV string operates within the 60–500V DC MPPT range.
• Select a compatible 48V battery.
• Confirm lithium battery BMS communication compatibility if using lithium storage.
• Check the maximum charging current requirements.
• Plan suitable ventilation for fan-based cooling.
• Confirm the official warranty details before purchase.

Frequently Asked Questions

1. What is the Livoltek 6.2kW Hybrid Inverter Price in Pakistan?

The current price of Livoltek 6.2kW Inverter in Pakistan is Rs. 95,000 per unit. Contact Hajvery Solar Energy for availability and purchasing information.

2. What is the maximum solar input power?

The inverter supports a maximum PV input power of 6500W.

3. Which batteries are supported by the Livoltek 6.2kW Hybrid Inverter?

It supports 48V lead-acid and lithium batteries. However, for lithium batteries, confirm BMS communication compatibility before installation.

4. What is its maximum solar charging current?

The maximum solar charging current is 120A. The maximum AC charging current is 80A, while the maximum combined PV and AC charging current is 120A.

5. Does the Livoltek 6.2kW inverter support lithium battery communication?

Yes. It supports lithium battery activation and RS485 communication. The selected battery must have a compatible communication configuration.

6. What is the MPPT voltage range?

Its MPPT voltage range is 60–500V DC, with a start-up voltage of 120V DC and a maximum PV open-circuit voltage of 500V DC.

7. What is the protection rating?

The inverter has an IP21 protection rating and fan-based cooling.

8. What is the warranty period?

It comes with a 2-year official warranty. Confirm the applicable warranty process and conditions before purchase.

9. Where can I find the Livoltek 6.2kW inverter user manual?

For installation, wiring and operating instructions, use the official user manual for the exact inverter variant. Buyers searching for the Livoltek 6.2kW IP21 hybrid inverter manual PDF should verify that the manual matches their product before following its instructions.

Buy Livoltek 6.2kW Hybrid Inverter from Hajvery Solar Energy

Choose the Livoltek 6.2kW Hybrid Inverter for a solar installation designed around 48V battery storage and up to 6500W PV input. Hajvery Solar Energy can help you review the inverter’s capacity, battery requirements and solar panel configuration before purchase.

Contact Hajvery Solar Energy for product information and purchasing assistance.
