Itel 4KW Pro IP54 Hybrid Inverter

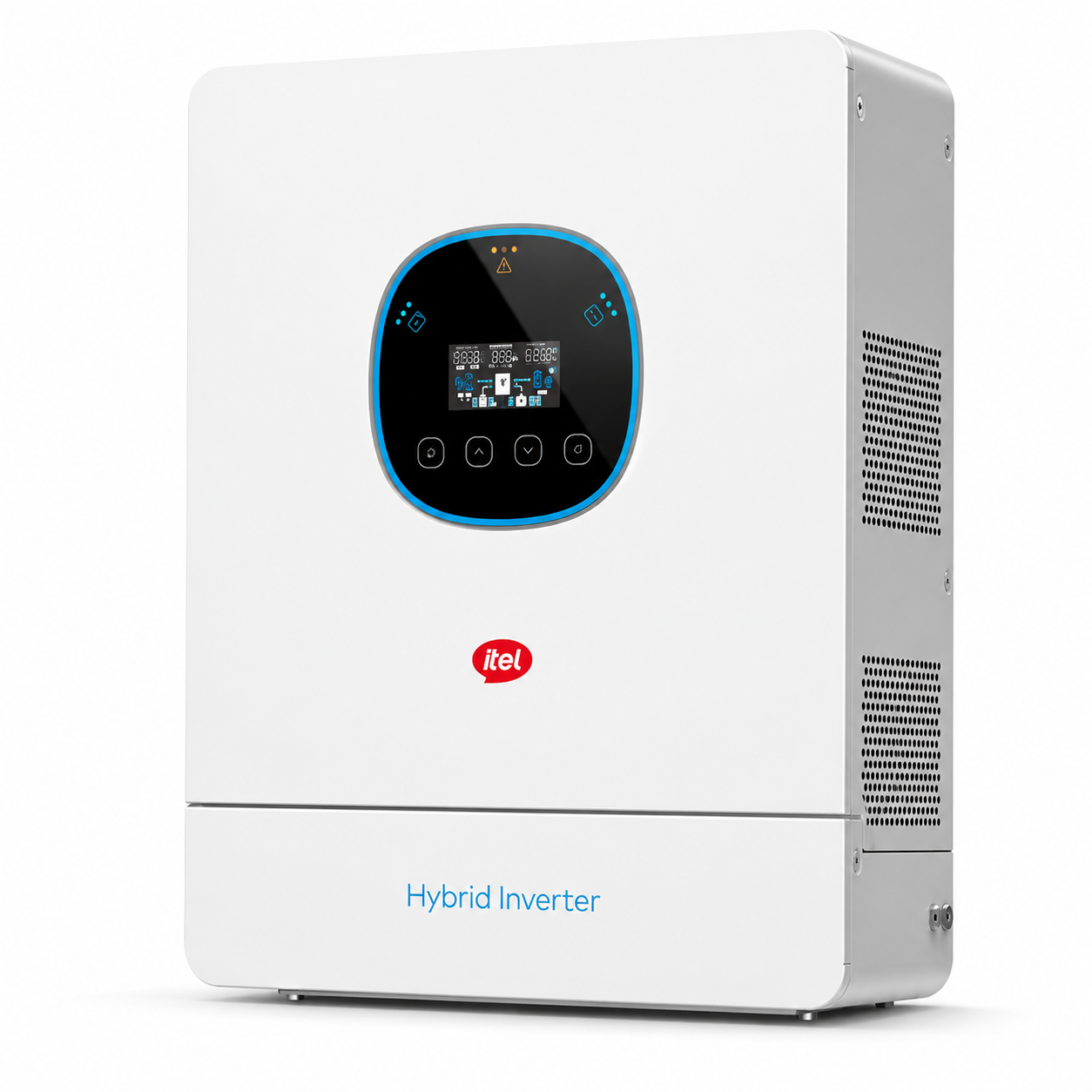

itel 4KW Pro Hybrid Inverter Overview

The itel 4KW Pro Hybrid Inverter is built for solar systems that need more than daytime PV generation. It combines solar power, battery storage and grid supply in one system while providing a dedicated backup output for loads that need power during grid interruptions.

With a 4000W nominal AC output, this inverter fits single-phase residential and selected small commercial applications. Its 24V battery architecture is suitable for buyers who specifically need a low-voltage battery system. The inverter supports lead-acid and lithium-ion batteries, with a battery voltage range of 20V to 30V.

On the solar side, the inverter accepts up to 6000W of PV input and provides an 85V–450V MPPT operating range. The maximum MPPT charging current reaches 120A, giving the system strong battery-charging capability when adequate solar generation is available.

The inverter also supports diesel generator integration, smart load support, Wi-Fi/RS485/RS232 communication and IP54 protection.

Why This Hybrid Inverter Stands Out

6000W PV Input for a 4kW Inverter

One of the key advantages of the itel 4kw hybrid inverter is its 6000W maximum PV input power against a 4000W rated AC output. This allows a properly designed system to install a larger solar array than the inverter’s AC rating, subject to the specified PV voltage, current and installation limits.

For buyers searching for itel 4kw pv, the important point is that this model accepts up to 6000W PV input, with a maximum PV voltage of 500V and an MPPT voltage range of 85V–450V.

120A Maximum MPPT Charging Current

The inverter supports up to 120A MPPT charging current. This helps make better use of available solar generation for charging a connected 24V battery bank.

Dual Output for Main and Smart Loads

The 4KW Pro supports smart load and main load outputs. This gives installers more flexibility when separating priority loads from other electrical loads in a hybrid solar installation.

Fast Backup Switching

The backup system provides a 10ms UPS switching time and 20ms switching time for appliances. This makes the backup output suitable for selected essential loads where a fast transfer between power sources is important.

IP54 Protection

The inverter has an IP54 ingress protection rating. For users searching itel 4kw ip54, this means the inverter has protection against limited dust ingress and water splashes from specified directions. Proper installation, ventilation and protection from direct environmental exposure are still important.

Best For

The itel 4KW Pro Hybrid Inverter is a suitable option for:

• Homes needing battery backup during power interruptions.
• Users looking for an itel 4kw inverter for a single-phase solar system.
• Buyers planning a 24V low-voltage battery system.
• Solar systems requiring up to 6000W PV input.
• Users who want both solar charging and grid/generator charging.
• Installations where selected loads need a dedicated backup output.
• Buyers who want smart load support in their hybrid solar system.
• Areas where load shedding makes battery-backed solar useful.

Not Ideal For

This model is not the right choice for every solar installation. Its 4000W rated AC output makes it unsuitable for systems that require a higher continuous inverter output. It also uses a 24V battery architecture, so it should not be selected for a system specifically designed around a higher-voltage battery bank.

It is also not an appropriate choice for a three-phase electrical requirement because this is a single-phase inverter.

Solar PV Input and MPPT Performance

The itel 4KW Pro Hybrid Inverter supports a maximum PV input power of 6000W. Its maximum PV input voltage is 500V, while the MPPT operating voltage range is 85V–450V.

The PV input specifications are:

• Maximum PV Input Power: 6000W
• Maximum PV Input Voltage: 500V
• Start-Up Voltage: 80V
• MPPT Voltage Range: 85V–450V
• Maximum PV Input Current: 13A
• MPPT Trackers: 1

For anyone searching itel 4kw pv, these limits are important when designing the solar array. Panel string design should keep the expected Voc and Isc, temperature effects and MPPT operating limits within the inverter’s permitted range.

The itel 4kw pro inverter therefore needs to be paired with a properly designed PV array rather than simply connecting panels based on total wattage alone.

Battery Compatibility and Energy Storage

The inverter uses a 24V low-voltage battery architecture and supports lead-acid, lithium-ion and user-defined battery settings.

Its battery specifications include:

• Battery Type: Lead-acid / Lithium-ion / User Defined
• Rated Battery Voltage: 24V
• Battery Voltage Range: 20V–30V
• Maximum MPPT Charging Current: 120A
• Maximum Mains/Generator Charging Current: 10A
• Maximum Discharging Current: 160A

The inverter is therefore suitable for buyers specifically looking for a 24V hybrid solar inverter with lithium-ion battery capability.

For lithium battery installations, the battery’s voltage, BMS communication requirements and compatibility should be confirmed before installation. The available communication interfaces include Wi-Fi, RS485 and RS232, along with a dry-contact interface.

If you are searching itel lithium battery 4kw price in pakistan, it is important to understand that 4kW refers to the inverter’s rated AC output, not the battery’s capacity. Battery capacity and battery price depend on the battery model, voltage, Ah rating and energy capacity. The inverter itself supports lithium-ion batteries but does not have a battery capacity of 4kW.

Backup Power and Load-Shedding Performance

For Pakistani homes dealing with load shedding, the backup output is one of the most important features of a hybrid inverter.

The itel 4KW Pro Hybrid Inverter provides a 4000W nominal AC output and supports fast transfer to backup operation. Its switching specification is 10ms for UPS mode and 20ms for appliances.

The inverter also provides surge capability of 8000W for 5 seconds. Its overload capability is specified at different durations, allowing short-duration higher loads within the stated limits.

Backup performance depends on the connected battery, battery condition, available solar power and the actual load. High-starting-current appliances should be assessed carefully before connecting them to the backup output.

Generator and Smart Load Support

The inverter supports diesel generator operation, giving users another charging and power-source option when solar generation and grid availability are insufficient.

It also supports smart load control. This can be useful when certain loads need to be managed separately from priority household loads.

For a hybrid system, generator integration should be planned according to the inverter’s electrical limits and the generator’s output characteristics.

Monitoring and Communication

The itel 4KW Pro Hybrid Inverter provides several communication interfaces for system monitoring and control.

Supported interfaces include:

• Wi-Fi
• RS485
• RS232
• Dry Contact

These interfaces can support system communication, monitoring and control functions depending on the connected equipment and installation configuration.

Technical Specifications

Solar PV Input

• Maximum PV Input Power: 6000W
• Maximum PV Input Voltage: 500V
• Start-Up Voltage: 80V
• MPPT Voltage Range: 85V–450V
• Maximum Input Current: 13A
• MPPT Trackers: 1

Battery

• Battery Type: Lead-acid / Lithium-ion / User Defined
• Rated Battery Voltage: 24V
• Battery Voltage Range: 20V–30V
• Maximum MPPT Charging Current: 120A
• Maximum Mains/Generator Charging Current: 10A
• Maximum Discharging Current: 160A

AC/Grid Input

• Maximum Grid Input Voltage: 380Vac
• Nominal Voltage: 230Vac
• Input Voltage Range: 90–280Vac
• Maximum AC Input Current: 28A in bypass mode
• Nominal Operating Frequency: 50Hz/60Hz
• THDi: <3%

AC Output

• Nominal AC Output Power: 4000W
• Maximum Apparent Power: 4000VA
• Nominal AC Output Voltage: 220V / 230V / 240V
• Total Voltage Harmonic Distortion: <3%
• Nominal AC Frequency: 50Hz
• Switching Time: 10ms UPS / 20ms appliances
• Surge Power: 8000W for 5 seconds
• Overload Capacity: 105–150% for 10 seconds; 150–200% for 5 seconds

General Specifications

• Dimensions: 120 × 347 × 445 mm
• Net Weight: 9.2 kg
• Operating Temperature: -10°C to +55°C
• Power Derating: Above 45°C
• Maximum Operating Altitude: 4000m
• Communication: Wi-Fi / RS485 / RS232 / Dry Contact
• Diesel Generator Support: Yes
• Smart Load Support: Yes
• Parallel Operation: No
• Cooling Method: Intelligent Fan Cooling
• Noise: <60dB
• Ingress Protection: IP54
• Overvoltage Protection: Yes
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Over Temperature Protection: Yes
• Surge Protection: DC Type II / AC Type II

itel 4KW Pro Hybrid Inverter Efficiency

The inverter provides MPPT tracking efficiency of ≥99.9% and maximum battery-mode conversion efficiency of ≥93%.

For a solar system, high MPPT tracking efficiency helps the inverter follow available PV power effectively. Actual energy yield will still depend on solar irradiation, panel configuration, temperature, wiring losses, battery condition and system loading.

Recommended Solar System Size

The inverter has a 4000W rated AC output but permits up to 6000W of PV input. These are two different ratings and should not be treated as the same figure.

A solar array can be designed up to the inverter’s stated PV input limit, but the final configuration must also respect:

• Maximum PV voltage
• PV string Voc
• PV input current
• MPPT voltage range
• Panel temperature correction
• Local installation conditions

The itel 4kw pro inverter datasheet search intent is particularly relevant for buyers and installers who want to check these limits before finalising the PV string configuration.

Hybrid Inverter Use in Pakistan

A 4kW hybrid inverter can be useful in Pakistan where households want to combine daytime solar generation with battery backup and grid power.

During the day, solar energy can supply connected loads while surplus available energy can be used for battery charging. During a grid interruption, the backup output can supply selected loads from the battery, subject to battery capacity and inverter limits.

The 24V battery architecture should be considered carefully because battery current becomes important at higher loads. Battery sizing, cable selection, DC protection and proper installation are especially important for a 4kW low-voltage hybrid system.

The inverter should also be installed in a properly ventilated location. Its operating temperature range extends from -10°C to +55°C, with power derating above 45°C, so heat management is important in Pakistan’s hot summer conditions.

itel 4KW Pro Hybrid Inverter Price in Pakistan

The itel 4kw price in pakistan is an important consideration for buyers comparing 4kW hybrid solar solutions.

The current price of the itel 4KW Pro Hybrid Inverter in Pakistan is Rs. 110,000.00.

For customers searching itel 4kw price, itel 4kw inverter price in pakistan, itel inverter 4kw price in pakistan, itel 4kw inverter price in pakistan olx or itel solar inverter 4kw price in pakistan, the important point is to check the exact model and current seller price rather than assuming that every 4kW itel inverter has the same price.

Hajvery Solar Energy is an itel Official Distributor, providing buyers with a direct route for product enquiries and applicable warranty support.

If you searched itel inverter 4kw ip54 price in pakistan, this 4KW Pro Hybrid Inverter is rated IP54 and is available at the current listed price above.

The phrase itel inverter 4kw ip65 price in pakistan may also appear in searches, but this model is IP54, not IP65. Buyers should not treat IP65 as a feature of this inverter.

Hajvery Verified Product Information

• Brand: itel
• Product Name: itel 4KW Pro Hybrid Inverter
• Exact Model: IPV-4K24U Pro
• Product Type: Single-Phase Low-Voltage Hybrid Inverter
• Rated Output: 4000W
• Battery Architecture: 24V Low Voltage
• Maximum PV Input: 6000W
• Protection Rating: IP54
• Battery Support: Lead-acid / Lithium-ion / User Defined
• Generator Support: Yes
• Smart Load Support: Yes
• Parallel Operation: No

For customers considering an itel 4kw inverter, the exact model IPV-4K24U Pro should be matched with the product name before purchase.

Warranty and After-Sales Support

The itel 4KW Pro Hybrid Inverter comes with a 3-Year Replacement Warranty + 5-Year Service Warranty.

Hajvery Solar Energy is an itel authorized dealer and can help customers with product selection, installation-related compatibility checks and applicable warranty guidance.

Warranty coverage should be handled according to the applicable warranty terms and conditions. Keep the purchase record, product details and serial information available for any future warranty requirement.

Before You Buy

Before purchasing the itel 4KW Pro Hybrid Inverter, check these points:

1. Confirm that your property requires a single-phase inverter.
2. Confirm that a 24V battery system matches your planned storage setup.
3. Check the battery’s voltage, capacity and BMS communication requirements.
4. Keep the PV array within the inverter’s 6000W maximum PV input and voltage/current limits.
5. Check panel Voc and Isc under the expected temperature conditions.
6. Decide which household loads should operate through the backup output.
7. Check high-starting-current appliances such as pumps, compressors and motors before connecting them.
8. Provide suitable DC and AC protection.
9. Install the inverter in a location with adequate ventilation.
10. Confirm generator requirements if diesel generator integration will be used.

For buyers searching itel 4kw manual, it is advisable to use the correct documentation for the IPV-4K24U Pro when checking installation, configuration and operating procedures.

Frequently Asked Questions

What is the itel 4kw?

The itel 4kw is a 4000W single-phase hybrid inverter with a 24V low-voltage battery architecture. It supports solar PV, battery storage, grid power and backup operation.

What is the itel 4kw pro?

The itel 4kw pro refers to the itel 4KW Pro Hybrid Inverter, model IPV-4K24U Pro. It provides 4000W nominal AC output and supports up to 6000W PV input.

What is the itel 4kw hybrid inverter price in pakistan?

The current price of the itel 4KW Pro Hybrid Inverter in Pakistan is Rs. 110,000.00.

Is the itel 4kw pro ip54 hybrid inverter suitable for outdoor installation?

The inverter has an IP54 protection rating, which provides protection against limited dust ingress and water splashes. It should still be installed in a suitable location with proper ventilation and protection from direct environmental exposure.

Does the itel 4kw support lithium batteries?

Yes. The inverter supports lithium-ion batteries as well as lead-acid and user-defined battery settings. The battery voltage, BMS communication and compatibility should be checked before installation.

Can I use a 6000W solar array with the itel 4KW Pro?

The inverter supports a maximum PV input power of 6000W. The PV array must also remain within the specified voltage and current limits, including the 500V maximum PV voltage and 13A maximum input current.

What is the difference between the itel 4kw inverter datasheet and the actual product?

The itel 4kw inverter datasheet provides the technical limits and operating specifications used to select and configure the inverter. Buyers should match those specifications with the exact IPV-4K24U Pro model before installation.

Why do some searches show itel 4kw ip65?

If you search itel 4kw ip65, this model should not be treated as an IP65 inverter. The itel 4KW Pro is rated IP54. Therefore, searches such as itel 4kw ip65 price in pakistan or itel inverter 4kw ip65 price in pakistan should be interpreted carefully when comparing products.

Is the 4kW rating the battery capacity?

No. The 4kW rating refers to the inverter’s nominal AC output power. If someone searches itel lithium battery 4kw price in pakistan, they may be looking for a battery to pair with a 4kW inverter. Battery capacity is specified separately according to its voltage, Ah and energy capacity.

Buy itel 4KW Pro Hybrid Inverter from Hajvery Solar.

Hajvery Solar Energy is an Official itel Distributor for this product and provides a direct route for current product enquiries, purchase assistance and applicable warranty guidance.

Buying from Hajvery Solar Energy, an authorized itel dealer, also gives customers a clear point of contact for product compatibility and after-sales guidance.
