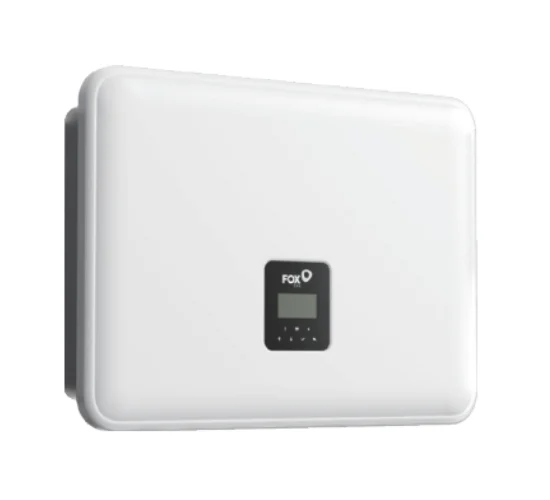

Fox 12kW H3 SMART Three Phase Hybrid Inverter
₨478,000.00
The Fox 12kW H3 SMART Three Phase Hybrid Inverter is a powerful inverter designed for seamless solar integration, battery storage, and grid support. With advanced MPPT technology, high efficiency, and smart monitoring, it delivers reliable energy management for large homes, offices, and commercial setups.
Specifications
- Brand: Fox ESS
- Model: H3 Smart 12 (Hybrid Series)
- Type: Hybrid Inverter (Three-Phase)
- Rated Power: 12 kW
- Battery Voltage Range: 180V – 600V (Lithium-Ion / LiFePO4 Supported)
- Input Voltage (DC): Max. 1000V
- MPPTs: 3 (Independent MPPTs for maximum solar harvesting)
- Max. PV Input Current: 26A per MPPT
- AC Output (Nominal): 400V Three-Phase
- Efficiency: Up to 98.6%
- Backup Output: Provides emergency power for essential loads during grid failure
- Communication: RS485 / CAN / WiFi / Ethernet (optional)
- Protection Features: Overvoltage, Undervoltage, Overload, Short Circuit, Reverse Polarity, Anti-Islanding, Arc Fault Protection
- Cooling: Smart Air Cooling
- Installation: Wall-Mounted, Indoor/Outdoor (IP65 Rated)
- Operating Temperature: -25°C to +60°C
- Dimensions: Approx. 563 × 600 × 200 mm
- Weight: \~32 kg
- Warranty: 5 Years Standard (Extendable)
Fox 12kW H3 SMART Three Phase Hybrid Inverter – Advanced Solar + Storage Solution for Pakistan
The Fox 12kW H3 SMART Three Phase Hybrid Inverter is designed for high-performance solar energy management and reliable backup power for larger homes, offices, and small businesses. With three-phase output, it delivers smooth and stable operation even under higher load requirements.
Equipped with multiple MPPTs, the H3 SMART 12 ensures maximum solar energy harvesting from different panel orientations. Offering up to 98.6% efficiency, it provides excellent energy conversion and long-term savings. The inverter supports advanced lithium battery storage, enabling users to store excess solar power for nighttime usage or load shedding, ensuring an uninterrupted power supply.
With its IP65 protection rating, the inverter is suitable for both indoor and outdoor installations. The built-in smart monitoring system allows real-time tracking and optimization of solar performance, giving users complete control over their energy consumption.
Why Choose Fox 12kW H3 SMART Hybrid Inverter?
Fox ESS is a global leader in hybrid inverter technology, delivering durability, advanced safety features, and intelligent energy solutions. The H3 SMART 12 model is an excellent choice for those seeking energy independence, reliable backup, and the highest return on investment for larger-scale applications.
Available at HAJVERYSOLAR – Trusted Fox ESS Distributor in Pakistan
At HAJVERYSOLAR, we supply original Fox H3 SMART 12 hybrid inverters with professional installation, consultation, and warranty services across Pakistan.
Why Buy from HAJVERYSOLAR?
100% Genuine Fox ESS Inverters Competitive Market Prices Net Metering Approved in Pakistan Expert Installation & Engineering Support Reliable After-Sales & Warranty Services
Buy Fox 12kW H3 SMART Three Phase Hybrid Inverter with multiple MPPTs, lithium battery support, and 98.6% efficiency. A powerful three-phase hybrid inverter with backup power, available now at HAJVERYSOLAR Pakistan.
