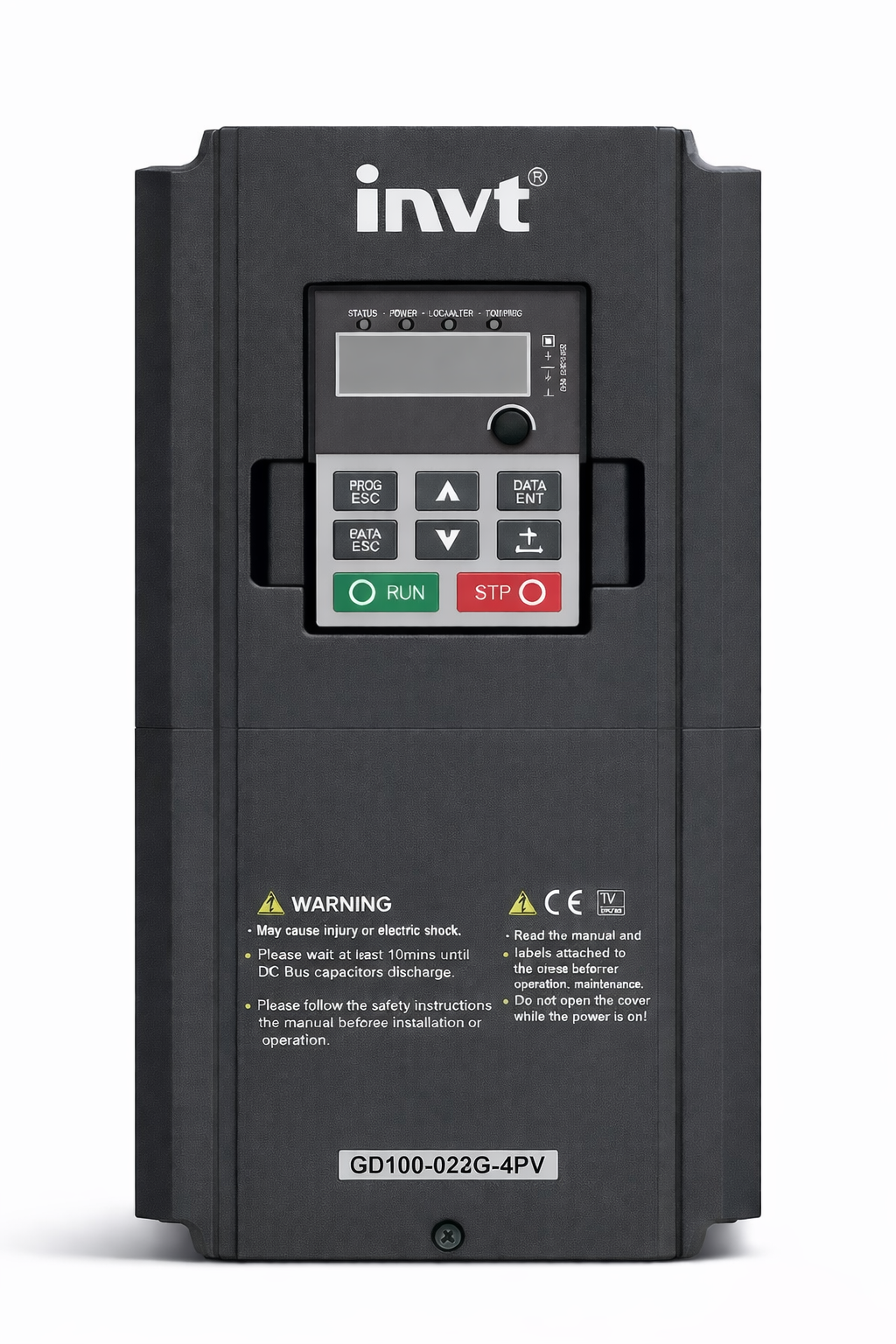

INVT GD100 22KW Original
₨180,000.00
Specifications
- Brand: INVT
- Model: GD100-022G-4-PV
- Drive Type: MPPT Solar VFD
- Rated Power: 18.5kW (30HP)
- DC Input Voltage Range: 350V – 800V
- AC Input Voltage: 3-Phase 380V ±15%
- Output Voltage: 3-Phase, 0 – 380V Adjustable
- Output Frequency: 0 – 400Hz
- MPPT Efficiency: >99%
- Motor Compatibility: Induction & Permanent Magnet (PMSM)
- Cooling Method: Intelligent Fan Cooling
- Display: Digital LED with Keypad
- Communication: RS485 (Modbus RTU Supported)
- IP Rating: IP20
- Operating Temperature: -10°C to +50°C
- Dimensions: Approx. 502 x 280 x 222 mm
- Weight: ~17.5 kg
- Warranty: 1-Year Manufacturer Warranty
INVT GD100 22kW Original – Solar Pump Variable Frequency Drive
The INVT GD100 22kW Original is a high-capacity solar pump VFD engineered for precise speed control of three-phase motors in demanding agricultural and industrial applications. Designed specifically for photovoltaic water pumping systems, it delivers stable performance, intelligent energy optimization, and long-term reliability.
With its advanced MPPT technology, the GD100 series continuously tracks the maximum power point of solar panels to maximize energy harvesting and improve pumping efficiency.
Key Features & Benefits – Hajvery Solar Energy
The INVT GD100 22kW drive provides intelligent motor control even under changing sunlight and load conditions. Its hybrid AC/DC capability allows automatic switching between solar input and grid power, enabling uninterrupted 24/7 pump operation.
Comprehensive built-in protections — including overload, overvoltage, overheating, reverse polarity, and dry-run protection — help ensure safe operation and extended equipment life.
Highlights:
-
Advanced MPPT solar optimization (>99%)
-
Supports AC/DC hybrid operation
-
Stable vector motor control
-
Wide voltage compatibility
-
Multiple intelligent protections
-
RS485 / optional remote monitoring
-
User-friendly digital display
Typical Applications – Hajvery Solar Energy
The INVT GD100 22kW Original is ideal for:
-
Solar water pumping systems
-
Agricultural irrigation projects
-
Borehole and deep well pumps
-
Remote water supply systems
-
Industrial motor control
The GD100-PV series is widely used for irrigation, desert water supply, and other PV pumping applications.
Why Choose Hajvery Solar Energy
Hajvery Solar Energy supplies genuine INVT GD100 22kW Original drives across Pakistan with expert technical support and dependable after-sales service. Our team assists with correct sizing, installation guidance, and system optimization.
Upgrade your solar pumping system with the INVT GD100 22kW Original for efficient, reliable, and energy-saving motor control.
Hajvery Solar Energy provides nationwide delivery across Pakistan for all major solar energy products. We ensure safe, reliable, and timely delivery to residential, commercial, and industrial locations.
Products Available for Delivery
We deliver the following products all over Pakistan:
-
Solar Panels
-
Solar Inverters
-
VFDs (Variable Frequency Drives)
-
Lithium Batteries
-
Solar Accessories & Related Equipment
Contact for Orders & Delivery
-
For Solar Panels and VFDs:
Chat on WhatsApp
-
For Solar Inverters & Li-Batteries:
Chat on WhatsApp
Our team will guide you regarding product availability, pricing, delivery timelines, and logistics based on your location.
Related products
INVEREX King Series 11KW VFD
₨66,080.00
INVEREX King Series 15KW VFD
₨77,880.00
INVEREX King Series 30KW VFD
₨128,620.00
INVEREX King Series 37KW VFD
₨164,020.00

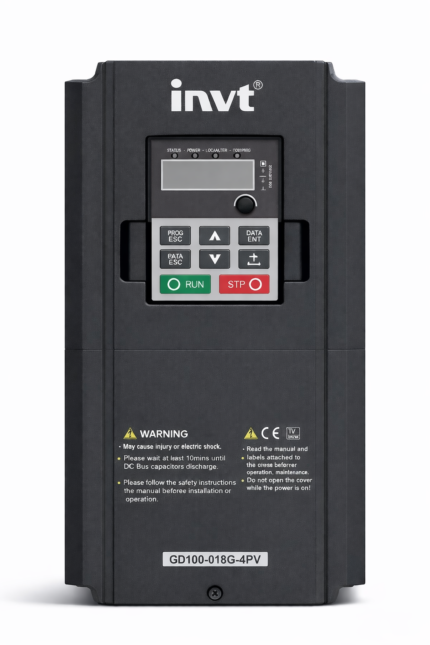

INVT GD100 18.5kW Original
