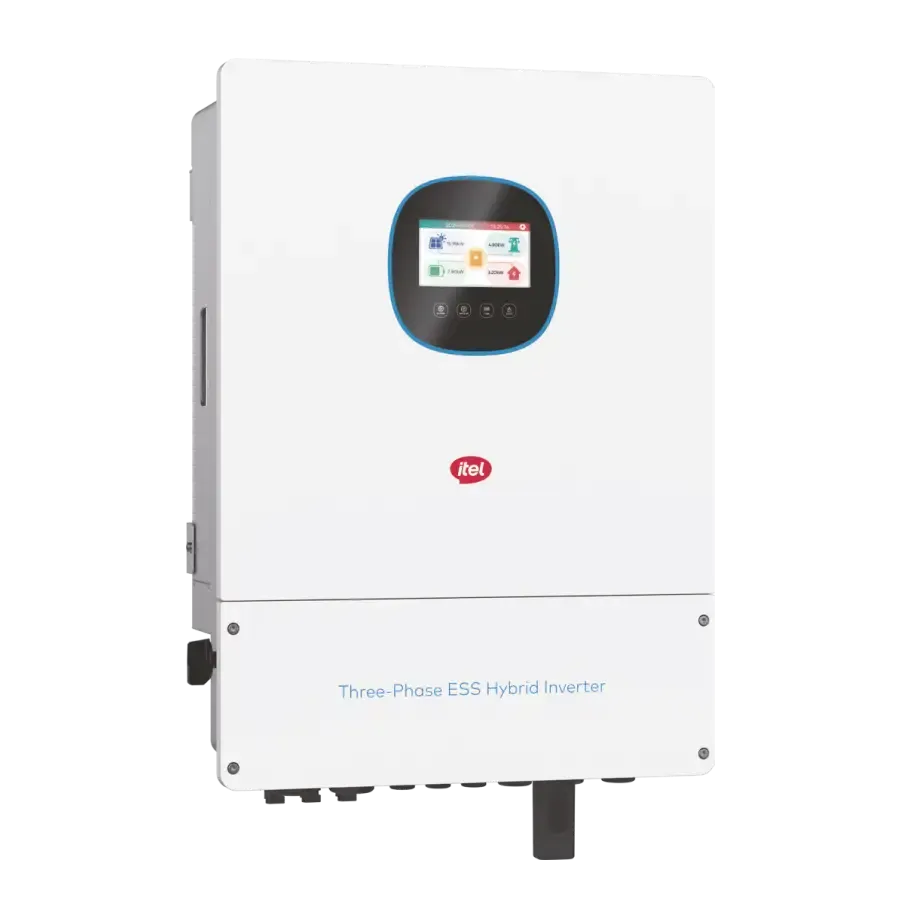

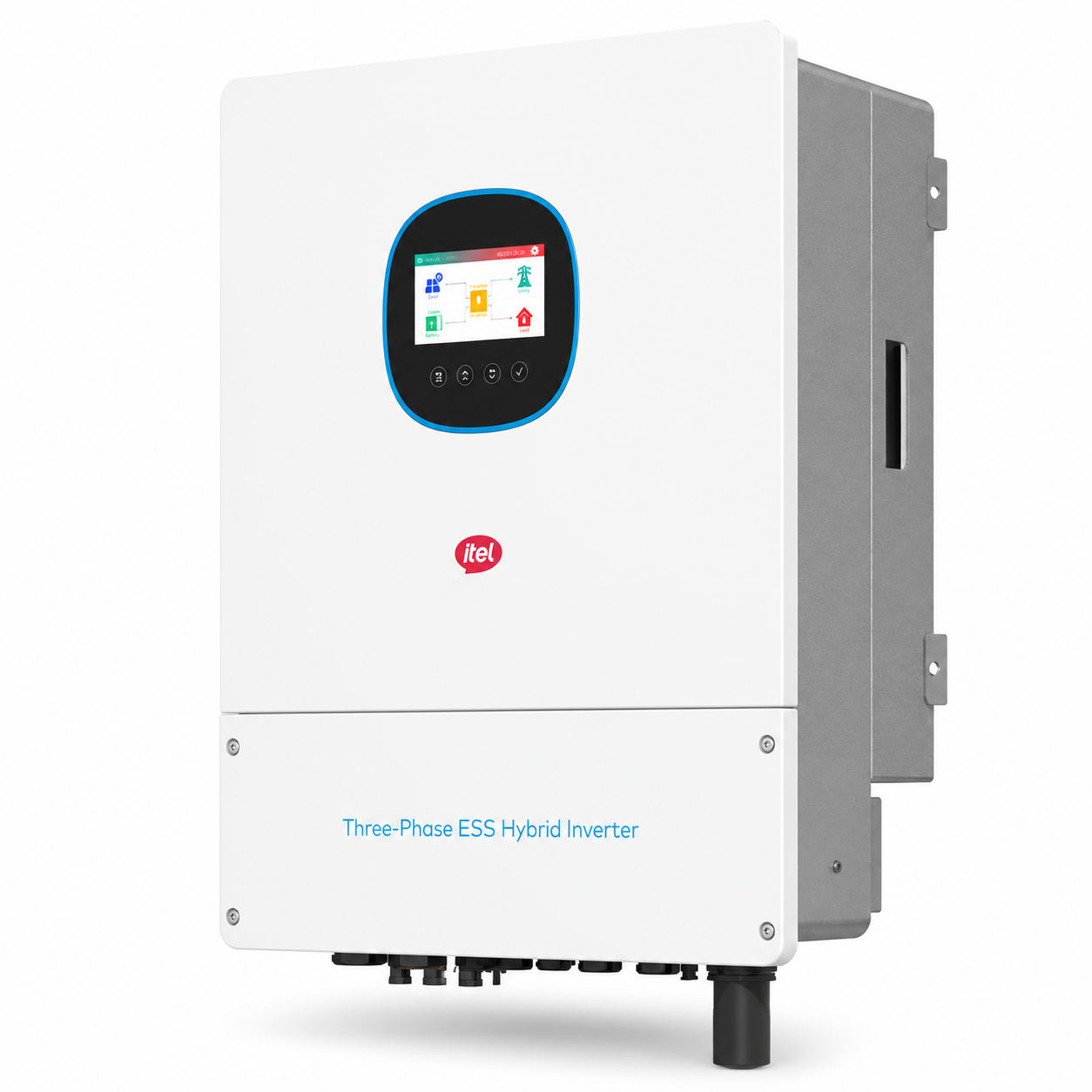

Itel 8kW IP66 Three-Phase Hybrid Inverter – Reliable Solar Solution for Homes & Businesses

The Itel 8kW IP66 Three-Phase Hybrid Inverter is a powerful and efficient solar-energy solution designed for homes, offices, shops, and small commercial businesses in Pakistan. It delivers stable three-phase performance with intelligent energy management by combining solar power, battery storage, grid supply, and backup output for uninterrupted electricity.

With advanced hybrid technology, dual output capability, and a durable IP66-rated design, this inverter ensures maximum energy savings and dependable operation. It is an excellent choice for customers searching for the Itel 8kW three-phase hybrid inverter price in Pakistan and a high-performance solar system for residential or commercial use.

High Efficiency & Smart Energy Management

The Itel 8kW Three-Phase Hybrid Inverter provides an 8kW nominal output power with IP66 protection, helping protect the unit against dust and water exposure in demanding installation environments.

It supports lead-acid, lithium-ion, and user-defined battery configurations with a rated battery voltage of 48VDC and a battery operating range of 40V to 60V. The inverter can handle a maximum battery charging and discharging current of 190A, making it suitable for high-performance energy-storage systems.

Key technical highlights include:

• Advanced MPPT technology with 99.9% tracking efficiency
• Maximum PV input power of 16,000W
• Maximum DC input voltage of 1,000V
• Wide MPPT voltage range of 200V to 800V
• Two independent MPPT trackers
• Maximum PV input current of 18A/18A
• 8kW nominal on-grid and backup output
• Peak backup output of 16,000VA for 15 seconds
• Fast 10ms switching to backup mode
• Intelligent fan cooling system
• Dual three-phase output capability
• Smart-load and diesel-generator support
• Parallel operation of up to 12 units

This makes it a strong choice for users comparing the Itel 8kW inverter price in Pakistan and seeking reliable three-phase solar performance.

Itel 8kW Three-Phase Hybrid Inverter Price in Pakistan

For customers searching for the Itel inverter price in Pakistan, the 8kW IP66 three-phase hybrid model offers excellent value considering its solar-input capacity, backup performance, durable enclosure, battery compatibility, and advanced energy-management features.

The Itel 8kW IP66 Three-Phase Hybrid Inverter price in Pakistan may vary depending on product availability, installation requirements, battery configuration, system design, and warranty package. However, it remains a cost-effective option for residential and small commercial three-phase solar installations.

For updated pricing, consult an authorized supplier such as HAJVERY SOLAR Energy.

Why Choose the Itel 8kW Three-Phase Hybrid Inverter?

The Itel 8kW three-phase inverter price in Pakistan makes it a competitive choice for homeowners and businesses looking to reduce electricity costs while maintaining reliable backup power.

Benefits include:

• Stable and uninterrupted three-phase power supply
• High-efficiency solar-energy conversion
• Reduced grid-electricity consumption
• Smart hybrid operation using solar, grid, battery, and generator
• Durable IP66 dust- and water-resistant enclosure
• Dual-output capability
• Fast transition to backup power
• Support for lithium-ion and lead-acid batteries
• Intelligent smart-load management
• Expandable operation through parallel connection
• Quiet operation below 55dB
• Advanced electrical and thermal protection

Whether used for residential properties, offices, shops, or small commercial setups, the Itel 8kW hybrid inverter provides intelligent system control, easy monitoring, and dependable performance.

Powerful Solar Input

The inverter supports up to 16,000W of PV input power, allowing users to install a large solar-panel array relative to the inverter’s nominal output capacity.

Its solar-input system includes:

• Maximum PV input power: 16,000W
• Maximum DC input voltage: 1,000V
• Start-up voltage: 150V
• MPPT operating range: 200V–800V
• Maximum input current: 18A/18A
• Number of MPPT trackers: 2
• MPPT tracking efficiency: 99.9%
• Maximum PV conversion efficiency: 98%
• European efficiency: 97.5%

These features allow the inverter to capture and convert solar energy efficiently under varying weather and panel conditions.

Reliable Three-Phase On-Grid Output

The Itel IHY-8KL3 delivers a nominal three-phase on-grid output power of 8,000W and a maximum apparent power of 8,800VA.

Its on-grid output specifications include:

• Nominal output voltage: 220/380VAC or 230/400VAC
• Rated/maximum output current: 12A/13.3A
• Output-voltage range: 180–280VAC line-to-neutral
• Output-frequency range: 45–65Hz
• Power-factor adjustment: 0.8 leading to 0.8 lagging
• Total current harmonic distortion: Less than 3%

This ensures stable and efficient electricity delivery for compatible three-phase loads.

Fast and Powerful Backup Output

During grid failure, the inverter switches to backup mode in approximately 10ms, helping maintain continuous operation of connected equipment.

Backup-output features include:

• Nominal backup output power: 8,000W
• Maximum apparent output power: 8,800VA
• Peak power: 16,000VA for 15 seconds
• Motor-load capacity: Up to 3HP single phase or 4.5HP three phase
• Maximum three-phase unbalanced output current: 18A
• Nominal output frequency: 50/60Hz
• Total voltage harmonic distortion: Less than 3%

Its high surge capacity allows the system to handle motor-starting currents and temporary load increases more effectively.

Battery Compatibility & High Charging Current

The inverter supports several battery options, providing flexibility for different backup and budget requirements.

Supported battery types:

• Lead-acid batteries
• Lithium-ion batteries
• User-defined battery settings

Battery specifications:

• Rated battery voltage: 48VDC
• Battery voltage range: 40V–60V
• Maximum charging/discharging current: 190A

This makes the inverter suitable for modern high-capacity lithium battery banks as well as compatible lead-acid systems.

Smart Load, Generator & Parallel Support

The Itel 8kW hybrid inverter supports both smart-load management and diesel-generator integration. These functions allow the system to manage important and non-essential loads more effectively while using generator input when solar, battery, or grid power is insufficient.

Up to 12 units can be connected in parallel, enabling larger hybrid systems with a combined capacity of up to approximately 96kW, depending on approved system configuration and installation design.

IP66 Protection & Reliable Cooling

The inverter features an IP66-rated enclosure, offering strong protection against dust and water exposure. This makes it suitable for more challenging installation environments than standard indoor-only inverter models.

Its intelligent fan-cooling system supports stable operation across an operating-temperature range of -25°C to 60°C. Power derating applies above 45°C.

The operating noise level remains below 55dB, supporting quieter operation in residential and commercial environments.

Advanced Communication & Monitoring

The inverter provides multiple communication options for system monitoring and battery integration:

• Wi-Fi
• RS485
• CAN
• Dry contact

These interfaces support remote monitoring, battery communication, system control, and integration with compatible energy-management equipment.

Comprehensive Safety Protection

The Itel IHY-8KL3 includes multiple protection systems to support safe and reliable operation:

• PV reverse-polarity protection
• Insulation-impedance detection
• Residual-current monitoring
• Overvoltage protection
• Overload protection
• Short-circuit protection
• Over-temperature protection
• Type III DC surge protection
• Type III AC surge protection

The inverter is also listed with IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62116, and IEC 61727 authentication standards in the uploaded datasheet.

Available at HAJVERY SOLAR Energy – Trusted Solar Expert in Pakistan

At HAJVERY SOLAR Energy, we provide genuine Itel solar products with professional support services across Pakistan.

We offer:

• 100% original Itel 8kW hybrid inverters
• Competitive Itel inverter prices in Pakistan
• Professional installation and system design
• Detailed load analysis and consultation
• Battery and solar-panel configuration
• After-sales service and warranty support
• Technical assistance for residential and commercial projects

Order the Itel 8kW Three-Phase Hybrid Inverter Today

Upgrade your energy system with the powerful Itel 8kW IP66 Three-Phase Hybrid Inverter and benefit from reliable three-phase output, efficient solar conversion, high-capacity battery charging, fast backup switching, and intelligent energy management.

Buy now from HAJVERY SOLAR Energy and get a competitive deal on the Itel 8kW Three-Phase Hybrid Inverter price in Pakistan, with complete installation, consultation, and after-sales support.
