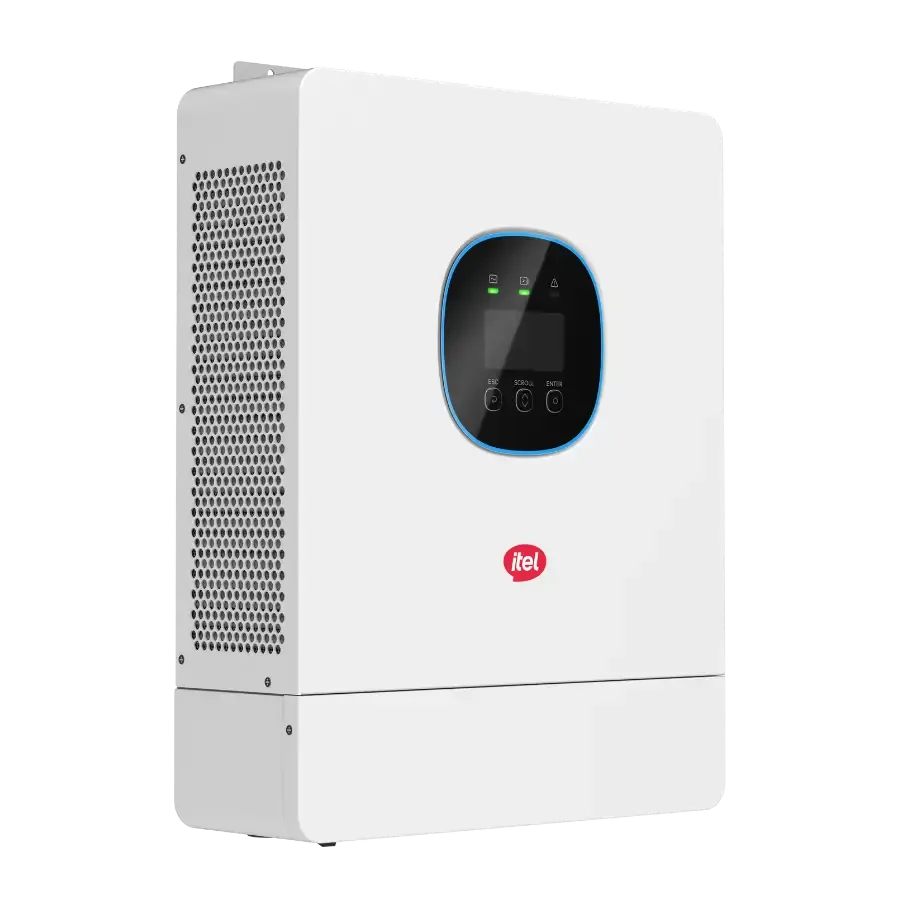

Itel 6KW Pro IP54 Hybrid Inverter

itel 6KW Pro Hybrid Inverter Overview

The itel 6kW Pro IP54 Hybrid Inverter is designed for solar systems that need more than daytime PV generation. It combines solar input, battery storage, grid supply and backup output, allowing users to manage energy according to their system requirements. The Itel 6kW Pro Hybrid Inverter price in Pakistan is an important consideration when choosing a reliable solar backup solution.

This model provides a 6kW rated AC output and accepts up to 8kW of PV input. Therefore, installers have room to design a higher-capacity solar array while staying within the inverter’s electrical limits. Its 48V battery architecture supports lead-acid, lithium-ion and user-defined battery configurations, with a battery voltage range of 40V–60V.

Another important feature is its dual-output capability, which supports both smart load and main load connections. In addition, the inverter supports diesel generator integration and smart load management. For backup applications, it provides a specified switching time of 10ms for UPS loads and 20ms for appliances, while its surge capability reaches 12kW for 5 seconds.

For Pakistani homes and selected commercial systems, the itel 6KW Pro offers a combination of solar generation, battery backup and controlled load management.

Why This Hybrid Inverter Stands Out

High PV Input for a 6kW Inverter

The inverter supports up to 8kW maximum PV input power while providing 6kW rated AC output. This allows installers to size the solar array above the inverter’s AC rating, provided the arrangement stays within the specified voltage and current limits.

On the PV side, it supports up to 500V maximum PV input voltage, with an 85V–450V MPPT voltage range and an 80V startup voltage.

For additional information click Itel Official Website.

120A Battery Charging Capability

The 120A maximum MPPT charging current provides a strong battery-charging capability from solar. The inverter also supports up to 120A mains/generator charging current. As a result, users can consider grid or generator charging when their system requires it.

Dual Output for Load Management

The dual-output design supports smart load and main load connections. This gives installers greater control over how different loads receive power and operate within the hybrid system.

Fast Backup Switching

The inverter provides a specified 10ms switching time for UPS loads and 20ms for appliances. Therefore, it can suit backup applications where connected equipment requires relatively fast transfer between power sources.

Generator and Smart Load Support

The inverter provides both diesel generator support and smart load support. These functions can help in systems where grid availability is inconsistent or where users need to control selected loads.

Best For

The itel 6KW Pro Hybrid Inverter is particularly suitable for:

• Homes requiring solar battery backup during grid outages.
• Users looking for a 6kW single-phase hybrid inverter.
• Solar systems with a PV array of up to the permitted 8kW input capacity.
• Installations using 48V lithium-ion or lead-acid batteries.
• Systems where smart load management is useful.
• Users who want generator support as an additional energy source.
• Installers designing systems where fast backup transfer is important.
• Buyers searching for an itel 6kw hybrid inverter for residential or selected commercial applications.

Not Ideal For

This inverter may not be the right choice where:

• A three-phase inverter is required.
• The project needs an HV battery system rather than a 48V battery architecture.
• The planned PV array exceeds its voltage, current or power limits.
• The installation requires more than 6kW rated AC output from a single inverter.
• Multiple inverters must operate in parallel, as parallel operation is not supported by this model.
• The installation requires a protection level higher than IP54.

Solar PV Input and MPPT Performance

The itel 6kW Pro IP54 Hybrid Inverter supports a maximum PV input power of 8000W. Its maximum PV input voltage is 500V, while the MPPT operating range is 85V–450V. The inverter starts PV operation from 80V.

The PV input supports a maximum current of 27A and uses one MPPT tracker.

These limits are important when designing the solar array. Installers should not select panels based on wattage alone. Instead, they should check the selected modules’ Voc, Vmp, Isc and Imp, together with temperature-adjusted voltage and the inverter’s maximum PV voltage and current limits.

For buyers researching itel 6kw inverter specifications, these electrical limits matter because they determine how the PV strings can be configured.

Battery Compatibility and Energy Storage

The inverter uses a 48V battery architecture with an operating battery voltage range of 40V–60V. Its supported battery types include lead-acid, lithium-ion and user-defined battery configurations.

The maximum MPPT battery charging current is 120A, while the maximum mains/generator charging current is also 120A. Furthermore, the maximum battery discharging current is 130A.

Battery selection should therefore consider:

• Battery nominal voltage
• Operating voltage range
• Maximum charge current
• Maximum discharge current
• Battery BMS requirements
• Communication compatibility
• Required backup capacity

Buyers searching for itel 6kw battery or itel 6kw pro battery should understand that the inverter requires a suitable 48V battery system. In particular, lithium battery compatibility should be checked at system level, including voltage, BMS communication and operating limits.

If you are comparing itel 6kw lithium battery price in pakistan, remember that the battery is a separate system component. Its price depends on capacity, chemistry, BMS, brand and other specifications.

Backup Power and Load-Shedding Performance

For Pakistan’s load-shedding environment, backup capability is an important reason to consider a hybrid inverter.

The itel 6KW Pro Hybrid Inverter provides a 6kW nominal AC output and supports dual-output load management. Its specified switching time is 10ms for UPS loads and 20ms for appliances.

Additionally, the inverter provides a 12kW surge capability for 5 seconds. This can help accommodate suitable short-duration starting or surge demands. However, actual load compatibility depends on the appliance type, starting current and total connected load.

The battery must have sufficient capacity and discharge capability for the required backup loads. A 48V battery with inadequate current capability should not be paired with high-demand loads simply because the inverter has a 6kW rating.

Generator and Smart Load Support

The inverter supports diesel generator input and smart load management.

Generator integration offers another way to charge the battery or supply power when solar generation and grid availability are insufficient. However, the generator should be sized and connected according to its electrical characteristics and the inverter’s input requirements.

The smart load feature can also help installers separate priority loads from controllable loads when the system design requires different operating priorities.

Monitoring and Communication

The inverter provides several communication interfaces, including Wi-Fi, RS485, RS232 and dry contact.

These interfaces support system monitoring, communication and control functions according to the connected equipment and installation setup.

Before installation, users should consider the communication requirements, particularly when adding batteries or external control equipment. Rather than assuming that every battery or monitoring accessory will communicate automatically, installers should verify the appropriate communication method and settings for the complete system.

Technical Specifications

Solar PV Input

Battery

AC/Grid Input

AC Output and Backup

General Specifications

Recommended Solar System Size

The inverter has a 6kW AC output rating and supports up to 8kW of PV input power. However, these are two different system-design values.

An 8kW maximum PV input does not mean that every 8kW panel arrangement will be electrically suitable. The final solar array must remain within the inverter’s 500V maximum PV voltage, 85V–450V MPPT range and 27A maximum input current.

String design should account for:

• Panel Voc
• Panel Vmp
• Panel Isc
• Panel Imp
• Temperature-related voltage changes
• MPPT operating limits
• Installation conditions

A qualified installer should calculate the final string configuration before carrying out the installation.

Hybrid Inverter Use in Pakistan

For Pakistani solar users, a hybrid inverter can provide more flexibility than a basic solar-only system. This is because it can coordinate solar generation, battery storage, grid supply and backup loads.

The itel 6KW Pro Hybrid Inverter can suit installations where daytime solar generation needs to work alongside battery backup during periods of grid unavailability. Its 48V battery design also makes battery selection an important part of system planning.

Installation quality matters in Pakistan’s hot summer conditions. Therefore, installers should choose a suitable location with adequate ventilation. They should also ensure that electrical protection, earthing, cable sizing and battery installation meet the requirements of the complete solar system.

The inverter has a specified operating temperature range up to +55°C, with power derating above 45°C. For this reason, installers should pay particular attention to installation temperature and ventilation.

itel 6KW Pro Hybrid Inverter Price in Pakistan

The current price of itel 6KW Pro Hybrid Inverter in Pakistan is Rs. 135,000 per unit.

Buyers searching for itel 6kw price, itel 6kw pro price, itel 6kw inverter price in pakistan, itel 6kw pro inverter price in pakistan, itel 6kw hybrid inverter price in pakistan, or itel solar inverter 6kw price in pakistan can use the current Hajvery Solar price as a reference for this product. However, buyers should confirm availability and quantity-based pricing before ordering.

Hajvery Solar Energy is an itel Official Distributor, providing buyers with a direct route for product enquiries and purchasing support.

Information for Buyers Searching IP65 or IP66 Versions

Some online searches use phrases such as itel 6kw ip66 inverter price in pakistan, itel 6kw ip66, itel inverter 6kw ip65 price in pakistan, itel 6kw ip54 inverter price in pakistan, and itel ip54 6kw price in pakistan.

For clarity, the itel 6kW Pro IP54 Hybrid Inverter is rated IP54. Therefore, buyers should not treat this model as an IP65 or IP66 inverter.

This distinction matters when selecting an inverter for an outdoor installation. IP54 provides a specific level of protection against dust ingress and water exposure. Nevertheless, the installation location should still provide suitable protection from direct environmental exposure and meet the appropriate installation requirements.

Hajvery Verified Product Information

• Brand: itel
• Product Name: itel 6KW Pro Hybrid Inverter
• Product Type: Single-Phase Hybrid Inverter
• Rated Output: 6kW
• Battery Architecture: 48V Low-Voltage
• Maximum PV Input: 8kW
• MPPT: 1
• Protection Rating: IP54
• Diesel Generator Support: Yes
• Smart Load Support: Yes
• Parallel Operation: No

Hajvery Solar Energy is an itel authorized dealer, helping buyers with product selection, compatibility considerations and purchasing guidance.

For buyers searching itel 6kw, itel 6kw inverter, itel 6kw pro, or itel 6kw pro hybrid inverter, the important selection points are the 6kW output, 48V battery architecture, 8kW PV input limit, single-phase configuration and IP54 protection.

Warranty and After-Sales Support

The itel 6KW Pro Hybrid Inverter comes with a 3-year replacement warranty and a 5-year service warranty.

These warranty provisions should be considered separately from general after-sales assistance. Before buying the product, customers should check the relevant warranty procedure, product identification requirements and claim conditions with Hajvery Solar.

Hajvery Solar Energy is an Official itel Distributor, providing customers with a clear purchasing and after-sales support route.

Before You Buy

Before selecting the itel 6kW Pro IP54 Hybrid Inverter, check the following:

• Make sure that your property requires a single-phase inverter.
• Ensure that the planned PV array does not exceed the maximum allowed PV input of 8kW.
• Check that the PV string voltage does not exceed the 500V maximum input.
• Compare the panel current with the maximum PV input current of 27A.
• Choose a suitable 48V battery.
• Confirm the battery’s charge and discharge current requirements.
• Check the lithium battery’s BMS communication compatibility before installation.
• Decide which loads should use the main output and which should use the smart load function.
• Check whether generator integration is required.
• Consider adequate inverter ventilation in high-temperature environments.
• Remember that parallel operation is not supported.
• Confirm the relevant warranty and purchase information before placing your order.

Frequently Asked Questions

What is the rated output of the itel 6KW Pro Hybrid Inverter?

The itel 6KW Pro Hybrid Inverter has a 6kW rated AC output and is designed for single-phase hybrid solar systems.

What is the maximum PV input of the itel 6KW Pro?

The inverter supports up to 8kW maximum PV input power. Its maximum PV voltage is 500V, with an 85V–450V MPPT operating range and 27A maximum input current.

What battery does the itel 6KW hybrid inverter use?

The inverter uses a 48V battery system with a 40V–60V operating range. It supports lead-acid, lithium-ion and user-defined battery configurations.

Is the itel 6KW Pro suitable for load shedding?

Yes. The inverter supports battery backup and backup-load operation. It provides a specified 10ms UPS switching time and 20ms switching time for appliances.

Does the itel 6KW Pro support a diesel generator?

Yes. Diesel generator support is available, allowing the generator to be integrated into an appropriately designed hybrid energy system.

Is the itel 6KW Pro IP65 or IP66?

No. The itel 6KW Pro Hybrid Inverter has an IP54 ingress protection rating. Buyers searching for itel 6kw ip66 or itel inverter 6kw ip65 price in pakistan should not interpret those search terms as the protection rating of this model.

What is the Itel 6kW Pro Hybrid Inverter price in Pakistan ?

The current price of itel 6KW Pro Hybrid Inverter in Pakistan is Rs. 135,000 per unit.

Where can I buy the itel 6KW Pro Hybrid Inverter?

Hajvery Solar Energy supplies the itel 6KW Pro Hybrid Inverter and can assist buyers with product selection, battery compatibility considerations and purchasing guidance. Buyers searching for itel 6kw hybrid inverter manual, itel 6kw pro inverter datasheet, itel 6kw inverter datasheet pdf, or itel 6kw pro datashee can use the product information and technical specifications on this page for initial research.

Search Terms and Product Information Clarification

People researching this inverter may use different search phrases, including itel 6kw datasheet, itel 6kw hybrid inverter manual, itel 6kw pro inverter datasheet, itel 6kw inverter datasheet pdf, and itel inverter 6kw specifications.

The important point is to match each search term with the actual 6kW Pro model characteristics: 6kW rated output, 48V battery architecture, up to 8kW PV input, one MPPT, 27A maximum PV input current and IP54 protection.

Similarly, searches such as itel 6kw battery, itel 6kw pro battery, and itel 6kw lithium battery price in pakistan relate to the battery side of the system. Battery capacity and pricing are separate from the inverter and should be selected according to the required backup load and compatible battery specifications.

For marketplace-oriented searches such as itel inverter 6kw price in pakistan olx, buyers should compare the exact model, condition, authenticity, warranty and seller support rather than relying only on a displayed price.

Hajvery Solar Energy, an authorized itel dealer, can help buyers identify the appropriate configuration before purchase.

Buy itel 6KW Pro Hybrid Inverter from Hajvery Solar

The itel 6KW Pro Hybrid Inverter is a suitable option for buyers who need 6kW single-phase hybrid power, a 48V battery system, up to 8kW PV input, backup functionality, generator support and smart load control.

Hajvery Solar Energy provides product guidance for residential and selected commercial solar applications. Before ordering, confirm the required PV configuration, battery capacity, load profile, installation environment and warranty requirements.
