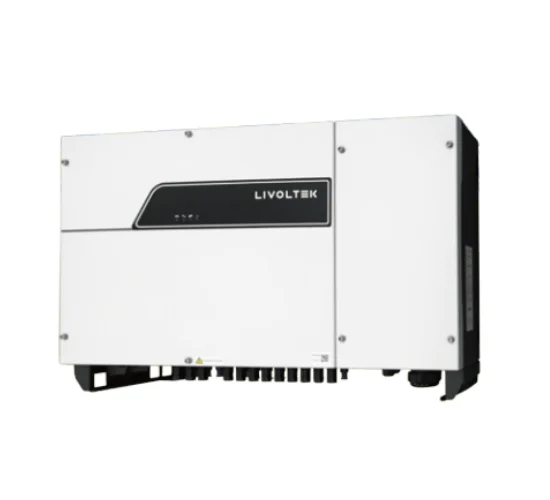

Livoltek 50kW Ongrid Inverter
₨425,000.00
The Livoltek 50kW On-Grid Inverter is a high-capacity solar energy solution engineered for large commercial and industrial applications. With advanced MPPT technology, superior conversion efficiency, and full grid support, it maximizes energy output and system reliability. Equipped with comprehensive protection features and intelligent monitoring, it’s an ideal choice for utility-scale solar systems in Pakistan.
Specifications
- Brand: Livoltek
- Model: GT3-50KQ1
- Type: Three-Phase On-Grid Inverter
- Rated Power: 50 kW
- Maximum Efficiency: 98.5%
- Euro Efficiency: 98.3%
- Max PV Input Power: 75,000 Wp
- Max PV Input Voltage: 1100V
- Start-Up Voltage: 180V
- Nominal DC Input Voltage: 620V
- MPPT Voltage Range: 180V – 1000V
- Max PV Input Current: 40A × 4 MPPTs
- Short-Circuit Current: 52A × 4
- Number of MPPTs: 4 (2 strings each)
- Nominal AC Output Voltage: 3/N/PE or 3/PE, 380V / 400V
- Nominal AC Output Current: 76A
- Max AC Output Current: 83.6A
- Output Frequency: 50 / 60 Hz
- Power Factor: >0.99 (adjustable ±0.8)
- THDi: <3%
- DC/AC Ratio: 150%
- AC Overload Capability: 110%
- Protections: Anti-islanding, short circuit, surge, residual current, AFCI optional, PID recovery, shading fix
- Cooling: Smart fan cooling
- Operating Temperature Range: -30°C to +60°C (derating above 45°C)
- IP Rating: IP65 (Outdoor & Indoor Use)
- Communication: RS-485, WiFi (optional), DRM
- Smart Monitoring: Yes (App supported, export limitation optional)
- Weight: \~47 kg
- Dimensions: 481 × 613 × 251 mm
- Warranty: 5 Years Standard (optional 10 Years)
Livoltek 50kW Ongrid Inverter – High Efficiency & Reliable Power for Large-Scale Solar
The 50kW Ongrid Inverter is a heavy-duty solar solution designed for large commercial and industrial applications, delivering maximum efficiency and dependable power conversion. It connects directly to the grid, ensuring seamless energy usage, lower operational costs, and long-term sustainability.
With multiple MPPT trackers, the inverter optimizes solar energy capture even under fluctuating sunlight conditions. Its advanced grid-support features enhance system stability, while integrated smart monitoring allows real-time performance tracking via mobile apps and web portals. Built for durability and efficiency, the Livoltek 50kW Ongrid Inverter is the ideal choice for high-capacity solar installations.
Why Choose 50kW Ongrid Inverter?
This inverter offers superior energy efficiency, intelligent monitoring, and robust grid compatibility, making it perfect for businesses and industries seeking large-scale solar power solutions.
HAJVERYSOLAR – Your Trusted Solar Company in Lahore
At HAJVERYSOLAR, we provide top-quality solar products, expert installation, and reliable customer support. Our Livoltek ongrid inverters guarantee powerful performance and long-lasting durability for commercial solar systems.
Why Buy from HAJVERYSOLAR?
100% Original Livoltek Inverters Professional Installation & Support Affordable Pricing & Warranty Coverage Complete Solar System Consultation
Order Your 50kW Ongrid Inverter Today!
Upgrade to the Livoltek 50kW Ongrid Inverter for efficient energy conversion, reduced electricity bills, and a sustainable energy future. Contact HAJVERYSOLAR today for expert consultation and installation.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Livoltek 10KW 3 Phase On Grid
₨150,000.00

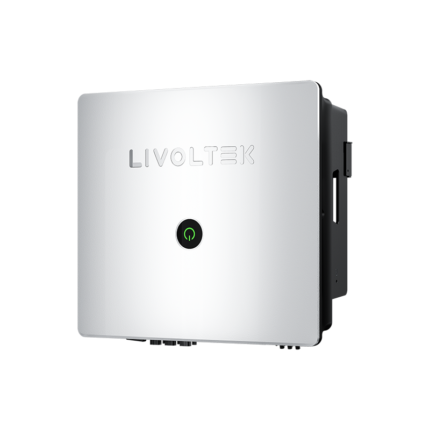

Livoltek 125KW Three Phase On Grid Inverter
