VEICHI 30KW VFD SI23 Series

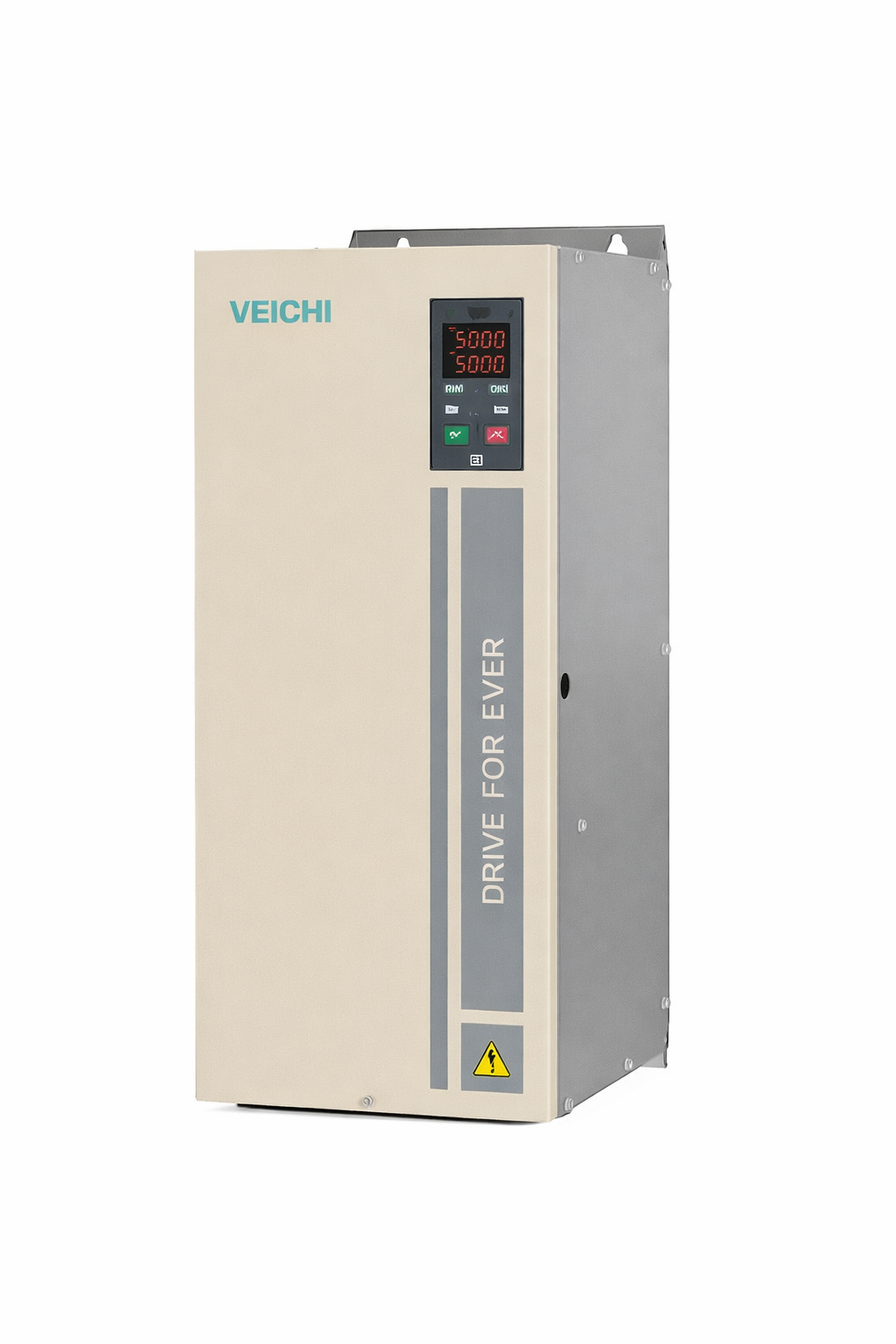

VEICHI SI23-D5 – 30 kW Variable Frequency Drive

Product Description
The VEICHI SI23-D5 30 kW VFD is the most powerful model in the SI23 range, designed for large-scale irrigation, industrial water transfer, and heavy automation systems. It combines high-efficiency MPPT solar tracking with advanced motor control, delivering reliable performance with enhanced durability and safety for demanding applications.

Key Specifications
• Power: 30 kW
• DC Input Voltage Range: 250 – 780 VDC
• Max DC Input: ~45 kW
• Recommended PV Voltage: 620 – 750 V
• Output Current: ~60 A
• Output Frequency: 0–320 Hz
• 3-Phase 380–460 VAC
• Designed for high-capacity solar & industrial pumping
