Check the latest Lithium Valley battery price in Pakistan and compare 2.56kWh, 5.12kWh, 10.24kWh and 14.336kWh LiFePO4 energy-storage options at Hajvery Solar Energy. Lithium Valley batteries feature intelligent battery management, CAN, RS485 and RS232 communication, flexible capacity expansion and model-dependent cycle life of up to 8,000 cycles. The available range includes compact 25.6V storage and higher-capacity 51.2V solutions for compatible solar inverters. Every listed battery comes with a 10-year replacement warranty.

No products were found matching your selection.

Lithium Valley Battery Price in Pakistan

Lithium Valley batteries provide LiFePO4 energy storage for compatible residential solar, hybrid grid-connected and off-grid power systems. The range available at Hajvery Solar Energy includes 2.56kWh, 5.12kWh, 10.24kWh and 14.336kWh batteries for different energy-storage and backup requirements.

The Lithium Valley battery price in Pakistan depends on the selected capacity, voltage, protection rating, available stock and warranty coverage. Because solar battery prices may change with import costs and exchange rates, customers should check the current product price or contact Hajvery Solar Energy before placing an order.

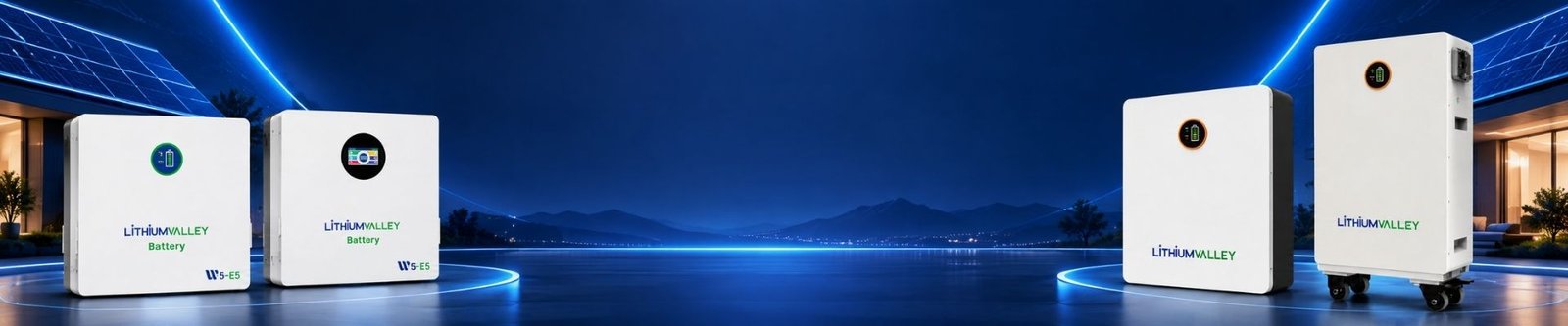

Available Lithium Valley Battery Range

Lithium Valley LV-BAT-W2.56Da 2.56kWh Battery

The LV-BAT-W2.56Da is a compact wall-mounted LiFePO4 battery with a nominal voltage of 25.6V, rated capacity of 100Ah and total energy of 2.56kWh.

It offers 6,000 cycles at 80% depth of discharge under the specified datasheet test conditions. Its standard charging and discharging current is 50A, while the maximum continuous charging and discharging current is 100A.

The battery supports RS232, CAN and RS485 communication along with Bluetooth functionality. Up to 20 supported units can be connected in parallel, providing a maximum system capacity of 51.2kWh. This IP21 model is designed for indoor, wall-mounted installation.

Lithium Valley W5-E5 5.12kWh Battery

The W5-E5 operates at 51.2V with a rated capacity of 100Ah and provides 5.12kWh of energy storage. It uses lithium iron phosphate cells and has a rated cycle life of 6,000 cycles at 80% depth of discharge under the stated test conditions.

Its standard charging and discharging current is 50A, with a maximum continuous current of 100A. The battery supports CAN, RS485 and RS232 communication and includes Bluetooth and an aerosol fire-extinguishing device.

Up to 20 supported units can be connected in parallel for a maximum system capacity of 102.4kWh. The battery may be wall-mounted or floor-installed and carries an IP20 protection rating.

Lithium Valley W10-5A 10.24kWh Battery

The W10-5A is a 51.2V, 200Ah residential LiFePO4 battery with an energy capacity of 10.24kWh. It is rated for 8,000 cycles at 80% depth of discharge under the manufacturer’s specified test conditions.

The suggested charging and discharging current is 100A, while the standard current is 200A. It can provide an instantaneous discharge current of 250A for 10 seconds.

This battery supports CAN, RS485 and RS232 communication, Bluetooth monitoring, optional wheels and an optional heating function. Its IP65 enclosure provides stronger protection for suitable installation environments. Up to 20 supported units can provide a combined capacity of approximately 204kWh.

Lithium Valley W15-5A 14.336kWh Battery

The W15-5A provides 14.336kWh of energy storage through a 51.2V, 280Ah LiFePO4 battery system. It is rated for 8,000 cycles under the test conditions stated in its datasheet.

Its suggested charging and discharging current is 140A, while the standard charging and discharging current is 200A. It supports an instantaneous discharge current of 250A for 10 seconds.

The battery includes CAN, RS485 and RS232 communication, Bluetooth functionality and an IP65 enclosure. Optional wheels and heating functionality are available according to the selected configuration. Up to 20 supported batteries can provide a combined system capacity of approximately 286kWh.

LiFePO4 Battery Technology

The four models use lithium iron phosphate battery chemistry. LiFePO4 technology is selected for residential energy storage because of its stable performance, long cycle life and suitability for repeated charging and discharging.

An independently designed Battery Management System monitors and manages battery operation. Available communication interfaces allow the BMS to exchange operating information with compatible solar inverters.

Communication and Inverter Compatibility

Lithium Valley batteries support CAN, RS485 and RS232 communication. However, the presence of the same communication port does not automatically guarantee compatibility with every inverter.

Before purchasing a battery, confirm:

  • Required battery voltage
  • Supported communication protocol
  • Inverter firmware version
  • Maximum charging and discharging current
  • Battery model included in the inverter compatibility list
  • Required communication cable and pin configuration

The 2.56kWh model operates at 25.6V, while the other three models operate at 51.2V. These batteries must only be connected to an inverter designed for the corresponding battery-voltage range.

Expandable Energy Storage

Each model supports up to 20 units in a correctly designed parallel system. The supported units should be matched according to the manufacturer’s instructions, BMS requirements, firmware and system configuration.

Different battery capacities or voltage classes should not be combined unless the manufacturer specifically approves the configuration. Cable sizing, protection equipment and battery-current limits must also be considered when expanding the system.

Installation and Protection Ratings

The 2.56kWh model carries an IP21 protection rating and is intended for indoor wall-mounted installation. The 5.12kWh model has an IP20 rating and can be installed on a wall or floor in an appropriate protected location.

The 10.24kWh and 14.336kWh models have IP65 enclosures and support wall or floor installation. Optional wheels may be available for these larger models. All batteries should still be installed according to the manufacturer’s environmental, ventilation, clearance and electrical-protection requirements.

10-Year Replacement Warranty

The Lithium Valley batteries listed at Hajvery Solar Energy come with a 10-year replacement warranty. Customers should confirm the applicable warranty registration, approved installation requirements, serial-number verification, claim procedure and coverage conditions when purchasing the battery.

Warranty duration and cycle-life rating are separate specifications. Actual battery performance and service life depend on temperature, depth of discharge, charge and discharge current, inverter configuration and installation quality.

Choosing the Correct Lithium Valley Battery

The 2.56kWh model can be considered for smaller 25.6V systems with limited energy-storage requirements. The 5.12kWh model is suited to compatible 51.2V systems requiring moderate storage capacity.

The 10.24kWh and 14.336kWh models provide greater stored energy for larger residential loads and longer backup requirements. The final battery capacity should be selected after evaluating average power consumption, peak loads, required backup duration and inverter compatibility.

Contact Hajvery Solar Energy to compare specifications, confirm compatibility and check the latest Lithium Valley battery price in Pakistan.

Frequently Asked Questions

Which Lithium Valley batteries are available in Pakistan?

The current Hajvery Solar Energy range includes 2.56kWh, 5.12kWh, 10.24kWh and 14.336kWh Lithium Valley LiFePO4 batteries.

Are all Lithium Valley batteries 51.2V?

No. The LV-BAT-W2.56Da model operates at 25.6V. The W5-E5, W10-5A and W15-5A models operate at a nominal voltage of 51.2V.

Can Lithium Valley batteries be connected in parallel?

The datasheets support up to 20 units in a correctly designed parallel system. Model matching, BMS configuration, firmware and inverter compatibility must be confirmed before expansion.

Are Lithium Valley batteries compatible with every solar inverter?

They support commonly used CAN, RS485 and RS232 interfaces, but compatibility must be confirmed for the exact battery and inverter models.

What is the Lithium Valley battery warranty?

The listed batteries come with a 10-year replacement warranty. Applicable registration, installation and claim conditions should be confirmed at the time of purchase.
