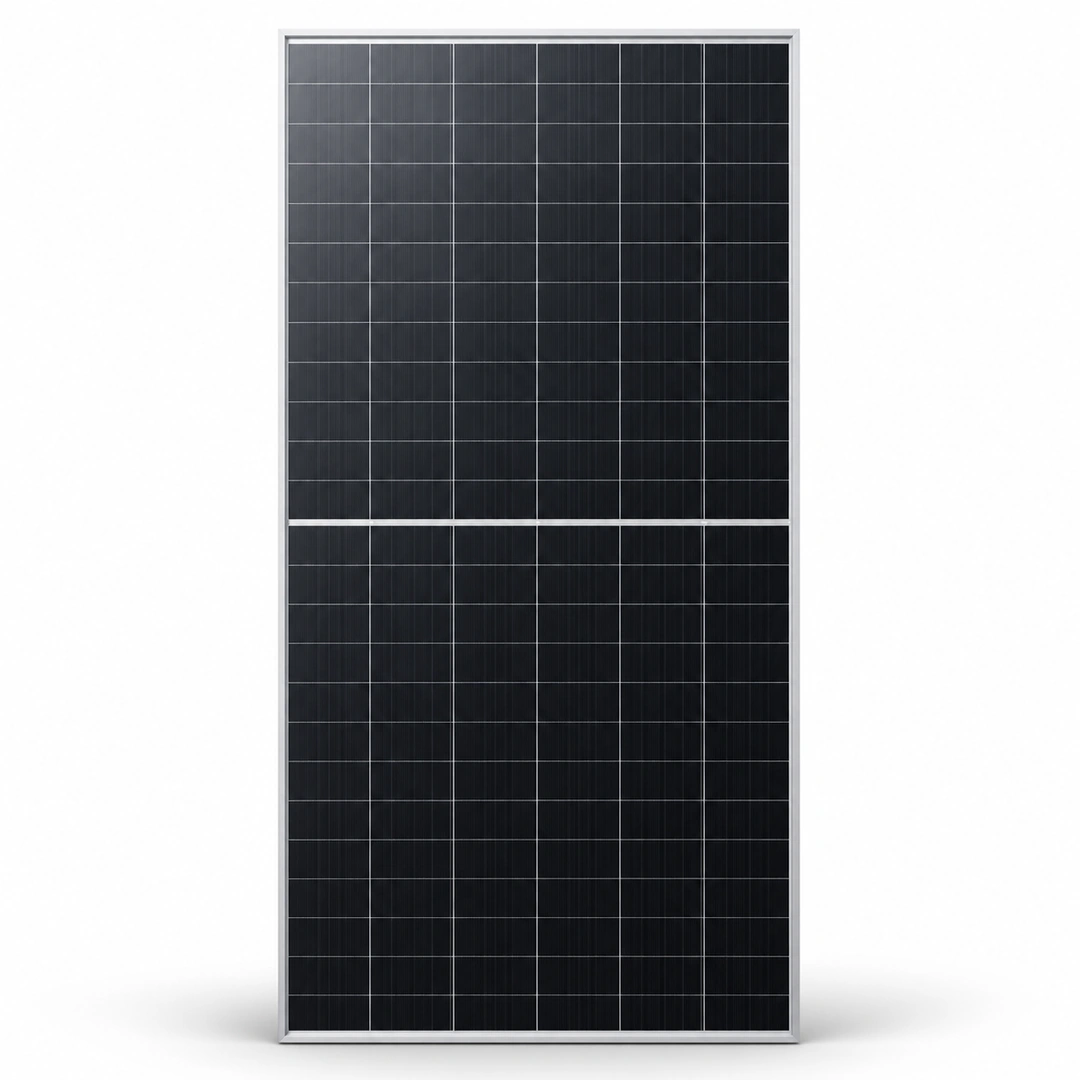

Aiko 640W Bifacial Solar Panel

Aiko 640W Bifacial Solar Panel Overview

The Aiko 640W Bifacial Solar Panel is a high-output N-Type ABC solar module from the AIKO Stellar 1N+ series. The exact module model is AIKO-G640-MCH72Dw, with 640W rated power and 23.7% module efficiency.

Its bifacial design allows the rear side of the module to respond to suitable available light. The panel has a 75±5% bifacial factor, while its dual-glass construction provides a strong module structure for demanding solar installations.

The module uses 2.0+2.0mm coated semi-tempered dual glass, an anodized aluminum frame and an IP68 junction box with three bypass diodes. In addition, it supports a DC1500V maximum system voltage and a 5400Pa front static load.

For Pakistani solar installations, the panel can suit projects where installers want high power output, efficient use of installation space and bifacial generation potential.

Key Features and Benefits

N-Type ABC Cell Technology

The panel uses N-Type ABC cell technology with 144 cells arranged in a 6×24 configuration.

This technology supports the module’s 640W power output and 23.7% efficiency. Therefore, the panel can provide a high-output option for solar projects where each module needs to deliver substantial power.

For buyers comparing an Aiko 640w solar panel, N-Type ABC technology is one of the key features to consider alongside efficiency, electrical specifications and warranty.
AIKO’s official information about its ABC technology is available here: Aiko 640W bifacial solar panel official website

Bifacial Energy Generation

The Aiko 640W Bifacial Solar Panel uses a bifacial design with a 75±5% bifacial factor.

As a result, the rear side can contribute to energy generation when suitable light reaches it. However, the actual additional energy depends on the installation environment.

Factors such as rear-side light availability, mounting height, surface reflectivity, spacing and surrounding structures can affect bifacial performance. Therefore, installers should assess the complete installation before estimating additional rear-side generation.

High Module Efficiency

The module provides 23.7% efficiency along with 640W rated power.

This combination can help installers achieve substantial power output within the available installation area. As a result, it can be useful for rooftops and solar projects where available space needs to be used efficiently.

When comparing solar panel cost per watt, buyers should also consider efficiency, dimensions, warranty, construction and electrical characteristics rather than comparing wattage alone.

Low Power Degradation

The module has a first-year degradation of no more than 1%. From Year 2 through Year 30, annual degradation remains at no more than 0.35%.

Therefore, long-term output retention becomes an important advantage when planning a solar installation for many years of operation.

The module’s performance warranty extends to 30 years, giving buyers a longer-term performance reference when evaluating the panel.

Strong Module Construction

The panel uses 2.0+2.0mm coated semi-tempered dual glass with an anodized aluminum frame.

It supports a 5400Pa front static load and 2400Pa rear static load. Furthermore, the IP68 junction box includes three bypass diodes.

The module also uses an MC4 compatible/original MC4 connector configuration, while its operating temperature range extends from -40°C to +85°C.

Best For

The Aiko 640W Bifacial Solar Panel can suit:

• Residential solar systems requiring high-output modules
• Commercial rooftops where installation space needs efficient utilization
• Ground-mounted solar projects with suitable rear-side light
• Solar installations requiring a DC1500V maximum system voltage
• Projects where N-Type ABC technology is preferred
• Installers looking for a 640W bifacial solar panel
• Solar systems where high module efficiency is an important consideration

For commercial and bulk installations, installers should complete the string design using the panel’s voltage, current and temperature characteristics.

When Another Panel May Be Better

The Aiko 640W Bifacial Solar Panel may not suit every solar installation.

Another module can be a better choice when:

• The project has strict module size limitations
• The selected inverter has lower voltage or current limits
• The installation specifically requires a monofacial panel
• Lower module weight is a major requirement
• The project requires a different voltage or current configuration

Therefore, installers should check Voc, Vmp, Isc, Imp, temperature correction and inverter MPPT/current limits before finalizing the panel selection.

Cell and Module Technology

The Aiko 640W Bifacial Solar Panel combines N-Type ABC cell technology with a bifacial module design.

The module contains 144 cells in a 6×24 configuration. Its structure includes 2.0+2.0mm coated semi-tempered dual glass and an anodized aluminum frame.

The panel also has a 75±5% bifacial factor. Consequently, the rear side can contribute to generation when suitable light reaches the back of the module.

Proper installation remains important because mounting height, rear clearance, surface reflectivity and surrounding structures can influence the amount of light available to the rear side.

The exact model is AIKO-G640-MCH72Dw.

Technical Specifications

Performance and Degradation

The panel delivers 640W rated output under STC and reaches 23.7% module efficiency. Under NOCT conditions, its rated output is 485W.

In addition, the module has a 0 to +3% power tolerance. Its Pmax temperature coefficient is -0.26%/°C, which installers should consider when estimating output at higher module temperatures.

The degradation profile includes:

• First-Year Degradation: ≤1%
• Annual Degradation from Year 2–30: ≤0.35%
• Performance Warranty: 30 Years

The guaranteed module performance reaches 90.6% at Year 25 and 88.85% at Year 30.

Performance Considerations for Pakistan

Pakistan’s hot summer conditions make temperature performance an important part of solar system planning. The panel’s -0.26%/°C Pmax temperature coefficient should therefore be considered when estimating performance at higher module temperatures.

At the same time, dust and soiling can reduce solar generation. Regular cleaning according to the site’s environment can help maintain the module’s operating performance.

For bifacial installations, installers should provide suitable rear-side exposure. Moreover, mounting height, rear clearance, surface reflectivity and surrounding obstructions can influence the practical benefit of bifacial generation.

Finally, installers should design the complete string configuration using the module’s Voc, Vmp, Isc and Imp, while also checking the selected inverter’s voltage and current limits.

Aiko 640W Bifacial Solar Panel Price in Pakistan

If you are searching for the Aiko 640w solar panel price in Pakistan, the current Hajvery Solar price is provided above.

However, Aiko 640W Bifacial Solar Panel in Pakistan can change because of supply, shipment costs, exchange-rate movement and purchase quantity. Therefore, dealers, installers and bulk buyers should confirm the latest availability and quantity-based pricing before placing an order.

When comparing aiko solar panel price in pakistan, buyers should also consider the exact model, efficiency, warranty, construction and electrical specifications.

Tier 1, A-Grade and Product Authenticity

Solar buyers often search for aiko solar rating or compare panels based mainly on wattage.

However, a better buying decision considers module efficiency, cell technology, bifacial characteristics, degradation, construction, warranty and inverter compatibility.

A-Grade status should be confirmed against the actual stock being supplied rather than assumed from the product model alone.

For buyers researching aiko solar panels in pakistan, checking the exact model is important because different modules can have different electrical characteristics.

Hajvery Solar Product Verification

Before ordering, confirm the exact product as Aiko 640W Bifacial Solar Panel with model AIKO-G640-MCH72Dw.

Buyers should also check the product’s serial information, model identification and applicable warranty before completing the purchase.

For system installation, confirm that the module’s voltage and current characteristics match the selected inverter and string configuration.

If you are searching for aiko solar panel verification online, checking the exact model and serial information can help with product identification before purchase.

Warranty

The Aiko 640W Bifacial Solar Panel carries a 15-year Product Warranty and a 30-year Performance Warranty.

The module also has a first-year degradation limit of no more than 1% and an annual degradation limit of no more than 0.35% from Year 2 to Year 30.

Warranty claims remain subject to the applicable warranty terms and conditions.

Frequently Asked Questions

Is the Aiko 640W Bifacial Solar Panel N-Type?

Yes. The panel uses N-Type ABC cell technology.

Is the Aiko 640W panel bifacial?

Yes. It is a bifacial solar panel with a 75±5% bifacial factor.

What is the efficiency of the Aiko 640W solar panel?

The module has 23.7% efficiency.

What is the model number of the Aiko 640W panel?

The exact model is AIKO-G640-MCH72Dw.

What is the Aiko 640W solar panel warranty?

The panel has a 15-year Product Warranty and a 30-year Performance Warranty.

What is the Aiko 640W solar panel price in Pakistan?

The current price of Aiko 640W Bifacial Solar Panel in Pakistan is Rs. 26,880 per panel.

What should I check in an aiko 640w solar panel review?

For an aiko 640w solar panel review, check the panel’s 23.7% efficiency, N-Type ABC technology, bifacial factor, degradation profile, construction, electrical specifications and warranty instead of relying only on general ratings.

Where can I find information for an aiko 640w bifacial solar panel manual?

For an aiko 640w bifacial solar panel manual search, use the applicable technical and installation information for the exact AIKO-G640-MCH72Dw model. Also, confirm the panel’s electrical limits before installation.

Buy Aiko 640W Bifacial Solar Panel from Hajvery Solar

Choose Hajvery Solar Energy for your Aiko 640W Bifacial Solar Panel requirements in Pakistan.

Before purchasing, confirm the exact model, current availability and system compatibility. Hajvery Solar serves retail, dealer and installer buyers and can assist with product selection for suitable solar projects.
For more options, explore Aiko Solar Panels in Pakistan
