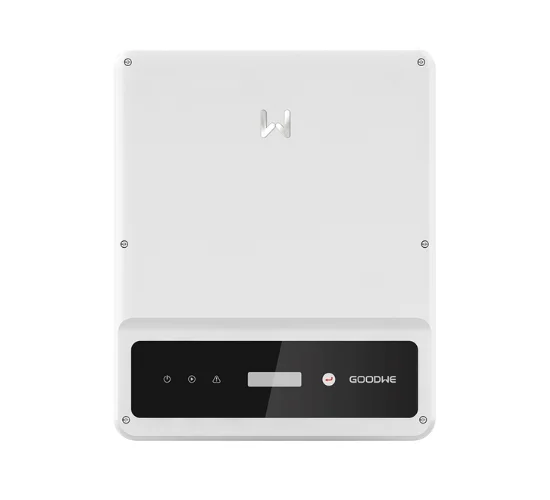

GoodWe 5kW OnGrid Inverter

The GoodWe 5kW OnGrid Inverter is a high-performance solar inverter designed for residential and small commercial net metering systems. With dual MPPTs, high conversion efficiency, smart monitoring, and robust build quality, it’s an ideal choice for maximizing solar energy yield across Pakistan.

Specifications

• Brand: GoodWe
• Model: GW5000-NS Series (or equivalent)
• Inverter Type: Grid-Tied (On-Grid)
• Rated AC Output Power: 5000W
• Max DC Input Voltage: 600V
• MPPT Tracker: 2 MPPTs
• Max Efficiency: 97.8%
• Euro Efficiency: ~97%
• Start-up Voltage: ~120V
• Rated Voltage Range: 200V – 550V
• Max DC Current: 11A per MPPT
• Display Interface: LED Indicators & Web Monitoring
• Communication Ports: RS485 / WiFi / Optional LAN
• Cooling: Natural Convection (Fanless Design)
• Protection: IP65 (Outdoor/Indoor Use)
• Operating Temperature: -25°C to +60°C
• Dimensions: Approx. 347 × 432 × 145 mm
• Weight: ~14 kg
• Warranty: 5 to 10 Years (Depending on Model & Vendor)
