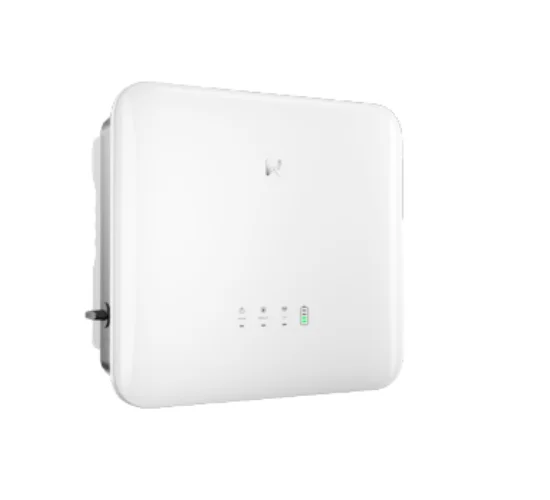

GoodWe 15kW ET G2 Hybrid Inverter Overview

The GoodWe 15kW ET G2 Hybrid Inverter combines solar generation, high-voltage battery storage, grid power and backup output in one three-phase energy management system. The GW15K-ET-20 delivers a 15kW nominal AC output and accepts up to 24kW of PV input, giving system designers room to build a relatively high-capacity solar array around the inverter.

Its 500V nominal battery architecture is designed for Li-Ion batteries, with a battery operating range of 150V to 720V. On the solar side, the inverter provides 3 MPPT trackers, a 120V–850V MPPT operating range, and up to 16A input current per MPPT.

For backup applications, the inverter provides a 15kVA nominal backup output and can reach up to 18kVA for 60 seconds when the required PV and battery power is available. The combination makes it suitable for buyers looking for a 15kW three-phase hybrid inverter for larger homes, high-consumption properties and selected commercial installations.

Why This Hybrid Inverter Stands Out

High PV Input Capacity

The inverter supports up to 24kW maximum PV input power against its 15kW AC rated output. This gives the system designer substantial DC-side capacity for solar generation.

The PV array should still be designed according to the actual Voc, Isc, MPPT voltage range, input current and temperature conditions rather than simply matching the array to the 24kW maximum input figure.

Three MPPT Trackers

The three MPPTs provide more flexibility in cases where the solar panels are installed on different roof orientations or in various string configurations. Each MPPT can support an input current of up to 16 amperes and a short-circuit current of up to 24 amperes.

It is therefore important to get string planning right, especially when using modern high-current solar modules.

Fast Backup Switching

The UPS-level backup switching offered by the inverter takes less than 10 milliseconds. This is especially useful in cases where certain loads require a quick switch to backup power when the grid fails.

The true backup performance will still be influenced by the loads that are connected, by the amount of battery available and by the entire system design.

Parallel Expansion

The ET G2 platform can have up to six units connected in parallel, which enables larger systems to be expanded whenever the installation needs more output capacity.

The design of the parallel system should be carried out in accordance with the inverter’s electrical configuration and installation requirements.

IP66 Outdoor Protection

With an IP66 ingress protection rating, the inverter has a strong enclosure protection level for installations where protection against dust and water ingress is important. Proper mounting location, ventilation and installation practice remain important, especially in Pakistan’s hot and dusty conditions.

Best For

The GoodWe 15kW hybrid inverter is a strong option for:

• Three-phase homes with higher electricity consumption
• Large residential solar systems requiring battery backup
• Properties with significant daytime solar loads
• Users planning a high-voltage lithium-ion battery system
• Installations affected by load shedding
• Selected commercial applications requiring solar, grid and battery integration
• Systems where future parallel expansion may be required
• Solar projects requiring a high PV-to-inverter capacity ratio

Not Ideal For

This inverter may not be the right choice for:

• A single-phase electrical installation
• Buyers specifically looking for a low-voltage battery inverter
• Systems requiring unsupported battery chemistry or incompatible BMS communication
• Very small solar installations where a 15kW inverter would be unnecessarily large
• PV designs exceeding the inverter’s voltage, current or input-power limits
• Buyers who only need a basic on-grid inverter and have no requirement for battery storage or backup

Solar PV Input and MPPT Performance

The maximum PV input capacity of the GoodWe 15kW ET G2 is 24kW, its maximum DC input voltage is 1000V and the MPPT operating voltage range is from 120V to 850V; the PV startup voltage is 150V.

The inverter is fitted with three MPPT trackers, each associated with one string. Each MPPT has a maximum input current of 16 amperes and a maximum short-circuit current of 24 amperes.

When installing the systems, technicians should take the limits into account if they are to choose the modules and design the strings; before the final installation, the panel’s Voc and Isc, the operating temperature, the string length and the inverter’s MPPT range should all be checked.

The inverter also has an MPPT efficiency of 99.5%, which helps the system to effectively track the available solar power under appropriate operating conditions.

Battery Compatibility and Energy Storage

The device known as GW15K-ET-20 is based on a high-voltage lithium-ion battery design.

Key battery parameters include:

• Battery Type: Li-Ion
• Nominal Battery Voltage: 500V
• Battery Voltage Range: 150V–720V
• Battery Startup Voltage: 150V
• Battery Inputs: 1
• Maximum Continuous Charging Current: 40A
• Maximum Continuous Discharging Current: 40A
• Maximum Charging Power: 24kW
• Maximum Discharging Power: 16.5kW
• BMS Communication: RS485 and CAN

Before buying a battery it is necessary to check specifically which brand and model it is compatible with since compatibility in terms of voltage alone is not enough to ensure complete compatibility; the battery’s communication protocol, BMS configuration and system requirements must also match.

For buyers searching for goodwe 15kw battery price in pakistan, it is important to distinguish between the inverter and the separate high-voltage battery required for the complete storage system.

Backup Power and Load-Shedding Performance

The inverter has a nominal backup output of 15 kVA and, when running without grid power, can reach a maximum apparent power of 18 kVA for a period of 60 seconds on the condition that adequate PV and battery power are available.

The fact that it has a backup switching time of less than 10 milliseconds is useful in cases where certain loads need to switch over quickly during power outages.

When installing a practical system in Pakistan, the backup circuits should be planned in accordance with the real load profile; individual assessments should be made of high-power appliances, motors, pumps, air conditioners and other heavy loads rather than assuming that all the connected loads can operate at full capacity simultaneously.

Enough battery capacity, the right protection equipment, proper cable size, and professional installation are also important for reliable backup operation.

Parallel Operation and System Expansion

The ET G2 Series supports parallel connection of up to 6 units. This provides an expansion path for installations where one inverter’s output capacity may not be sufficient for the long-term requirement.

Parallel operation should be based on the entire electrical system, including the inverter configuration, the battery architecture, the protection equipment and the load requirements.

This feature is especially useful in the case of large projects since the energy demand might increase over time.

Smart Load Control and Monitoring

The inverter includes an integrated dry contact for external loads, supporting smart load-control applications. It also provides peak shaving functionality.

For monitoring and communication, the system supports:

• WLAN + APP
• Wi-Fi
• Bluetooth
• LAN
• RS485
• CAN
• RS485 meter communication
• 4G optional portal communication

The network interfaces of the BMS enable the inverter to communicate with a compatible battery management system, and they also offer the possibility of carrying out system monitoring and management.

Technical Specifications

Solar PV Input

• Maximum PV Input Power: 24kW
• Maximum Input Voltage: 1000V
• MPPT Operating Voltage Range: 120V–850V
• Startup Voltage: 150V
• Nominal PV Input Voltage: 620V
• Number of MPPTs: 3
• Maximum Input Current per MPPT: 16A
• Maximum Short-Circuit Current per MPPT: 24A
• Strings per MPPT: 1

Battery

• Battery Type: Li-Ion
• Nominal Battery Voltage: 500V
• Battery Voltage Range: 150V–720V
• Startup Voltage: 150V
• Maximum Continuous Charging Current: 40A
• Maximum Continuous Discharging Current: 40A
• Maximum Charging Power: 24kW
• Maximum Discharging Power: 16.5kW
• Battery Communication: RS485, CAN

AC/Grid Output

• Rated Output Power: 15kW
• Nominal Apparent Power: 15kVA
• Maximum Apparent Power to Utility Grid: 15kVA
• Maximum AC Output Current to Utility Grid: 21.7A
• Maximum AC Current from Utility Grid: 26.1A
• Nominal Voltage: 400/380V
• Grid Frequency: 50/60Hz
• Grid Frequency Range: 45–65Hz
• Power Factor: 0.8 leading to 0.8 lagging
• Maximum THD: <3%
• Phase: Three Phase

Backup Output

• Nominal Backup Apparent Power: 15kVA
• Maximum Backup Output without Grid: 15kVA
• Maximum Backup Output for 60 Seconds: 18kVA
• Maximum Backup Output with Grid: 15kVA
• Maximum Backup Output Current: 21.7A
• Backup Switching: <10ms
• Backup THDv: <3%

General Specifications

• Maximum Efficiency: 98.2%
• European Efficiency: 97.5%
• Maximum Battery-to-AC Efficiency: 97.5%
• MPPT Efficiency: 99.5%
• Ingress Protection: IP66
• Cooling: Natural Convection
• Operating Temperature: -35°C to +60°C
• Maximum Operating Altitude: 4000m
• Relative Humidity: 0–100%
• Communication: WLAN, Wi-Fi, Bluetooth, LAN, RS485, CAN
• Dimensions: 496 × 460 × 221mm
• Weight: 25kg
• Mounting: Wall Mounted
• Noise Emission: <45dB

Recommended Solar System Size

The inverter has a 15kW AC rated output and a 24kW maximum PV input. These are different sThe figure of 24kW refers to the maximum input capacity of the photovoltaic system and not to a suggestion that each installation should precisely use 24kW of panels. The actual size of the solar array will vary according to the panels’ characteristics and the site conditions.nd site conditions.

Installers should check:

• Panel Voc
• Panel Isc
• MPPT voltage range
• MPPT current limit
• String length
• Minimum and maximum site temperatures
• Solar array orientation
• Local instalA system that has been properly engineered should at all times stay within the electrical limits of the inverter, even when the temperature varies within the expected range.ating temperatures.

Hybrid Inverter Use in Pakistan

For Pakistani solar users, a three-phase hybrid inverter can be useful where solar generation, grid electricity and battery backup need to work together.

In the day solar energy can be used to meet the demand from active loads while the surplus generation can be directed to battery charging, this depending on the system configuration and the operating conditions. When the grid fails the backup output can support certain loads provided that there is sufficient battery energy available.

The <10ms switching capability is particularly relevant for areas experiencing frequent grid interruptions. At the same time, backup reliability depends on correct battery sizing, load selection, wiring, protection devices and installation quality.

Pakistan’s summer temperatures also make installation conditions important. Although the inverter has an operating temperature range of -35°C to +60°C, it should still be installed in a suitable location with proper ventilation and protection from unnecessary direct heat and environmental exposure.

GoodWe 15kW ET G2 Hybrid Inverter Price in Pakistan

The current price of GoodWe 15kW ET G2 Hybrid Inverter in Pakistan is Rs. 0. If the listed price is zero, the product is temporarily out of stock and restocking is expected soon. Contact Hajvery Solar for the latest availability update.

If you are checking goodwe 15kw price, goodwe 15kw datasheet price in pakistan, or goodwe 15kw hv three phase price, availability and pricing should be confirmed with Hajvery Solar before placing an order.

Buyers searching for goodwe 15kw price in pakistan should also consider the complete system requirement, including the compatible high-voltage battery, PV array, installation equipment and required protection devices.

Hajvery Solar Energy is a GoodWe Official Distributor for product availability and dealer enquiries.

Hajvery Verified Product Information

• Brand: GoodWe
• Product: GoodWe 15kW ET G2 Hybrid Inverter
• Exact Model: GW15K-ET-20
• Category: Hybrid Inverter
• Product Type: Three Phase High Voltage Hybrid Inverter
• Rated Output: 15kW
• Battery Architecture: High Voltage
• Battery Type: Li-Ion
• Nominal Battery Voltage: 500V
• Maximum PV Input: 24kW
• Protection Rating: IP66
• Warranty: 5-year standard manufacturer warranty

Hajvery Solar Energy is a GoodWe authorized dealer, helping buyers with product selection, system compatibility and purchasing guidance.

Before ordering, confirm the exact model, battery compatibility, system phase and required backup loads for your installation.

Warranty and After-Sales Support

The GoodWe 15kW ET G2 Hybrid Inverter comes with a 5-year standard manufacturer warranty.

The manufacturer warranty and Hajvery Solar after-sales assistance should be understood as separate matters. Warranty coverage remains subject to the applicable warranty terms and conditions.

Hajvery Solar Energy is an Official GoodWe Distributor and can assist customers with product-related guidance, availability and warranty-support coordination.

For customers purchasing through Hajvery Solar Energy, an authorized GoodWe dealer, confirming the exact model and keeping the purchase documentation is recommended for future support.

Before You Buy

Before purchasing this 15kW hybrid inverter, confirm the following:

• Is your property equipped for a three-phase system?
• Do you require a high-voltage battery?
• Is the selected battery compatible with the inverter’s 150V–720V battery range?
• Does the battery support the required BMS communication?
• Is your planned PV array within the 24kW maximum PV input?
• Do your panel strings remain within the inverter’s voltage and current limits?
• What loads need to remain operational during load shedding?
• Is the available battery capacity sufficient for those backup loads?
• Do you need parallel expansion in the future?
• Is the installation location suitable for an IP66 wall-mounted inverter?
• Has the complete system been designed according to applicable electrical protection and installation requirements?

Frequently Asked Questions

Is the GoodWe 15kW ET G2 a three-phase hybrid inverter?

Yes. The GoodWe 15kW ET G2 Hybrid Inverter is a three-phase hybrid inverter with a 15kW rated AC output.

What is the maximum PV input of the GoodWe 15kW ET G2?

The inverter supports a maximum PV input of 24kW. The actual solar array should be designed according to PV voltage, current, string configuration and site temperature conditions.

Is the GoodWe 15kW ET G2 an HV inverter?

Yes. It uses a high-voltage battery architecture with a 500V nominal battery voltage and a 150V–720V operating range.

What battery type does the GoodWe 15kW ET G2 support?

The specified battery type is Li-Ion. The inverter also provides RS485 and CAN communication for BMS integration. Specific battery compatibility should be confirmed before installation.

What is the backup capacity of this inverter?

The nominal backup apparent power is 15kVA. The maximum backup output can reach 18kVA for 60 seconds when sufficient PV and battery power are available.

How fast does the GoodWe 15kW ET G2 switch to backup?

The inverter provides UPS-level backup switching of less than 10ms.

Can multiple units be connected together?

Yes. The ET G2 platform supports parallel connection of up to 6 units, providing an expansion option for larger energy requirements.

What is the current price of GoodWe 15kW ET G2 in Pakistan?

The current price of GoodWe 15kW ET G2 Hybrid Inverter in Pakistan is Rs. 0. If the listed price is zero, the product is temporarily out of stock and restocking is expected soon. Contact Hajvery Solar for the latest availability update.

For users searching goodwe 15kw datasheet, goodwe 15kw datasheet pdf, or goodwe 15kw hybrid inverter manual, the exact model is GW15K-ET-20. Buyers searching goodwe 15kw 3 phase hybrid inverter datasheet or goodwe 15kw hv three phase manual should match the model number before using technical information for system design.

Buy GoodWe 15kW ET G2 Hybrid Inverter from Hajvery Solar

Choose Hajvery Solar Energy for genuine GoodWe hybrid inverter purchasing support and system compatibility guidance. The GoodWe 15kW ET G2 Hybrid Inverter is designed for three-phase solar systems requiring high-voltage battery storage, substantial PV capacity and backup power.

Hajvery Solar Energy can help buyers and installers confirm the exact model, battery requirements, PV configuration and current availability before purchase.
