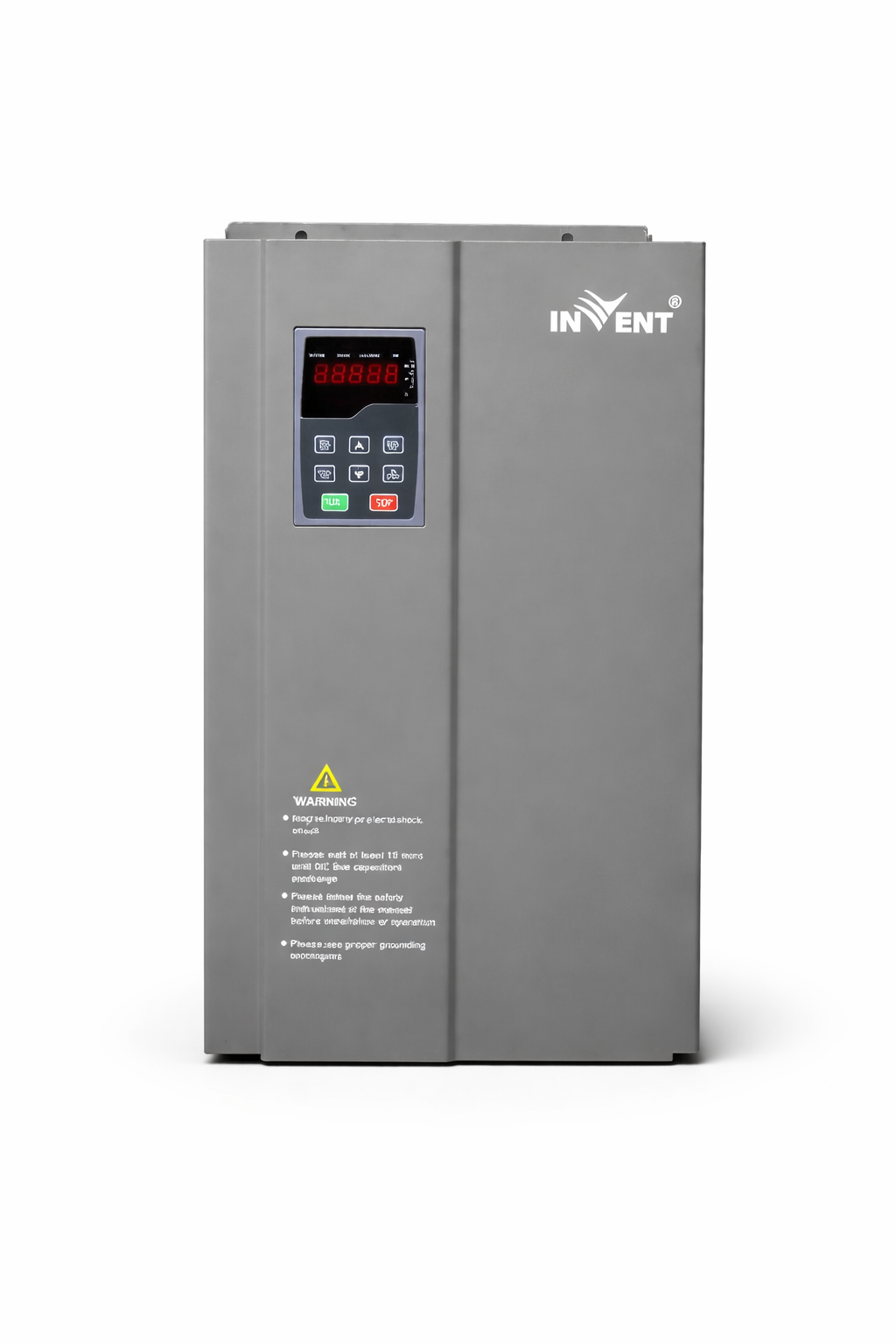

Invent 75/90KW Universal VFD

Product Specifications

Brand: Invent Power Tech
Series: ED510 Universal Inverter (Cabinet Mounted)
Model: ED510-075C/090V-4

Electrical Performance

• Power Rating: 75KW / 90KW

• Input Voltage: Three Phase 380V ±15%

• Output Frequency: 0–50/60Hz

• Control Modes:

  • V/F Control

  • Sensorless Vector Control

  • Torque Control

Cabinet & Enclosure Features

• Heavy-duty floor-standing industrial steel cabinet

• High-efficiency cooling & ventilation system

• Integrated braking unit compatibility

• Circuit breakers & overload safety protection

• Organized wiring & terminal layout

• Industrial grounding safety system

• Dust-resistant enclosure

Control & Communication

• 7 Multifunction Digital Inputs

• Analog Input: 0–10V / 4–20mA

• High-Speed Pulse Input/Output

• Dual Relay Outputs

• RS485 Communication Interface

Advanced Built-in Functions

• PID Controller

• Simple PLC Programming

• Speed Tracking Control

• Traverse Motion Control

• Energy Saving Optimization

• Emergency Braking Support

Protection System

• Overcurrent Protection

• Overvoltage & Undervoltage Protection

• Overtemperature Protection

• Motor Overload Protection

• Short Circuit Protection

• Phase Loss Protection

• 23+ Built-in Industrial Fault Protections

Operating Conditions

• Temperature: -10°C to 40°C

• Humidity: ≤90% (Non-condensing)

• Installation Altitude: Up to 1000m
