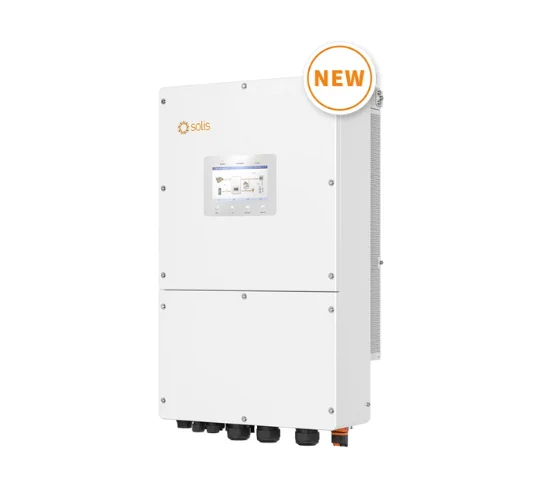

Solis 50kW S6 High Voltage Three Phase Hybrid Inverter Overview

The Solis 50kW S6 High Voltage Three Phase Hybrid Inverter is built for solar energy systems where daytime PV generation, battery storage, grid supply and backup power need to work together. Its 50kW rated output makes it suitable for larger commercial and high-demand three-phase installations rather than small residential systems.

One of the main advantages of this model is its high capacity for handling photovoltaic power. It has a recommended maximum PV array size of 100kW and a maximum usable PV input of 96kW, which provides system designers with plenty of room for incorporating solar generation and for charging the battery. The inverter is equipped with 4 MPPTs and can handle up to 8 PV strings, enabling the PV array to be spread out over several independently tracked inputs.

The system uses a high-voltage Li-ion battery design ranging from 150 to 800 volts, having two battery inputs and a maximum charge and discharge capacity of 70 amperes times 2. On the backup side, the output is rated at 50kW, with a switching time of less than 10 milliseconds and a peak power of up to 1.6 times the rated power for a duration of 2 seconds.

Why This Hybrid Inverter Stands Out

High PV Input Capacity

The inverter can accommodate a recommended 100kW PV array while its maximum usable PV input is 96kW. This high DC-to-AC design allows more solar generation to be connected to a 50kW inverter, particularly where strong daytime solar production and battery charging are important.

Four MPPTs and Eight PV Strings

The system, featuring 4 MPPTs and a maximum of 8 PV strings, offers more flexibility when it comes to larger PV installations. Separate MPPT inputs can be used to handle different roof sections or array orientations, provided that the string voltage and current are properly designed.

High-Voltage Battery Architecture

The 150–800V battery voltage range is designed around high-voltage lithium-ion energy storage. Two battery inputs are available, with maximum charge/discharge current of 70A × 2.

Fast Backup Switching

The backup output has a rated power of 50kW and a backup switch time of less than 10 ms, which means that the inverter can be used in systems in which certain loads require a quick shift to backup operation when the grid supply is not available.

Outdoor-Ready IP66 Protection

An IP66 ingress protection rating provides a higher level of protection against dust and water ingress. The inverter also uses intelligent fan cooling and supports an operating ambient temperature range of -25°C to +60°C.

Best For

The Solis 50kW hybrid inverter is a strong fit for:

• Commercial solar systems with substantial daytime electricity demand.
• Large three-phase installations requiring battery backup.
• Projects designed around high-voltage lithium-ion batteries.
• Solar systems where a larger PV array is required relative to inverter AC capacity.
• Sites affected by load shedding that need a substantial backup output.
• Installations requiring generator integration alongside solar and battery storage.
• Projects where multiple PV orientations benefit from 4 MPPTs and 8 strings.
• Businesses looking to use more daytime solar generation while storing excess energy for later use.

Not Ideal For

This model may not be the right choice where:

• The project requires a single-phase inverter.
• The selected battery does not meet the inverter’s 150–800V lithium-ion battery requirements.
• The project only needs a simple on-grid inverter without battery storage or backup functionality.
• The required PV array or electrical system exceeds the inverter’s specified voltage, current or power limits.
• A low-voltage battery architecture is specifically required.
• The installation does not have sufficient space or suitable conditions for a 73kg commercial inverter.

Solar PV Input and MPPT Performance

The PV side is designed for large solar arrays. The inverter supports a maximum DC voltage of 1000V, with a 600V rated voltage. Its MPPT operating range is 150–850V, while the PV start-up voltage is 180V.

The Solis 50kW hybrid inverter datasheet specifies 4 MPPTs with up to 8 maximum input strings for the 50kW model. Maximum PV input current is 4 × 40A, with a maximum short-circuit current of 4 × 60A.

When designing a system, one should not regard the recommended maximum PV array capacity of 100kW and the maximum usable PV input of 96kW as a justification for setting up strings without carrying out electrical calculations. It is necessary for each string to stay within the inverter’s voltage and current limits after taking into account the solar module’s Voc, Vmp, Isc and Imp, the effects of temperature, and the string configuration that has been chosen.

It is especially important when using modern high-current solar modules, and the installer must compare the real electrical characteristics of the modules with the inverter’s per-MPPT and string limits before finalising the array.

Battery Compatibility and Energy Storage

The inverter uses a high-voltage Li-ion battery system with a battery operating voltage range of 150–800V. It provides two battery inputs, allowing the storage system to be configured around the inverter’s supported battery architecture.

The 50kW model has a maximum charge/discharge power of 55kW and a maximum charge/discharge current of 70A × 2; the maximum charge/discharge power for each battery input is 35kW.

Battery communication is supported through CAN and RS485, allowing communication between the inverter and compatible battery BMS systems.

Specific battery brands or models should be selected only after confirming voltage compatibility, BMS communication, protocol requirements, firmware compatibility and the manufacturer’s approved battery compatibility information. A battery should not be considered compatible based on voltage alone.

Backup Power and Load-Shedding Performance

In cases where power outages occur frequently, the backup feature is one of this model’s key advantages. The inverter has a rated backup output of 50kW at three-phase voltage.

The backup port has a switching time of less than 10 ms, which helps those loads switch quickly to battery-backup operation, and the inverter can also supply up to 1.6 times the rated backup power for a period of 2 seconds, provided that the actual system configuration and load characteristics allow it.

The inverter is capable of handling unbalanced and half-wave loads on both the grid and the backup ports, thus offering more flexibility in cases where the various phases do not have the same load.

The level of performance that can be achieved still relies on the battery’s capacity, its power output capability and the amount of load that is connected. The fact that an inverter has a 50kW rating does not mean that all possible battery setups are able to supply 50kW continuously.

Generator Support and Smart Load Control

This model does support the integration of a generator, with a maximum generator input power of 50kW. Also, the inverter has peak-shaving functions available in both self-use and generator modes.

It can be of use in the case of commercial sites which have to coordinate the use of solar power, battery storage, power from the grid and generator supply in accordance with the site’s operating requirements.

The generator and load arrangement must be designed in accordance with the electrical ratings of the generator and the input limits of the inverter.

Monitoring and Communication

The inverter has a 7-inch LCD display which shows information about the local system and also supports Bluetooth as well as an app for interacting with the system.

Communication interfaces include:

• CAN
• RS485
• Ethernet
• Optional Wi-Fi
• Optional Cellular
• Optional LAN

It is possible to monitor the battery in real time and to carry out remote upgrades. Such features enable installers and system operators to keep track of how the system is operating and to manage the various remote functions available without having to depend solely on the inverter’s local display.

Technical Specifications

Solar PV Input

Battery

AC/Grid Output

Backup Output

General Specifications

Recommended Solar System Size

An important aspect to consider when designing this system is the difference between the inverter’s 50kW AC rated output and the PV capacity it allows.

The inverter has a rated AC output of 50kW, the recommended maximum size for the PV array is 100kW and the maximum usable PV input is 96kW. It therefore follows that the solar array can be considerably larger than the AC output rating of the inverter.

The greater PV capacity can assist in boosting solar power production during times when irradiance is below peak levels and will also supply more energy for charging the batteries. The final PV design however has to stay within the inverter’s maximum DC voltage of 1000V, its MPPT range of 150 to 850V, as well as the current and short-circuit current limits.

When determining string size it is necessary to take into account the module’s Voc, Vmp, Isc, Imp and the temperature correction rather than relying solely on the panel’s wattage.

Hybrid Inverter Use in Pakistan

A high-capacity hybrid inverter could be useful for commercial users in Pakistan when daytime solar consumption, battery storage and backup power are all to be operated together.

In the day the PV array can meet the site’s electricity demands while any surplus solar energy is fed into the connected battery system, and the energy thus stored can be used to supply certain loads when solar production decreases or when electricity from the grid is no longer available.

The fast backup switching—under 10 milliseconds—and the 50kW backup output are especially important for companies that need a quicker transition when important electrical loads are affected. When choosing the battery capacity one must still take into account the required backup duration and the actual load profile.

The fact that summer temperatures in Pakistan means that installation conditions are important; even though the inverter has a operating temperature range of -25°C to +60°C, adequate ventilation and appropriate mounting conditions are still necessary for reliable operation. The IP66 rating offers good protection against external influences, and its intelligent fan-cooling system looks after the heat generated during operation.

Installers must also use protection equipment for direct current and alternating current that is properly rated, together with the cabling, earthings and isolation devices as specified by the system design and the relevant electrical requirements.

Solis 50kW S6 High Voltage Hybrid Inverter Price in Pakistan

In Pakistan the present price of the Solis 50kW S6 High Voltage Three Phase Hybrid Inverter is Rs. 1,450,000 per unit.

The amount that the final project will cost will depend on the full solar system design, the battery setup, the mounting needs, the protection equipment, the scope of installation and the quantity involved. Those who buy commercially, such as installers and dealers, should get in touch with Hajvery Solar regarding current availability and their project requirements.

If you are checking the solis 50kw hybrid inverter price in pakistan, solis 50kw hv hybrid inverter price, or solis 50kw inverter price in pakistan, use the current Hajvery price above as the product price reference and confirm availability before ordering.

Hajvery Product Verification

Hajvery Solar Energy supplies the Solis 50kW S6 High Voltage Three Phase Hybrid Inverter for commercial and large-scale hybrid solar applications.

Hajvery Solar Energy is a Solis Official Distributor, providing customers with a direct route for product enquiries and applicable warranty guidance.

As a Solis authorized dealer, Hajvery Solar Energy can help buyers review the inverter’s application, battery requirements and system configuration before purchase.

Customers can also choose Hajvery Solar Energy as an Official Solis Distributor when sourcing this high-capacity hybrid inverter for commercial solar projects.

Buying from Hajvery Solar Energy, an authorized Solis dealer, provides a clear channel for product and warranty-related assistance.

Warranty and After-Sales Support

The Solis 50kW S6 High Voltage Three Phase Hybrid Inverter comes with a standard 5-year manufacturer warranty.

Warranty coverage must be carried out in accordance with the terms and conditions set out in the manufacturer’s warranty. Buyers should keep the product and the purchase information needed for warranty assistance.

Hajvery Solar Energy will provide customers with advice regarding the products and inform them about the after-sales procedure. Warranty coverage must not be regarded as meaning that there is additional service coverage beyond that specified in the manufacturer’s warranty.

Before You Buy

Before purchasing this 50kW hybrid inverter, confirm the following with your installer:

• The project calls for a three-phase 50kW inverter.
• The battery chosen is a high-voltage Li-ion system which is compatible within the 150 to 800 volt range.
• The battery’s BMS can be communicated with via the necessary communication interface.
• The PV array that is planned is still within the recommended maximum size of 100kW.
• The voltage of the PV string stays within the range of 150 to 850 volts for MPPT and is below the maximum input voltage of 1000 volts.
• The MPPT and the current limit for the string are observed.
• Backup loads are appropriate for the inverter’s rated backup output of 50kW.
• The battery power is enough for the load for which it is intended.
• Generator electrical ratings are suitable if generator integThe system design incorporates correct AC/DC protection, isolation and earthing.rrect AC/DC protection, isolation and earthing are included in the system design.

Frequently Asked Questions

What is the rated output of the Solis 50kW hybrid inverter?

The Solis 50kW hybrid inverter has a 50kW rated AC output and is designed for three-phase solar and energy-storage systems.

What is the maximum PV input of the Solis 50kW inverter?

The inverter supports a 100kW recommended maximum PV array and has a 96kW maximum usable PV input.

What battery does the Solis 50kW hybrid inverter support?

The inverter is designed for Li-ion high-voltage batteries operating within a 150–800V battery voltage range. Battery compatibility should be confirmed through the required BMS communication and compatibility requirements before installation.

How many MPPTs does the Solis 50kW hybrid inverter have?

The Solis 50kW hybrid inverter has 4 MPPTs and supports up to 8 PV input strings.

How quickly does the backup output switch?

The backup switching time is less than 10 ms. The inverter also supports up to 1.6× rated backup power for 2 seconds.

Can this inverter work with a generator?

Yes. The inverter supports a generator input with a maximum input power of 50kW for the 50kW model. Generator configuration should be designed according to the generator and inverter electrical limits.

Where can I find the Solis 50kW inverter manual or datasheet?

Buyers searching for the solis 50kw inverter manual, solis 50kw hybrid inverter manual, solis 50kw hybrid inverter manual pdf, solis 50kw inverter datasheet, solis 50kw hybrid inverter datasheet, solis 50kw hybrid inverter datasheet pdf, or solis 50kw hv hybrid inverter datasheet should use the official Solis technical resources for the exact model.

Searches such as solis 50kw hybrid inverter manual pdf free download should also be matched to the exact S6-EH3P50K-H model to avoid using information from a different inverter.

What is the current price of the Solis 50kW hybrid inverter in Pakistan?

The current price of the Solis 50kW S6 High Voltage Three Phase Hybrid Inverter in Pakistan is Rs. 1,450,000 per unit.

Buy Solis 50kW S6 High Voltage Hybrid Inverter from Hajvery Solar

For commercial and large-scale solar projects, the Solis 50kW S6 High Voltage Hybrid Inverter combines high PV capacity, high-voltage battery storage, three-phase operation and rapid backup switching in one system.

If you are researching solis s6 50kw, solis s6 50kw 3ph hybrid inverter, solis s6 50kw hybrid, solis 50kw inverter, or solis 50kw hv hybrid inverter, this model is designed around a 50kW three-phase hybrid architecture with 100kW recommended PV capacity, 96kW maximum usable PV input, 4 MPPTs, 8 PV strings and 150–800V battery support.

Hajvery Solar Energy can assist with product enquiries, system requirements and applicable warranty guidance for this model.
