VEICHI 22KW VFD SI23 Series

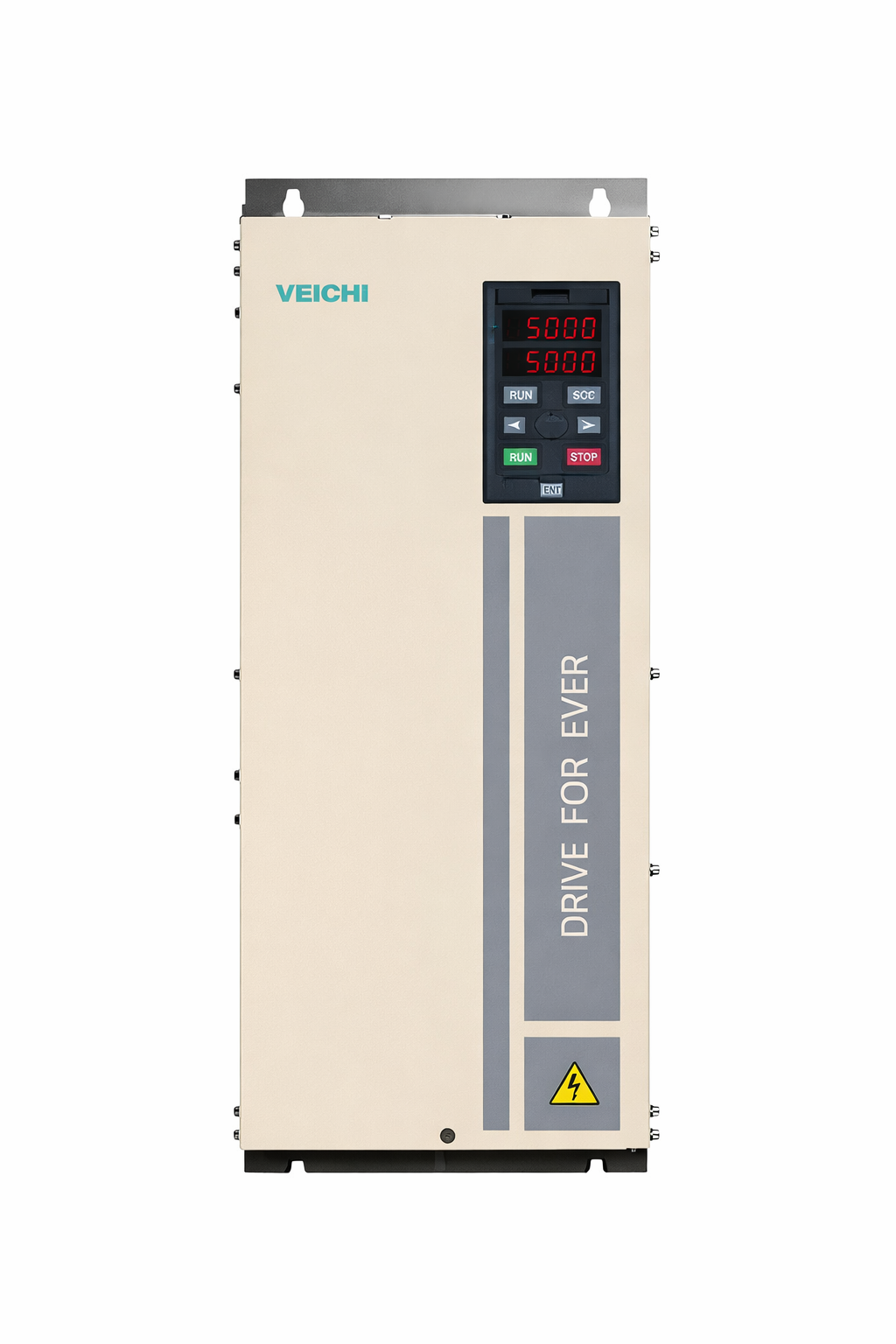

VEICHI SI23-D5 – 22 kW Variable Frequency Drive

Product Description
The VEICHI SI23-D5 22 kW VFD provides a dependable and high-capacity option for heavy irrigation and industrial pumping needs. With its smart energy tracking, superior control logic, and comprehensive safety protections, it maintains efficient performance even under fluctuating solar conditions and demanding load requirements.

Key Specifications
• Power: 22 kW
• DC Input Voltage Range: 250 – 780 VDC
• Max DC Input: ~33 kW
• Recommended PV Voltage: 620 – 750 V
• Output Current: ~45 A
• Output Frequency: 0–320 Hz
• 3-Phase 380–460 VAC
• Multiple protections: dry-run, over-current, low frequency
