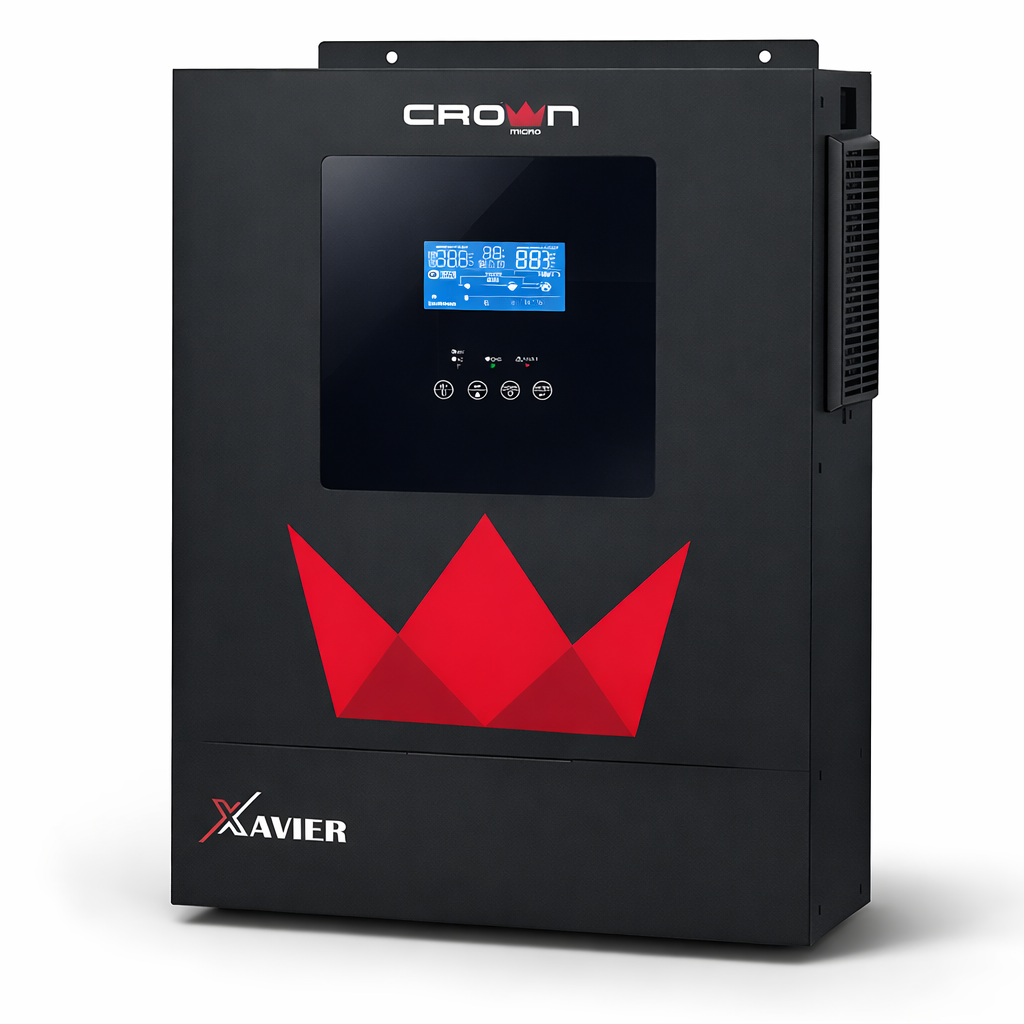

Xavier 3KW PV-3000 Solar Inverter
📊 Xavier 3KW PV-3000 Technical Specifications
🔹 General
| Parameter | Value |
|---|---|
| Model Name | Xavier 3KW-PF 1.0 |
| Model Number | X-3KW-PF1 |
| Rated Power | 3000VA / 3000W |
| Waveform | Pure Sine Wave |
| Efficiency (Peak) | 93% |
🔌 Input
| Parameter | Value |
|---|---|
| Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (Computers) |
| 90–280 VAC (Home Appliances) | |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
⚡ Output
| Parameter | Value |
|---|---|
| AC Voltage Regulation | 230VAC ±5% |
| Surge Power | 6000VA |
| Transfer Time | 10ms (Computers) / 20ms (Appliances) |
| Waveform | Pure Sine Wave |
🔋 Battery
| Parameter | Value |
|---|---|
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 32VDC |
☀️ Solar Charger & AC Charger
| Parameter | Value |
|---|---|
| Solar Charger Type | MPPT |
| Max PV Open Circuit Voltage | 450VDC |
| Max PV Array Power | 3000W |
| MPPT Operating Range | 60–400VDC |
| Max Solar Charge Current | 100A |
| Max AC Charge Current | 80A |
| Max Charge Current | 100A |
📡 Communication
| Parameter | Value |
|---|---|
| Interface | RS232 |
🌡️ Operating Environment
| Parameter | Value |
|---|---|
| Humidity | 5% – 95% (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
Product Description
The Xavier 3KW PV-3000 is a powerful and intelligent pure sine wave solar inverter engineered for high-efficiency energy management in residential and small commercial solar systems. Equipped with an advanced MPPT solar charge controller, it ensures maximum energy harvesting from solar panels while delivering stable and reliable output.
Designed with a wide DC input range (60–400VDC) and battery-independent operation, this inverter offers flexible installation and enhanced system reliability. The integrated LCD display with touch pad provides real-time monitoring and easy control.
With features like battery equalization, thermal protection, and anti-dust design, the Xavier 3KW ensures long-term durability and optimized performance. Its high charging capacity (up to 100A) and 93% efficiency make it an ideal solution for demanding energy needs.
⭐ Key Features
- Pure sine wave output for clean and stable power
- Advanced MPPT solar charge controller
- Wide DC input range (60–400VDC)
- Battery-independent design (works without battery)
- Maximum charging current up to 100A
- High efficiency up to 93%
- LCD display with touch pad interface
- Battery equalization for extended battery life
- Built-in anti-dust kit
- Thermal protection sensor
- Optional Wi-Fi connectivity
