Dyness Lithium Battery 5kW: Specs, Price & Buying Guide

Another widely searched term regarding home solar energy storage systems and backup solutions is the Dyness lithium battery 5kW. However, it should be mentioned that by searching for a 5kW-class Dyness battery, users are usually referring to the Dyness DL5.0C Pro model having a nominal capacity of 5.12 kWh and being capable of delivering 5.12 kW of continuous discharge power.

The Dyness DL5.0C Pro battery makes use of LiFePO₄ lithium iron phosphate chemistry, an internal battery management system, smart communication technologies, and modularity. This battery can be applied to compatible solar hybrid and off-grid systems for storing solar energy and powering household appliances in case of lack of solar power generation.

If you are trying to compare the Dyness 5kW lithium battery with other solar batteries on the Pakistani market, then you need to know about some of its characteristics.

Quick Answer: What Is a Dyness 5kW Lithium Battery?

The Dyness DL5.0C Pro is a 51.2V, 100Ah LiFePO₄ battery with 5.12 kWh nominal energy capacity. Dyness specifies up to 5.12 kW continuous discharge power, while its peak discharge capability can reach 6.14 kW for up to 10 minutes.

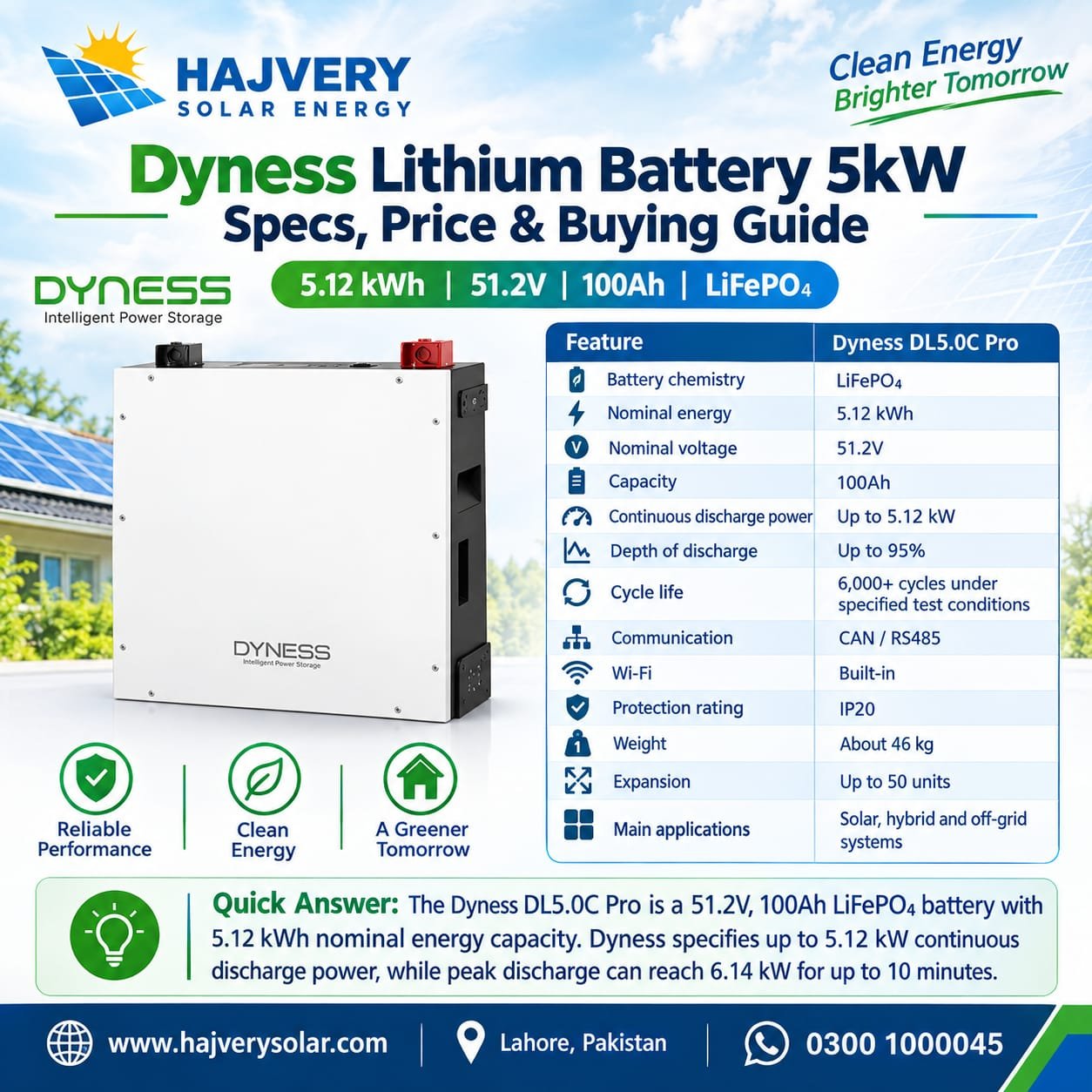

Feature	Dyness DL5.0C Pro
Battery chemistry	LiFePO₄
Nominal energy	5.12 kWh
Nominal voltage	51.2V
Capacity	100Ah
Continuous discharge power	Up to 5.12 kW
Depth of discharge	Up to 95%
Cycle life	6,000+ cycles under specified test conditions
Communication	CAN / RS485
Wi-Fi	Built-in
Protection rating	IP20
Weight	About 46 kg
Expansion	Up to 50 units
Main applications	Solar, hybrid and off-grid systems

Dyness officially lists the DL5.0C Pro for residential and small commercial energy storage, with scalable storage from 5.12 kWh to 256 kWh when multiple units are connected in parallel.

Dyness Lithium Battery 5kW vs 5.12 kWh

The terms kW and kWh describe different things, and this is important when choosing a solar battery. kWh measures stored energy. A 5.12 kWh battery can theoretically store 5.12 units of electrical energy at its nominal capacity. kW measures power. It describes how much power the battery can deliver at a particular moment.

The Dyness DL5.0C Pro has 5.12 kWh of nominal energy and can deliver up to 5.12 kW of continuous discharge power, according to Dyness. Therefore, the phrase “Dyness 5kW lithium battery” can make sense as a search term, but “Dyness 5.12 kWh battery” is the more accurate description of its storage capacity.

Dynes 5.12 kWh Battery Specifications

The DL5.0C Pro is designed as a low-voltage energy storage module. It operates at a nominal 51.2V and has a 100Ah capacity.

Its operating voltage range is 44.8V to 57.6V. Dyness specifies a recommended charge and discharge current of 50A, with a maximum charge current of 75A and a maximum discharge current of 100A. The product can also provide a peak discharge of 6.14 kW for up to 10 minutes.

The battery uses LiFePO₄ chemistry. This chemistry is widely used in stationary energy storage because it provides good cycle performance and thermal stability compared with many other lithium-ion chemistries.

The DL5.0C Pro also includes communication through CAN and RS485. Dyness lists built-in Wi-Fi and app-based OTA functionality for the Pro model, allowing monitoring and software updates.

Dyness Lithium Battery Price in Pakistan

The price of Dyness lithium batteries in Pakistan varies according to the model, seller, warranty period, availability of the product, cost of importing and exchange rates.

Prices for Dyness DL5.0C Pro in recent Pakistan listings range from PKR 248,000 to PKR 265,000. Recently, in Rawalpindi, there was a listing of Dyness DL5.0C Pro at PKR 248,000, whereas there is another listing for Pakistan Solar Shop selling Dyness DL5.0C Pro at PKR 265,000.

Since solar battery prices fluctuate, buyers need to verify the most recent price before placing an order. The quotation will indicate if the price quoted includes delivery, installation, cables, protective gear, and warranty. A cheaper advertised price does not mean that it will be the actual system cost.

How Much Backup Can a Dyness 5kW Battery Provide?

The duration of backup is not related to the total capacity but to the real-time requirement rather than just the nominal rating of the battery. The 5.12 kWh battery does not imply that all devices can have equal running time. It is dependent on factors like the efficiency of the inverter, battery mode setting, usable depth of discharge, startup requirements, and number of appliances operating together.

For instance, a family having a 500W constant power consumption needs about 10 hours of energy from 5 kWh. A 1kW load needs 5 hours of time.

The actual running time may be less than the theoretical calculation due to energy losses of the entire solar panel and because batteries should be run within their safe parameters. One way to calculate the backup time is:

Backup time = Usable battery energy ÷ Average load

For example:

4.86kWh ÷ 1kW = about 4.86 hours

The exact usable energy depends on the battery model and configuration. Dyness lists 95% depth of discharge for the DL5.0C Pro.

What Can a Dyness 5kW Battery Run?

A Dyness 5.12 kWh battery can be used for many essential household loads when paired with a correctly sized inverter.

Typical loads can include:

• LED lights
• Ceiling fans
• Television
• Wi-Fi router
• Computers
• Refrigerators
• Small appliances
• Security systems
• Selected kitchen appliances

However, high-power appliances such as electric heaters, large air conditioners, electric ovens, and water heaters can consume stored energy quickly.

The inverter’s output rating also matters. A battery may have enough stored energy, while the inverter may still limit the total power available to appliances.

Dyne’s Battery Compatibility

Compatibility is one of the most important factors before purchasing a lithium battery. Dyness lists the DL5.0C Pro as compatible with various inverter brands, including SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, LuxPower, Deye and APsystems, although exact compatibility can depend on the inverter model, firmware, communication protocol and configuration.

These protocols include CAN and RS485, among others. Through these protocols, there can be an exchange of information regarding the status of voltage, current, state of charge, and protection between the battery and the compatible inverters.

Therefore, it is necessary to check the actual make of the inverter before the installation instead of relying on the assumption that all inverters of the same brand will be compatible with the battery.

Why LiFePO₄ Chemistry Matters

Dynamis 5kW-class batteries have the composition of lithium iron phosphate, known as LiFePO₄. Lithium iron phosphate batteries are popularly used in solar power generation because of their long cycle life, stability, and energy storage capability.

The Dynamis DL5.0C Pro has a minimum number of cycles of 6,000 as per the Dynamis company’s tests. The test conditions are important since the number of cycles varies depending on discharge level, charge rate, temperature, and end-of-life criteria.

That is why a cycle life figure cannot be considered without its associated test conditions.

Is Dyness 5kW Battery Expandable?

Yes. One of the major features of the DL5.0C Pro is its modular design. Dyness states that up to 50 units can be connected in parallel, allowing a system to scale from 5.12 kWh to as much as 256 kWh.

This can be useful when a household starts with a smaller storage requirement and later needs additional backup capacity.

For example:

• 1 battery = 5.12 kWh
• 2 batteries = 10.24 kWh
• 3 batteries = 15.36 kWh
• 4 batteries = 20.48 kWh

The inverter, wiring, protection equipment and installation design must also support the expanded battery system.

Installation and Safety Considerations

DL5.0C Pro is rated IP20; this means that care has to be taken during installation. The battery has to be installed by a competent solar installer who knows about battery communication, DC protection, inverter setup and manufacturer installation guidelines.

Proper battery cabling, isolation, grounding, battery settings, and communication setup are necessary for proper operation. The internal BMS on the battery performs protection and controls the battery operation; however, the BMS cannot be used as a substitute for proper system design.

Dyness DL5.0C Pro vs Older DL5.0

Dyness has several batteries in its 5 kWh class range, so buyers should check the exact model before comparing prices.

The previous DL5.0 battery has a nominal capacity of 5.12 kWh, a 51.2 V nominal voltage, a 100 Ah capacity and LiFePO₄ battery chemistry. Dyness specifies that their battery DL5.0 can have up to 50 batteries connected in parallel.

The new DL5.0C Pro has some additional functionalities like increased discharge capabilities, Wi-Fi connectivity and OTG compatibility, but still belongs to the same 5.12 kWh battery category. Dyness specifies that their DL5.0 Pro battery is capable of a 1C discharge rate and a 5.12 kW discharge power rate. Hence, a potential purchaser should be careful about the price on a “Dyness 5kW battery”.

Dyness 5kW Battery for Solar Systems in Pakistan

Pakistan’s solar market has strong demand for lithium battery storage because a battery can store excess solar generation for use when solar production falls.

A Dyness 5.12 kWh battery can be integrated into a suitable hybrid or off-grid solar system to provide backup power and improve the use of stored solar energy.

For homeowners planning a complete solar setup, the battery should be selected according to daily energy consumption, nighttime load, desired backup duration, inverter capacity and future expansion requirements.

Those planning a complete solar solution can also explore solar solutions and related products from Hajvery Solar and compare the battery requirement with the rest of the solar system.

For official technical specifications, installation information and product documentation, buyers can refer to Dyness official product information.

Frequently Asked Questions

Is the Dyness lithium battery really 5kW?

The commonly searched Dyness 5kW battery is generally a 5.12 kWh battery, such as the DL5.0C Pro. Dyness specifies up to 5.12 kW continuous discharge power for this model. The kWh figure refers to stored energy, while kW refers to power output.

What is the capacity of a Dyness 5kW battery?

The DL5.0C Pro has a nominal capacity of 5.12 kWh, with a nominal voltage of 51.2 V and a capacity of 100 Ah.

What is the Dyness 5.12 kWh battery price in Pakistan?

Recent listings show approximately PKR 248,000 to PKR 265,000 for the DL5.0C Pro, although the actual price can change according to seller, stock, warranty and market conditions.

How long does a Dyness 5.12 kWh battery last?

Dyness specifies at least 6,000 cycles for the DL5.0C Pro under stated test conditions. Actual service life depends on charging and discharging patterns, temperature, installation and operating conditions.

Can Dyness batteries be connected together?

Yes. The DL5.0C Pro supports parallel expansion of up to 50 units, providing a potential total capacity of 256 kWh.

Is Dyness compatible with Deye inverters?

Dyness lists Deye among the compatible inverter brands for the DL5.0C Pro. The exact inverter model and communication configuration should still be verified before installation.

Can the Dyness 5kW battery be installed outside?

The DL5.0C Pro is listed with an IP20 protection rating, so it is not designed as an exposed outdoor battery enclosure. A suitable protected installation environment should be used.

What type of battery is Dyness?

Dyness solar storage batteries such as the DL5.0C Pro use lithium iron phosphate, commonly called LiFePO₄, chemistry.

Final Considerations

The Dyness lithium battery 5kW keyword generally refers to a 5 kWh-class solar storage battery, with the Dyness DL5.0C Pro being a particularly relevant current model. Its 5.12 kWh capacity, 51.2 V architecture, LiFePO₄ chemistry, smart communication, high discharge capability and modular expansion make it suitable for residential and small commercial energy storage.

The most important point is to select the exact battery model and match it with a compatible inverter. Price should also be checked at the time of purchase because the Pakistan market can change with exchange rates, stock and supplier pricing.

For a complete solar installation, battery capacity should be calculated from actual household loads rather than choosing a battery solely because it is marketed as a “5kW” model.
