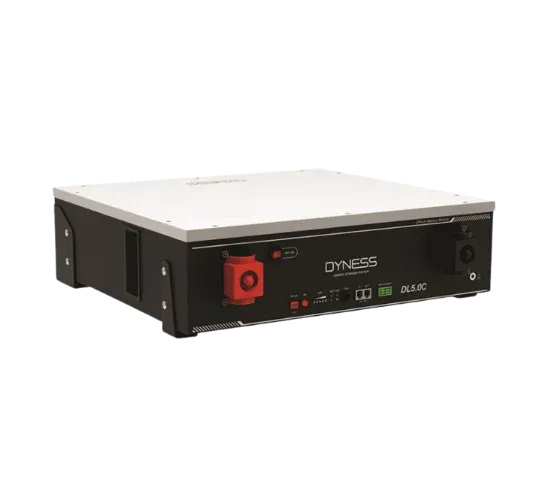

Dyness DL5.0C 5.12kWh 51.2V 100Ah Lithium Battery Overview

The Dyness DL5.0C Lithium Battery provides 5.12kWh nominal energy in a 51.2V 100Ah configuration. It uses LiFePO₄ chemistry, making it suitable for solar energy storage and backup applications where a rechargeable lithium battery is required.

Its 90% depth of discharge allows a substantial portion of the nominal battery capacity to be used during normal operation. The battery supports a recommended charge/discharge current of 50A, while the maximum charge current is 75A and maximum discharge current is 100A. Peak discharge current reaches 110A for 15 seconds.

The DL5.0C is also designed for expandable storage. Up to 50 units can be connected in parallel, providing a scalable solution for residential and small commercial systems.

Key Features and Buyer Benefits

LiFePO₄ Battery Chemistry

The Dyness DL5.0C uses LiFePO₄ battery cells. This chemistry is widely used for stationary energy-storage applications where long cycle life and stable operation are important.

The battery provides a nominal 5.12kWh of energy with a 51.2V nominal voltage and 100Ah capacity.

High Discharge Capability

The battery has a maximum discharge rate of 1C. Its maximum discharge current is 100A, with a peak discharge current of 110A for 15 seconds. This gives the battery a defined current capability for systems requiring higher short-duration power demand.

90% Depth of Discharge

The DL5.0C has a 90% DoD rating. DoD indicates how much of the battery’s nominal energy can be used during a discharge cycle.

Actual usable energy can vary with operating conditions, inverter efficiency, battery limits and system settings.

Long Cycle Life

The battery is rated for ≥8,000 cycles / 7 years under the stated test conditions. This makes cycle life an important consideration for solar systems that regularly charge and discharge the battery.

Flexible Installation

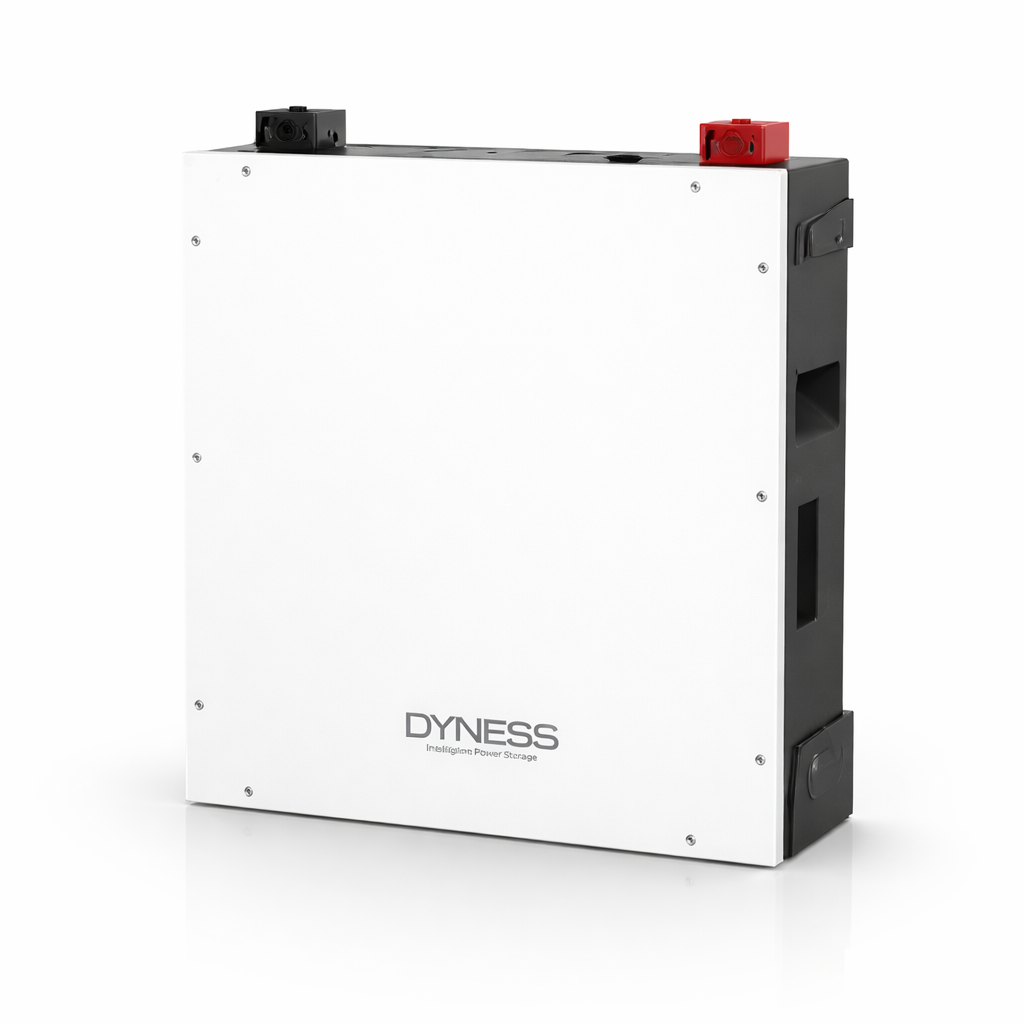

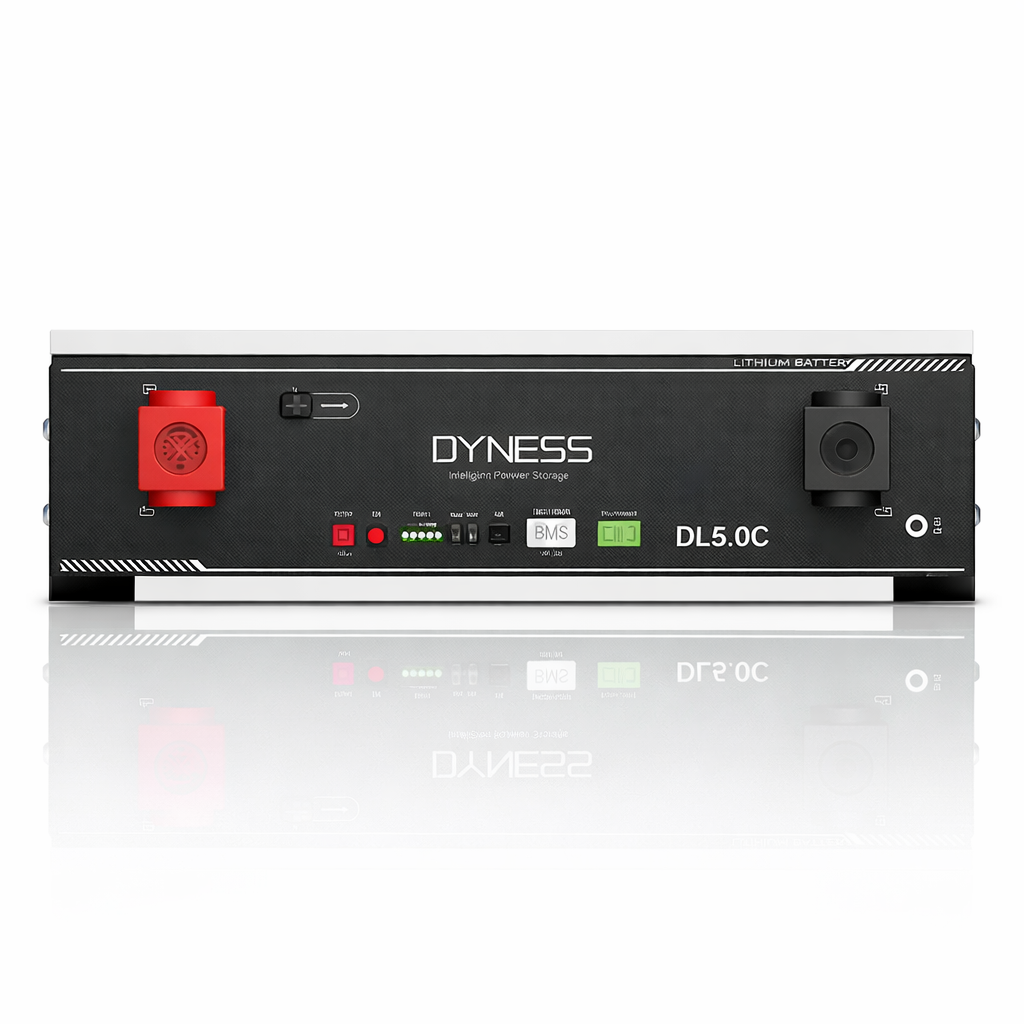

The Dyness DL5.0C supports wall-mounted, floor-mounted, stacked and rack-mounted installation. This provides flexibility when integrating the battery into different residential or small commercial storage layouts.

Expandable Energy Storage

Up to 50 DL5.0C units can operate in parallel, with the overall energy range extending from 5.12kWh to 256kWh. This allows the storage system to be expanded when higher capacity is required.

Best For

The Dyness DL5.0C is suitable for:

• Residential solar energy storage
• Home battery backup systems
• Small commercial energy storage
• Solar systems requiring a 51.2V lithium battery
• Installations requiring parallel battery expansion
• Users looking for LiFePO₄ energy storage
• Solar systems requiring CAN, RS485 or RS232 communication

Not Ideal For

The DL5.0C should not be selected without checking system compatibility where:

• The inverter requires a battery voltage architecture different from 51.2V
• The required load exceeds the battery’s charge/discharge limits
• The inverter does not support the battery’s required BMS communication
• The installation environment falls outside the specified temperature limits
• A higher storage capacity is required from a single battery unit

Always match the battery with the inverter’s voltage, current and communication requirements before installation.

Battery Capacity: kWh, Ah and Usable Energy Explained

The 5.12kWh rating represents the battery’s nominal energy, while 100Ah represents its electrical capacity at the stated nominal voltage.

A useful relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

For the DL5.0C:

51.2V × 100Ah ÷ 1000 = 5.12kWh

The manufacturer’s stated 5.12kWh nominal energy remains the primary specification. Actual usable energy depends on the configured depth of discharge, system losses and operating conditions.

Battery Chemistry and Cycle Life

The Dyness DL5.0C uses LiFePO₄ chemistry and provides a cycle-life rating of ≥8,000 cycles / 7 years under the stated test conditions. The battery also provides a 90% depth-of-discharge rating.

When evaluating a lithium battery, cycle life should be considered together with DoD, charge/discharge current, operating temperature and the actual daily cycling pattern.

Battery Management and Safety

The DL5.0C incorporates battery protection designed for safe energy-storage operation. The product information identifies short-circuit protection and surge resistance as part of its safety features.

The battery operates within a specified voltage range of 44.8V to 57.6V. Correct inverter settings and battery communication are important for proper operation.

Charging and Discharging Performance

The recommended charge/discharge current is 50A.

The battery supports:

• Maximum Charge Current: 75A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 110A for 15 seconds
• Recommended Charge/Discharge C Rate: 0.5C
• Maximum Discharge C Rate: 1C

These limits should be considered when matching the battery with a hybrid inverter or energy-storage system.

Inverter Compatibility

The Dyness DL5.0C supports communication through CAN, RS485 and RS232. Compatible inverter brands identified for the battery include Solis, Deye, Luxpower, Voltronic, Hoymiles, Growatt, GoodWe, SMA, Victron, Ingeteam, Delios, SAJ and APsystems.

Compatibility should still be confirmed for the exact inverter model, battery voltage, BMS communication protocol and required configuration before installation.

Parallel Expansion

One of the main advantages of the Dyness DL5.0C is its expansion capability. Up to 50 units can be connected in parallel, allowing total nominal storage capacity to scale from 5.12kWh up to 256kWh.

This makes the battery suitable for systems that may require additional storage capacity as energy demand increases.

Communication and WiFi

The battery provides CAN, RS485 and RS232 communication interfaces for system integration. A WiFi module is available as an optional feature.

For buyers searching for dyness dl5 0c wifi module, the optional WiFi capability should be confirmed for the required configuration before purchase.

Technical Specifications

Estimated Backup Time

Backup duration depends on usable battery energy, inverter efficiency and actual connected load. The 5.12kWh nominal rating should not be treated as a guaranteed runtime figure.

For example, the theoretical calculation at a specific load can be based on:

Backup Time ≈ Usable Energy ÷ Load

Actual runtime will be affected by inverter losses, battery operating limits, DoD settings, temperature, battery age and changes in connected load.

Lithium Battery Use in Pakistan

For Pakistani solar systems, the Dyness DL5.0C can be considered for home and small commercial energy storage where a 51.2V LiFePO₄ battery is compatible with the selected inverter.

The specified operating temperature range extends to 55°C, while charging and discharging conditions have separate temperature requirements. An optional heating function supports operation in colder conditions where applicable.

Proper ventilation, suitable installation conditions, correct inverter settings and compatible BMS communication remain important for reliable operation.

Dyness DL5.0C Price in Pakistan

The current price of Dyness DL5.0C 5.12kWh 51.2V 100Ah Lithium Battery in Pakistan is Rs. 228,000 per unit.

Buyers, installers and dealers can contact Hajvery Solar Energy for current availability and product compatibility guidance.

Hajvery Solar Energy is a Dyness Official Distributor for lithium battery products and can help buyers with product selection and compatibility requirements.

Hajvery Compatibility and Authenticity Check

Before purchasing the Dyness DL5.0C, confirm the exact DL5.0C model, battery voltage, required charge/discharge current and inverter communication requirements.

As a Dyness authorized dealer, Hajvery Solar Energy can help buyers check the appropriate battery configuration for their solar-storage system.

For systems using multiple batteries, confirm the required parallel configuration and communication arrangement before installation.

Warranty and After-Sales Support

The Dyness DL5.0C comes with a 7-year warranty, with the product information also giving a cycle-life rating of ≥8,000 cycles / 7 years under the stated test conditions.

Hajvery Solar Energy, as an Official Dyness Distributor, can assist buyers with product and warranty-related guidance. Warranty claim requirements should be confirmed before purchase.

Buying from Hajvery Solar Energy, an authorized Dyness dealer, provides a direct route for product and warranty enquiries.

Before You Buy

Before selecting the Dyness DL5.0C, check:

• Battery voltage: 51.2V nominal
• Battery capacity: 100Ah
• Energy requirement: 5.12kWh nominal
• Inverter compatibility
• CAN/RS485/RS232 communication
• Maximum battery current requirements
• Required number of parallel batteries
• Installation location and temperature
• BMS communication compatibility

FAQs

What is the Dyness DL5.0C battery capacity?

The Dyness DL5.0C has a 5.12kWh nominal energy capacity, 51.2V nominal voltage and 100Ah capacity.

What type of battery is Dyness DL5.0C?

It is a LiFePO₄ lithium battery designed for residential and small commercial energy-storage applications.

What is the Dyness DL5.0C price in Pakistan?

The current price of Dyness DL5.0C in Pakistan is Rs. 228,000 per unit.

What are the Dyness DL5.0C lithium battery specifications?

The main dyness dl 5 0 c lithium battery specifications include 5.12kWh nominal energy, 51.2V nominal voltage, 100Ah capacity, 90% DoD, 100A maximum discharge current and 1C maximum discharge rate.

Where can I check dyness dl 5 0 c lithium battery specs?

The dyness dl 5 0 c lithium battery specs include its voltage, capacity, current limits, cycle life, communication interfaces, dimensions and operating temperature range. The detailed specifications are provided above.

What is the dyness dl 5 0 c lithium battery replacement process?

For dyness dl 5 0 c lithium battery replacement or warranty enquiries, contact Hajvery Solar Energy to confirm the applicable warranty coverage and claim requirements.

What should I check in a dyness dl 5 0 c lithium battery review?

When evaluating a dyness dl 5 0 c lithium battery review, check the battery’s 5.12kWh capacity, 51.2V voltage, 90% DoD, discharge current, cycle life, inverter compatibility and communication options rather than relying on a single performance claim.

Does the Dyness DL5.0C support WiFi?

A WiFi module is optional for the Dyness DL5.0C. The standard communication interfaces include CAN, RS485 and RS232.

What is the dyness dl5 0c warranty?

The dyness dl5 0c warranty is 7 years.

Buy Dyness DL5.0C from Hajvery Solar

The Dyness DL5.0C 5.12kWh 51.2V 100Ah Lithium Battery is designed for residential and small commercial energy storage, with LiFePO₄ chemistry, 90% DoD, long cycle life and parallel expansion up to 50 units.

Hajvery Solar Energy provides Dyness lithium battery solutions for buyers, installers and dealers in Pakistan. For the dyness dl 5.0c lithium battery price in pakistan, availability, compatibility and warranty guidance, contact Hajvery Solar Energy
