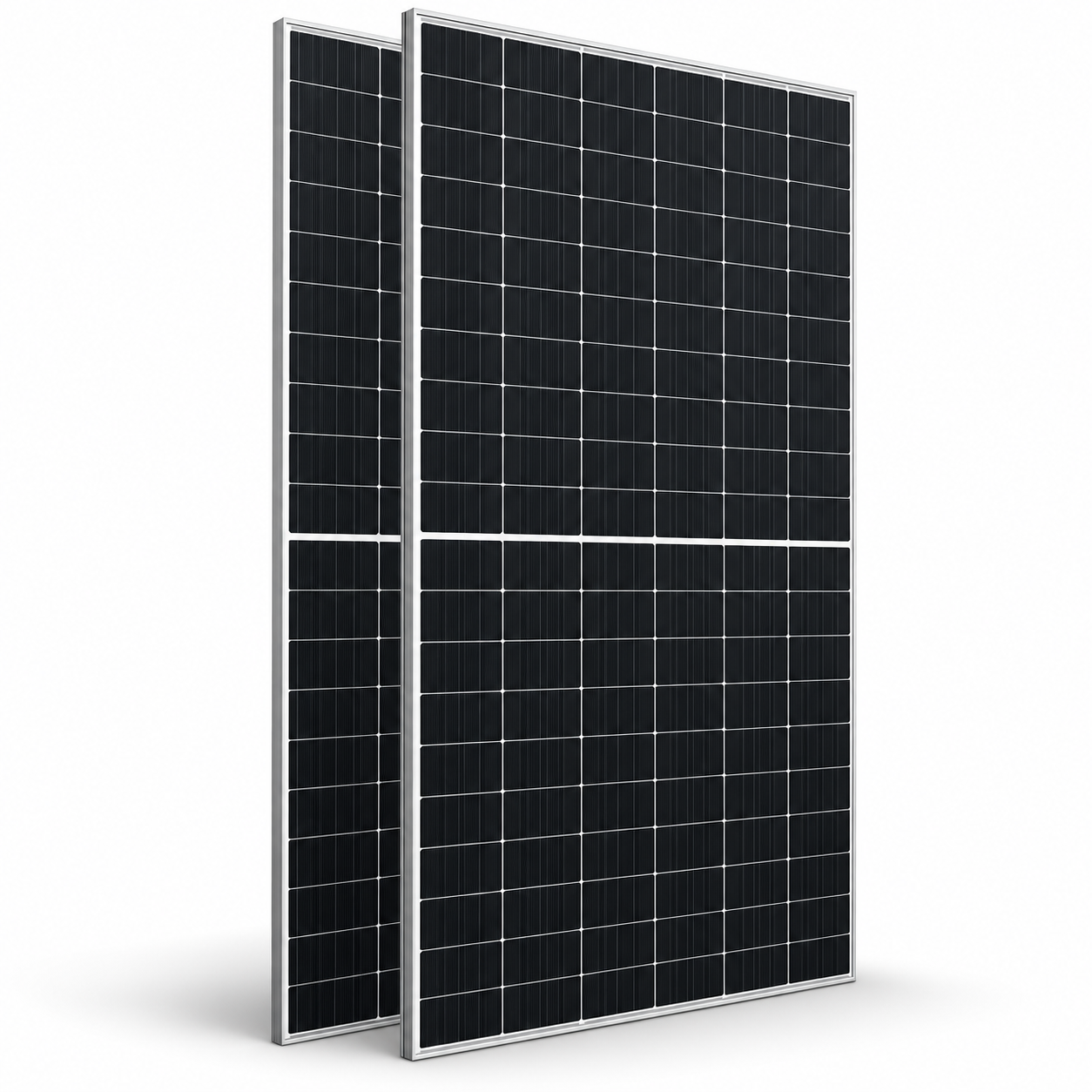

Astronergy 590W Bifacial Solar Panel

Astronergy 590W Bifacial Solar Panel Overview

The Astronergy 590W bifacial solar panel is designed for solar installations where higher power output and efficient use of available space are important. The 590W version uses N-type monocrystalline TOPCon half-cut cells arranged in a 144-cell configuration and provides a module efficiency of 21.8%.

Its bifacial construction allows both the front and rear sides of the module to receive solar radiation. The actual rear-side contribution depends on the installation environment, including mounting height, rear clearance, surface reflectivity and shading conditions. This makes the mounting design an important part of a bifacial solar system.

The module also features 2.0+2.0 mm front and rear glass, an aluminium silver-anodized frame and a maximum system voltage of 1500VDC. These characteristics make it suitable for residential, commercial and larger solar projects.

Key Features and Benefits

N-Type TOPCon Half-Cut Cell Technology

The panel uses N-type monocrystalline TOPCon half-cut cells with 144 cells arranged in a 6×24 configuration. This cell architecture provides the module with a 590W rated output and 21.8% efficiency.

For buyers, this means the panel combines a modern N-type TOPCon cell design with a relatively high power output per module, helping reduce the number of panels required for a given system capacity where the system design allows it.
For more information, visit the Astronergy 590w Bifacial Official Website.

Bifacial Energy Generation

The Astronergy solar panels bifacial design allows the rear side of the panel to receive sunlight in addition to the front side.

The amount of additional energy generated from the rear side is not a fixed value. It depends on factors such as mounting height, rear clearance, ground or roof reflectivity, shading and overall system layout.

For ground-mounted and suitably designed installations, these factors should be considered when evaluating the practical benefit of bifacial technology.

High Module Efficiency

The 590W panel provides 21.8% module efficiency.

Higher module efficiency can help make better use of available installation space. This can be particularly useful where roof area is limited and the project requires higher power from each individual panel.

Low Power Degradation

The panel has a maximum first-year power degradation of 1.0%. From years 2 to 30, the annual power degradation is limited to 0.4%.

This degradation profile supports long-term energy production and forms part of the product’s 30-year Linear Power Warranty.

Strong Module Construction

The module uses 2.0+2.0 mm front and rear glass with an aluminium silver-anodized frame.

The maximum mechanical test load is 5400 Pa on the front and 2400 Pa on the back. The junction box has an IP68 protection rating, while the maximum series fuse rating is 30A.

Best For

The Astronergy 590W bifacial solar panel is suitable for:

• Residential solar systems requiring higher-output modules
• Commercial and industrial rooftop installations
• Ground-mounted solar projects
• Projects with suitable rear-side light conditions for bifacial generation
• Installations where available roof or mounting space needs to be used efficiently
• Solar systems requiring a 1500VDC maximum system voltage
• Buyers looking for long-term power warranty coverage

When Another Panel May Be Better

This 590W module may not be the best option for every installation.

A different panel can be more suitable if the available mounting area requires smaller module dimensions, if the inverter has different voltage or current limitations, or if the installation does not provide useful rear-side light for bifacial generation.

Installers should also check the panel’s Voc, Vmp, Isc and Imp against the selected inverter’s MPPT voltage and current limits. Panel wattage alone should not be used to confirm string compatibility.

Cell and Module Technology

The panel uses N-type monocrystalline TOPCon half-cut cell technology with 144 cells arranged in a 6×24 configuration.

The bifacial module design allows the rear side to receive solar radiation in addition to the front side. The practical benefit of this design depends on the installation environment and mounting arrangement.

The module measures 2382 × 1134 × 30 mm and weighs 33.5 kg. It uses an aluminium silver-anodized frame and 2.0+2.0 mm front and rear glass.

The standard connector is HCB40, while MC4-EVO2A is available as an optional connector configuration.

Technical Specifications

Brand: Astronergy
Series: N7 CHSM72RN(DG)/F-BH Bifacial Series
Rated Power: 590W
Cell Technology: N-type Monocrystalline TOPCon Half-cut
Module Type: Bifacial
Module Efficiency: 21.8%
Power Sorting: 0 to +5W
Maximum Power Voltage (Vmpp): 42.86V
Maximum Power Current (Impp): 13.77A
Open-Circuit Voltage (Voc): 51.00V
Short-Circuit Current (Isc): 14.50A
Maximum System Voltage: 1500VDC
Temperature Coefficient of Pmpp: -0.29%/°C
Temperature Coefficient of Isc: +0.043%/°C
Temperature Coefficient of Voc: -0.25%/°C
Nominal Module Operating Temperature: 41±2°C
Cell Count: 144 (6×24)
Front / Back Glass: 2.0+2.0 mm
Frame: Aluminium, silver anodized
Dimensions: 2382 × 1134 × 30 mm
Weight: 33.5 kg
Maximum Mechanical Test Load: 5400 Pa front / 2400 Pa back
Connector: HCB40 standard / MC4-EVO2A optional
Junction Box: IP68
Maximum Series Fuse: 30A
Product Warranty: 15 years
Linear Power Warranty: 30 years

Performance and Degradation

Under standard test conditions, the 590W panel provides a rated power output of 590W, with a maximum power voltage of 42.86V and maximum power current of 13.77A.

The open-circuit voltage is 51.00V and the short-circuit current is 14.50A.

The panel has a Pmpp temperature coefficient of -0.29%/°C. This is an important specification when assessing module performance under changing operating temperatures.

The first-year power degradation is limited to 1.0%, followed by a maximum annual degradation of 0.4% from years 2 to 30. The product has a 30-year Linear Power Warranty, with 87.40% warranted output at the end of the warranty period.

Performance Considerations for Pakistan

Pakistan’s hot summer conditions make temperature behaviour an important consideration when selecting solar panels. The panel’s -0.29%/°C Pmpp temperature coefficient should be considered during system performance evaluation.

Dust and soiling can reduce the amount of sunlight reaching the module surface. Regular cleaning should therefore be planned according to the site’s environmental conditions.

For bifacial installations, rear-side clearance and surrounding surfaces are also important. A suitable mounting arrangement can provide better access to reflected sunlight, while shading behind the module or insufficient clearance can reduce the practical benefit of bifacial technology.

Installers should also consider the panel’s voltage and current characteristics when designing strings. The module’s Voc, Vmp, Isc and Imp should be checked against the inverter’s MPPT range and maximum input limits.

Astronergy 590W Solar Panel Price in Pakistan

The current price of Astronergy 590W N-Type TOPCon Bifacial Solar Panel in Pakistan is Rs. 22,331.50.

For buyers searching astronergy 590w bifacial solar panel price in pakistan, the final quotation can vary according to quantity, delivery requirements and current market conditions.

The astronergy 590w bifacial solar panel price should therefore be confirmed before placing a bulk or project order.

Hajvery Product Verification

Before purchasing an Astronergy 590w solar panel, buyers should confirm the exact 590W configuration, electrical specifications, dimensions and warranty details.

Customers searching for astronergy solar panels verification online should verify the product identification carefully before purchase and installation.

The search term astronergy solar panels price in pakistan today is useful for buyers checking current market pricing, but the applicable quotation should always be confirmed before ordering.

Astronergy 590W Solar Panel Review

When evaluating an astronergy 590w solar panel review, buyers should focus on measurable product specifications rather than general claims.

The main points to consider are the 590W rated output, 21.8% module efficiency, N-type TOPCon half-cut cell technology, bifacial design, 1500VDC maximum system voltage, module construction and long-term degradation profile.

For buyers checking astronergy solar panels 590w price in pakistan, price should be considered together with efficiency, electrical characteristics, warranty and compatibility with the planned solar system.

Warranty and Product Support

The panel comes with a 15-year Product Warranty and a 30-year Linear Power Warranty.

The long-term power warranty covers the stated degradation profile over the applicable warranty period.

Before purchase, buyers should retain the relevant product and purchase information and follow the applicable warranty process when required.

Before You Buy

• Confirm that the required module output is 590W.
• Check the panel’s Voc and Vmp against the inverter’s MPPT voltage range.
• Check Isc and Imp against the inverter’s maximum input-current limits.
• Consider temperature-adjusted voltage during string design.
• Confirm that the available mounting area can accommodate the 2382 × 1134 × 30 mm module.
• For bifacial installations, assess rear clearance and surrounding surface conditions.
• Consider the site’s dust and soiling level when planning cleaning.
• Confirm the latest product price before ordering.

Frequently Asked Questions

What is the power output of the Astronergy 590W solar panel?

The panel has a 590W rated power output under standard test conditions.

What technology does the Astronergy 590W panel use?

It uses N-type monocrystalline TOPCon half-cut cell technology with 144 cells.

Is the Astronergy 590W panel bifacial?

Yes. It has a bifacial design that allows the rear side to contribute to energy generation when suitable light reaches the back of the module.

What is the efficiency of the Astronergy 590W panel?

The module efficiency is 21.8%.

What is the astronergy 590w price in pakistan?

The current price of Astronergy 590W N-Type TOPCon Bifacial Solar Panel in Pakistan is Rs. 22,331.50.

What is the astronergy 590w solar panel price?

The current price of Astronergy 590W N-Type TOPCon Bifacial Solar Panel in Pakistan is Rs. 22,331.50.

What is the astronergy 590w solar panel price in pakistan?

The current price of Astronergy 590W N-Type TOPCon Bifacial Solar Panel in Pakistan is Rs. 22,331.50.

What should buyers know about astronergy solar panels bifacial?

Bifacial modules can receive sunlight from both sides. The actual rear-side contribution depends on mounting arrangement, rear clearance, reflective surfaces and shading conditions.

How does the panel perform over the long term?

The first-year power degradation is limited to 1.0%, while annual degradation from years 2 to 30 is limited to 0.4%. The product has a 30-year Linear Power Warranty.

What does astronergy solar panels ranking in pakistan mean?

A ranking should not replace technical evaluation. Buyers should consider the panel’s efficiency, electrical specifications, construction, warranty and suitability for their planned solar system.

What is the astronergy 590w bifacial solar panel?

The Astronergy 590w bifacial solar panel is a 590W N-type TOPCon bifacial module designed for solar installations where high module output and suitable rear-side light conditions are required.

What should I consider when checking astronergy solar panels price in pakistan today?

Check the current quotation together with the required quantity, delivery requirements and installation needs because solar panel pricing can change with market conditions.

Buy Astronergy 590W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy provides solar products for residential, commercial and installer requirements in Pakistan. For the Astronergy 590W N-Type TOPCon Bifacial Solar Panel, confirm the current quotation, required quantity and system requirements before purchase.
For more options, visit the Astronergy Bifacial Solar Panel product page on Hajvery Solar.
