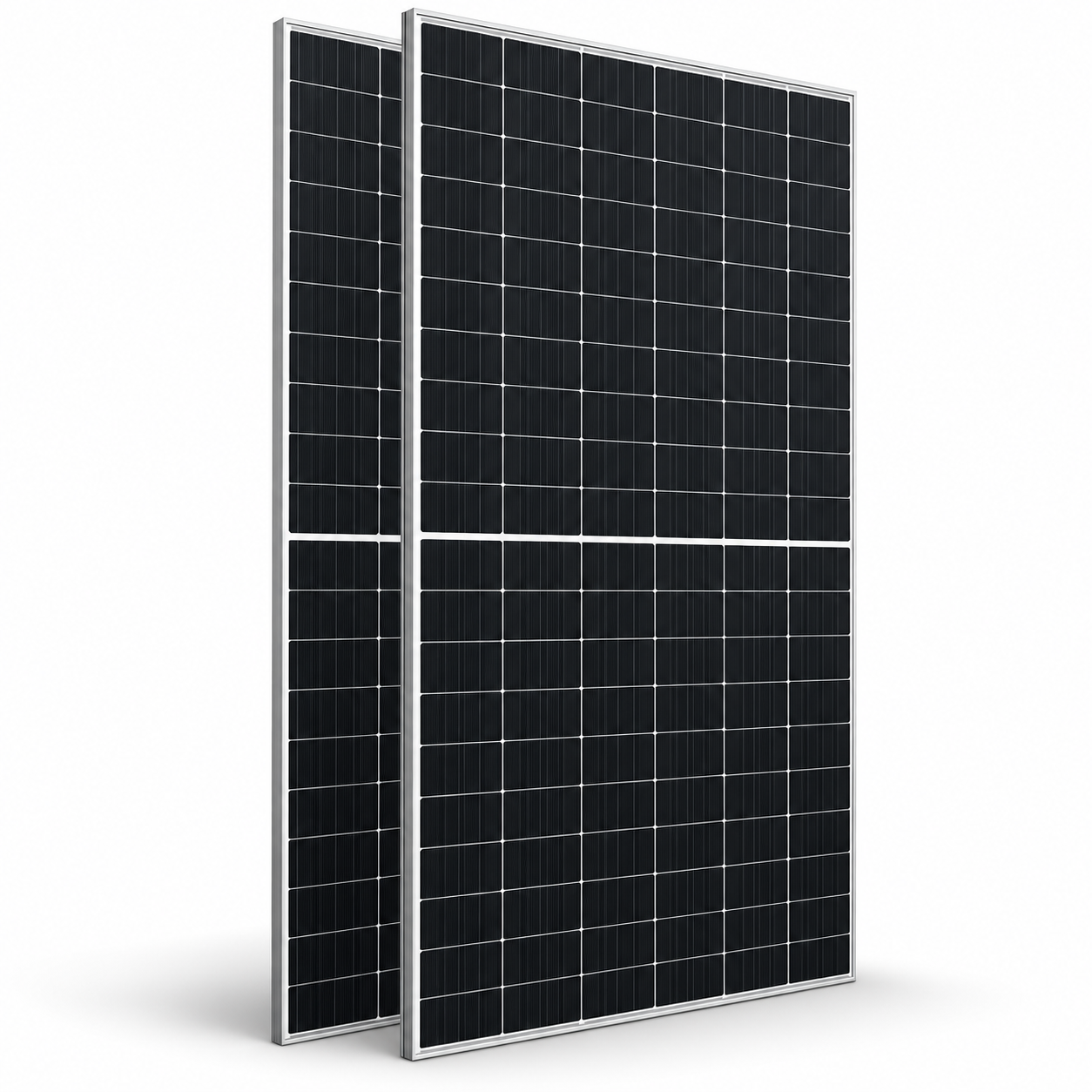

Astronergy 585W Bifacial Solar Panel

Astronergy 585W Bifacial Solar Panel Overview

The Astronergy 585W solar panel is designed for solar systems where high module output, efficient use of installation space and long-term power retention are important. It combines N-type mono-crystalline cells, TOPCon technology and a half-cut cell design in a bifacial double-glass module.

With a 585W rated output and 22.6% efficiency, the panel can provide strong generation from each installed module. In addition, the bifacial construction allows the rear side to contribute extra power when the installation provides suitable reflected light and rear-side exposure.

Its 2.0 mm + 2.0 mm glass construction, anodized aluminium frame and 5400 Pa front / 2400 Pa back mechanical test load provide a strong module structure for properly engineered installations.

Key Features and Benefits

N-Type TOPCon Half-Cut Technology

The panel uses N-type mono-crystalline cells with TOPCon / half-cut technology. The 144-cell configuration supports the module’s 585W output and high efficiency.

As a result, this combination provides a modern high-output module for installations where generation per panel and efficient use of available space matter.

For more information, visit the Astronergy 585w Bifacial Official Website.

Bifacial Energy Generation

The bifacial design allows the module to receive usable solar radiation from both sides. However, rear-side generation depends on installation conditions such as mounting height, surface reflectivity, row spacing and shading.

In addition, the bifacial construction can provide extra rear-side generation when the installation is properly designed for useful reflected light and rear-side exposure.

Therefore, the Astronergy 585W bifacial solar panel is particularly relevant for properly designed ground-mounted and elevated solar installations.

High Module Efficiency

The Astronergy 585W solar panel has 22.6% maximum module efficiency and can convert a high proportion of available sunlight into electrical power.

Therefore, higher module efficiency can be useful where available installation space is limited and the system designer wants strong output from each panel.

Low Power Degradation

The module has a first-year power degradation of ≤1.0% and year 2–30 degradation of ≤0.4% per year. The warranty curve reaches 87.40% power at year 30 for the applicable n-type DG warranty line.

For this reason, the long-term degradation profile is an important factor when comparing solar panels for projects expected to operate for many years.

Strong Double-Glass Construction

The module uses 2.0 mm front and 2.0 mm back glass, with an aluminium silver-anodized frame. Its maximum mechanical test load is 5400 Pa on the front and 2400 Pa on the back.

Best For

The Astronergy 585W Bifacial Solar Panel is well suited for:

• Commercial solar systems
• Ground-mounted solar projects
• Large rooftop installations with suitable structural capacity
• Projects where bifacial generation can be used effectively
• Installations requiring high output per module
• Solar systems where long-term degradation performance is an important consideration

For bifacial systems, the mounting arrangement should also allow useful rear-side light exposure instead of placing the panel directly against an unsuitable surface.

When Another Panel May Be Better

This panel may not be the best choice where:

• The available roof area requires a smaller module size.
• The mounting structure cannot accommodate a 2278 × 1134 mm panel.
• The project specifically requires a monofacial module.
• The inverter or string design cannot properly accommodate the panel’s electrical characteristics.
• The project cannot make practical use of rear-side bifacial generation.

In addition, the 585W module weighs 32.1 kg, so structural and handling requirements should be considered before installation.

Cell and Module Technology

The panel uses N-type mono-crystalline cell technology with TOPCon / half-cut architecture and 144 cells arranged in a 6 × 24 configuration.

Meanwhile, the half-cut design forms part of the module’s electrical layout, while the bifacial construction allows the rear side to contribute to generation when installation conditions are suitable.

It also features non-destructive cutting and PID resistance. Together, these features support reliable long-term operation.

Technical Specifications

Astronergy 585W Solar Panel Performance and Degradation

The Astronergy 585W solar panel has a ≤1.0% first-year power degradation specification followed by ≤0.4% annual degradation from years 2 to 30. The applicable warranty curve reaches 87.40% power at year 30.

In addition, the panel has a -0.29%/°C Pmpp temperature coefficient. As a result, module output changes with cell temperature, so proper system design, ventilation and installation conditions remain important, especially in hot environments.

Performance Considerations for Pakistan

In Pakistan, high summer temperatures make the temperature coefficient an important factor when evaluating solar panels. The Astronergy 585W solar panel has a -0.29%/°C Pmpp coefficient, which should be considered during performance and system-yield planning.

Therefore, for practical installation:

• Keep the module mounting arrangement properly ventilated.
• Also account for dust and soiling, particularly in dusty areas.
• Clean the panels according to actual site conditions.
• Provide suitable rear-side clearance when using the panel’s bifacial capability.
• Check module Voc, Isc, Vmp and Imp against the selected inverter and string configuration.
• Finally, respect the 1500V DC maximum system voltage during system design.

Astronergy 585W Solar Panel Price in Pakistan

The current price of Astronergy 585W Bifacial Solar Panel in Pakistan is Rs. 22,083.75 per panel.

The final project cost can vary according to required quantity, transportation and installation requirements. Dealers, installers and bulk buyers can contact Hajvery Solar for current availability and quantity-based enquiries.

Tier 1, A-Grade and Product Authenticity

When comparing Astronergy solar panels, buyers should first evaluate the exact model, electrical specifications, construction, warranty coverage and authenticity rather than choosing a panel on wattage alone.

For astronergy solar panels verification online, confirm the exact CHSM72N(DG)/F-BH model information, serial details and applicable warranty before purchase. This is especially useful when buying panels in bulk or when checking a larger order.

For buyers searching for an Astronergy 585w solar panel review, the main points to check are its 22.6% efficiency, N-type TOPCon construction, bifacial design, low temperature coefficient and long-term power performance.

Hajvery Solar Product Verification

Before ordering, first confirm the exact model CHSM72N(DG)/F-BH, panel condition, serial information and applicable warranty.

Buyers looking for Astronergy 585w bifacial solar panel price in pakistan should also confirm the price on the date of purchase because quantity, market conditions and logistics can affect commercial quotations.

Hajvery Solar can assist buyers with product identification and compatibility checks before purchase.

Warranty

The Astronergy 585W Bifacial Solar Panel comes with a 15-year product warranty and a 30-year linear power warranty. The linear power warranty includes ≤1.0% first-year degradation and ≤0.4% annual degradation for years 2–30, with the applicable n-type DG warranty curve reaching 87.40% at year 30.

Finally, warranty claims should be handled according to the applicable warranty terms and requirements at the time of purchase.

Frequently Asked Questions

Is the Astronergy 585W Bifacial Solar Panel N-type?

Yes. The panel uses N-type mono-crystalline cells with TOPCon / half-cut technology. Therefore, it combines high output with a modern cell design.

Is the Astronergy 585W panel bifacial?

Yes. It is a bifacial module designed to generate extra power from suitable rear-side light exposure.

What is the efficiency of the Astronergy 585W solar panel?

The module has a maximum efficiency of 22.6%. This helps deliver strong output from each installed panel.

Are bifacial solar panels worth it?

Yes, bifacial solar panels can be worthwhile when the installation provides suitable rear-side light, mounting clearance and reflective conditions. However, the benefit depends on the actual site and system design rather than the panel wattage alone.

What are the Astronergy 585w bifacial solar panel specifications?

The panel has 585W rated output and 22.6% efficiency. It also has 43.27V Vmpp, 13.52A Impp, 51.50V Voc and 14.36A Isc. In addition, it measures 2278 × 1134 × 30 mm and weighs 32.1 kg.

What is the Astronergy 585w solar panel price in pakistan?

The current price of Astronergy 585W Bifacial Solar Panel in Pakistan is Rs. 22,083.75 per panel.

What warranty does the Astronergy 585W solar panel have?

It has a 15-year product warranty and a 30-year linear power warranty.

Is Astronergy 585w bifacial solar panel suitable for commercial systems?

Yes, its high output, 22.6% efficiency, bifacial design and large-module format make it suitable for appropriately designed commercial and ground-mounted solar installations. However, final suitability depends on structural, electrical and site requirements.

Buy Astronergy 585W Bifacial Solar Panel from Hajvery Solar

Overall, choose the Astronergy 585W solar panel when your solar project requires high module output, N-type TOPCon technology, bifacial generation and long-term power performance.

Hajvery Solar provides solar products for retail, dealer and commercial buyers. Buyers can contact the team for product availability, quantity requirements and compatibility guidance.

For more options, visit the Astronergy Bifacial Solar Panel product page on Hajvery Solar.
