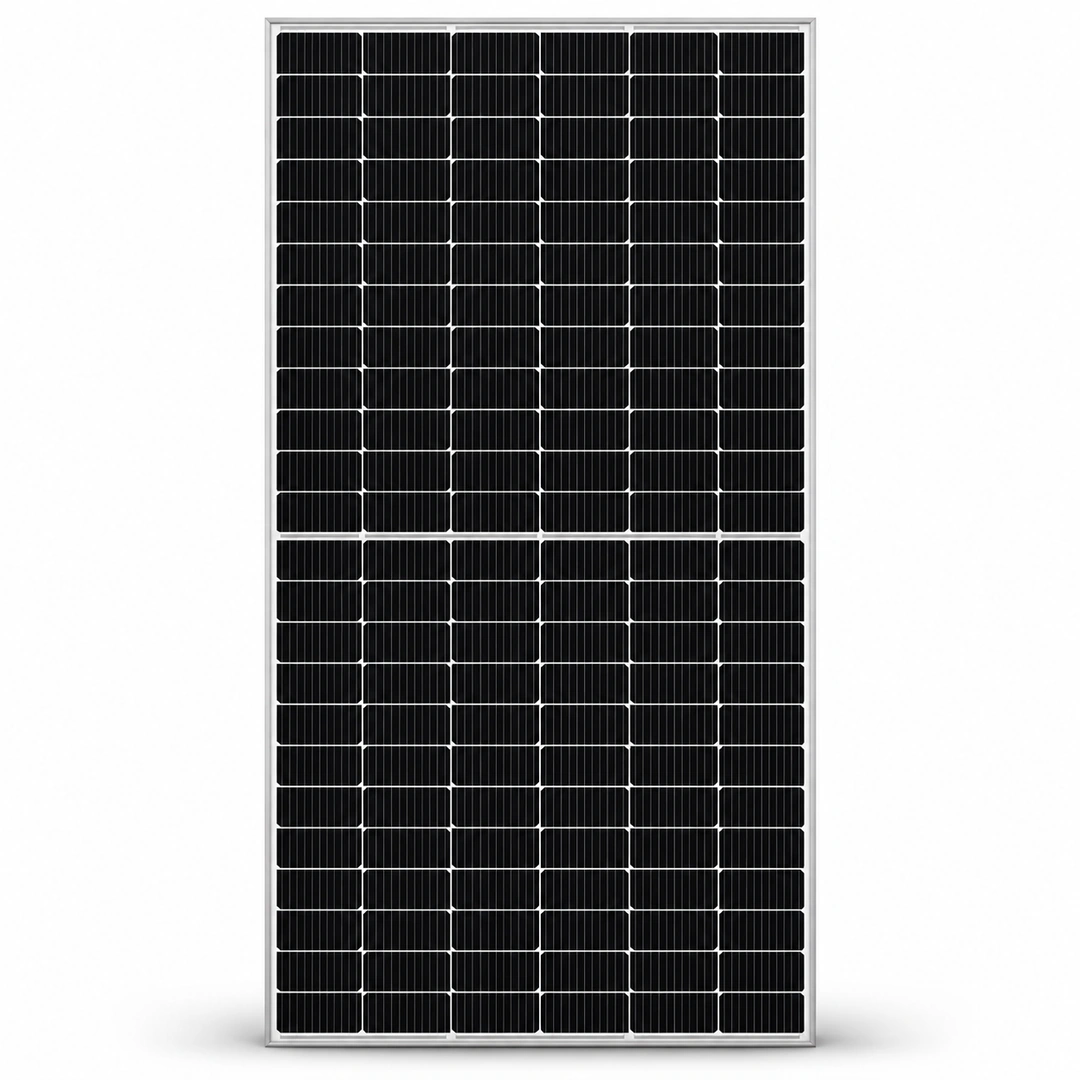

Canadian 590W Bifacial Solar Panel

Canadian 590W Bifacial Solar Panel Overview

The Canadian 590W Bifacial Solar Panel is designed for solar systems that need high module output and the potential to generate additional electricity from reflected light. Its N-Type TOPCon cell technology combines high rated power with a module efficiency of up to 22.8%, helping installers make effective use of available roof or ground-mounted installation space. For homeowners and businesses, the Canadian 590w solar panel price in pakistan can help with planning the overall solar installation cost.

The bifacial design allows the rear side to capture suitable reflected sunlight. The additional energy depends on the installation height, tilt, ground reflectivity, spacing and the amount of light reaching the back of the panel. Actual rear-side gain therefore varies from one solar project to another.

For homes, businesses, factories and other solar installations, this 590W panel offers a practical option for building a high-capacity solar array. Correct string design, suitable mounting and proper ventilation remain important for achieving reliable performance over the operating life of the system.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon cells to deliver high module power and efficient solar energy conversion. Its rated output of 590W helps reduce the number of modules required for a given DC array capacity compared with lower-wattage panels, subject to the electrical and physical requirements of the installation.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

The bifacial structure captures sunlight from both sides of the module. Light reflected from a suitable roof surface or the ground can contribute to additional electricity generation.

The benefit is influenced by the mounting arrangement and surrounding surface. A rear side that receives little light will generally provide less additional generation than one with good reflected-light exposure.

High Module Efficiency

With up to 22.8% efficiency, the panel converts a substantial portion of the sunlight falling on its surface into electricity under standard test conditions. Higher module efficiency can be useful where roof space is limited, although the final number of panels also depends on their dimensions, layout and installation clearances.

Low Power Degradation

The panel has a maximum first-year power degradation of 1%, followed by annual degradation of no more than 0.4% under the applicable performance warranty terms. This supports long-term planning for solar energy production, while actual output will also depend on weather, installation quality, shading, cleaning and operating conditions.

Dual-Glass Construction

The module uses 2.0 mm heat-strengthened glass on the front and rear, with an anodized aluminium alloy frame. This construction is suitable for solar installations designed around the panel’s weight, mounting points and mechanical limits.

Best For

The Canadian 590W Bifacial Solar Panel can be considered for:

• Residential rooftop solar systems with suitable mounting space.
• Commercial buildings seeking higher DC solar capacity.
• Industrial solar installations with appropriate structural support.
• Ground-mounted solar projects where rear-side light exposure can be improved.
• Solar installers designing high-output PV arrays.
• Projects where long-term power performance is an important buying consideration.

Final suitability depends on the inverter’s voltage and current limits, the mounting structure, available area and the intended system capacity.

When Another Panel May Be Better

This panel may not be the right choice for every installation. Consider the following before ordering:

• Limited mounting space: Confirm the module dimensions and available roof area before finalising the layout.
• Low rear-side light exposure: A bifacial panel may provide less additional energy where the rear surface receives little reflected sunlight.
• Electrical incompatibility: Check the panel’s voltage and current against the inverter’s MPPT range and input-current limits.
• Structural limitations: The installation structure must support the module’s weight and applicable wind and snow loads.
• Different system requirements: Choose a panel that fits the project’s required dimensions, voltage, current and string configuration rather than selecting on wattage alone.

Cell and Module Technology

The module combines N-Type TOPCon technology with a bifacial, dual-glass design. TOPCon is a solar-cell architecture intended to improve electrical performance, while the bifacial structure allows the rear surface to contribute to energy generation when sufficient light reaches it.

The module uses 144 cells arranged in a 2 × (12 × 6) configuration. Its high rated power and 590W output make it suitable for projects where installers want to achieve substantial array capacity with fewer modules, provided the electrical design and mounting layout remain compatible.

Technical Specifications

Performance and Degradation

Long-term performance is an important consideration when selecting a solar panel. This module has a maximum first-year power degradation of 1%, followed by annual degradation of no more than 0.4% under the applicable linear power performance warranty.

The temperature coefficient of -0.29%/°C indicates that module power decreases as cell temperature rises above the reference temperature under otherwise comparable conditions. Proper ventilation and mounting clearance can help manage operating temperatures.

Actual solar production will vary with sunlight, shading, dust, orientation, tilt, system losses and maintenance. Warranty performance terms should be distinguished from a guarantee of actual daily or annual electricity production.

Performance Considerations for Pakistan

Solar panels in Pakistan often operate through hot summers, dusty conditions and periods of variable sunlight. Correct installation and maintenance are therefore important for dependable energy generation.

• Heat management: Allow appropriate clearance beneath the modules for ventilation.
• Dust and cleaning: Dust accumulation can reduce output. Use a suitable cleaning routine and follow safe cleaning practices.
• Bifacial installation: Select a mounting arrangement that allows useful light to reach the rear surface.
• Electrical design: Account for the panel’s open-circuit voltage, operating voltage and current when designing PV strings.
• Mechanical support: Ensure the mounting structure is appropriate for the module’s dimensions, weight and installation environment.
• System protection: Use suitable cables, connectors, earthing and protective equipment as required by the installation design.

The panel’s temperature coefficient is useful when evaluating performance in hot weather, but actual system output will still depend on site conditions.

Canadian 590W Bifacial Solar Panel Price in Pakistan

The Canadian 590w solar panel price in pakistan is an important consideration for homeowners, businesses, solar installers and dealers planning a solar installation.

The current price of the Canadian 590W Bifacial Solar Panel in Pakistan is Rs. 23,747.50 per panel.

The total panel cost depends on the number of modules required for the project. Installation structure, cables, inverter selection, protection equipment, labour and other system components are separate cost considerations.

For bulk orders and dealer enquiries, contact Hajvery Solar Energy to confirm current availability and quantity-based pricing. The listed price should not be treated as confirmation of stock availability.

Tier 1, A-Grade and Product Authenticity

When comparing Canadian solar panels, buyers should assess the exact model, electrical specifications, product condition and applicable warranty rather than relying on wattage alone.

Before purchasing, check:

• The exact model number printed on the module label.
• Serial number and product identification details.
• Physical condition of the glass, frame, junction box and connectors.
• Consistency between the supplied product and the ordered specification.
• Applicable warranty coverage and the process for making a claim.

The terms Tier 1 and A-Grade should only be used where the relevant status or product condition has been verified. Neither should be assumed solely from the brand name.

Hajvery Solar Product Verification

At Hajvery Solar Energy, buyers can enquire about the Canadian 590W Bifacial Solar Panel and confirm the product details before ordering.

Check the exact model and serial information, inspect the module’s physical condition and establish the applicable warranty terms. Solar installers should also verify inverter compatibility, string voltage, input current and mounting requirements before finalising the system design.

For an authenticity check, use the manufacturer’s available verification process where applicable. Do not rely on a panel’s appearance alone to establish authenticity.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 590W Bifacial Solar Panel comes with a 12-year enhanced product warranty covering materials and workmanship and a separate 30-year linear power performance warranty, subject to the applicable Canadian Solar Limited Warranty Statement and its conditions.

The product warranty and performance warranty serve different purposes. Product warranty coverage concerns eligible material and workmanship issues, while the linear power performance warranty concerns the module’s warranted power output over time.

Review the applicable warranty terms and confirm the claim procedure before purchase. Actual warranty eligibility is subject to the relevant conditions.

Frequently Asked Questions

1. What is the Canadian 590W Bifacial Solar Panel price in Pakistan?

The current price of the Canadian 590W Bifacial Solar Panel in Pakistan is Rs. 23,747.50 per panel. Contact Hajvery Solar Energy to confirm current availability and bulk-order pricing.

2. What is the model number of the Canadian 590W Bifacial Solar Panel?

The model number is CS6W-590TB-AG.

3. Is the Canadian 590W solar panel bifacial?

Yes. Its bifacial design allows the rear surface to capture reflected sunlight. The amount of additional electricity depends on the mounting structure, ground reflectivity and rear-side light exposure.

4. What is the efficiency of the Canadian 590W Bifacial Solar Panel?

The module has an efficiency of 22.8% under standard test conditions.

5. What are the dimensions and weight of this solar panel?

The module measures 2278 × 1134 × 30 mm and weighs 32.3 kg. Confirm that the available mounting area and supporting structure can accommodate these dimensions and weight.

6. What warranty does the Canadian 590W Bifacial Solar Panel have?

It has a 12-year product warranty covering materials and workmanship and a separate 30-year linear power performance warranty, subject to the applicable warranty terms and conditions.

7. Can this panel be used with any solar inverter?

Not automatically. Compatibility depends on the inverter’s maximum DC voltage, MPPT voltage range, operating-current limits, short-circuit current limits and the complete string design. Have a qualified installer check these values before installation.

8. How much additional power can the bifacial panel generate?

Additional rear-side generation varies with the installation height, tilt, ground reflectivity and amount of light reaching the back of the module. The bifacial design does not guarantee a fixed percentage increase in every installation.

Buy Canadian 590W Bifacial Solar Panel from Hajvery Solar Energy

Choose Hajvery Solar Energy for enquiries about the Canadian 590W Bifacial Solar Panel in Pakistan. Whether you are planning a home installation, a commercial rooftop system or a larger solar project, confirm the exact model, current price, warranty coverage and electrical compatibility before ordering.

To explore more options click the link below:
Canadian Solar Panels In Pakistan.
