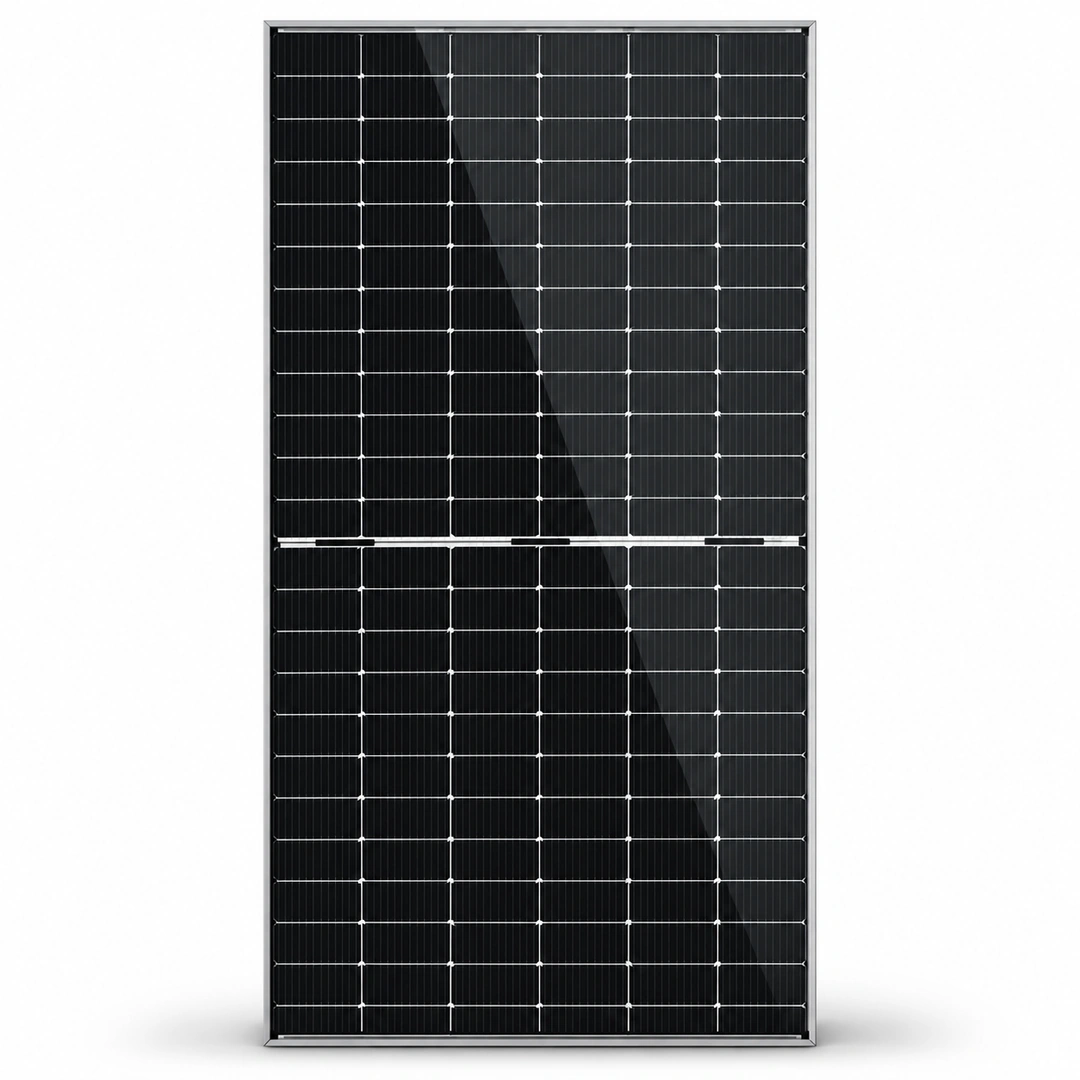

Jinko 630W Bifacial Solar Panel

Jinko 630W Bifacial Solar Panel Overview

The Jinko 630W Bifacial Solar Panel uses N-type TOPCon cell technology and a dual-glass design to support efficient solar power generation. With a rated output of 630W, it is suitable for installations that need high power from each panel while making good use of the available space. Before buying, check the Jinko 630w solar panel price in pakistan and make sure the panel suits your system.

The panel belongs to Jinko Solar’s Tiger Neo 78HL4-BDV series and features 156 N-type monocrystalline cells. In addition, its bifacial design allows the rear side to generate electricity when reflected or scattered sunlight reaches it. However, the extra energy depends on mounting height, ground reflectivity, spacing and surrounding conditions.

With 22.54% module efficiency, this panel can help installers plan high-capacity solar systems. It is suitable for commercial rooftops and ground-mounted projects, provided the dimensions, electrical limits and mounting requirements match the system design.

Key Features and Benefits

1. N-Type TOPCon Cell Technology

The panel uses N-type Tunnel Oxide Passivating Contact (TOPCon) technology. This cell design helps reduce light-induced degradation and light- and elevated-temperature-induced degradation compared with relevant conventional cell technologies.

As a result, the technology supports long-term energy production. However, actual performance still depends on temperature, shading, cleanliness, installation quality and other site conditions.

For more technical information and specifications visit Jinko Solar Panel Official Website.

2. Bifacial Solar Energy Generation

A bifacial solar panel can generate electricity from both its front and rear sides. For example, the rear side can receive sunlight reflected from the ground or nearby surfaces, adding to the energy produced by the front side.

The 80 ± 5% reference bifacial factor describes the relationship between rear-side and front-side power under the applicable test conditions. However, it does not mean the panel will automatically produce 80% extra electricity in a real installation.

Therefore, installers should consider mounting clearance, reflective ground surfaces and rear-side shading to improve the potential benefit of bifacial generation.

3. High Module Efficiency

With 22.54% module efficiency, the panel converts a high proportion of the sunlight reaching its active area into electricity under standard test conditions.

Consequently, it can help reduce the number of modules needed for a given DC capacity compared with lower-wattage options. However, the final panel count also depends on module dimensions and the project’s electrical design.

4. Dual-Glass Construction

The module uses 2.0 mm anti-reflection-coated front glass and 2.0 mm heat-strengthened rear glass. Together, these layers protect the cells and support the panel’s bifacial design.

In addition, the frame is made from anodized aluminium alloy, while the junction box has an IP68 rating. These features support outdoor use within the panel’s specified operating conditions.

5. Enhanced Mechanical Load Capability

The panel is designed for a maximum static test load of 5400 Pa on the front side and 2400 Pa on the rear side.

However, these ratings do not remove the need for correct installation. The mounting structure, clamps, support points and installation method must follow the applicable requirements.

6. Anti-PID Design

The module includes measures intended to reduce the risk of potential-induced degradation (PID). As a result, it supports the goal of maintaining long-term performance. Actual degradation, however, depends on the operating environment and installation conditions.

Best Applications

The Jinko 630W Bifacial Solar Panel can be considered for the following applications:

• Commercial rooftop solar systems with enough space and suitable structural support.
• Ground-mounted solar projects where rear-side light can contribute to energy generation.
• Industrial solar installations that require high-capacity modules.
• Large solar arrays where module count, string voltage and inverter compatibility need careful planning.
• Solar projects in Pakistan where summer heat, dust and mounting ventilation must be considered during system design.

When Another Panel May Be Better

Although this module suits many projects, it may not be the best choice for every installation. Consider the following points before purchasing:

• Roofs with limited space or layouts that cannot accommodate its large dimensions.
• Installations that require a lighter or smaller module.
• Systems where the inverter’s input-current or voltage limits do not match the panel’s electrical ratings.
• Ground-mounted systems where very little reflected or scattered light reaches the rear surface, reducing the benefit of bifacial generation.

Therefore, choose a panel based on the complete system design rather than wattage alone.

Cell and Module Technology

The Jinko 630W N-type bifacial solar panel uses monocrystalline N-type cells with TOPCon technology. Its dual-glass construction allows light to reach the rear side, which can support additional energy generation under suitable conditions.

The panel contains 156 cells arranged as 78 × 2. Moreover, its SMBB technology is designed to improve light trapping and current collection, supporting module power output and reliability.

The rated power and efficiency are measured under standard test conditions. However, actual electricity production varies with sunlight, module temperature, shading, dust, orientation, tilt and the electrical design of the solar system.

Technical Specifications

Performance and Degradation

The panel has a 12-year product warranty and a 30-year linear power warranty.

The long-term power warranty profile includes:

• First-year degradation: 1%.
• Annual degradation after the first year: 0.4%.
• Warranted power at year 30: 87.4% of the initial rated power.

These figures describe the panel’s specified power-retention profile. However, they do not guarantee the amount of electricity a complete solar system will generate every year. Actual production also depends on site conditions, installation quality, operating temperature, shading, cleaning and system losses.

Performance Considerations for Pakistan

Solar panels in Pakistan can face high temperatures, dust and changing sunlight conditions. Therefore, consider these factors when planning a Jinko 630W solar installation.

Temperature: The power temperature coefficient is -0.29%/°C. As a result, module output can decrease when cell temperature rises above the standard test temperature.

Dust and cleaning: Dust can reduce the sunlight reaching the cells. Therefore, follow a suitable cleaning schedule based on local conditions and use safe cleaning practices.

Bifacial installation: Rear-side energy production depends on reflected light, ground surface, mounting height and rear-side clearance. For this reason, avoid unnecessary shading behind the module.

Electrical design: The panel’s open-circuit voltage can increase in cold conditions. Therefore, installers should calculate the maximum string voltage using the site’s minimum design temperature. They should also check the inverter’s voltage and current limits.

Mounting and ventilation: Suitable mounting and airflow help manage operating temperature. In addition, the structure must safely support the module’s dimensions and installation loads.

Jinko 630W Solar Panel Price in Pakistan

The Jinko 630w solar panel price in pakistan is an important consideration for homeowners, businesses, installers and solar dealers planning a new system.

The current price of Jinko 630W Bifacial Solar Panel in Pakistan is Rs. 24,318 per panel.

The total panel cost depends on the number of modules required. In addition, the complete solar system budget should include the inverter, mounting structure, wiring, protection equipment, installation and other project-specific components.

For bulk orders, commercial projects or dealer enquiries, contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

Tier 1, A-Grade and Product Authenticity

When buying a Jinko solar panel, verify the exact model, product identification and applicable warranty details. In addition, do not rely on wattage alone when comparing modules or checking authenticity.

The terms Tier 1 and A-Grade should only be used when the relevant status is independently verified for the product or stock being offered. Therefore, do not assume these classifications from the brand name alone.

When comparing solar panels, consider efficiency, dimensions, degradation profile, warranty, electrical characteristics and compatibility with the intended inverter.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers identify a suitable panel for their intended installation. Before ordering, confirm the exact model, serial information, applicable warranty and electrical compatibility.

For system planning, installers should check the panel’s Voc, Vmp, Isc and Imp against the inverter’s maximum DC voltage, MPPT operating range and current limits. In addition, string design should account for temperature correction and local installation conditions.

Hajvery Solar Energy serves customers from 280K Block J-1, Johar Town, Lahore. Contact the team for product enquiries and installation-planning guidance.

You can also verify your Jinko Solar Panel through Hajvery Solar Energy’s product verification link below.

Panel Verification Link:

Jinko Solar Panel Verification

Warranty

The Jinko 630W Bifacial Solar Panel carries a 12-year product warranty and a 30-year linear power warranty.

These warranties cover different aspects of the panel. The product warranty relates to the product coverage defined by the applicable warranty terms, while the linear power warranty covers the specified long-term power-retention profile.

Before purchasing, confirm the applicable warranty terms, claim requirements and coverage conditions with the seller. Most importantly, do not treat the power-retention percentage as a guarantee of total solar-system output.

Before You Buy

Check the following points before selecting this module:

• Confirm the exact 630W Jinko bifacial model.
• Check the available installation area against the module dimensions of 2465 × 1134 mm.
• Ensure the mounting structure can support a module weighing 34.0 kg.
• Check the inverter’s maximum DC voltage, MPPT range and input-current limits.
• Calculate the maximum string Voc at the expected minimum temperature.
• Consider rear-side clearance and ground reflectivity if bifacial energy generation is important.
• Confirm the product and performance warranty terms.
• Finally, plan suitable earthing, protection equipment, mounting and cable routing with a qualified installer.

Frequently Asked Questions

1. What is the Jinko 630W solar panel price in Pakistan?

The current price of Jinko 630W Bifacial Solar Panel in Pakistan is Rs. 24,318 per panel. However, availability and bulk-order pricing may change. Therefore, contact Hajvery Solar Energy for the latest details.

2. Is the Jinko 630W solar panel bifacial?

Yes. It has a bifacial, dual-glass design that can generate electricity from both sides when suitable light reaches the rear surface. However, additional generation depends on installation conditions.

3. What is the efficiency of the Jinko 630W panel?

The module efficiency is 22.54% under standard test conditions. Therefore, it can help installers plan high-capacity solar systems.

4. What technology does this panel use?

It uses N-type monocrystalline TOPCon cell technology and belongs to the Tiger Neo 78HL4-BDV series.

5. What are the dimensions of the Jinko 630W panel?

The module measures 2465 × 1134 × 30 mm and weighs 34.0 kg. Therefore, check the available roof space, mounting arrangement and structural capacity before installation.

6. What is the warranty of the Jinko 630W Bifacial Solar Panel?

It has a 12-year product warranty and a 30-year linear power warranty. However, applicable coverage and claim requirements should be confirmed before purchase.

7. Is the Jinko 630W panel suitable for commercial solar systems?

It can be considered for commercial and industrial solar installations. However, the module dimensions, electrical characteristics, mounting arrangement and inverter limits must suit the project.

Buy Jinko 630W Bifacial Solar Panel from Hajvery Solar Energy

Choose the Jinko 630W Bifacial Solar Panel for solar projects that need high-capacity N-type modules and bifacial energy generation. Before ordering, confirm the exact model, warranty and system compatibility.

Hajvery Solar Energy provides solar product enquiries and buying guidance from Johar Town, Lahore. Contact the team for current availability, dealer enquiries and bulk-order requirements.

To explore more options, visit Jinko Solar Panels in Pakistan.
