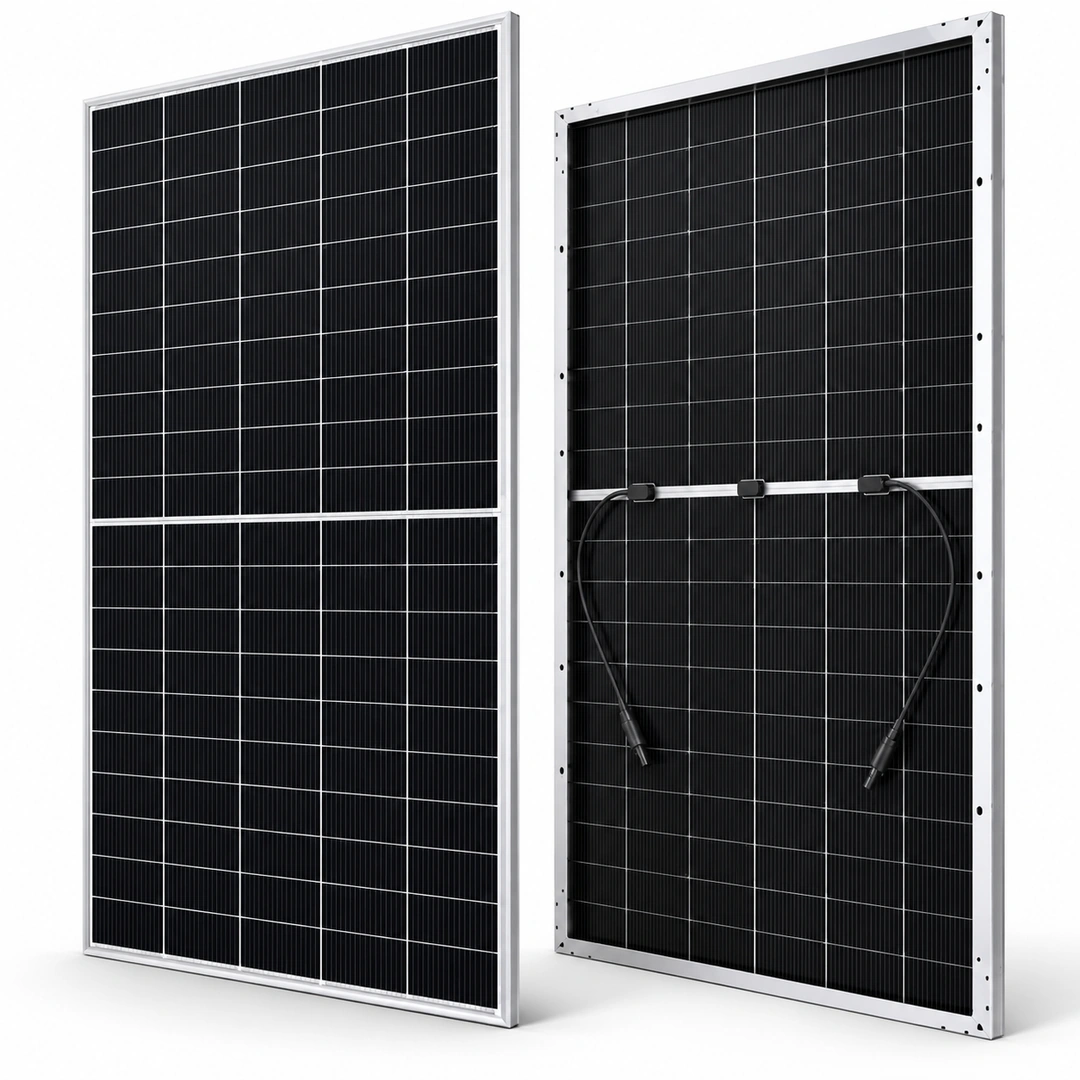

Canadian 660W X20 Bifacial Solar Panel

Canadian 660W X20 Bifacial Solar Panel Overview

The Canadian 660W X20 Bifacial Solar Panel is designed for solar projects that require high power output from individual modules. Its N-Type TOPCon cell technology combines high module efficiency with bifacial energy generation, making it suitable for installations where available space and long-term energy production are important considerations. You can also check the Canadian Solar 660W Bifacial Solar Panel price in Pakistan to plan your solar system budget.

The 660W rated output helps reduce the number of panels required to achieve a selected DC capacity compared with lower-wattage modules, although the final quantity depends on the total system size and electrical design.

The bifacial construction captures direct sunlight from the front and reflected light reaching the rear surface. Actual rear-side contribution depends on mounting height, tilt, ground reflectivity, shading and the installation structure.

With a maximum module efficiency of 24.4%, this panel can make effective use of available installation area. Its glass-on-glass construction, aluminium alloy frame and IP68-rated junction box also support its use in appropriately designed outdoor solar installations.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon cells arranged in a 132-cell configuration. This technology supports high module efficiency and is suited to installations where substantial power generation is required from each module.

The module also features anti-LeTID and anti-PID performance characteristics, which help address degradation mechanisms that can affect photovoltaic modules.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

The bifacial design allows the panel to collect sunlight from both sides. Its power bifaciality is 80% ± 5%, describing the relationship between rear-side and front-side power under standard test conditions.

Rear-side generation can increase total energy production when the installation allows sufficient reflected light to reach the back of the module. The additional gain is not fixed and should not be treated as guaranteed output.

High Module Efficiency

With 24.4% maximum module efficiency, the panel converts a substantial proportion of the sunlight reaching its surface into electrical power under standard test conditions. High efficiency can be useful for commercial rooftops and other projects where installation space is limited.

Low Temperature Coefficient

The -0.29%/°C Pmax temperature coefficient describes how module power changes as cell temperature rises above the reference temperature. A lower absolute temperature coefficient can help the panel retain more of its rated power in hot conditions compared with modules having a less favourable coefficient.

Actual energy production still depends on sunlight, temperature, dust, shading, ventilation and system design.

Dual-Glass Construction

The panel uses 2.0 mm heat-strengthened glass on the front and rear, with an anti-reflective coating on the front glass. Its anodised aluminium alloy frame provides structural support.

The module is rated for a heavy snow load of up to 5400 Pa and a wind load of up to 2400 Pa under the applicable installation conditions. Proper mounting hardware and installation practices remain essential.

Best For

The Canadian 660W bifacial panel can be considered for:

• Commercial solar installations requiring high module output.
• Residential solar systems where the module dimensions and electrical characteristics suit the available roof.
• Ground-mounted solar projects where the rear surface can receive reflected sunlight.
• Large solar arrays designed around high-wattage modules.
• Installations with limited space where high module efficiency is beneficial.
• Solar installers and dealers seeking bifacial modules with long-term power performance coverage.

When Another Panel May Be Better

This panel may not be the right choice when the available roof cannot accommodate its large dimensions, when the inverter has insufficient DC input-current capacity, or when the selected mounting structure does not suit the module’s size and weight.

A monofacial design may be more appropriate where rear-side light cannot reach the module and the project does not benefit from bifacial generation. Final selection should account for panel dimensions, voltage, current, inverter limits and the intended mounting arrangement.

Cell and Module Technology

The module combines N-Type TOPCon technology with a bifacial, dual-glass structure. The front surface captures direct sunlight, while the rear surface can use reflected light to contribute additional energy.

Its 132-cell arrangement and high rated output make it suitable for larger solar installations when the electrical design accommodates the module’s voltage and current.

Technical Specifications

Performance and Degradation

The panel has a stated first-year power degradation limit of no more than 1%, followed by subsequent annual degradation of no more than 0.4% under the applicable performance warranty terms.

Its 30-year linear power performance warranty provides long-term coverage for power performance, while the 12-year product warranty covers materials and workmanship under the applicable warranty conditions. These are separate forms of coverage and should not be treated as interchangeable.

Real-world energy generation varies with installation design, sunlight availability, module temperature, soiling, shading and maintenance.

Performance Considerations for Pakistan

Pakistan’s hot summers make temperature performance an important consideration when selecting solar panels. The module’s -0.29%/°C power temperature coefficient helps buyers assess how output responds to rising cell temperature.

For a bifacial installation, the mounting arrangement should allow light to reach the rear surface. Roof colour, ground reflectivity, panel height and shading can all affect additional rear-side generation.

Regular cleaning can help manage dust-related losses. Adequate ventilation beneath the panels, correct mounting and an appropriately designed electrical system also contribute to reliable operation.

The installer should check the module’s open-circuit voltage at the lowest expected temperature and operating current against the inverter’s permitted limits before finalising the string configuration.

Canadian 660W X20 Bifacial Solar Panel Price in Pakistan

The Canadian 660W X20 Bifacial Solar Panel price in pakistan is an important consideration for buyers planning a residential or commercial solar installation.

The total panel cost depends on the number of modules required for the project. Mounting structures, inverter selection, wiring, protection equipment, installation and other system components are separate cost considerations.

For bulk quantities or dealer enquiries, contact Hajvery Solar Energy to confirm current availability and applicable pricing.

Hajvery Solar Product Verification

Before purchasing, confirm the exact 660W model, the condition of the panel and the applicable warranty coverage. Buyers should also ensure that the model supplied matches the intended system design.

For installation planning, check the panel’s electrical ratings against the selected inverter’s maximum DC voltage, MPPT operating range and input-current limits. Bifacial gain should be estimated according to the planned mounting arrangement rather than assumed as a fixed percentage.

Hajvery Solar Energy serves solar buyers and installers from 280K Block J-1, Johar Town, Lahore. Contact the team for product enquiries and assistance with panel selection.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 660W X20 Bifacial Solar Panel carries a 12-year enhanced product warranty covering materials and workmanship and a 30-year linear power performance warranty, subject to the applicable Canadian Solar Limited Warranty Statement and its conditions.

The product warranty and performance warranty cover different aspects of the module. Buyers should review the applicable warranty terms and confirm the relevant claim procedure before purchase.

Before You Buy

• Confirm that the panel dimensions of 2382 × 1134 × 30 mm fit the planned installation.
• Check the module’s 42.9V Vmp, 50.6V Voc and 15.41A Imp against the inverter and string design.
• Verify the maximum DC voltage after accounting for low-temperature conditions.
• Check inverter input-current limits and the permitted number of modules per string.
• Consider rear-side clearance and ground reflectivity when estimating bifacial generation.
• Ensure the mounting structure can support the module’s weight and applicable wind loads.
• Confirm product condition and applicable warranty terms before ordering.

Frequently Asked Questions

1. What is the Canadian 660W X20 Bifacial Solar Panel price in Pakistan?

The current price is Rs. 27,720 per panel. Contact Hajvery Solar Energy to confirm current availability and bulk-order pricing.

2. What is the efficiency of the Canadian 660W X20 Bifacial Solar Panel?

The module has a maximum efficiency of 24.4% under standard test conditions.

3. Is the Canadian 660W X20 a bifacial solar panel?

Yes. Its bifacial construction allows the front and rear surfaces to contribute to power generation. Actual rear-side gain depends on the installation environment and reflected light.

4. Which cell technology does this panel use?

It uses N-Type TOPCon cells in a 132-cell configuration.

5. What are the dimensions and weight of the panel?

The panel measures 2382 × 1134 × 30 mm and weighs 32.8 kg.

6. What warranty does the Canadian 660W X20 Bifacial Solar Panel have?

It has a 12-year product warranty covering materials and workmanship and a 30-year linear power performance warranty, subject to applicable warranty terms.

7. Is this panel suitable for Pakistan’s hot weather?

Its -0.29%/°C power temperature coefficient is relevant for hot-weather performance. Actual generation also depends on ventilation, sunlight, dust, shading and system design.

8. Can this panel be connected to any solar inverter?

No universal compatibility should be assumed. The inverter’s maximum DC voltage, MPPT range, input current and string configuration must be checked before installation.

Buy Canadian 660W X20 Bifacial Solar Panel from Hajvery Solar Energy

Choose the Canadian 660W X20 Bifacial Solar Panel for a high-output solar installation designed around N-Type TOPCon technology and bifacial energy generation. Hajvery Solar Energy can assist buyers with product enquiries and system-selection considerations.
