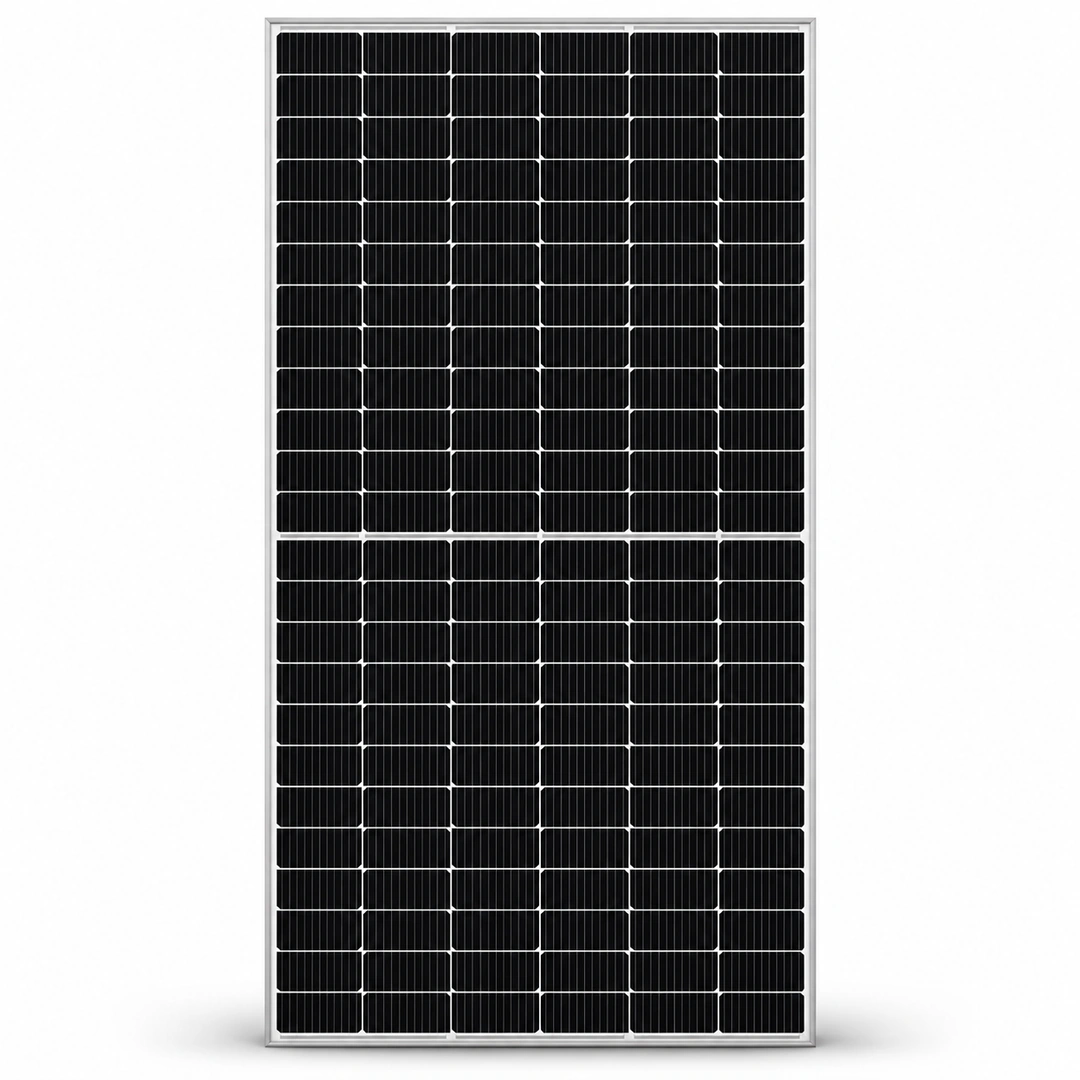

Yingli 590W Bifacial Solar Panel

Yingli 590W Bifacial Solar Panel Overview

The Yingli 590W Bifacial Solar Panel is designed for solar installations that require substantial power output from each module. Its N-Type TOPCon cell technology, bifacial design and high module efficiency make it a practical option for commercial and industrial projects where available installation space and long-term energy production matter.

Unlike a conventional front-side-only module, a bifacial panel can also capture sunlight reaching its rear surface. The amount of additional energy depends on installation height, ground reflectivity, mounting structure, shading and the light reaching the rear side. Bifacial construction therefore offers a performance opportunity rather than a fixed percentage increase in every installation.

For buyers comparing Yingli solar panels, the 590W module combines a high rated output with a 1500V DC maximum system voltage and a robust glass-glass structure. Correct electrical design and suitable mounting are essential to achieving reliable performance.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-type monocrystalline TOPCon cells. This cell technology is designed for efficient solar energy conversion and supports the module’s rated output of 590W. Its 22.8% efficiency is useful when planning a PV array around a defined roof or ground area.

For more technical information click the link given below:
Yingli Solar Panel Official Website.

Bifacial Energy Generation

The bifacial structure captures sunlight from both sides. Rear-side production depends on how much light reaches the back of the panel and how effectively the installation reflects light towards it.

For ground-mounted projects, installers should consider ground colour, mounting clearance, row spacing and rear-side shading. On rooftops, the mounting arrangement and available reflected light also influence the benefit.

High Module Efficiency

With 22.8% module efficiency, the panel converts a substantial proportion of the sunlight reaching its active surface into electricity under standard test conditions. This helps installers plan high-output systems where usable installation area is limited.

Actual energy generation will vary with sunlight, temperature, orientation, shading, dust and other site conditions.

Positive Power Tolerance

The panel has a 0 to +5W power tolerance. This means its rated power tolerance does not extend below the nominal rating under the applicable measurement conditions.

Glass-Glass Construction

The module uses 2.0 mm front glass and 2.0 mm rear glass, with an anodised aluminium alloy frame. Its specified static load ratings are 5400 Pa on the front and 2400 Pa on the rear. Correct mounting and installation remain necessary to meet the applicable structural requirements.

Best For

The Yingli 590W Bifacial Solar Panel is suitable for:

• Commercial solar installations requiring high-output modules.
• Industrial solar projects with suitable structural and electrical designs.
• Ground-mounted solar arrays where rear-side light can reach the module.
• Commercial rooftops with sufficient space and compatible mounting arrangements.
• Solar installers and dealers planning systems around high-wattage bifacial modules.

When Another Panel May Be Better

This panel may not be the right choice where:

• The available roof area cannot accommodate its physical dimensions.
• The inverter’s voltage or current limits are incompatible with the proposed string configuration.
• The mounting structure cannot safely support the module and required installation loads.
• The installation provides little rear-side light and the project does not benefit sufficiently from bifacial construction.
• A different module size or electrical configuration is required by the system design.

Cell and Module Technology

The Yingli 590W Bifacial Solar Panel combines N-Type TOPCon technology with a bifacial module structure. Its front and rear surfaces can contribute to energy generation, while the double-glass construction provides the specified module structure.

The bifaciality coefficient is 80% ± 5%. This describes the rear-side electrical response relative to the front side under defined test conditions. It should not be interpreted as a guaranteed 80% increase in total system generation.

Technical Specifications

Electrical values are for the 590W module under Standard Test Conditions (STC), unless otherwise stated. The bifacial test conditions include irradiation on both the front and rear surfaces; the resulting bifacial power value is not the module’s standard rated output.

Performance and Degradation

The panel has a stated 0.40% annual power degradation and a 30-year power warranty. The published power-warranty graph indicates 89.4% output at year 25 and 87.4% at year 30.

These figures describe the stated warranty performance profile, not a promise of the actual electricity a particular installation will generate. Real-world output also depends on operating temperature, sunlight, dust, shading, installation quality and system losses.

The temperature coefficient of Pmax is -0.29%/°C. Solar modules generally produce less power as cell temperature rises above the reference temperature, so adequate airflow beneath the modules and proper mounting are important in Pakistan’s hot summers.

Performance Considerations for Pakistan

Solar panels installed in Pakistan can experience high summer temperatures, dust accumulation and changing sunlight conditions. The following installation practices help support dependable performance:

• Allow suitable ventilation beneath the modules to reduce excessive operating temperature.
• Clean the panel surfaces when dust and soiling materially reduce light transmission.
• Plan bifacial clearance so the rear surface can receive useful reflected light.
• Check string voltage carefully, including the increase in open-circuit voltage at low temperatures.
• Verify current limits against the inverter’s maximum operating current and short-circuit current requirements.
• Use suitable mounting hardware and follow structural requirements for the installation site.

The maximum system voltage of 1500V DC is a system design limit, not an instruction to operate every string at that voltage. The installer must calculate string length using temperature-adjusted module voltage and the inverter’s electrical limits.

Yingli 590W Bifacial Solar Panel Price in Pakistan

The Yingli 590w solar panel price in pakistan is an important consideration for homeowners, businesses, installers and dealers planning a solar installation.

The current price of Yingli 590W Bifacial Solar Panel in Pakistan is Rs. 22,125 per panel.

Buyers researching the yingli 590w bifacial price in pakistan, yingli 590w bifacial price or yingli 590w price in pakistan should compare the exact module rating, warranty coverage, electrical specifications and seller’s offer before ordering.

The total project cost will also depend on the number of panels, mounting structure, inverter, wiring, protection equipment, transportation and installation requirements. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

Tier 1, A-Grade and Product Authenticity

Solar panel purchasing decisions should be based on the exact model, product condition, traceability and applicable warranty rather than wattage alone. Do not assume a panel is A-grade or covered by a particular seller warranty without verifying the actual product and purchase terms.

For Yingli solar panel verification, buyers should check the module label, serial number, product identity and applicable warranty arrangements before installation. Keep the purchase invoice and relevant product records for future warranty enquiries.

Hajvery Solar Product Verification

Before ordering, confirm that the supplied module is the Yingli 590W Bifacial Solar Panel and that its label and serial information match the intended product. Installers should also check the proposed module string against inverter voltage, current and system-voltage limits.

Hajvery Solar Energy can assist buyers with product enquiries and installation-planning considerations. Stock, delivery arrangements and applicable warranty claim requirements should be confirmed before purchase.

You can verify your Yingli Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Yingli Panel Verification Link.

Warranty

The Yingli 590W Bifacial Solar Panel comes with a 12-year product warranty and a 30-year power warranty.

The product warranty and power warranty cover different aspects of the module. Buyers should confirm the applicable warranty terms, coverage conditions, claim procedure and responsible warranty provider before ordering. Retain the invoice and product serial information for reference.

Before You Buy

Before purchasing this panel, check the following:

• Confirm the 590W rated output and exact product identity.
• Ensure the mounting structure accommodates the module’s dimensions and weight.
• Verify string voltage at the expected minimum temperature.
• Check the inverter’s maximum input current and short-circuit current limits.
• Consider rear-side light availability when estimating bifacial production.
• Confirm the required system voltage and protection arrangements.
• Review the applicable product and power warranty terms.

Frequently Asked Questions

1. What is the Yingli 590W Bifacial Solar Panel price in Pakistan?

The current price of Yingli 590W Bifacial Solar Panel in Pakistan is Rs. 22,125 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

2. What technology does the Yingli 590W solar panel use?

It uses N-Type monocrystalline TOPCon cell technology and a bifacial module design.

3. What is the efficiency of the Yingli 590W Bifacial Solar Panel?

Its module efficiency is 22.8% under Standard Test Conditions.

4. Does the Yingli 590W panel generate electricity from both sides?

Yes. Its bifacial design allows the front and rear surfaces to contribute to electricity generation. The additional rear-side contribution depends on installation conditions and available reflected light.

5. What are the electrical specifications of the Yingli 590W panel?

Its maximum-power voltage is 43.01V, maximum-power current is 13.72A, open-circuit voltage is 51.86V, and short-circuit current is 14.50A under Standard Test Conditions.

6. What is the warranty for the Yingli 590W Bifacial Solar Panel?

It has a 12-year product warranty and a 30-year power warranty. Applicable coverage and claim requirements should be confirmed before purchase.

7. What are the dimensions and weight of this solar panel?

The module measures 2278 × 1134 × 30 mm and weighs 32 kg.

8. How can I check Yingli 590W Bifacial Solar Panel specifications?

Review the module label and compare its rated power, voltage, current, dimensions and warranty details with the specifications provided for the exact product. The installer should also confirm inverter compatibility before connecting the panel.

Buy Yingli 590W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy serves solar buyers, installers and dealers from Johar Town, Lahore. If you are looking for a yingli 590w bifacial solar panel for a commercial, industrial or ground-mounted project, confirm availability, quantity requirements and warranty details before ordering.

Choose the panel based on your system’s electrical design, installation space and expected operating conditions. Proper string planning and mounting are essential for safe operation and dependable long-term performance.
