Canadian 715W Bifacial Solar Panel

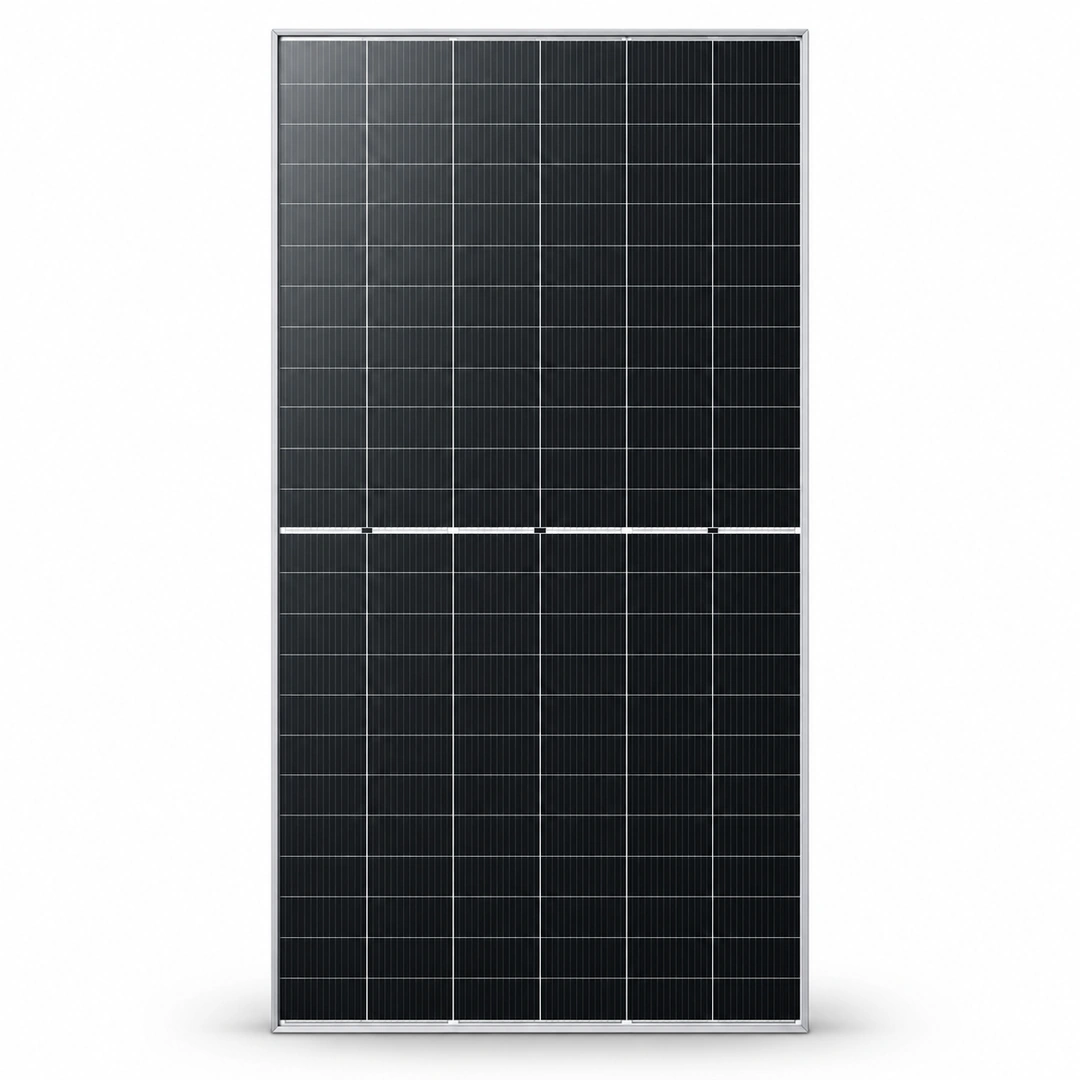

Canadian 715W Bifacial Solar Panel Overview

The Canadian 715W Bifacial Solar Panel is designed for solar projects that need high-output modules and efficient use of installation space. Its N-Type TOPCon technology delivers a rated power of 715W and a module efficiency of 23.0%. Therefore, it is worth considering for commercial rooftops, industrial facilities and suitable ground-mounted solar installations. If you are researching the Canadian 715W bifacial solar panel price in Pakistan, consider the complete package of rated power, efficiency, electrical compatibility, installation conditions and warranty coverage before purchasing.

Unlike a conventional front-side-only design, a bifacial solar panel can capture direct sunlight from the front and reflected light from the rear. However, the additional energy depends on mounting height, tilt angle, ground reflectivity, surrounding structures and shading.

The module uses heat-strengthened glass on both sides and an anodized aluminium alloy frame. In addition, its electrical specifications help installers plan panel strings and check compatibility with the selected inverter.

Key Features and Benefits of the Canadian 715W Solar Panel

N-Type TOPCon Cell Technology

The Canadian 715W solar panel uses N-Type TOPCon cells in a 132-cell configuration. This technology supports high module output and is suitable for projects where efficient use of available space matters.

Furthermore, its electrical characteristics help installers assess the panel’s suitability for a particular inverter and solar array.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Solar Panel Performance

A bifacial module captures sunlight on both its front and rear surfaces. As a result, it can generate additional electricity when reflected light reaches the back of the panel.

The actual gain is not fixed. For example, a raised mounting structure and a light-coloured ground surface may improve rear-side light exposure. Conversely, close mounting and heavy rear-side shading can limit the benefit.

High Module Efficiency

With 23.0% module efficiency, this panel converts a substantial proportion of the sunlight reaching its active surface into electrical power under standard test conditions.

Consequently, it can be useful for commercial and industrial projects where available roof or ground area influences system design. The final panel count still depends on the usable installation area, required capacity and access arrangements.

Temperature Performance

The panel has a -0.29%/°C power temperature coefficient. This value describes the change in maximum power as cell temperature rises above the standard reference temperature.

This characteristic matters in Pakistan because solar modules can become considerably hotter than the surrounding air during summer. Nevertheless, actual output also depends on sunlight intensity, dust, shading, ventilation and other operating conditions.

Durable Dual-Glass Construction

The module features 2.0 mm heat-strengthened glass on both sides and an anodized aluminium alloy frame. Its junction box has an IP68 rating and three bypass diodes.

These features are relevant when evaluating the panel for outdoor installations. However, suitable mounting, wiring, handling and maintenance remain essential for long-term operation.

Best Applications for the Canadian 715W Bifacial Solar Panel

This high-output module can be considered for several types of solar projects:

• Commercial solar installations: Suitable for businesses seeking high-output modules.
• Industrial solar systems: Worth considering for facilities with appropriate mounting structures and electrical designs.
• Large residential systems: Suitable where the available roof area and structure can accommodate the module.
• Ground-mounted solar projects: Particularly relevant where the mounting design allows reflected sunlight to reach the rear surface.
• Large solar arrays: Useful when installers need to balance panel count, available space and inverter compatibility.
• Solar dealers and installers: Relevant for projects requiring high-capacity bifacial modules.

However, the suitability of any installation depends on its structural, electrical and environmental requirements.

When the Canadian 715W Solar Panel May Not Be Suitable

Although the panel offers high rated output, it may not suit every installation.

• A small roof may not accommodate its large dimensions.
• An unsuitable mounting structure may not safely support its weight.
• An inverter with insufficient input-current capacity may not be compatible.
• Heavy rear-side shading may reduce the benefit of bifacial generation.
• Restricted handling access or maintenance space may complicate installation.

Therefore, assess the complete solar system design before selecting the module.

Cell and Module Technology

The Canadian 715W Bifacial Solar Panel combines N-Type TOPCon cells with a glass-on-glass construction. Its front surface receives direct sunlight, while the rear surface can capture reflected light.

The 132-cell arrangement and electrical operating values are important when planning solar strings. Additionally, the 80% ± 5% power bifaciality rating describes the rear-side power capability relative to the front-side rating under standard test conditions. It does not guarantee the same percentage increase in total system production.

Canadian 715W Solar Panel Specifications

Canadian 715W Bifacial Panel Power Output

The panel’s rated front-side power is 715W under standard test conditions. With bifacial gain, the combined output can be higher when the installation provides sufficient reflected light.

The following examples illustrate possible output under different assumed bifacial-gain levels.

These values are illustrative calculations, not guaranteed operating power. Actual bifacial gain depends on ground reflectivity, mounting height, tilt, shading and other site conditions.

Power Degradation and Long-Term Performance

The Canadian 715W solar panel has a 30-year linear power performance warranty and a separate 12-year product warranty.

Its stated power degradation limits are:

• First-year degradation: No more than 1%.
• Subsequent annual degradation: No more than 0.4%.

These limits describe the stated power performance terms. Actual electricity production varies with solar irradiation, temperature, dust, shading, installation quality, system losses and maintenance.

Therefore, buyers should distinguish between warranted power performance and the energy their particular solar system will generate.

Canadian 715W Solar Panel Performance in Pakistan

Pakistan’s strong sunlight provides good opportunities for solar energy generation. However, high temperatures and dust can affect the actual performance of solar modules.

To support reliable operation:

• Provide suitable ventilation behind the panel to help manage operating temperature.
• Clean the glass when needed to reduce dust and soiling losses.
• Allow rear-side clearance in bifacial installations so reflected light can reach the module.
• Reduce unnecessary shading from walls, cables, structures and nearby equipment.
• Check inverter voltage and current limits before configuring the panel strings.
• Use a suitable mounting structure that supports the module’s dimensions and weight.

In addition, a qualified solar installer should assess the site and design the array around the inverter’s electrical limits.

Canadian 715W Solar Panel Price in Pakistan

The Canadian 715W solar panel price in Pakistan is an important consideration for homeowners, businesses, solar installers and dealers.

The current price of Canadian 715W Bifacial Solar Panel in Pakistan is Rs. 30,030 per panel.

The total cost of a solar installation also depends on the number of modules, inverter, mounting structure, wiring, protection equipment and installation work. Therefore, the panel price alone should not be treated as the complete system cost.

For current availability and quantity-based pricing, contact Hajvery Solar Energy at the details provided below.

Canadian Solar Panel Quality and Authenticity

When purchasing a Canadian Solar 715W bifacial panel, check the exact model and physical condition before installation.

The following checks can help you make an informed decision:

• Verify the model number and product identification.
• Inspect the glass, frame and packaging for visible damage.
• Confirm the applicable product and performance warranty terms.
• Check the panel’s electrical compatibility with the selected inverter.
• Review the seller’s product-condition and after-sales terms.

Moreover, do not assume that a product has a particular grade or local warranty arrangement unless that information has been verified.

Hajvery Solar Product Verification

Before ordering the Canadian 715W Bifacial Solar Panel, confirm that:

• The model is CS7N-715TB-AG.
• The panel’s physical condition and identification details are satisfactory.
• The applicable product and performance warranty terms are understood.
• The electrical characteristics match the intended inverter and string configuration.
• The mounting structure can accommodate the module’s dimensions and weight.
• The planned installation provides realistic conditions for bifacial generation.

Hajvery Solar Energy can help buyers discuss product selection and installation compatibility before purchase.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty for the Canadian 715W Bifacial Solar Panel

The panel comes with a 12-year product warranty covering materials and workmanship and a separate 30-year linear power performance warranty.

The stated first-year power degradation limit is no more than 1%. After the first year, the stated annual degradation limit is no more than 0.4%.

These warranties cover different aspects of the product. The product warranty addresses the applicable materials and workmanship terms, while the performance warranty addresses warranted power output over time.

Warranty coverage and claims remain subject to the applicable Canadian Solar Limited Warranty Statement and its conditions. Therefore, buyers should confirm the relevant coverage, claim procedure and local support arrangements before purchase.

Before You Buy the Canadian 715W Solar Panel

Use this checklist before finalising your purchase.

1. Inverter compatibility: Confirm the maximum DC voltage, MPPT operating range and input-current limits.
2. String configuration: Calculate string voltage using the panel’s open-circuit voltage and expected minimum temperatures.
3. Current limits: Check operating and short-circuit current against inverter and protection-device limits.
4. Mounting structure: Confirm that the roof or ground-mounted structure can support the panel’s dimensions and weight.
5. Bifacial installation: Assess rear-side clearance, ground reflectivity and shading.
6. Warranty: Understand the separate product and linear power performance warranty terms.
7. Installation quality: Use qualified professionals and follow applicable electrical and mounting requirements.

These checks can help reduce compatibility issues and support a better-planned solar installation.

Frequently Asked Questions

1. What is the Canadian 715W solar panel price in Pakistan?

The current price of Canadian 715W Bifacial Solar Panel in Pakistan is Rs. 30,030 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

2. Is the Canadian 715W Bifacial Solar Panel an N-Type panel?

Yes. It uses N-Type TOPCon cell technology and has a rated maximum power output of 715W.

3. What is the efficiency of the Canadian 715W solar panel?

The module efficiency is 23.0% under standard test conditions. Actual output depends on sunlight, temperature, shading and other operating conditions.

4. What are the dimensions and weight of the panel?

The panel measures 2384 × 1303 × 33 mm and weighs 37.8 kg. Therefore, the mounting structure and handling arrangements should account for its size and weight.

5. Can the Canadian 715W bifacial panel generate electricity from both sides?

Yes. Its bifacial design allows the rear surface to capture reflected sunlight. However, the additional energy depends on mounting height, tilt, ground reflectivity, shading and other installation conditions.

6. What warranty does the Canadian 715W solar panel have?

It has a 12-year product warranty on materials and workmanship and a separate 30-year linear power performance warranty, subject to the applicable warranty terms and conditions.

7. Is the Canadian 715W solar panel suitable for Pakistan?

It can be considered for residential, commercial and industrial solar projects where its dimensions, electrical characteristics and mounting requirements are suitable. Proper ventilation, regular cleaning and inverter compatibility are also important.

8. What should I check before purchasing a Canadian 715W bifacial solar panel?

Check the exact model, electrical specifications, mounting requirements, product condition and applicable warranty terms. In addition, assess the rear-side light conditions if you expect additional bifacial generation.
