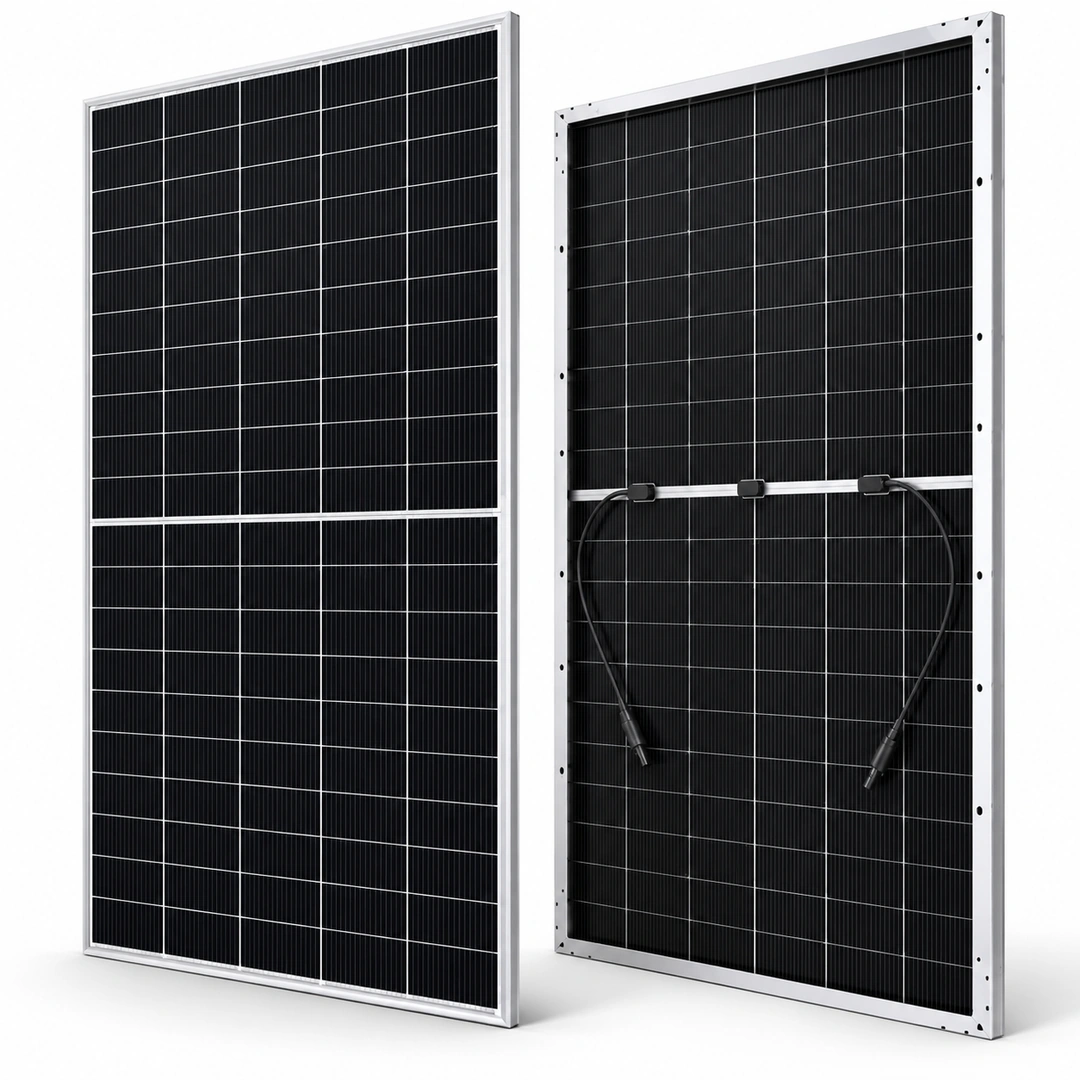

Canadian HJT 620W Bifacial Solar Panel

Canadian HJT 620W Bifacial Solar Panel Overview

The Canadian HJT 620W Bifacial Solar Panel is designed for solar installations where high module output, efficient use of installation space and long-term energy production are important. Its HJT cell technology combines with a bifacial structure to capture sunlight from both sides of the module. Before purchasing, compare the Canadian 620w solar panel price in pakistan and confirm the product specifications for your solar project.

The front side generates electricity from direct sunlight, while the rear side can contribute additional energy when reflected or scattered light reaches the back of the panel. The actual rear-side contribution depends on installation height, tilt, ground reflectivity, spacing and surrounding conditions.

With a rated power of 620 watts and a module efficiency of 23.0%, this panel can help reduce the number of modules needed for a given DC capacity compared with lower-wattage panels, subject to system design and available space.

Its glass-on-glass construction, anodized aluminium frame and IP68-rated junction box support use in appropriately designed outdoor solar installations. Proper mounting, electrical protection and installation by qualified professionals remain essential.

Key Features and Benefits

Heterojunction Technology (HJT)

HJT cell technology combines different semiconductor layers to support photovoltaic energy conversion. This panel has a rated power output of 620W and a power temperature coefficient of -0.24%/°C.

The temperature coefficient matters in Pakistan because solar modules can become significantly hotter than the surrounding air during summer. A lower absolute temperature coefficient generally means a smaller reduction in power for each degree above the reference cell temperature.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

The panel has a 90% power bifaciality rating. This describes the relationship between rear-side and front-side maximum power under the specified test conditions; it does not mean the panel will automatically produce 90% more electricity.

Additional rear-side generation varies with the mounting structure, panel height, tilt angle and reflectivity of the surface below it. A suitable layout can help make better use of the bifacial design.

High Module Efficiency

At 23.0% efficiency, the panel converts a substantial proportion of the sunlight falling on its front surface into electrical power under standard test conditions. Higher module efficiency can be useful where roof space is limited, although actual system capacity also depends on module dimensions, clearances and the available installation area.

Temperature Performance

The -0.24%/°C Pmax temperature coefficient describes how maximum power changes with cell temperature relative to standard test conditions. It is useful when comparing the temperature response of solar modules, but it does not predict total annual energy production by itself.

Dual-Glass Construction

The module uses 2.0 mm heat-strengthened glass on the front and rear sides. Its anodized aluminium alloy frame provides structural support. The panel weighs 32.8 kg, so the mounting structure and handling arrangements must be suitable for its size and weight.

Best For

The Canadian HJT 620W bifacial panel can be considered for:

• Commercial and industrial rooftop solar systems.
• Ground-mounted solar installations with suitable rear-side light exposure.
• Projects seeking high-wattage solar modules.
• Installations where module efficiency and temperature behaviour are important.
• Solar projects designed around the panel’s electrical voltage and current characteristics.

The final choice should account for the inverter’s MPPT voltage range, maximum input current, system voltage limits and the proposed string configuration.

When Another Panel May Be Better

A different module may be more suitable when the installation has restricted space for large panels, the mounting arrangement cannot safely support the module’s dimensions and weight, or the inverter’s electrical limits do not match the panel.

A bifacial module may also offer less additional benefit where the rear surface receives very little reflected or scattered light. Compare complete system design and expected energy yield rather than choosing a panel by wattage alone.

Cell and Module Technology

This module uses HJT cells in a bifacial configuration. Its front and rear glass construction allows light to reach the rear-facing side of the cells under suitable installation conditions.

The module contains 132 cells arranged in 2 × (11 × 6) sections. Its large dimensions are 2382 mm long, 1134 mm wide and 30 mm thick.

The panel’s electrical performance is defined by its rated power, operating voltage, operating current and maximum system voltage. These values must be considered together when designing a solar string.

Technical Specifications

Performance and Degradation

The panel’s linear power performance warranty covers a separate aspect of product performance from its materials and workmanship warranty.

The applicable power degradation limits are:

• First-year power degradation: No more than 1%.
• Subsequent annual power degradation: No more than 0.3%.

These figures describe the stated power-performance limits. Actual electricity generation over the panel’s service life will also depend on sunlight, shading, dust, operating temperature, installation quality and other system conditions.

Performance Considerations for Pakistan

Solar modules in Pakistan can experience high operating temperatures, dust accumulation and seasonal changes in sunlight. The panel’s -0.24%/°C power temperature coefficient is relevant when evaluating its performance in hot conditions.

For a bifacial installation, the rear surface should receive suitable light. Mounting height, ground reflectivity, tilt angle and spacing can influence additional rear-side generation.

Regular cleaning may be needed where dust accumulates. The installation should also provide suitable ventilation, secure mounting and safe access for maintenance.

System designers must calculate string voltage under the expected minimum temperature and check current limits against the inverter’s specifications. The 1500V maximum system rating is a module limit, not permission to exceed the inverter or installation system limits.

Canadian HJT 620W Bifacial Solar Panel Price in Pakistan

The Canadian 620w solar panel price in pakistan is an important consideration for homeowners, installers, commercial buyers and solar dealers comparing high-wattage bifacial modules.

The current price of the Canadian HJT 620W Bifacial Solar Panel in Pakistan is Rs. 26,350 per panel.

Buyers comparing the canadian 620w hjt bifacial solar panel price in pakistan should also consider module efficiency, bifacial installation conditions, electrical compatibility and warranty coverage. The final project cost depends on the number of panels, mounting structure, inverter, cabling, protection equipment and installation requirements.

For bulk quantities, dealers and installers can contact Hajvery Solar Energy to discuss current availability and quantity-based pricing.

Tier 1, A-Grade and Product Authenticity

Panel selection should be based on exact model identification, verified product condition, applicable warranty and system compatibility. Do not assume that a wattage rating alone establishes product grade or authenticity.

Before purchase, confirm the model code, serial information, physical condition and warranty eligibility. Any Tier 1 or A-grade claim should be supported by relevant current evidence and verified product condition.

Hajvery Solar Product Verification

Hajvery Solar Energy can help buyers identify the required panel specifications and consider compatibility with the proposed solar system. Before ordering, confirm the exact model, product condition, quantity, applicable warranty and current availability.

For installers, the important electrical checks include string voltage, short-circuit current, operating current and the inverter’s MPPT limits. The panel should be installed by qualified personnel following applicable safety and mounting requirements.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian HJT 620W Bifacial Solar Panel comes with a 15-year product warranty on materials and workmanship and a 30-year linear power performance warranty.

The power performance warranty includes a maximum first-year degradation of 1%, followed by maximum annual degradation of 0.3% in subsequent years. Product warranty and power performance warranty are separate forms of coverage.

The applicable Canadian Solar Limited Warranty Statement governs the coverage terms and conditions. Confirm warranty eligibility, claim requirements and the relevant claim route with the seller before purchase.

Before You Buy

Check the following points before selecting this panel:

• Confirm that the module dimensions fit the available installation area.
• Verify the inverter’s maximum DC voltage and MPPT operating range.
• Check the inverter’s maximum operating current and short-circuit current limits.
• Calculate the number of panels per string using the expected temperature conditions.
• Assess whether the mounting arrangement allows useful rear-side light exposure.
• Ensure the mounting structure can support the module’s 32.8 kg weight.
• Confirm product condition, serial information and warranty eligibility.
• Have the installation designed and completed by qualified solar professionals.

Frequently Asked Questions

1. What is the Canadian HJT 620W Bifacial Solar Panel?

It is a 620W bifacial solar module using Heterojunction Technology (HJT), with 23.0% module efficiency and 90% power bifaciality.

2. What is the canadian 620w hjt bifacial solar panel price?

The current price of the Canadian HJT 620W Bifacial Solar Panel in Pakistan is Rs. 26,350 per panel.

3. What is the efficiency of this panel?

The module has a rated efficiency of 23.0% under standard test conditions.

4. Can this panel generate electricity from the rear side?

Yes. Its bifacial design allows rear-side energy generation when suitable light reaches the back of the module. The additional energy depends on the mounting arrangement and surrounding surface conditions.

5. What are the dimensions of the Canadian 620W panel?

The panel measures 2382 × 1134 × 30 mm and weighs 32.8 kg.

6. What is the warranty on this solar panel?

It has a 15-year product warranty on materials and workmanship and a 30-year linear power performance warranty, subject to the applicable warranty terms.

7. Is this panel compatible with every solar inverter?

No universal compatibility should be assumed. The inverter must support the panel’s voltage and current characteristics, and the complete string configuration must remain within all applicable electrical limits.

Buy Canadian HJT 620W Bifacial Solar Panel from Hajvery Solar

Hajvery Solar Energy serves solar buyers, installers and dealers from 280K Block J-1, Johar Town, Lahore. Contact the team to confirm the current availability of the Canadian HJT 620W Bifacial Solar Panel, discuss quantity requirements and check its suitability for your planned installation.

Choose the panel after reviewing its electrical specifications, mounting requirements and applicable warranty coverage.
