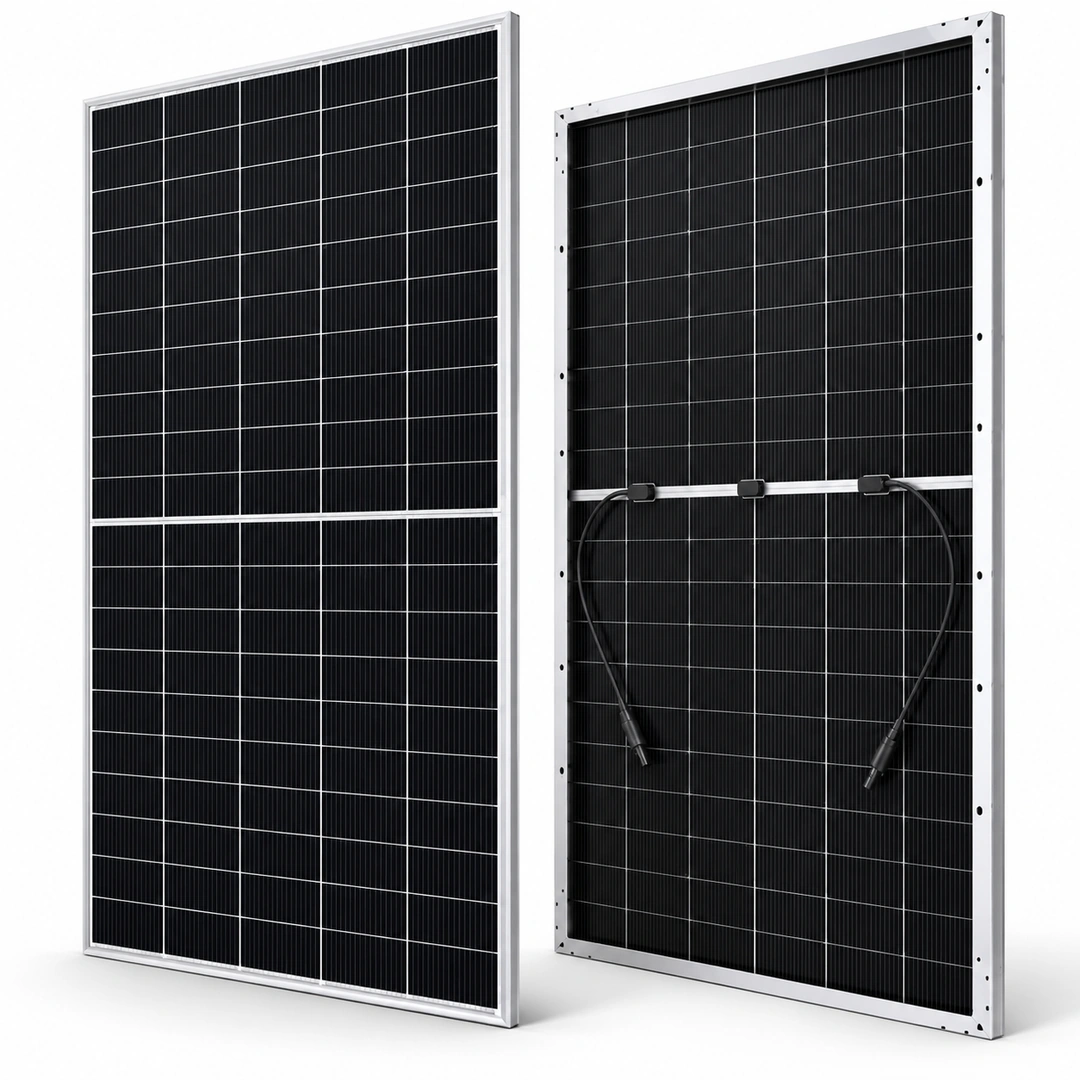

Canadian HJT 635W Bifacial Solar Panel

Canadian 635W HJT Bifacial Solar Panel Overview

The Canadian 635W HJT Bifacial Solar Panel is designed for solar projects where high module output, efficient use of installation space and additional rear-side energy generation are important. Its HJT cell architecture combines the electrical characteristics of crystalline silicon with thin-film silicon layers to support efficient energy conversion. For the latest Canadian 635w solar panel price in pakistan, contact Hajvery Solar Energy for assistance with your solar requirements.

The bifacial construction allows the module to capture sunlight from both sides. When installed above a reflective surface with suitable rear clearance, the panel can produce additional electricity from reflected and scattered light reaching its back side. The amount of additional energy varies with the site and mounting design.

With a rated power of 635 watts and module efficiency of 23.5%, this panel is suitable for commercial rooftops, industrial solar installations and appropriately designed ground-mounted systems. Its glass-on-glass construction and anodized aluminium frame provide a robust module structure for professional installation.

Key Features and Benefits

HJT Cell Technology

Heterojunction Technology (HJT) uses a specialised silicon cell structure to support efficient solar energy conversion. This panel achieves a rated module efficiency of 23.5%, helping installers obtain substantial rated output from each module.

For commercial projects, higher power per panel can help reduce the number of modules required for a selected DC capacity, subject to the final system design and available installation area.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

The panel captures light from its front and rear surfaces. Its 90% ± 5% power bifaciality describes the relationship between rear-side and front-side maximum power under standard test conditions.

Actual additional generation is not fixed. Light-coloured ground surfaces, suitable mounting height, rear-side clearance and appropriate tilt can improve the opportunity for rear-side production. A shaded or obstructed back surface can reduce this benefit.

Strong Performance in Hot Conditions

The module has a maximum-power temperature coefficient of -0.24%/°C. This indicates that power output decreases as cell temperature rises above the reference temperature, while the relatively low magnitude of the coefficient helps limit that reduction.

For installations in Pakistan, correct mounting ventilation remains important. High ambient temperatures, dust accumulation and restricted airflow can affect real-world energy production.

Double-Glass Construction

The panel uses 2.0 mm heat-strengthened glass on the front and 2.0 mm heat-strengthened glass on the rear. An anti-reflective coating is applied to the front glass, while an anodized aluminium alloy frame provides structural support.

The module is rated for a heavy snow load of up to 5400 Pa and an enhanced wind load of up to 2400 Pa under the applicable mounting conditions. Installation hardware and support spacing must follow the manufacturer’s installation requirements.

Reduced Power Degradation

The panel carries a 30-year linear power performance warranty. The stated degradation limits are no more than 1% in the first year and no more than 0.3% for each subsequent year.

These figures describe the stated power-performance warranty limits, not a guarantee of actual annual energy generation. Real production also depends on sunlight, orientation, shading, temperature, soiling and system losses.

Best For

The Canadian 635W HJT bifacial panel is worth considering for:

• Commercial and industrial solar systems requiring high-output modules.
• Large rooftops where module power and available installation area are important.
• Ground-mounted solar projects designed to take advantage of rear-side generation.
• Solar installers and EPC contractors designing systems around high-current bifacial modules.
• Projects in warm climates where the module’s temperature characteristics are relevant to system selection.

When Another Panel May Be Better

This panel may not be the right choice when the available mounting area cannot accommodate its physical dimensions, the installation structure cannot support its weight, or the inverter’s electrical limits do not match its voltage and current characteristics.

A monofacial design may also be more economical where rear-side sunlight cannot reach the module effectively. Before selecting this panel, compare the full system cost and expected energy production rather than relying on wattage alone.

Cell and Module Technology

The module uses 132 HJT cells, arranged as 2 × (11 × 6). HJT technology supports the panel’s electrical performance, while the bifacial design enables electricity generation from both sides.

The panel’s large format measures 2382 mm × 1134 mm × 30 mm. Its weight of 32.8 kg should be considered when planning transport, handling, roof access and mounting structures.

The junction box has an IP68 rating and incorporates three bypass diodes. These components are relevant to module protection and electrical operation, but they do not remove the need for suitable string design, grounding, overcurrent protection and correct installation.

Technical Specifications

Performance and Degradation

The panel’s rated electrical values are measured under standard test conditions. These values provide a consistent basis for comparing module output, but field performance varies with weather, module temperature, orientation and installation quality.

The stated power degradation limits are:

• First year: No more than 1% power degradation.
• Subsequent years: No more than 0.3% annual power degradation.

The 30-year linear power performance warranty is separate from the 15-year product warranty. The applicable warranty statement governs coverage and conditions.

Performance Considerations for Pakistan

Pakistan’s strong sunlight can support substantial solar generation, but summer heat, dust and installation conditions influence actual performance.

For this Canadian HJT solar panel, installers should consider the following:

• Temperature: Provide suitable airflow beneath the modules and account for elevated operating temperatures.
• Dust and cleaning: Accumulated dust can reduce light reaching the cells. Establish a safe cleaning routine based on local conditions.
• Bifacial mounting: Allow appropriate rear-side clearance and avoid unnecessary obstructions beneath the panel.
• Reflective surfaces: Ground reflectivity influences the potential rear-side contribution.
• Electrical design: Account for open-circuit voltage changes with temperature and verify inverter voltage and current limits before finalising strings.
• Mechanical support: Select mounting structures and clamps appropriate for the module dimensions, weight and installation environment.

Canadian 635W HJT Bifacial Solar Panel Price in Pakistan

The canadian 635w hjt bifacial solar panel price in pakistan is relevant to buyers comparing high-output HJT modules for commercial and industrial solar installations.

The current price of the Canadian 635W HJT Bifacial Solar Panel in Pakistan is Rs. 26,987.50 per panel.

The final project cost depends on the number of panels, mounting structure, inverter selection, protection equipment, wiring, installation and transport requirements. Dealers, installers and bulk buyers can contact Hajvery Solar Energy for current availability and quantity-based quotations.

Hajvery Solar Product Verification

Before purchasing, confirm that the supplied module matches the CS6.2-66HB-635 model and that the serial identification and applicable warranty details are available. The exact model matters because electrical values, physical dimensions and warranty terms can differ across product variants.

Hajvery Solar Energy can help buyers discuss module selection and the practical checks required before installation. For a complete system, the installer should confirm compatibility with the inverter, string voltage, operating current, mounting arrangement and protection equipment.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 635W HJT Bifacial Solar Panel carries a 15-year product warranty covering materials and workmanship and a separate 30-year linear power performance warranty.

The stated power degradation limits are no more than 1% during the first year and no more than 0.3% annually thereafter. Warranty eligibility, claim requirements and applicable conditions are governed by the relevant Canadian Solar Limited Warranty Statement. Confirm the applicable terms and claim process before purchase.

Before You Buy

Before ordering this panel, check the following:

• Confirm the exact model and rated power.
• Check the roof or mounting area against the module dimensions.
• Confirm that the mounting structure can safely accommodate the panel weight and installation loads.
• Verify inverter maximum DC voltage, MPPT voltage range and input-current limits.
• Calculate string voltage using the expected minimum site temperature.
• Check connector compatibility and the complete string design.
• Plan suitable rear-side clearance if bifacial generation is part of the project.
• Confirm product and performance warranty terms.
• Check current stock and delivery arrangements with Hajvery Solar Energy.

Frequently Asked Questions

Is the Canadian 635W HJT Bifacial Solar Panel an N-type panel?

Yes. It uses N-type HJT cells and has a rated output of 635W.

What is the efficiency of the Canadian 635W HJT Bifacial Solar Panel?

Its rated module efficiency is 23.5% under standard test conditions.

Does this panel generate electricity from both sides?

Yes. Its bifacial design captures sunlight from the front and rear. The additional energy produced from the rear depends on surface reflectivity, mounting height, tilt, shading and other installation conditions.

What is the size and weight of this panel?

The module measures 2382 × 1134 × 30 mm and weighs 32.8 kg.

What are the warranty terms?

The panel has a 15-year product warranty for materials and workmanship and a separate 30-year linear power performance warranty, subject to the applicable warranty terms.

What is the Canadian 635w solar panel price in pakistan?

The current price of the Canadian 635W HJT Bifacial Solar Panel in Pakistan is Rs. 26,987.50 per panel. Contact Hajvery Solar Energy to confirm availability and quantity-based pricing.

Is this panel suitable for a solar system in Pakistan?

It can be considered for residential, commercial or industrial projects where its physical size and electrical specifications suit the system design. The installer should verify inverter compatibility, mounting requirements, ventilation and string configuration before installation.

Buy Canadian 635W HJT Bifacial Solar Panel from Hajvery Solar

Hajvery Solar Energy serves solar buyers, installers and dealers from 280K Block J-1, Johar Town, Lahore. Contact the team to discuss the Canadian 635W HJT Bifacial Solar Panel, confirm current availability and review the technical requirements for your installation.

For a reliable system design, choose the panel based on its verified electrical ratings, mounting conditions, inverter compatibility and warranty coverage—not wattage alone.

To explore more options click the link below:
Canadian Solar Panels In Pakistan.
