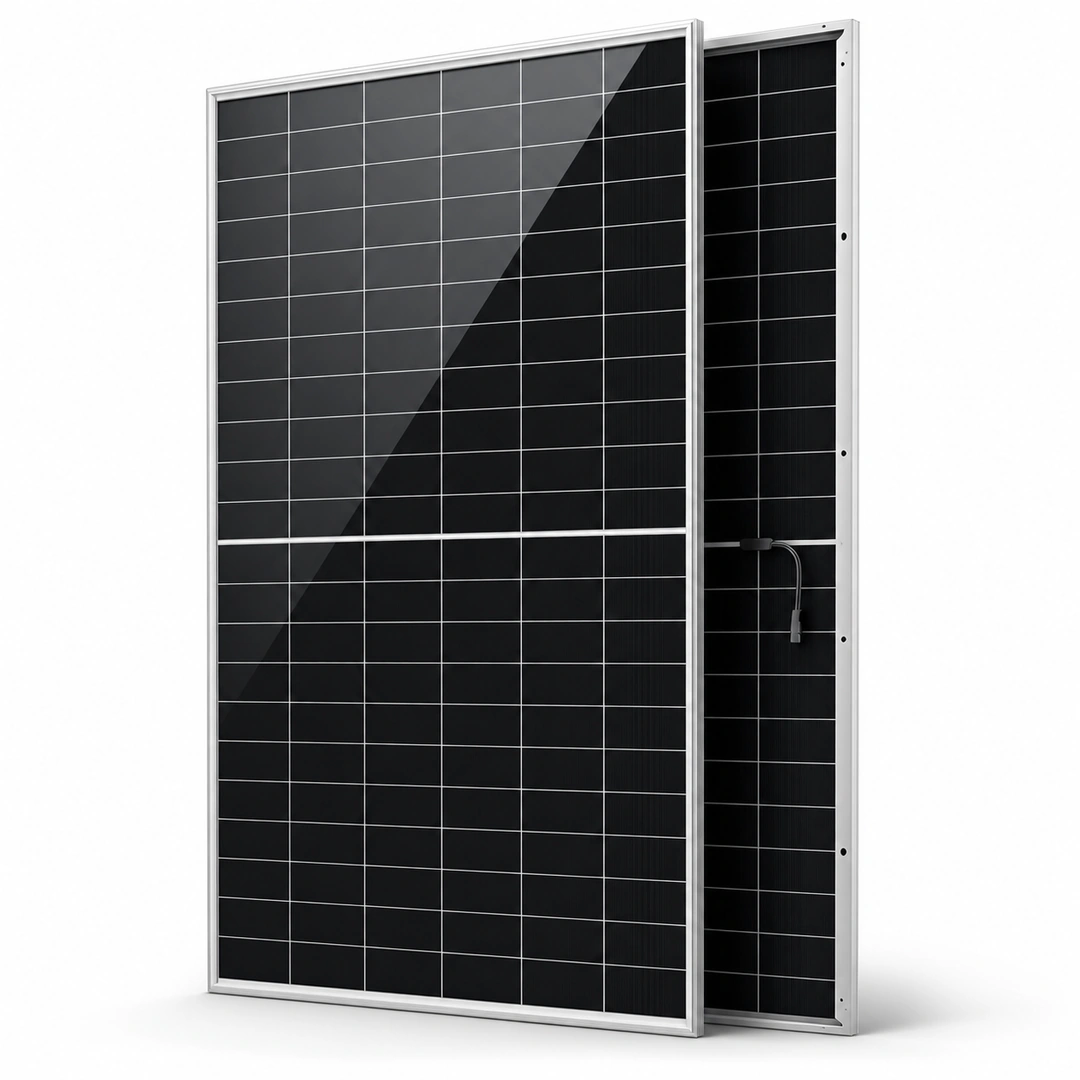

Cora Dawn 655W Bifacial Solar Panel

Cora Dawn 655W Bifacial Solar Panel Overview

The Cora Dawn 655W Bifacial Solar Panel is designed for solar installations that need high power output from each panel. It offers 655W rated power, N-Type BC cell technology and a bifacial design. As a result, it can be considered for residential rooftops, commercial buildings and larger solar projects. For buyers searching for the Cora Dawn 655W solar panel price in pakistan, its bifacial design may also offer extra energy generation when the mounting setup and reflected light are suitable.

One of its main features is its double-glass construction, with glass on both sides of the panel. In addition, its anodized aluminium frame supports the panel’s structure for outdoor installation.

The panel also has a 70±5% bifacial factor. This allows the rear side to contribute to power generation when reflected light reaches the cells. However, the amount of extra energy depends on ground reflectivity, panel height, mounting design and shading.

When comparing a Cora Dawn 655W solar panel with other high-wattage panels, buyers should look beyond rated power. For example, efficiency, dimensions, electrical values and warranty coverage are also important. These details help installers design a suitable solar array instead of choosing panels based on wattage alone.

Key Features and Benefits

655W High Power Output

With a rated output of 655 watts, this panel can help reduce the number of modules needed for a given DC capacity compared with lower-wattage panels. However, this depends on the electrical design and available installation space.

Fewer panels may also mean fewer mounting positions and less installation work. Even so, the final layout depends on roof dimensions, inverter limits and string configuration.

N-Type BC Cell Technology

The panel uses N-Type BC (Back Contact) cell technology. In this design, the electrical contacts sit on the rear side of the cells. As a result, the front surface remains cleaner for incoming sunlight.

The module also offers 24.2% efficiency, which can be useful when roof or installation space is limited. In simple terms, higher efficiency means more rated power from a given panel area. However, actual electricity production still depends on sunlight, temperature, shading and installation conditions.

Bifacial Energy Generation

The bifacial design allows the panel to use light that reaches both its front and rear surfaces. Its 70±5% bifacial factor describes rear-side performance compared with front-side performance under specified test conditions.

However, the extra electricity produced after installation is not fixed. Light-coloured surfaces, suitable panel height and enough space behind the panel can improve the chance of extra rear-side generation. On the other hand, roofs or mounting structures that block reflected light may reduce this benefit.

Double-Glass Construction

The module uses 2.0 mm + 2.0 mm coated semi-tempered glass. Glass on both sides forms part of its protective structure. This design is also relevant for buyers planning a bifacial solar installation.

In addition, the anodized aluminium frame forms the panel’s outer structure. Since the panel weighs approximately 32.3 kg, proper handling, secure mounting and suitable installation methods are important.

Long-Term Power Performance

The panel comes with a 30-year linear power output warranty. This warranty covers the panel’s warranted power output over the stated period, subject to the applicable terms.

The stated annual power degradation is no more than 0.35% for years 2–30. Meanwhile, first-year power attenuation is no more than 1%. These figures help buyers assess the panel’s long-term power performance.

Best For

The Cora Dawn 655W Bifacial Solar Panel may be suitable for:

• Residential solar systems where the roof can accommodate its dimensions.
• Commercial rooftops that need high-output solar panels.
• Large solar installations where panel quantity and array layout matter.
• Bifacial solar projects with suitable rear-side light exposure.
• Installers and dealers looking for high-wattage N-Type BC panels.
• Projects with long-term performance planning, subject to the applicable warranty terms.

When Another Solar Panel May Be Better

This panel may not be the best choice for every installation.

• A smaller panel may fit better on a roof with limited space.
• A monofacial panel may be enough where reflected light cannot reach the rear side.
• Another electrical setup may be needed if the selected inverter has different voltage or current limits.
• A lighter panel may be more suitable where the roof’s load limit is restricted.

Therefore, check the available installation area and the electrical needs of the complete solar system before ordering.

Cell and Module Technology

The Cora Dawn 655W Bifacial Solar Panel uses N-Type BC cells in a 144-cell configuration arranged as 6 × 24. Its back-contact cell design and bifacial construction are useful features to consider when choosing a high-output solar panel.

The module has 24.2% rated efficiency and a 70±5% bifacial factor. Although these figures are related to panel performance, they measure different things. Efficiency measures how well the panel converts incoming light into electrical power under specified conditions. In contrast, the bifacial factor describes rear-side performance compared with front-side performance.

The panel also has a double-glass design, with 2.0 mm coated semi-tempered glass on each side. Finally, an anodized aluminium frame completes its structure.

Technical Specifications

Performance and Degradation

Solar panel output changes over time. For this reason, the Cora Dawn 655W has separate warranty coverage for materials and processing and for long-term power output.

During the first year, power attenuation is no more than 1%. For years 2–30, annual power degradation is no more than 0.35%. The stated power performance in year 30 is 88.85%.

Together, these figures help buyers assess how well the panel is expected to retain its power output over time. However, actual electricity production also depends on sunlight, panel temperature, dust, shading, installation angle and system losses.

The panel’s −0.26%/°C temperature coefficient of Pmax shows how its maximum power changes as cell temperature rises above the reference temperature. Therefore, suitable mounting and good airflow beneath the panel can help manage operating temperatures, especially during hot weather.

Performance Considerations for Pakistan

Solar installations in Pakistan can face strong summer sunlight, high panel temperatures and dust build-up. Therefore, selecting a suitable panel is only one part of planning a reliable solar system.

For this 655W bifacial solar panel, consider the following points before installation:

• Heat management: Allow suitable airflow beneath the panels to help control operating temperatures.
• Dust and cleaning: Dust can block sunlight and reduce output. Therefore, use a suitable cleaning method and follow safe maintenance practices.
• Rear-side light: Extra bifacial generation depends on the surface beneath the panel, mounting height and available reflected light.
• Electrical design: Check the panel’s voltage and current against the inverter’s DC input and MPPT limits.
• Structural support: Consider the panel’s dimensions and weight when planning rooftop mounting.
• String configuration: Calculate total string voltage for the expected minimum temperature. Also, check that the operating current stays within the inverter’s limits.

As a final step, ask a qualified installer to assess these points before the solar array design is approved.

Cora Dawn 655W Bifacial Solar Panel Price in Pakistan

The Cora Dawn 655W Bifacial Solar Panel price in Pakistan is Rs. 24,562.50 per panel.

However, the final purchase cost may depend on the quantity ordered, delivery arrangements and applicable commercial terms. Dealers, installers and bulk buyers can contact Hajvery Solar Energy to check current availability and quantity-based pricing.

When comparing the cora dawn 655w bifacial solar panel price with other panels, consider more than the price alone. Rated power, efficiency, glass design, electrical specifications and warranty coverage are also important.

If you are searching for the cora dawn 655w solar panel price in pakistan or cora dawn 655w solar panel price, contact Hajvery Solar Energy to confirm the latest price and availability before placing an order.

Cora Dawn Solar Panel Verification

Before buying, check the exact model, panel rating, serial identification and applicable warranty details. These checks help ensure that the selected panel matches your project requirements.

If you are searching for cora dawn solar panel verification or cora dawn solar panel verification pakistan, check that the identifying details on the supplied panel match the product you intend to buy. In addition, confirm warranty eligibility and claim requirements before ordering.

Hajvery Solar Energy can guide customers through product identification and the checks needed before purchase. Therefore, keep the product label and purchase records available for future warranty enquiries.

Verify your Cora Dawn solar panel with Hajvery Solar Energy to check its authenticity and gain more confidence in your purchase.

Panel verification link:

Cora Dawn Solar Panel Verification

Warranty

The Cora Dawn 655W Bifacial Solar Panel carries a 15-year materials and processing warranty and a separate 30-year linear power output warranty.

These warranties cover different aspects of the panel. The materials and processing warranty relates to the applicable product and workmanship coverage. Meanwhile, the linear power output warranty covers warranted power performance over time. Therefore, the two warranties should not be treated as the same type of coverage.

Before purchasing, confirm the applicable warranty terms, coverage conditions and claim procedure with Hajvery Solar Energy. All warranty claims remain subject to the relevant terms and conditions.

Before You Buy

Check the following points before choosing this panel for your solar system:

1. Available space: Make sure the mounting area can accommodate the panel’s 2382 × 1134 mm footprint.
2. Roof structure: Check whether the mounting arrangement can safely support the panel’s weight.
3. Inverter compatibility: Confirm the maximum DC voltage, MPPT operating range and permitted input current.
4. String voltage: Calculate the series-string voltage for the expected temperature conditions.
5. Bifacial installation: Check rear-side clearance, mounting height and surface reflectivity.
6. Warranty: Confirm both the materials and processing warranty and the linear power output warranty.
7. Price and availability: Check the current price per panel and delivery arrangements before ordering.

Frequently Asked Questions

What is the Cora Dawn 655W solar panel price in Pakistan?

The current price of the Cora Dawn 655W Bifacial Solar Panel in Pakistan is Rs. 24,562.50 per panel. However, availability and quantity-based pricing may change, so contact Hajvery Solar Energy before ordering.

Is the Cora Dawn 655W solar panel bifacial?

Yes. It is a bifacial solar panel with a stated bifacial factor of 70±5%. However, extra power from the rear side depends on the installation setup and available reflected light.

What is the efficiency of the Cora Dawn 655W Bifacial Solar Panel?

The module has a stated efficiency of 24.2% under specified test conditions. This can be useful when installation space is limited.

What type of cells does this solar panel use?

It uses N-Type BC cells in a 144-cell configuration arranged as 6 × 24.

Does the Cora Dawn 655W panel have double glass?

Yes. It uses 2.0 mm + 2.0 mm coated semi-tempered glass on the front and rear sides. This double-glass design forms part of the panel’s construction.

What is the warranty of the Cora Dawn 655W solar panel?

It has a 15-year materials and processing warranty and a separate 30-year linear power output warranty. Both are subject to the applicable terms and conditions.

Is this panel suitable for residential and commercial solar systems?

It may be suitable for both residential and commercial installations. However, the available space, mounting structure and inverter electrical limits must be suitable for the panel.

How can I verify a Cora Dawn solar panel in Pakistan?

Check the panel’s product identification and serial details. Also, confirm the exact model and obtain the applicable warranty information before purchase.

Buy Cora Dawn 655W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy helps customers in Pakistan compare solar panel specifications and choose products that suit their installation needs. Whether you are planning a residential rooftop, a commercial project or a larger solar array, check the panel dimensions, inverter compatibility and warranty terms before ordering.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team to ask about the Cora Dawn 655W Bifacial Solar Panel, current availability and bulk purchasing options.
