Technical Specifications (Xavier 4KW PV-6000)

🔹 General

Parameter	Value
Model Name	Xavier-III-4KW
Rated Power	4000VA / 4000W
Waveform	Pure Sine Wave
Efficiency (Peak)	93%

🔌 Input

Parameter	Value
Voltage	230VAC
Selectable Voltage Range	170–280VAC (Computers)
	90–280VAC (Home Appliances)
Frequency	50Hz / 60Hz (Auto sensing)

⚡ Output

Parameter	Value
AC Voltage Regulation	230VAC ±5%
Surge Power	7200VA
Transfer Time	10ms (PC) / 20ms (Appliances)
Dual Output	Yes

🔋 Battery

Parameter	Value
Battery Voltage	24VDC
Floating Charge Voltage	27VDC
Overcharge Protection	33VDC

☀️ Solar Charger & AC Charger

Parameter	Value
Solar Charger Type	MPPT
Max PV Open Circuit Voltage	500VDC
Max PV Array Power	6000W
MPPT Operating Range	60–450VDC
Max Solar Charge Current	120A
Max AC Charge Current	100A
Max Charge Current	120A
Max PV Input Current	40A

📡 Communication

Parameter	Value
Interface	Wi-Fi / RS-485 / CAN

📐 Physical Specifications

Parameter	Value
Dimensions (D × W × H)	107 × 322.6 × 420.3 mm
Net Weight	9.5 kg

🌡️ Operating Environment

Parameter	Value
Humidity	5% – 95% (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Description

Product Description

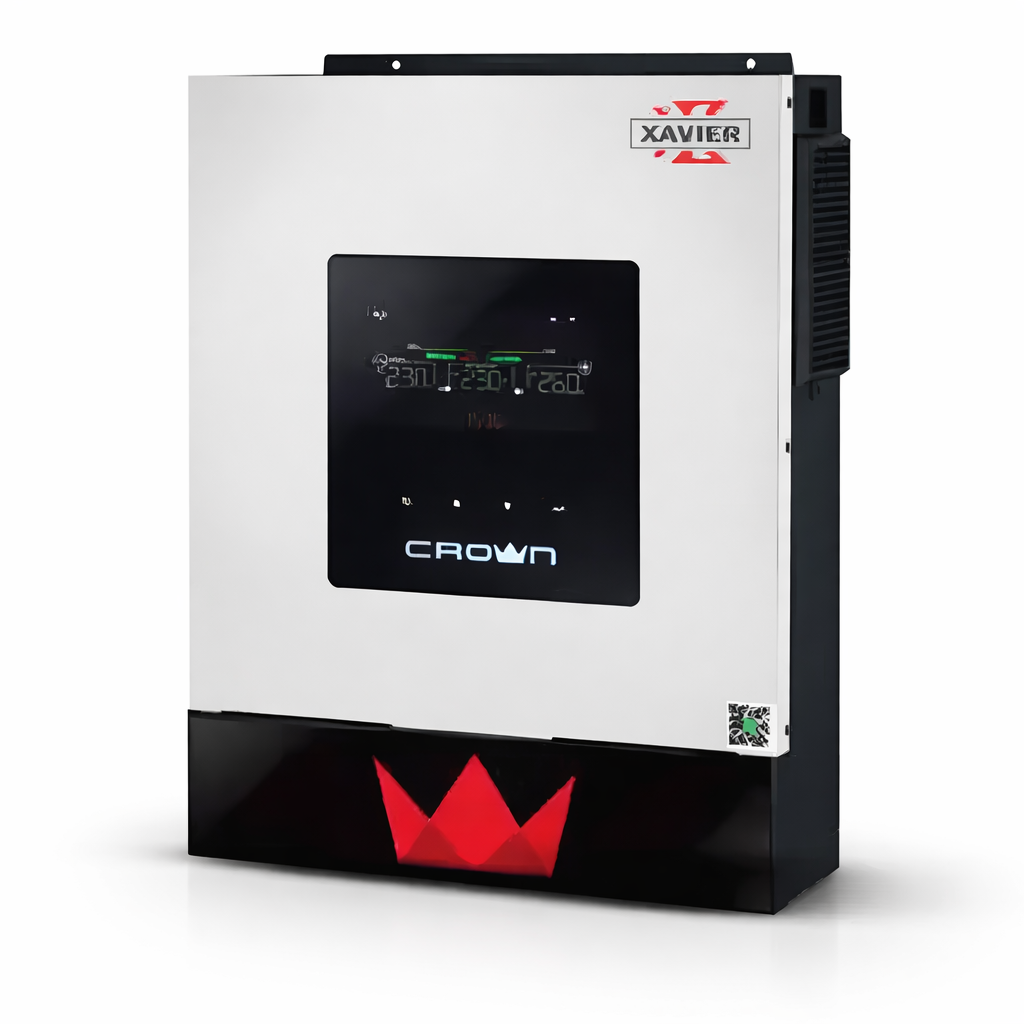

The Xavier 4KW PV-6000 is a high-performance single-phase hybrid solar inverter designed to deliver reliable, efficient, and flexible energy solutions for residential and commercial applications. With advanced MPPT technology and a wide DC input range, it maximizes solar energy utilization while ensuring stable power output.

This inverter supports grid feed-in functionality and can operate with or without batteries, offering enhanced flexibility for different system configurations. Equipped with a built-in 120A MPPT solar charger, dual output capability, and Battery Management System (BMS) support, it ensures optimized battery performance and long system life.

The intuitive 5.2” LCD touch display, built-in Wi-Fi connectivity, and advanced protection features make monitoring and control simple and efficient. With high efficiency up to 93%, robust build quality, and smart energy management, the Xavier 4KW PV-6000 is an ideal choice for modern solar energy systems.

⭐ Key Features

Hybrid inverter with grid feed-in capability
Works with and without battery
Built-in 120A MPPT solar charge controller
Wide PV input range (60–450VDC)
Dual output for flexible load management
Built-in Wi-Fi connectivity
Battery Management System (BMS) support
High efficiency up to 93%
5.2” LCD with touch pad interface
Advanced thermal and system protection
Anti-dust design for durability
