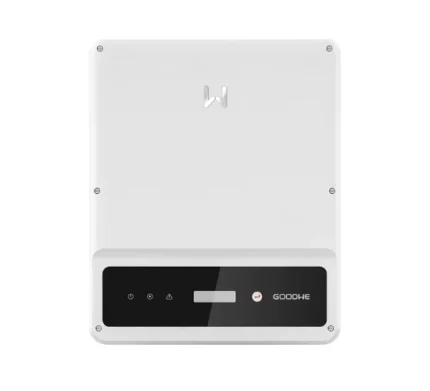

GoodWe 6kW ES Uniq Hybrid Inverter Overview

The GoodWe 6kW ES Uniq Hybrid Inverter combines solar PV generation, battery storage, grid supply and backup power in one residential energy system. Its 6kW rated AC output makes it suitable for homes with substantial daytime loads as well as essential backup requirements during grid interruptions.

The inverter uses a 48V low-voltage battery architecture, with a battery operating range of 40–60V. It supports both Li-Ion and lead-acid batteries, while battery communication is available through CAN. The PV side provides 12kW maximum input power and 2 MPPT trackers, giving installers useful flexibility when arranging solar strings.

One of the main benefits is the quick transition during backup, which takes less than 4 milliseconds and thus enableses less than 4 millisecono switch over rapidnables cthe onnected backupnot available. Moreover, tch over rapidly when the grid supplthe built-in protection features, thee IP66 ingress protthe ection rating, the buiall help inn features, the LCD interface and the WLAN/app connectivity all help in residentialare importantllations where practical monitoring and environmental protection are important.

Why This Hybrid Inverter Stands Out

12kW Maximum PV Input

The inverter can handle a maximum PV input power of 12kW even though its rated AC output is only 6kW, which allows installers to design a bigger DC-side solar array while still keeping the inverter’s AC output at its rated level.

The goodwe 6kw hybrid inverter pv capacity is therefore an important consideration for buyers planning a solar system with substantial daytime generation.

2 MPPT Trackers

The solar array can be arranged over separate PV inputs because there are two MPPT trackers. This is advantageous in cases where the roof sections have different orientations or different string configurations.

The inverter’s MPPT operating voltage range is 60 to 550 volts, its startup voltage is 58 volts, and the maximum PV input voltage is 600 volts.

Fast Backup Switching

One of the important backup features of the ES Uniq is its ability to provide backup switching in less than 4ms, which is especially relevant for homes that want essential loads to switch over quickly when the supply from the grid is interrupted.

IP66 Protection

The IP66 ingress protection rating gives the inverter a strong level of protection against dust and water ingress. This makes goodwe 6kw hybrid inverter ip66 an important search term for buyers specifically looking for a protected inverter enclosure.

Parallel Expansion

The ES Uniq platform is capable of carrying out parallel operation—both on-grid and off-grid—of up to six units. It is thus possible to plan larger systems using a number of compatible inverter units when the application calls for extra capacity.

Best For

The GoodWe 6kW ES Uniq Hybrid Inverter is a strong option for:

• Homes requiring battery backup during load shedding
• Residential solar systems with significant daytime consumption
• Buyers looking for a 48V low-voltage hybrid inverter
• Solar systems using lithium or supported lead-acid batteries
• Installations requiring a relatively high PV-to-inverter capacity
• Users who want fast backup switching
• Projects where IP66 protection is useful
• Systems that may require future parallel expansion

It is also suitable for installers who are looking for an inverter with generator integration, smart load features, and a number of communication interfaces.

Not Ideal For

This inverter may not be the right choice where:

• A three-phase inverter is required
• The project specifically requires a high-voltage battery architecture
• The selected battery falls outside the 40–60V battery range
• The solar array exceeds the inverter’s electrical limits
• The required system is purely on-grid and does not need battery or backup functionality

Before installing them, the final battery and PV compatibility must be checked against the voltage, current, communication and string-design requirements.

Solar PV Input and MPPT Performance

The GoodWe 6kW ES Uniq Hybrid Inverter accepts up to 12kW of PV input power and has 2 MPPT trackers. The maximum PV input voltage is 600V, while the MPPT operating voltage range is 60–550V.

Each MPPT can handle a maximum input current of 20 amperes, with a maximum short-circuit current of 26 amperes per MPPT; the nominal PV input voltage is 360 volts and the startup voltage is 58 volts.

This 6kW model has one string per MPPT. When designing the string it is necessary to take into account the solar module’s Voc, Isc and operating voltage together with the temperature conditions and the inverter’s MPPT and current limits.

The specifications for the Goodwe 6kW hybrid inverter datasheet are especially helpful when installers want to check if the PV array they have planned is within these electrical limits.

Battery Compatibility and Energy Storage

The inverter is equipped with a 48V low-voltage battery system, the battery voltage being in the range 40 to 60V and it supports both Li-Ion and lead-acid batteries.

The maximum continuous charging current is 140 amperes, and the maximum continuous discharging current is also 140 amperes; the maximum charging power is 6.0 kilowatts and the maximum discharging power is 6.6 kilowatts.

Communication from the battery can be carried out via CAN, enabling battery management communication between the battery and the inverter.

Although the inverter can be used with batteries of various capacities and from various brands, it is necessary to check the battery’s voltage range, BMS communication, and electrical limits before installing it.

For buyers searching goodwe 6kw lithium battery price in pakistan, it is important to distinguish the inverter from the battery itself. Battery pricing depends on the selected battery model and capacity and is separate from the inverter price.

Backup Power and Load-Shedding Performance

The inverter provides a 6kVA nominal backup output. Its maximum apparent power without grid supply is 6.6kVA, with the ability to reach 12.0kVA for 10 seconds.

This ability to handle short-duration overloads can be of some help in meeting certain temporary loading requirements, but whether or not appliances are compatible actually depends on the load profile that is connected, the starting current and the amount of battery available.

When the grid is not available, the maximum backup output current is 30 amperes, but when the grid is available, the maximum output current rises to 40 amperes.

The feature of the inverter switching in less than 4 milliseconds is especially useful for homeowners who want the power supply to switch over quickly when the grid fails.

Battery sizing should be based on the backup loads required and the expected backup duration rather than depending solely on the inverter’s output.

Generator and Smart Load Support

The ES Uniq features a 3-in-1 port that supports generator, smart loads and on-grid inverter functions. Generator operation is thus a feature that is available in cases where a compatible generator is required.

The apparent nominal power supplied by the AC generator for the 6kW model is 6.0kVA, the maximum apparent power of the generator being 6.6kVA.

The inverter also has the capability of operating in a micro-grid configuration when used with a PV inverter; those functions can be useful in cases where the solar, battery, grid and generator power sources have to work together in a properly designed energy system.

Monitoring and Communication

The inverter has an LCD interface which can be used for local operation and for the display of information and it also supports connectivity via WLAN and an app.

Communication options include:

• CAN for BMS communication
• RS485
• Wi-Fi
• LAN
• Bluetooth
• Modbus-RTU
• Modbus-TCP

Since the integrated communication features are available, both installers and users will be able to keep track of system information and connect the supported devices without having to depend solely on the local inverter controls.

For buyers searching goodwe 6kw lcd, goodwe 6kw lcd specifications or goodwe 6kw lcd datasheet, the LCD is an integrated user interface of the inverter rather than a separately specified inverter capacity.

Technical Specifications

Solar PV Input

Battery

AC/Grid Output

Backup Output

General Specifications

Recommended Solar System Size

The 6kW AC rating and 12kW maximum PV input represent two different aspects of system design. The inverter can accept substantially more PV capacity than its nominal AC output, allowing a higher DC-side solar array within the permitted limits.

The goodwe 6kw inverter should not be sized only by looking at panel wattage. Final PV design needs to account for:

• Module Voc
• Module Isc
• MPPT operating range
• Maximum MPPT current
• Maximum short-circuit current
• Temperature-related voltage changes
• Number of strings
• Local installation conditions

The maximum allowed PV input should not be automatically regarded as the suggested array size for each installation.

Hybrid Inverter Use in Pakistan

For Pakistani homes, a hybrid inverter can be particularly useful where grid interruptions make battery backup important. The GoodWe 6kW ES Uniq can combine daytime solar generation with battery storage and grid supply, allowing energy to be managed according to the system configuration.

When load shedding occurs, the inverter can be used to supply the backup load provided that there is enough energy stored in the battery. The transfer time of less than 4ms is useful for cases where a fast switchover is important.

The conditions for installation are also important; even though the inverter has an IP66 rating, the system must still be properly installed with adequate ventilation, electrical protection, earthing and cabling of the appropriate size.

When choosing a location for the installation in Lahore and in other areas which have hot summers, installers should also take into account the ambient temperature and the inverter’s operating environment.

GoodWe 6kW ES Uniq Hybrid Inverter Price in Pakistan

The GoodWe 6kW ES Uniq Hybrid Inverter price in Pakistan is positioned as a complete 6kW low-voltage hybrid inverter offering solar, battery and backup functionality.

Current Price: Rs. 200,000.00 per unit.

Buyers looking for goodwe 6kw price in pakistan, goodwe 6kw price, goodwe 6kw inverter price in pakistan or goodwe 6kw hybrid inverter price in pakistan can contact Hajvery Solar for current availability and purchase enquiries.

Hajvery Solar Energy is an official distributor of GoodWe, assisting customers in obtaining the inverter together with the appropriate warranty support.

Hajvery Verified Product Information

As a GoodWe authorized dealer, Hajvery Solar Energy can help buyers check product compatibility and select the appropriate battery and system configuration before purchase.

For buyers specifically searching goodwe 6kw es uniq, the exact model for this page is GW6000-ES-C10.

Warranty and After-Sales Support

The GoodWe 6kW ES Uniq Hybrid Inverter comes with a 5-year replacement warranty.

For customers who are buying an inverter, Hajvery Solar Energy gives advice regarding products and warranties. It is necessary to check with Hajvery Solar regarding the warranty requirements and the relevant claim procedure before making the purchase.

Hajvery Solar Energy is also an Official GoodWe Distributor, providing a direct purchasing route for customers looking for genuine GoodWe products and applicable warranty support.

Before You Buy

Before purchasing the GoodWe 6kW ES Uniq Hybrid Inverter, confirm the following:

• Single-phase electrical requirement
• 48V low-voltage battery compatibility
• Battery operating voltage within 40–60V
• Required backup load and starting currents
• PV array voltage and current
• Maximum PV input requirement
• Number and configuration of solar strings
• Battery BMS communication compatibility
• Generator requirement, if applicable
• Need for parallel inverter operation
• Correct AC/DC protection and earthing
• Installation location and ventilation requirements

If you are searching for goodwe 6kw hybrid inverter manual, use the applicable installation and operating information for the exact GW6000-ES-C10 model before commissioning.

Frequently Asked Questions

What is the GoodWe 6kW ES Uniq inverter?

The GoodWe 6kW ES Uniq Hybrid Inverter is a single-phase, low-voltage hybrid inverter with 6kW rated AC output, battery storage support, solar PV input and backup functionality.

What is the PV capacity of the GoodWe 6kW hybrid inverter?

The inverter has a maximum PV input power of 12kW and the final solar array has to stay within the inverter’s voltage, current and MPPT limits.

Is the GoodWe 6kW ES Uniq a low-voltage inverter?

Yes. It uses a 48V low-voltage battery architecture with a 40–60V battery voltage range.

Does the GoodWe 6kW support lithium batteries?

Yes. The inverter supports Li-Ion batteries as well as lead-acid batteries. Battery voltage and BMS communication compatibility should be confirmed before installation.

Does the GoodWe 6kW support backup during load shedding?

Yes. The inverter provides a dedicated backup output and supports <4ms backup switching. Actual backup duration depends on battery capacity and connected load.

What is the GoodWe 6kW IP66 price in Pakistan?

The search phrase goodwe 6kw ip66 price in pakistan refers to the combination of the inverter’s 6kW capacity and IP66 protection. The applicable current product price is provided in the Price in Pakistan section.

Where can I find GoodWe 6kW inverter specifications?

The goodwe 6kw inverter datasheet pdf, goodwe 6kw hybrid inverter datasheet and goodwe 6kw datasheet search terms relate to technical information for this product. The key specifications include 6kW rated output, 12kW maximum PV input, 48V battery architecture and 2 MPPT trackers.

What is the GoodWe 6kW LCD price?

The goodwe 6kw lcd price and goodwe 6kw lcd price in pakistan search terms refer to the inverter’s integrated LCD interface. The LCD is part of the inverter rather than a separate product being priced independently.

What is the current GoodWe 6kW price in Pakistan?

The current price of the GoodWe 6kW ES Uniq Hybrid Inverter in Pakistan is Rs. 200,000.00 per unit.

Buy GoodWe 6kW ES Uniq Hybrid Inverter from Hajvery Solar

Hajvery Solar Energy supplies the GoodWe 6kW ES Uniq Hybrid Inverter for residential solar and battery backup applications. The team can assist with battery compatibility, PV configuration and product selection according to the requirements of the solar system.

Buying through Hajvery Solar Energy, an authorized GoodWe dealer, gives customers a clear route for product purchasing and warranty guidance.

For buyers researching inverter goodwe 6kw, goodwe 6kw hybrid or goodwe 6kw inverter price, contact Hajvery Solar for the latest purchasing information.
