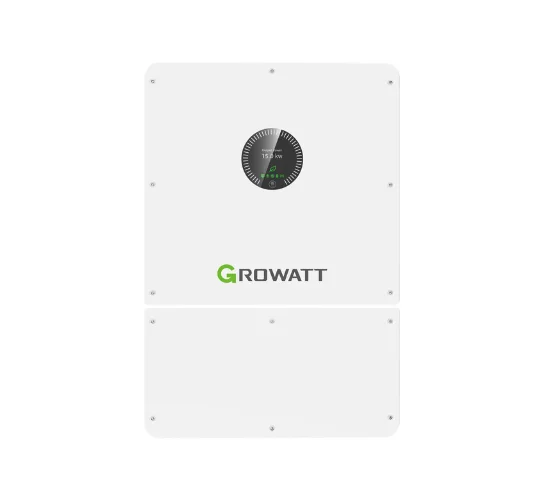

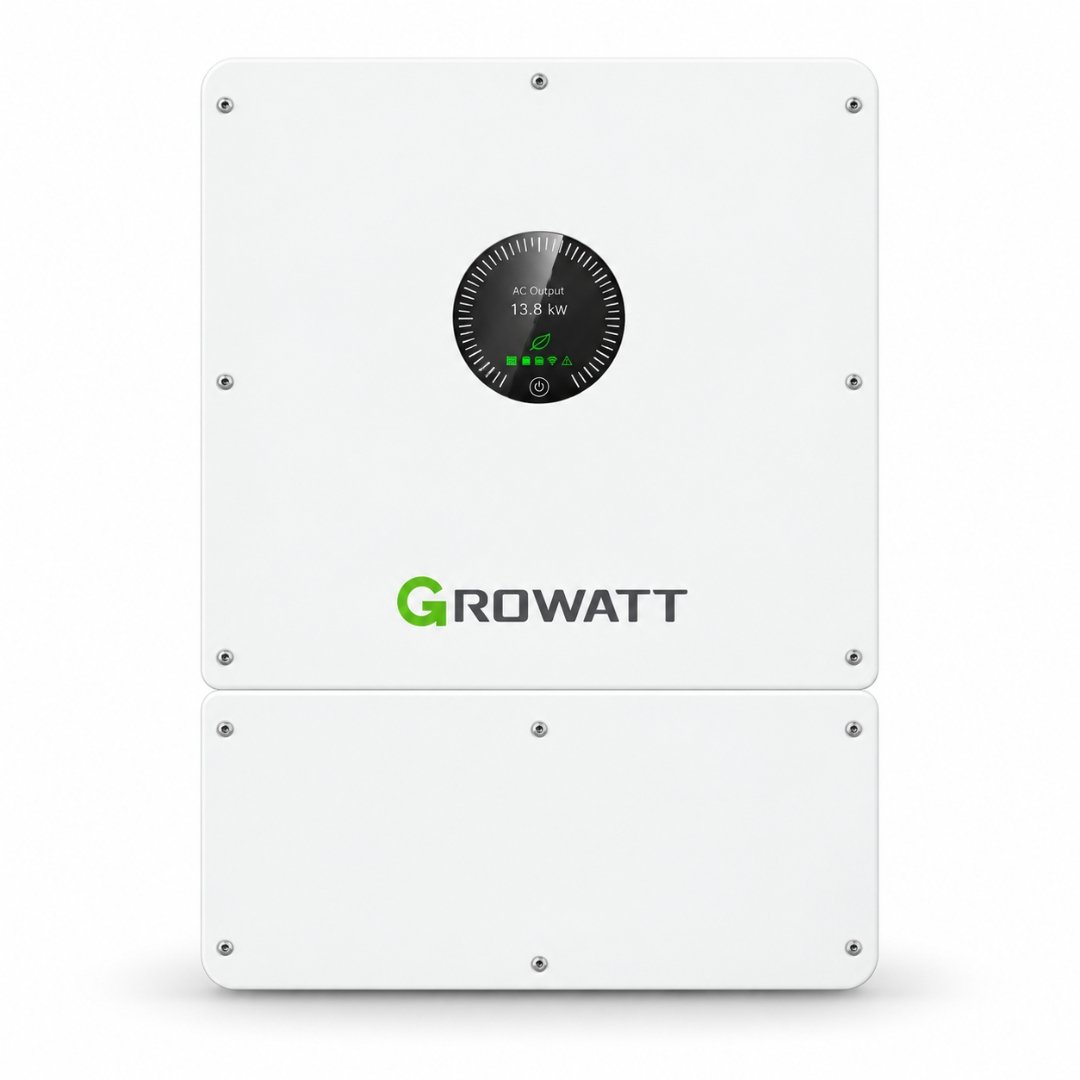

Growatt 10kW Three Phase Hybrid Inverter

Specifications

• Brand: Growatt
• Model: SPH10000TL3-BH-UP (or equivalent series)
• Inverter Type: Hybrid (On-Grid + Battery Storage)
• Rated AC Output Power: 10,000W (Three-Phase)
• Max DC Input Voltage: 1000V
• Start-Up Voltage: 160V
• MPPT Inputs: 2 Independent MPPTs
• Max PV Input Current per MPPT: 16A
• Max Efficiency: 98.4%
• European Efficiency: ~97.8%
• Battery Type Compatibility: Lithium-ion / Lead-Acid (48V Nominal)
• Battery Voltage Range: 150V – 800V (HV Battery Support)
• Max Battery Charge/Discharge Power: 10,000W
• AC Output Voltage: 400V, 3-Phase
• Frequency: 50Hz / 60Hz
• Communication Interfaces: RS485 / CAN / USB / WiFi (Optional LAN/4G Dongle)
• Cooling Method: Intelligent Fan Cooling
• Protection Rating: IP65 (Outdoor & Indoor Use)
• Operating Temperature: -25°C to +60°C
• Dimensions: Approx. 580 × 435 × 230 mm
• Weight: ~35 kg
• Warranty: 5 Years (Extendable to 10 Years)
