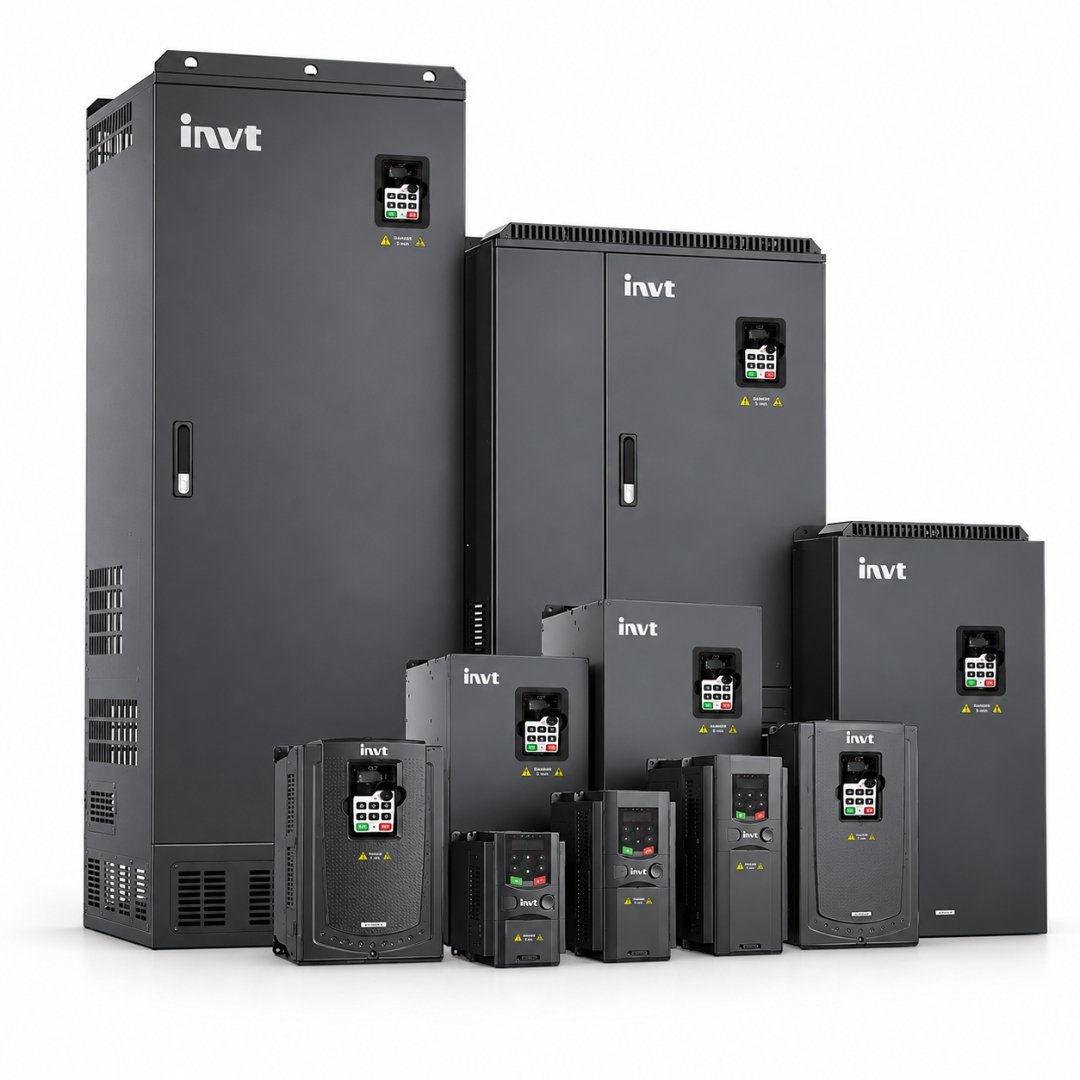

INVT GD200A 18.5KW
₨ 123,050
The INVT GD200A 18.5KW General Purpose Vector Drive provides precise speed, frequency, and torque control for compatible three-phase asynchronous motors. It supports V/F control and sensorless vector control, with a rated output current of 38A and an adjustable output frequency of up to 400Hz. Its motor auto-tuning, speed tracking, built-in braking unit, PID control, simple PLC functions, and extensive fault protection suit demanding industrial applications. Common uses include air compressors, HVAC systems, fans, water pumps, plastic machinery, and standard industrial transmission loads.
Quick Highlights
- 18.5KW general-purpose vector drive
- Exact model: GD200A-018G/022P-4
- Three-phase 380V-class input
- AC three-phase 400V ±15% input specification
- 47A rated input current
- 38A rated output current
- Adjustable output frequency from 0 to 400Hz
- V/F and sensorless vector control
- Compatible with asynchronous motors
- Rotating and static motor auto-tuning
- 1:100 speed control ratio
- Strong G-type overload capacity
- Built-in braking unit
- External braking resistor support
- Modbus and PROFIBUS communication settings
- Built-in C3 EMC filter
- IP20 ingress protection
- Air-cooled design
- 1 Year Replacement Warranty by INVT Official
INVT GD200A 18.5KW General Purpose Vector Drive Overview
If you are checking the INVT GD200A 18.5KW Price in Pakistan, this general-purpose vector drive offers motor speed, frequency, and torque control for compatible three-phase asynchronous motors. It belongs to the Goodrive200A high-performance general-purpose vector drive range and combines DSP-based control with V/F and sensorless vector control technologies.
The drive accepts a three-phase AC supply and converts it into a controlled variable-frequency output for the connected motor. As a result, the motor can operate at the speed required by the application instead of remaining limited to fixed mains frequency operation.
Accurate speed control can improve process stability, reduce mechanical stress during starting and stopping, and provide better control over pumps, fans, compressors, and other standard transmission loads. However, correct motor and application sizing remains essential because power rating alone is not sufficient for selecting a VFD.
Key Features and Benefits
V/F and Sensorless Vector Control
The drive supports standard V/F control and sensorless vector control. V/F control suits many conventional pump, fan, and general motor applications. Meanwhile, sensorless vector control provides better motor response where more accurate speed and torque regulation is required without installing a separate motor encoder.
Accurate Motor Auto-Tuning
Rotating and static motor auto-tuning options help the drive identify important motor characteristics. Rotating auto-tuning works when the motor can be safely separated from its mechanical load. On the other hand, static auto-tuning is useful when disconnecting the load is difficult.
Strong Overload Capability
The G-type overload ratings include:
- 150% of rated current for one minute
- 180% of rated current for ten seconds
- 200% of rated current for one second
The actual operating load, acceleration time, duty cycle, ambient temperature, and motor current must remain within the drive’s permitted limits.
Flexible Frequency Setting
Users can control the operating frequency through digital settings, analogue inputs, pulse-frequency input, multi-step speed settings, simple PLC operation, PID control, Modbus communication, or PROFIBUS communication settings.
This flexibility allows the VFD to work with control panels, pressure sensors, PLC systems, external potentiometers, and selected automation equipment when properly configured.
Smooth Speed Tracking
Speed-tracking functionality helps the drive restart a motor that is already rotating. For example, this feature can be useful for fans and other applications where the motor may continue spinning after the power supply or run command is interrupted.
Built-In Braking Unit
This 18.5KW model falls within the range equipped with a built-in braking unit. An external braking resistor may be installed when an application requires faster deceleration or stronger braking. Select the resistor rating according to the load inertia, braking torque, and braking frequency.
Convenient Keypad Operation
The 18.5KW power class supports a detachable LED keypad arrangement. In addition, parameter upload and download support makes repeated configuration and maintenance work more convenient. Users can also consider an optional LCD keypad with English display support where required.
Best Applications
The INVT GD200A 18.5KW VFD is suitable for correctly matched applications such as:
- Air compressors
- HVAC equipment
- Ventilation and extraction fans
- Water circulation systems
- Centrifugal pumps
- Pressure-control systems
- Plastic processing machinery
- Petroleum industry equipment
- Mining and coal industry equipment
- Heating and water-supply systems
- Selected conveyors
- General industrial transmission loads
- Compatible process machinery
Before selecting the drive, check the motor nameplate, starting torque, rated current, duty cycle, control method, and operating environment. This helps ensure that the VFD matches the actual application.
Not Ideal For
This VFD should not be selected for:
- Motors exceeding its supported power or current limits
- Motors with an incompatible rated voltage
- Single-phase motors requiring a single-phase motor output
- Direct solar-panel input or applications requiring solar MPPT control
- Outdoor installation without a suitable protective enclosure
- Locations where dust, water, or contamination exceeds IP20 protection
- Applications requiring encoder-based closed-loop control
- Systems requiring specialised regenerative operation without appropriate engineering
- Motors or machinery with control requirements outside the drive’s supported characteristics
Motor Compatibility
The drive is intended for compatible three-phase asynchronous motors. Its general-duty G rating is 18.5KW, with a rated output current of 38A.
Do not select the VFD only by comparing the motor’s kilowatt rating. Before installation, verify:
- Motor rated power
- Motor rated voltage
- Motor rated current
- Motor frequency
- Number of motor phases
- Motor type
- Starting torque requirement
- Continuous and intermittent load demand
- Acceleration and deceleration time
- Required operating speed range
- Environmental temperature
- Braking requirements
A motor with an unusually high rated current or heavy starting load may require a different drive selection, even when its nominal kilowatt rating appears compatible.
Industrial Applications in Pakistan
The INVT GD200A 18.5KW can be used in Pakistani industrial and commercial facilities operating compatible three-phase machinery. It suits applications that need adjustable motor speed, controlled starting, pressure regulation, or automated frequency control.
Common installations include factories, commercial buildings, workshops, water circulation systems, ventilation plants, and production facilities. Furthermore, pump and fan applications can use PID control with appropriate external feedback equipment to maintain pressure or another process value.
Before commissioning, evaluate site voltage quality, ventilation, enclosure design, dust, moisture, cable length, motor insulation, and earthing.
Protection and Control Features
The GD200A range provides more than 30 fault-protection functions. Supported protections include:
- Overcurrent protection
- Overvoltage protection
- Undervoltage protection
- Overheating protection
- Input or output phase-loss protection
- Motor and drive overload protection
The drive also adjusts output frequency during certain acceleration and deceleration conditions to help reduce unnecessary overcurrent and DC-bus overvoltage trips.
In addition, automatic voltage adjustment helps maintain stable motor operation when the incoming grid voltage changes within the supported operating range.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | INVT |
| Series | Goodrive200A |
| Model | GD200A-018G/022P-4 |
| Product Type | General Purpose Vector Drive |
| General-Duty Rated Power | 18.5KW |
| Motor Type | Asynchronous motor |
| Input Supply | Three-phase AC |
| Voltage Class | 380V class |
| Input Voltage | AC three-phase 400V ±15% |
| Input Frequency | 50Hz or 60Hz |
| Permitted Input Frequency Range | 47Hz to 63Hz |
| Rated Input Current | 47A |
| Output Voltage | 0 to input voltage |
| Output Frequency | 0 to 400Hz |
| Rated Output Current | 38A |
| Control Modes | V/F and SVC |
| Speed Ratio | 1:100 for an asynchronous motor |
| Frequency Setting | Digital, analogue, pulse, multi-step speed, simple PLC, PID, Modbus, and PROFIBUS settings |
| Motor Identification | Rotating and static auto-tuning |
| Speed Tracking | Supported |
| Analogue Inputs | Two channels supporting 0–10V or 0–20mA |
| Additional Analogue Input | One channel supporting -10V to +10V |
| Analogue Outputs | Two channels supporting 0–10V or 0–20mA |
| Common Digital Inputs | Eight channels |
| High-Speed Input | One channel |
| High-Speed Pulse Output | One channel |
| Open-Collector Output | One |
| Programmable Relay Outputs | Two |
| Cooling Method | Air cooling |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C to 50°C |
| Derating Requirement | Above 40°C |
| Mounting Options | Wall or flange mounting |
| Gross Weight | 9kg |
| Dimensions | 460 × 340 × 330mm |
| Built-In EMC Filter | C3 |
| Optional External EMC Filter | C2 |
| Braking Unit | Built in |
| Braking Resistor | External when required |
Installation and Wiring Guidance
A qualified VFD technician should install and commission the drive. Connect the incoming three-phase supply, motor cable, protective earth, control wiring, external braking resistor, and optional reactor or filter according to the correct INVT GD200A wiring diagram.
Keep control and power wiring separated where practical. Also, use suitable circuit protection, cable sizes, earthing, and enclosure ventilation. Confirm the motor direction at a safe frequency before operating the machine at normal speed.
Always isolate the VFD from the power supply before wiring, maintenance, or inspection. Allow sufficient time for the DC bus to discharge and verify the voltage before touching internal terminals.
INVT GD200A Manual and Parameter Setting
The INVT GD200A manual should match the GD200A series and correct voltage class before users apply wiring or parameter instructions. The INVT GD200A user manual helps with terminal identification, motor auto-tuning, acceleration and deceleration settings, protection parameters, PID control, and fault diagnosis.
Users searching for INVT GD200A manual PDF, INVT GD200A user manual PDF download, INVT VFD GD200A manual PDF, INVT inverter GD200A manual, or INVT drive GD200A manual should verify that the manual covers the GD200A series.
Search phrases such as INVT VFD parameter setting PDF free download, INVT GD200 manual PDF download, and INVT VFD manual PDF free download may return different manuals. Therefore, do not copy parameters from another series without checking the model and application.
Complete INVT GD200A parameter setting according to the connected motor nameplate and mechanical load. The INVT GD200A catalog can help identify the series, but commissioning settings should match the exact motor and application. Some users also search for manual inverter INVT GD200A or INVT VFD GD200A when locating operating information.
INVT GD200A 18.5KW Price in Pakistan
The current price of INVT GD200A 18.5KW General Purpose Vector Drive in Pakistan is Rs. 123,050 per VFD.
The INVT GD200A 18.5KW Price in Pakistan can change due to exchange rates, import costs, availability, and order quantity. Therefore, buyers should confirm the latest rate before placing an order. Dealer and project quantities may be quoted separately by Hajvery Solar Energy.
Hajvery Product Verification
Before purchasing, check the following details:
- INVT branding and product label
- Exact model GD200A-018G/022P-4
- 18.5KW general-duty rating
- Correct three-phase voltage class
- Rated input and output current
- Product serial details
- Physical condition and included accessories
- Applicable warranty details
Hajvery Solar Energy can assist buyers with model selection, product authenticity, motor compatibility, and warranty guidance before ordering.
Warranty and After-Sales Support
The INVT GD200A 18.5KW General Purpose Vector Drive comes with a 1-year replacement warranty by INVT Official.
Warranty claims remain subject to the applicable INVT terms and product inspection. Keep the purchase record, serial information, and warranty details safely. In addition, confirm installation requirements and the claim process with Hajvery Solar Energy before commissioning the drive.
Before You Buy
Provide the following information before ordering:
- Motor power in KW or HP
- Motor rated voltage
- Motor rated current
- Motor phase
- Motor frequency
- Motor nameplate photograph
- Machinery or application type
- Starting and running load details
- Required minimum and maximum speed
- Acceleration and stopping requirements
- Braking-resistor requirement
- Input supply voltage
- Installation environment
- Communication or automation requirements
This information helps determine whether the 18.5KW rating and 38A output current are suitable for the intended motor.
Frequently Asked Questions
What is the exact model number?
The exact model is GD200A-018G/022P-4.
Which motor can this VFD operate?
It is intended for a correctly matched three-phase asynchronous motor. Its general-duty rating is 18.5KW, with a 38A rated output current. However, motor voltage, current, load, and duty cycle must also be checked.
Does it support sensorless vector control?
Yes. It supports V/F control and sensorless vector control for compatible asynchronous motors.
What is its maximum output frequency?
The adjustable output frequency range is 0 to 400Hz. However, the connected motor and machinery must support the selected operating frequency.
Does this model have a built-in braking unit?
Yes. The braking unit is built in. An appropriately selected external braking resistor is required when the application needs dynamic braking.
Can it be connected directly to solar panels?
No. This general-purpose AC vector drive does not provide direct solar PV input or MPPT operation. Use it with its supported three-phase AC input and do not connect a PV array directly.
What is the current price in Pakistan?
The current price of INVT GD200A 18.5KW General Purpose Vector Drive in Pakistan is Rs. 123,050 per VFD.
What warranty is available?
It comes with a 1-year replacement warranty by INVT Official. Confirm the applicable claim requirements before installation.
Buy INVT GD200A 18.5KW General Purpose Vector Drive from Hajvery Solar
Buy the INVT GD200A 18.5KW General Purpose Vector Drive from Hajvery Solar Energy for industrial motor-control applications in Pakistan. Customers can request assistance with motor compatibility, VFD sizing, model verification, wiring requirements, parameter planning, and warranty guidance.
Share the motor nameplate and application details before ordering. This allows the drive to be checked against the motor’s voltage, current, power, phase, and operating requirements.
