INVT GD200A 22KW

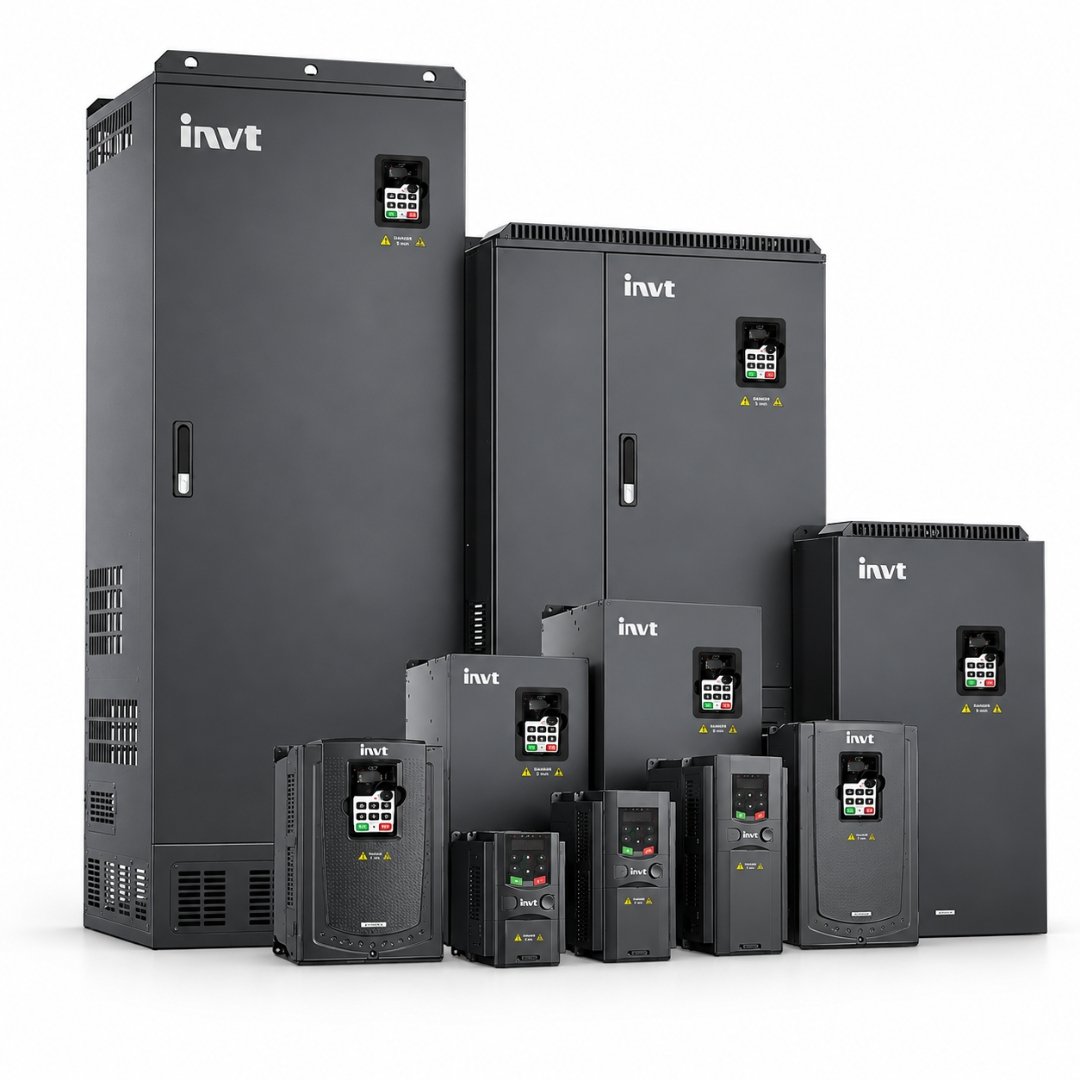

The INVT GD200A 22KW General Purpose Vector Drive provides controlled power to a compatible three-phase asynchronous motor. By adjusting motor output frequency and voltage, it can regulate speed, manage acceleration and deceleration, and support steadier operation under changing load conditions.

This invt vfd gd200a belongs to the Goodrive200A high-performance general-purpose drive range. It combines DSP-based control with V/F and sensorless vector control. The 22kW G-type rating is intended for constant-torque applications when the connected motor’s voltage, current, load profile and overload requirements fall within the drive’s limits.

Key Features and Benefits

V/F and Sensorless Vector Control

V/F control supports straightforward speed regulation for standard applications, while sensorless vector control improves motor response without requiring an encoder. This makes the drive useful where better low-speed behaviour and more responsive torque control are required from a compatible asynchronous motor.

Accurate Motor Auto-Tuning

Rotating and static motor auto-tuning help the drive identify essential motor characteristics. Rotating auto-tuning is suitable when the motor can be disconnected from the mechanical load, while static auto-tuning supports installations where separating the load is difficult.

Strong G-Type Overload Capability

For G-type operation, the drive supports 150% of rated current for one minute, 180% for ten seconds and 200% for one second. Correct motor and load selection remains essential because overload capability is not a substitute for proper VFD sizing.

Flexible Automation Control

Built-in PID, simple PLC, multi-step speed operation and multiple input methods provide practical control choices. Speed tracking can smoothly restart a rotating motor, while automatic voltage adjustment supports stable operation during incoming grid changes.

Braking and Deceleration Support

The 22kW G-type unit includes a braking unit and supports an external braking resistor. The final braking arrangement must be selected according to motor inertia, stopping time, operating cycle and braking frequency.

Communication and I/O Options

MODBUS communication is supported, and PROFIBUS communication can also be selected as a frequency-setting method. Analog, digital, pulse and relay interfaces allow the VFD to exchange commands and operating signals with compatible controllers and field devices.

Best For

The INVT GD200A 22KW VFD is suitable for properly engineered applications such as:

• Air compressors
• HVAC equipment
• Ventilation and extraction fans
• Water-supply and circulation pumps
• Plastic processing machinery
• Selected oil-industry equipment
• Mining and coal-industry machinery
• Standard industrial transmission loads
• Constant-pressure water-supply systems using PID control

A 22kW label alone is not enough to establish compatibility; the motor nameplate and actual load behaviour must also match.

Not Ideal For

This drive is not a suitable direct replacement for every motor controller. Avoid selecting it where the motor voltage, phase, rated current or control requirements do not match. It is designed for asynchronous motors and should not be assigned to another motor type without verified engineering compatibility.

The IP20 enclosure is intended for protected installation. Outdoor, dusty, wet or corrosive locations require a correctly designed control cabinet with suitable environmental protection, cooling and ventilation. This model is also not a solar pump inverter with a dedicated PV input or MPPT function, so solar panels must not be connected directly to its AC input terminals.

Motor and Application Compatibility

Use the 22kW G-type rating only after checking the motor nameplate and driven load. Confirm rated power, three-phase voltage, full-load current, frequency, speed, starting torque and insulation suitability. Motor current and the required overload margin must remain within the approved limits.

Industrial and Pump Applications in Pakistan

For industrial users in Pakistan, this drive provides controlled starting and adjustable speed where a compatible three-phase supply is available. In pump and fan systems, PID can regulate pressure or another process variable with the feedback sensor and wiring. Actual flow, pressure, head and energy use depend on the equipment curve, pipework, system resistance and speed; they cannot be calculated from VFD power alone.

Protection and Control Features

The drive includes more than 30 fault-protection functions. Key protections cover overcurrent, overvoltage, undervoltage, overheating, phase loss and overload. Proper fuses, earthing, cable sizing, isolation and external protection devices are still required as part of the complete installation.

A separate air duct supports internal protection and cabinet heat management.

Technical Specifications

• Product series: INVT Goodrive200A
• Product type: General purpose vector drive
• Target rating: 22kW G type
• Exact model: GD200A-022G/030P-4
• Input supply class: Three-phase 380VAC series
• Wide input support: AC three-phase 380V (-15%) to 440V (+10%)
• Rated input current: 56A
• Rated output current: 45A
• Output voltage: 0 to input voltage
• Input frequency: 50Hz or 60Hz; allowed range 47–63Hz
• Output frequency: 0–400Hz
• Control modes: V/F and sensorless vector control
• Compatible motor type: Asynchronous motor
• Speed ratio: 1:100 for asynchronous motors
• G-type overload capability: 150% for 1 minute, 180% for 10 seconds and 200% for 1 second
• Frequency settings: Digital, analog, pulse, multi-step speed, simple PLC, PID, MODBUS and PROFIBUS
• Built-in braking unit: Yes
• Braking resistor: External
• EMC filter: Built-in C3 filter; optional external C2 filter
• Cooling method: Air cooling
• Ingress protection: IP20
• Operating temperature: -10°C to 50°C; derating required above 40°C
• Mounting methods: Wall or flange mounting
• Gross weight: 11kg
• Packaged dimensions: 550 × 375 × 375mm

Installation and Operating Considerations

Installation should be completed by a qualified VFD technician. Confirm the three-phase supply, earthing, protective devices, cable sizes, motor cable length, cabinet temperature and ventilation before energising the drive. Separate power wiring from signal and communication cables.

Do not place power-factor correction capacitors or unsuitable switching devices between the running VFD and motor. The IP20 enclosure requires a suitable cabinet, and output derating is required above 40°C.

INVT GD200A Price in Pakistan

The current price of the INVT GD200A 22KW General Purpose Vector Drive in Pakistan is Rs. 144,450 per VFD. Contact Hajvery Solar for current availability, dealer quantities and delivery options.

The phrase invt gd200a price in pakistan is commonly used by buyers comparing genuine units and local support. The invt gd200a price may change with exchange rates, import costs and market conditions. Buyers checking the invt vfd price in pakistan should compare the exact capacity, model code, warranty and seller support rather than relying only on a low advertised rate.

Manual, Wiring and Parameter Support

Buyers searching invt gd200A or invt gd200a often need the correct setup resources before commissioning. Use the exact invt gd200a manual and invt gd200a user manual for terminal functions, commissioning steps, fault codes and safe parameter changes.

For printable references, searches such as invt gd200a manual pdf, invt gd200a user manual pdf download, invt vfd gd200a manual pdf, invt inverter gd200a manual and invt drive gd200a manual should always be matched with the correct series and voltage class.

Before using any invt vfd manual pdf free download, invt vfd parameter setting pdf free download or invt gd200 manual pdf download file, check that it covers the Goodrive200A series and the installed firmware or keypad arrangement. The invt gd200a wiring diagram must be followed carefully, especially for main power, motor, braking resistor, control terminals and earthing.

Use the correct invt gd200a parameter setting instructions and invt gd200a catalog when planning the installation. Some users search manual inverter invt gd200a; the safest approach is to verify the document title and series before applying any parameter or wiring information.

Hajvery Product Verification

Before purchase, verify the INVT branding, complete model code, rated power, voltage class, serial details and warranty coverage. The model on the product nameplate should match the invoice and the selected application. Hajvery Solar can help buyers confirm product identity and basic motor compatibility before dispatch.

Warranty and After-Sales Support

The INVT GD200A 22KW General Purpose Vector Drive comes with a 1 Year Replacement Warranty by INVT Official. Warranty handling remains subject to applicable INVT terms, correct installation and verification of the supplied unit. Keep the purchase invoice, serial details and installation record available for a warranty claim.

Before You Buy

Please confirm the following before ordering:

• Motor rated power and full-load current
• Motor voltage, phase and frequency
• Load type and starting-torque requirement
• Required acceleration and deceleration time
• Braking frequency and load inertia
• Incoming supply voltage and site conditions
• Control method, sensors and communication needs
• Cabinet protection, cooling and ventilation
• Cable lengths, earthing and protective devices

Frequently Asked Questions

Is the INVT GD200A 22KW suitable for a three-phase motor?

Yes, it is designed for compatible three-phase asynchronous motors. Confirm the motor voltage, rated current, frequency and application before selection.

What is the rated output current?

The 22kW G-type target rating provides a rated output current of 45A. Motor and load requirements must remain within the drive’s applicable limits.

What control modes are available?

The drive supports V/F and sensorless vector control. It also provides motor auto-tuning, PID, simple PLC, multi-step speed and communication-based frequency settings.

Can it be used for pumps and fans?

Yes, it can control compatible asynchronous motors used with pumps and fans. The complete system must be sized from the motor nameplate, pump or fan curve and operating conditions.

Can solar panels connect directly to this VFD?

No. This is a general-purpose AC vector drive and does not provide a dedicated solar PV input or MPPT function.

Does it have built-in braking support?

Yes, the target unit includes a braking unit and can work with a correctly selected external braking resistor.

What is the current price in Pakistan?

The current price of the INVT GD200A 22KW General Purpose Vector Drive in Pakistan is Rs. 144,450 per VFD. Confirm availability before ordering.

What warranty is included?

It includes a 1 Year Replacement Warranty by INVT Official, subject to applicable warranty terms and product verification.
