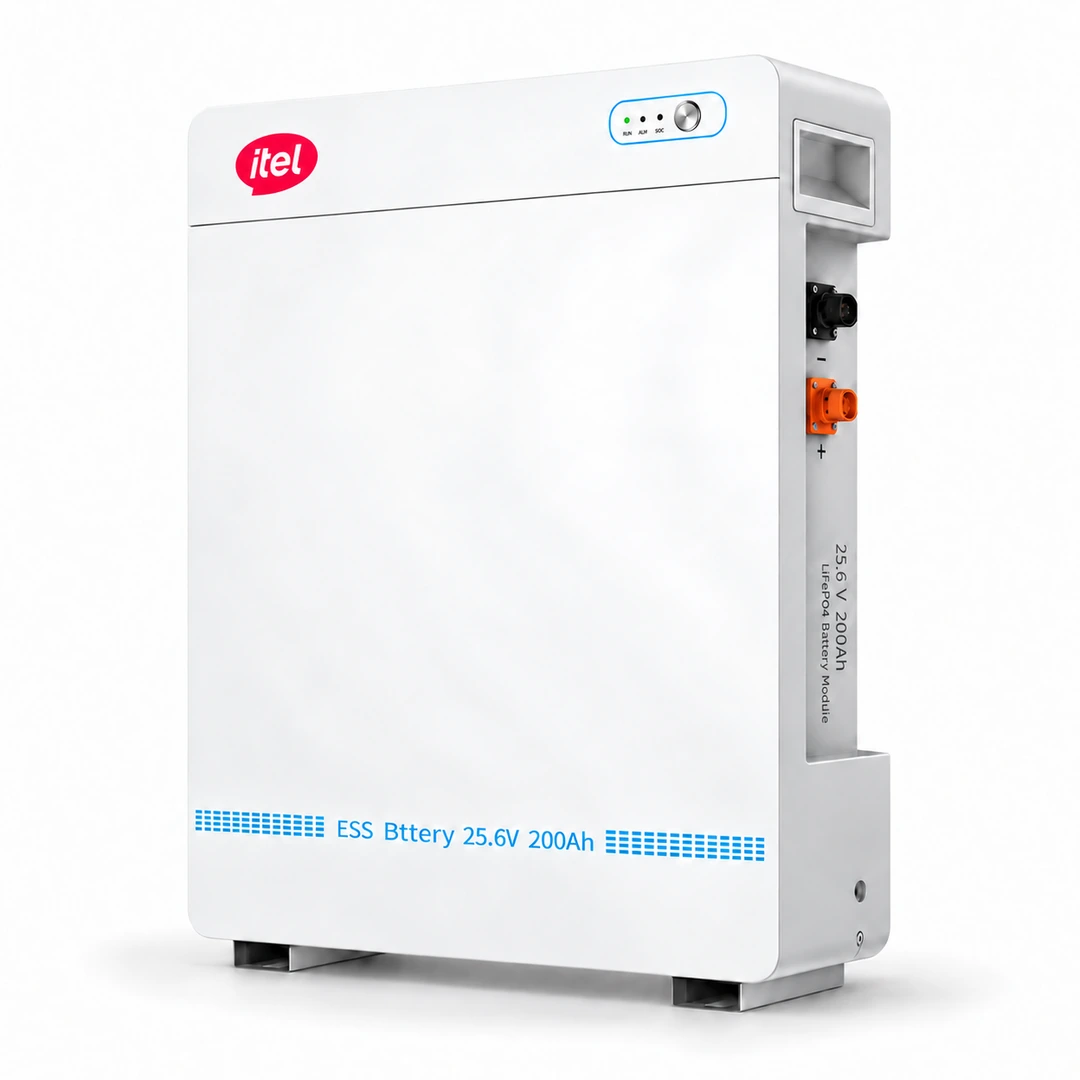

Itel 5.12KWh 25.6V 200Ah Lithium Battery

itel 5.12kWh 25.6V 200Ah Lithium Battery Overview

Buyers checking the itel 24v 200ah lithium battery price in Pakistan can identify the IPL-25200X by its 5.12kWh nominal energy and 25.6V voltage. This low-voltage LiFePO4 battery combines a 200Ah capacity with storage for compatible solar inverter and backup systems.

For example, during load shedding, households can use stored energy for selected loads with a compatible inverter. However, backup duration depends on the connected equipment, battery settings and actual electricity consumption.

In addition, its intelligent BMS manages battery operation through multiple protection algorithms. RS485, CAN and RS232 interfaces support communication with suitably matched inverter systems.

In practice, the 5.12kWh nominal capacity suits buyers considering an approximately 5kWh low-voltage storage unit rather than a high-voltage battery system.

Key Features and Buyer Benefits of the itel 24V 200Ah Lithium Battery

Class-A LiFePO4 Battery Technology

The IPL-25200X uses Class-A lithium iron phosphate cells. LiFePO4 chemistry offers good thermal stability and is commonly used for rechargeable energy storage where repeated charging and discharging are important.

Therefore, the battery can serve properly designed solar storage applications that require regular charging and discharging.

5.12kWh Storage Capacity of the itel 24V 200Ah Battery

With 25.6V nominal voltage and 200Ah capacity, the battery stores 5.12kWh of nominal energy.

For instance, users can plan backup for essential lighting, fans and other compatible household loads around this nominal capacity.

However, the available energy varies with battery operating limits, state of charge, inverter efficiency and working conditions.

Intelligent Battery Management System

The battery incorporates an intelligent BMS with more than 50 protection algorithms.

In turn, its BMS helps manage electrical and thermal operating conditions. However, installers still need to configure the inverter correctly, even when the battery has its own protections.

High Charging and Discharging Capability

The battery supports 100A standard charging and discharging currents, with maximum continuous charging and discharging ratings of 200A.

As a result, installers can assess whether the battery suits different charging requirements and backup loads.

Charging and discharging must remain within the battery’s supported voltage, temperature and current limits.

Communication with Compatible Inverters

The battery includes RS485, CAN and RS232 communication connections.

In turn, these interfaces can support communication between the battery BMS and compatible inverter equipment.

Compatibility should be confirmed for the exact inverter model, including the communication protocol, firmware and connection requirements.

Expandable Battery Storage

The IPL-25200X supports parallel operation of up to 32 batteries, with automatic parallel addressing.

This gives installers the ability to plan larger storage configurations using compatible battery units.

However, installers must integrate each additional battery with the correct wiring, electrical protection and system configuration.

Best For

The itel 24V 200Ah lithium battery is worth considering for these applications:

• Residential solar storage: Homes using compatible low-voltage solar or hybrid inverter systems.
• Essential-load backup: Households wanting backup for selected appliances during electricity outages.
• Expandable storage: Users planning to increase battery capacity through supported parallel operation.
• Solar installations: Installers designing systems around 25.6V lithium battery architecture.
• Small commercial applications: Selected backup requirements where the inverter and total load match the battery’s electrical capabilities.

Not Ideal For

This battery may not be suitable for:

• High-voltage battery systems requiring a different battery architecture.
• Inverters that do not support the battery voltage or BMS communication requirements.
• Continuous electrical loads exceeding the battery’s permitted discharge current.
• Outdoor or water-exposed installation locations without appropriate environmental protection.
• Applications requiring more backup capacity than the selected battery configuration can provide.

Therefore, confirm inverter compatibility and required backup duration before purchasing.

itel 24V 200Ah Battery Capacity: kWh, Ah and Usable Energy Explained

Battery capacity is often described using amp-hours (Ah) and kilowatt-hours (kWh), but these units measure different things.

Amp-hours describe electrical charge capacity, while kilowatt-hours describe stored energy.

For the IPL-25200X:

Nominal Voltage × Capacity ÷ 1,000 = Nominal Energy

25.6V × 200Ah ÷ 1,000 = 5.12kWh

Therefore, the battery has a nominal energy rating of 5.12kWh. When assessing the itel 24v 200ah lithium battery price in Pakistan, compare this exact storage capacity rather than treating 5kW and 5kWh as interchangeable.

The commonly used 24V description refers to its voltage class, not its exact operating voltage. Likewise, 5kWh is a rounded capacity description.

Usable energy can be lower than nominal energy depending on configured discharge limits and operating conditions. A battery’s kWh storage rating should not be confused with an inverter’s kW power rating.

itel 24V 200Ah Lithium Battery Chemistry and Cycle Life

The IPL-25200X uses lithium iron phosphate chemistry and has a cycle-life rating of more than 6,000 cycles at 25°C, 0.5C and 80% depth of discharge (DoD).

However, these are defined testing conditions, not a guarantee that every installation will reach the same number of cycles.

Over time, temperature, charging behaviour, depth of discharge and usage frequency can influence battery performance.

The battery also has a 10-year design life. Design life and warranty coverage are different: the confirmed official replacement warranty is five years.

Battery Management and Safety in the itel 24V 200Ah Lithium Battery

The itel 24V 200Ah lithium battery includes an intelligent BMS as part of the IPL-25200X design.

Its 50+ protection algorithms help manage battery operating conditions and support safer charging and discharging.

In addition, the battery has a metal enclosure, natural cooling and an LED status display.

For this reason, install the IP20-rated battery in a dry, protected location. The enclosure is not weatherproof for outdoor exposure.

Installers should follow the supported operating temperature ranges, use suitable electrical protection and provide adequate space for heat dissipation.

Charging and Discharging the itel 24V 200Ah Battery

The battery has a standard charging current of 100A and a maximum continuous charging current of 200A.

Its standard discharge current is also 100A, with a maximum continuous discharge current of 200A and a maximum pulse discharge current of 220A.

The operating voltage range is 21.6V to 28.8V. Therefore, installers must configure charging and discharging within the supported limits.

The battery charging cut-off voltage is 28.8V, while the discharge cut-off voltage is 21.6V.

In practice, permissible system power also depends on the operating battery voltage, inverter efficiency and the inverter’s electrical limits.

Inverter Compatibility of the itel 24V 200Ah Lithium Battery

When researching the itel 24v 200ah lithium battery price in Pakistan, consider inverter compatibility alongside the quotation. The IPL-25200X supports correctly matched low-voltage energy storage systems.

Installers should check the battery’s operating voltage, charge and discharge limits, BMS protocol and supported inverter settings before installation.

Customers researching the battery required for 5kw solar system should remember that a 5kW inverter rating and a 5.12kWh battery capacity serve different purposes.

Therefore, a 5kW solar system does not automatically require a particular battery capacity. Choose storage around the backup duration, inverter battery voltage, load and charging configuration.

Hajvery Solar Energy is an itel authorized dealer and can help review inverter and battery requirements before purchase. You can also explore solar inverters at Hajvery Solar; confirm exact battery compatibility before ordering.

Parallel Expansion

For larger storage needs, the IPL-25200X supports parallel operation of up to 32 compatible units.

In addition, automatic addressing helps manage battery communication in a supported parallel arrangement.

A theoretical configuration of 32 identical 5.12kWh batteries would provide 163.84kWh of combined nominal storage.

However, this calculation does not guarantee usable energy or compatibility with every inverter. Installers must verify parallel wiring, protection equipment and system limits before expansion.

itel 24V 200Ah Lithium Battery Technical Specifications

Alongside the itel 24v 200ah lithium battery price in Pakistan, these electrical specifications help buyers check inverter matching, charge limits and BMS communication before selecting the battery.

Estimated Backup Time for the itel 24V 200Ah Battery

To estimate how long an itel 24V 200Ah lithium battery can supply a load, consider its available energy and the average electricity consumption.

For an illustrative calculation, assume that 80% of the battery’s nominal energy is available and the inverter operates at 90% efficiency.

Estimated AC energy:

5.12kWh × 80% × 90% = approximately 3.69kWh

Under these assumptions:

These are illustrative calculations, not guaranteed backup times or a declared usable-capacity specification.

Nevertheless, actual backup time can vary with inverter losses, battery settings, battery condition, temperature and changing loads.

The 80% available-energy assumption is for estimation only and is not a recommended discharge setting for this product.

Using the itel 24V 200Ah Lithium Battery in Pakistan

Lithium battery storage can be useful in Pakistan where homeowners want to use stored solar energy or maintain selected electrical loads during load shedding.

For reliable operation, the IPL-25200X should be installed in a protected, suitably ventilated location.

The battery’s specified charging temperature range is 0°C to +55°C. Installers should pay particular attention to heat exposure during Pakistan’s summer months.

Correct charging parameters, suitable battery cables, protection devices and BMS communication settings are important for the overall system.

Also, keep the battery away from water because its IP20 enclosure does not provide outdoor weather protection.

itel 24V 200Ah Lithium Battery Price in Pakistan

For customers checking the itel 24v 200ah lithium battery price in Pakistan, the current price of the itel 5.12kWh 25.6V 200Ah Lithium Battery at Hajvery Solar Energy is Rs. 230,000 per battery.

The itel 24V 200Ah battery may be quoted between 200,000 and 250,000 rupees per battery across the market. Government taxes and import duties, together with changing demand and supply, can affect selling prices.

The itel lithium battery 24v 200ah price in Pakistan may also vary between suppliers and purchase quantities. When comparing the itel 24v 200ah battery price in Pakistan, confirm the exact IPL-25200X model, genuine product condition and applicable replacement warranty.

For the latest itel lithium battery price in Pakistan, wholesale enquiries or dealer quotations, contact Hajvery Solar Energy.

Hajvery Solar Energy is an itel Official Distributor serving retail customers, solar installers and dealers from Lahore, with delivery enquiries available for other locations in Pakistan.

Hajvery Compatibility and Authenticity Check

When evaluating the itel lithium battery 24v 200ah price in Pakistan, buyers should look beyond the price and check the exact IPL-25200X model, nominal voltage and battery capacity.

The exact battery model, nominal energy, operating voltage, communication interface and warranty terms are important when making a purchase.

Hajvery Solar Energy helps customers check the IPL-25200X model identity, applicable warranty details and inverter matching requirements.

Before ordering, customers should confirm product availability and serial-number information. To explore the wider range, visit lithium batteries at Hajvery Solar.

Warranty for the itel 24V 200Ah Lithium Battery

The itel 5.12kWh 25.6V 200Ah Lithium Battery comes with a 5-year official itel brand replacement warranty.

However, this warranty is separate from the battery’s 10-year design-life rating. Official replacement terms determine eligibility.

As an authorized itel dealer, Hajvery Solar Energy provides customers with product and warranty guidance. Buyers should confirm the required warranty documentation and claim process before purchasing.

Before You Buy

Before selecting the IPL-25200X, confirm the following:

• Your inverter supports a compatible 24V-class, 25.6V nominal lithium battery.
• The inverter’s battery charging and discharging limits match the battery requirements.
• BMS communication is supported through the required protocol and connection configuration.
• The 5.12kWh nominal capacity is appropriate for your backup requirements.
• Your selected installation location is suitable for an IP20 battery.
• Expansion requirements are compatible with the supported parallel configuration.
• The exact model, warranty coverage and product availability are confirmed.

Buyers checking the itel 24v 200ah lithium battery price in Pakistan should request a quote for the exact IPL-25200X model. Also, you can visit itel Energy for brand information; always confirm exact-model compatibility with Hajvery Solar before ordering.

Frequently Asked Questions

1. What is the itel 24V 200Ah lithium battery price in Pakistan today?

The current price of the itel 5.12kWh 25.6V 200Ah Lithium Battery at Hajvery Solar Energy is Rs. 230,000 per battery. Confirm the latest quotation and stock availability before ordering.

2. Is this an itel 5kWh lithium battery?

Yes. The battery has 5.12kWh nominal energy, which is often rounded to the 5kWh storage class. Buyers checking the itel 5kwh lithium battery price in Pakistan should verify the exact IPL-25200X model before comparing quotations.

3. Is the itel 200Ah battery 24V or 25.6V?

The battery has a nominal voltage of 25.6V and belongs to the 24V battery class. Its operating voltage range is 21.6V to 28.8V.

4. How long will a 24v 200ah battery last?

Backup duration depends on the load, usable battery energy and inverter efficiency.

For example, with an assumed 80% available nominal energy and 90% inverter efficiency, a constant 1,000W AC load would have an estimated backup time of approximately 3.7 hours.

Actual backup time may be shorter or longer.

5. Can this battery work with a 5kW solar inverter?

It may work with a suitable inverter that supports its battery voltage, charging limits, discharge current and communication requirements.

A 5kW inverter rating alone does not confirm battery compatibility or continuous load capability.

The exact inverter model should be checked before installation.

6. What size solar panel is needed to charge this 24V battery?

If you are researching what size solar panel to charge 24v battery, the correct solar array size depends on the charging system, inverter or charge-controller limits, available sunlight and desired charging time.

Connect solar panels through a suitable charging system. In addition, configure the battery voltage and current limits correctly.

7. How many itel 24V 200Ah lithium batteries can be connected in parallel?

The IPL-25200X supports up to 32 batteries in a compatible parallel arrangement.

However, system expansion requires suitable inverter support, wiring, protection equipment and correct BMS configuration.

8. What is the warranty on the itel 24V 200Ah lithium battery?

The itel 24V 200Ah lithium battery comes with a 5-year official brand replacement warranty. Confirm the applicable claim requirements and replacement terms before purchase.

Buy itel 5.12kWh 25.6V 200Ah Lithium Battery from Hajvery Solar

Hajvery Solar Energy is an Official itel Distributor supplying genuine lithium battery products for residential and commercial energy storage requirements.

Customers in Lahore and across Pakistan can contact Hajvery Solar Energy for current availability, product information, installer enquiries and dealer pricing.

For assistance with the IPL-25200X, contact Hajvery Solar Energy before ordering to confirm your inverter compatibility and warranty requirements.
