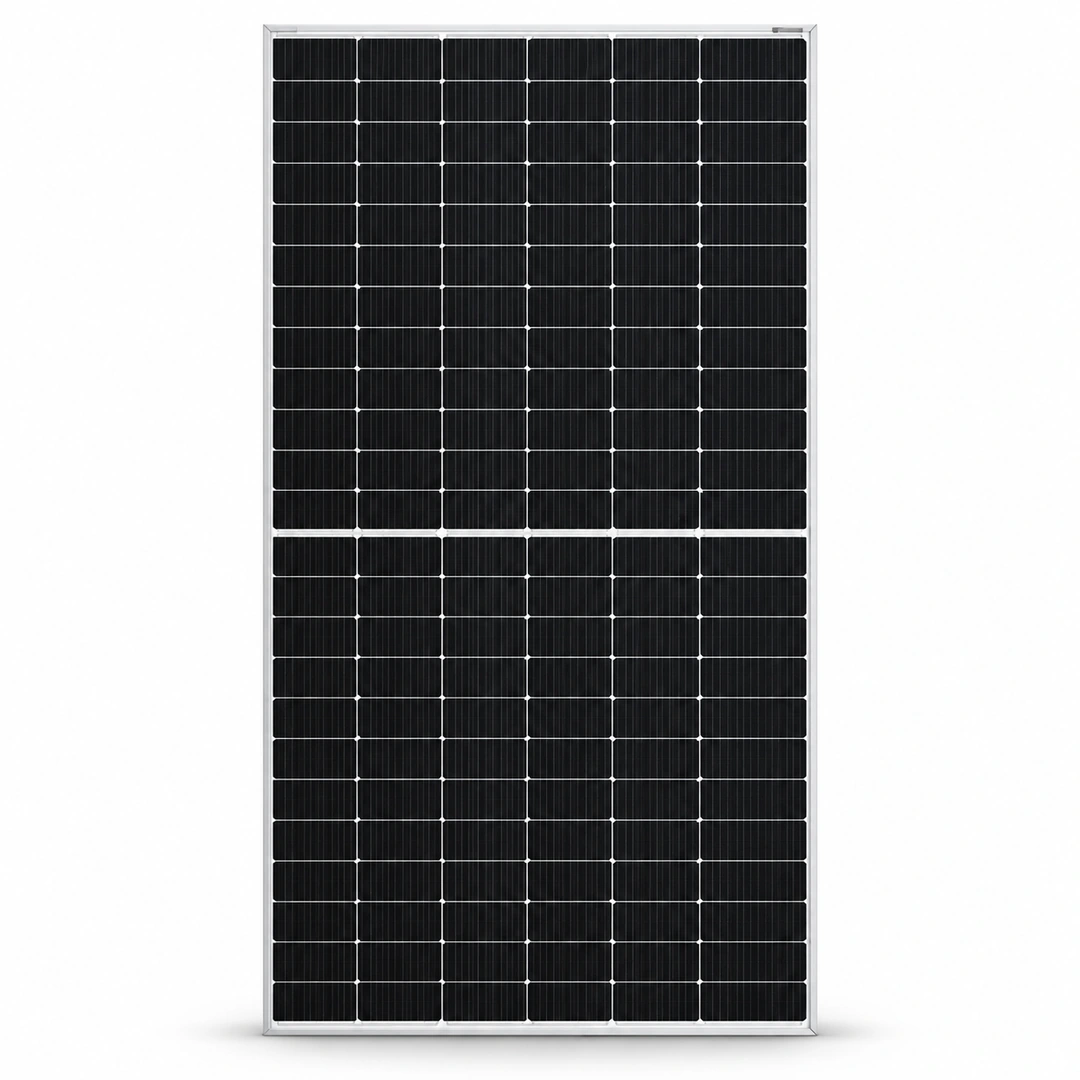

Inverex Mustang 620W Bifacial Steel Frame Solar Panel

Inverex Mustang 620W Bifacial Steel Frame Solar Panel Overview

For buyers checking the inverex mustang 620W price in pakistan, the Inverex Mustang 620W Bifacial Steel Frame Solar Panel combines 620W rated output, TOPCon bifacial technology and a steel frame. In addition, its 22.95% module efficiency makes it relevant to residential and commercial projects where the system design supports its electrical ratings and dimensions.

In particular, this Mustang series panel uses TOPCon solar cells and bifacial technology to generate electricity from sunlight reaching its front surface and reflected light reaching its rear surface.

As a result, its 620W front-side power rating makes it a practical choice for commercial rooftops, ground-mounted systems and residential installations with sufficient mounting space.

Moreover, the steel frame is a distinguishing feature of this module. Combined with dual-glass construction, it provides a solid mechanical design for installations where module strength and structural loading matter.

For example, at 22.95% efficiency, the panel converts a substantial proportion of incoming sunlight into electrical power under standard test conditions. Actual production will depend on sunlight, temperature, mounting angle, shading and system losses.

Therefore, buyers should assess this panel’s electrical characteristics, physical dimensions and inverter compatibility rather than relying on wattage alone. To compare available models by wattage, browse solar panel prices in Pakistan.

Key Features and Benefits

TOPCon Cell Technology

The Inverex Mustang 620W uses TOPCon solar cells with multi-busbar technology.

In addition, TOPCon technology supports efficient electricity generation and helps limit electrical losses within the module.

Specifically, the panel uses 132 solar cells, providing a rated front-side output of 620W under standard test conditions.

Therefore, for customers planning long-term solar installations, the combination of TOPCon technology and linear performance warranty provides an important basis for evaluating expected module operation over time.

Bifacial Energy Generation

The Inverex Mustang 620W is a bifacial solar panel, meaning its front and rear surfaces can contribute to electricity generation.

In fact, the module has a bifaciality rating of 80% ±5%.

For instance, its rear surface can receive reflected sunlight from suitable installation surfaces. Additional production depends on ground reflectivity, mounting height, row spacing and rear-side shading.

Under defined bifacial nominal power irradiation conditions, the module delivers 687W. This is a test-condition rating rather than a guaranteed output during normal operation.

Consequently, properly configured ground-mounted installations, bifacial generation can provide an additional energy benefit.

High Module Efficiency

With a module efficiency of 22.95%, the Mustang 620W delivers high rated power within its physical area.

As a result, installers can plan arrays using a high-output module, although the final number of panels must still be determined by roof dimensions, available mounting area, electrical design and required system capacity.

Therefore, installers must match its electrical characteristics with the selected inverter before installation. They can also explore solar inverters when planning a complete system.

Low Power Degradation

The Inverex Mustang 620W includes a 30-year linear power output warranty.

Its warranty performance curve provides for 99% power retention at the end of the first year and 87.4% at the end of year 30, relative to the applicable initial rated output.

These are warranty performance levels, not a prediction of exact electricity production at a particular installation.

Long-term production also depends on weather exposure, installation quality, maintenance and operating conditions.

Strong Steel Frame Construction

Notably, one of the main distinguishing features of the inverex mustang 620w steel frame design is its steel module frame combined with dual-glass construction.

In addition, the module includes 2.0mm low-iron, anti-reflective coated, semi-tempered glass on the front and rear.

Its mechanical load ratings are:

• Front-side mechanical load: 5400 Pa
• Rear-side mechanical load: 2400 Pa

In turn, these ratings help installers evaluate the module for appropriate structural designs. The mounting structure, clamps and fixing method must also meet the applicable installation requirements.

However, the module weighs 35.4 kg, so safe handling and mounting-structure capacity should be considered before installation.

Best For

The Inverex Mustang 620W Bifacial Steel Frame Solar Panel is suitable for several types of properly engineered solar projects.

Commercial Solar Rooftops

Its high rated output makes it suitable for commercial rooftop installations where structural capacity, access and inverter design support the module.

Ground-Mounted Solar Systems

Ground-mounted projects can provide suitable rear-side clearance and surface reflectivity for bifacial energy generation.

Residential Solar Installations

Likewise, residential buyers can consider the module for rooftops with enough space and an appropriate supporting structure. They should check its dimensions and weight before selection.

Solar Installers and Project Contractors

Installers requiring a TOPCon bifacial module with defined mechanical load ratings and a steel frame can assess this panel for their projects.

Solar Dealers and Bulk Buyers

For example, its 37-panel pallet configuration is relevant for dealer orders and larger installations requiring consistent module quantities.

When Another Panel May Be Better

The Mustang 620W may not suit every installation.

For example, a smaller or lighter solar panel may be more practical where roof space, access or mounting capacity is limited.

Likewise, a different electrical configuration may also be necessary when the proposed inverter cannot accommodate this module’s operating voltage or current.

Similarly, installations with substantial rear-side shading may not benefit fully from bifacial generation.

Therefore, compare physical dimensions, electrical limits, mounting requirements and site conditions before finalizing the solar array.

Cell and Module Technology

The Inverex Mustang 620W combines TOPCon solar-cell architecture, multi-busbar technology, bifacial generation and dual-glass construction.

More specifically, its 132 TOPCon cells are arranged within a module measuring 2382 × 1134 × 30mm.

Furthermore, the multi-busbar design provides multiple paths for collecting electrical current, helping reduce internal resistance losses.

Bifacial construction enables the rear side to contribute power when adequate reflected light reaches it.

In addition, the dual-glass arrangement protects the cell assembly from environmental exposure, while the steel frame provides structural support.

Additionally, the module includes an IP68-rated junction box with three diodes. This IP rating applies to the junction box, not to a claim that the complete panel can be submerged.

Together, these features make the Inverex Mustang solar module suitable for buyers seeking a high-output panel with clearly defined electrical and mechanical characteristics. For broader technical background, explore solar photovoltaic technology basics.

Inverex Mustang 620W Technical Specifications

In particular, the following inverex mustang 620w specifications cover the exact 620W model. The inverex mustang 620w steel frame specifications include its electrical ratings, mechanical construction and application limits.

Electrical Specifications — Front STC

Bifacial Electrical Characteristics

Mechanical Specifications

Temperature and Performance

Packing Configuration

Performance and Degradation

Overall, the Inverex Mustang 620W is designed for long-term solar electricity production. Therefore, buyers comparing the inverex mustang 620w price should also consider warranty coverage and long-term module performance.

For instance, its rated module efficiency is 22.95%, while the Pmax temperature coefficient is −0.29%/°C.

In practice, this coefficient means module power decreases as cell temperature increases above the standard reference temperature, assuming other conditions remain unchanged.

Moreover, the panel’s 30-year linear power output warranty also provides a long-term performance framework.

Its warranted output is 99% after the first year and 87.4% after 30 years.

However, do not interpret these values as guaranteed annual electricity generation. Solar energy output varies with irradiation, temperature, installation orientation, soiling and other system factors.

Performance Considerations for Pakistan

Pakistan’s solar installations face high summer temperatures, dust accumulation and varying levels of sunlight throughout the year.

The Inverex Mustang 620W has a Pmax temperature coefficient of −0.29%/°C, which is relevant when estimating production during hot weather.

Therefore, proper airflow beneath the panels can help reduce excessive module heating.

In addition, for bifacial installations, maintaining suitable clearance behind the modules can improve access to reflected light. Ground surface characteristics and shading should be considered during system planning.

Similarly, regular cleaning is important, particularly in locations where dust accumulation reduces the sunlight reaching the module surfaces.

Installers must verify the inverter’s MPPT voltage range, maximum input current and maximum permitted DC voltage before designing strings with this panel.

For example, the module’s 49.32V open-circuit voltage and 15.97A short-circuit current are particularly important for these checks. Installers must also consider cold-weather voltage correction and bifacial current gain where applicable.

Inverex Mustang 620W Bifacial Steel Frame Solar Panel Price in Pakistan

Customers checking inverex mustang 620w price in pakistan should confirm the latest rate and required quantity before placing an order.

The inverex mustang solar panel price in pakistan can vary with market conditions, shipment costs, currency movements and purchase quantity.

For bulk purchases, the inverex mustang 620w steel frame price in pakistan may depend on dealer quotations and available order quantities.

Hajvery Solar Energy serves retail buyers, solar installers and dealers from its Lahore location. Contact the team for current product availability and quantity-based pricing.

Tier 1, A-Grade and Product Authenticity

Buyers evaluating solar panels should consider product authenticity, physical condition, performance specifications and warranty coverage.

Importantly, a Tier 1 classification and an A-Grade product condition are different considerations.

Tier 1 generally refers to a manufacturer-related financial and market classification under a particular ranking methodology. It is not a direct measurement of an individual panel’s quality.

A-Grade terminology concerns the condition or grading of the supplied module and should be supported by suitable product verification.

Therefore, before buying the Inverex Mustang 620W, verify the exact product identity, serial markings, physical condition and applicable warranty information.

The product’s efficiency, electrical ratings and mechanical construction should match the requirements of the installation.

Hajvery Solar Product Verification

Hajvery Solar Energy helps customers review important product details before purchase.

For example, buyers of the Inverex Mustang 620W should check the complete model identity, rated power, steel-frame design and electrical characteristics.

A listing using a shortened term such as mustang inverex should still be checked against the complete product name and technical ratings.

In addition, installers should confirm that the panel is appropriate for the intended inverter, mounting system and installation environment.

Customers looking for an inverex mustang datasheet can request the relevant technical information to verify the module’s electrical characteristics and physical dimensions before ordering.

Finally, for genuine-product enquiries, warranty guidance and dealer pricing, contact Hajvery Solar Energy.

Warranty

The Inverex Mustang 620W Bifacial Steel Frame Solar Panel comes with a 15-year guarantee on product materials and workmanship and a 30-year linear power output warranty.

The product guarantee and the performance warranty cover different aspects of the panel.

Specifically, the product guarantee concerns applicable defects in materials and workmanship, while the linear power warranty concerns warranted long-term module power output.

Furthermore, the 30-year warranty curve provides for 87.4% output retention at the end of year 30.

However, warranty claims remain subject to applicable terms and conditions. Buyers should confirm the required documentation, eligibility and claim process before ordering.

Frequently Asked Questions

1. What is the inverex mustang 620w price in Pakistan?

The current price of the Inverex Mustang 620W Bifacial Steel Frame Solar Panel in Pakistan is Rs. 25,420 per panel.

However, prices may change with market conditions and purchase quantity. Contact Hajvery Solar Energy for the latest quotation.

2. What are the main inverex mustang 620w steel frame specifications?

The Inverex Mustang 620W has a rated output of 620W, TOPCon cell technology, 22.95% module efficiency and bifacial construction. It uses a steel frame, dual glass and 132 solar cells.

Its dimensions are 2382 × 1134 × 30mm, and its weight is 35.4 kg.

3. Is the Inverex Mustang 620W a bifacial solar panel?

Yes. The Inverex Mustang 620W is a bifacial module that can generate electricity from sunlight reaching both sides.

Its bifaciality rating is 80% ±5%. The additional rear-side contribution depends on installation conditions and reflected sunlight.

4. What is the efficiency of the Inverex Mustang 620W?

The module efficiency is 22.95% under standard test conditions.

Its actual energy production depends on sunlight, temperature, shading, mounting and system performance.

5. What warranty does the Inverex Mustang 620W offer?

It has a 15-year product material and workmanship guarantee and a 30-year linear power output warranty.

Buyers should confirm applicable warranty terms and claim requirements before purchase.

6. How can I download inverex mustang datasheet information for the 620W model?

Contact Hajvery Solar Energy for the Inverex Mustang 620W technical PDF. It contains electrical characteristics, module dimensions, mechanical construction and application conditions needed for system planning.

7. Is the Inverex Mustang 620W suitable for residential rooftops?

It can be suitable for residential rooftops where the available space, structural capacity and electrical design support the module.

Consider its size and weight, and choose a mounting system engineered for the installation conditions.

8. Does the inverex mustang 620w steel frame price include installation?

Confirm the scope of a quotation before ordering. Panel-only pricing and a complete installed solar system are different quotations.

Installation requirements depend on mounting structures, inverter selection, wiring, protective devices and site conditions.

Buy Inverex Mustang 620W Bifacial Steel Frame Solar Panel from Hajvery Solar

Looking for the Inverex Mustang 620W Bifacial Steel Frame Solar Panel for a home, commercial project or bulk solar installation?

Contact Hajvery Solar Energy for current product availability, dealer quotations and assistance with technical selection.
