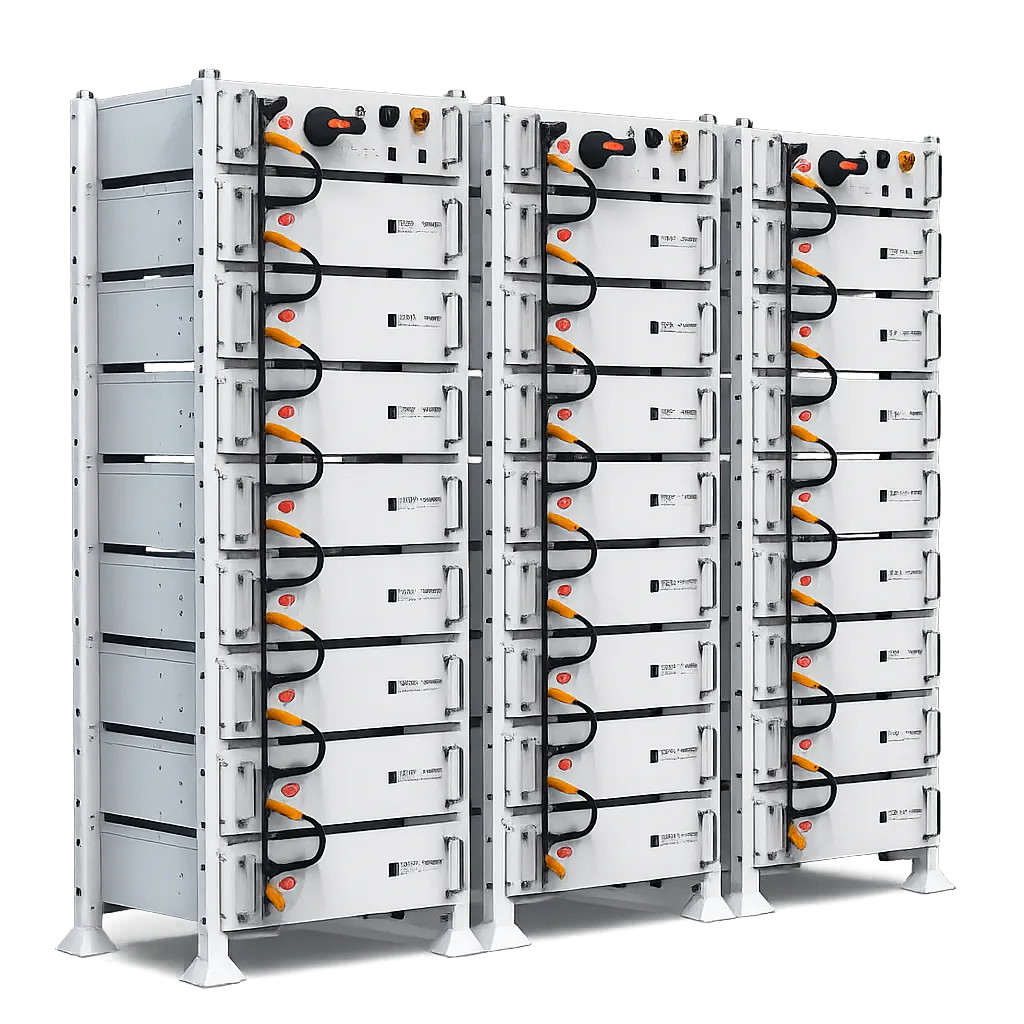

itel 40.96KWh 409.6V C&I ESS Lithium Battery Overview

The itel 40.96KWh 409.6V C&I ESS Lithium Battery is built for commercial and industrial energy storage (C&I ESS) where higher-voltage battery storage is required. The IB-H40-X-G1 provides 40.96kWh of nominal energy at a 409.6V nominal system voltage, making it suitable for larger solar-storage and backup applications than typical low-voltage residential battery systems.

The battery uses Grade-A LiFePO4 cells, providing a lithium iron phosphate chemistry suited to stationary energy storage applications. Its modular rack construction supports organised installation, while parallel expansion allows the storage system to be scaled when the project requires additional battery capacity.

For businesses and larger solar installations, the combination of high-voltage storage, modular construction and expandable architecture makes this battery suitable for systems where storage capacity needs to be planned around actual load requirements.

Key Features and Buyer Benefits

40.96kWh Nominal Energy

The battery provides 40.96kWh nominal energy, giving commercial and industrial systems a substantial energy-storage base for solar energy storage and backup applications.

The actual usable energy available to connected loads depends on the system’s operating limits, inverter efficiency, battery settings and connected load.

409.6V High-Voltage Battery Architecture

With a 409.6V nominal voltage and a 345.6–460.8V system voltage range, the IB-H40-X-G1 is designed as a high-voltage energy storage system.

This architecture needs to be matched with an inverter and energy-storage system that supports the battery’s voltage requirements and operating limits.

Grade-A LiFePO4 Cells

The battery uses Grade-A LiFePO4 cells. Lithium iron phosphate chemistry is widely used for stationary energy storage applications where a suitable combination of energy storage capability and long-term system operation is required.

Modular Rack Design

The modular rack system allows the battery modules to be arranged as an organised C&I energy-storage installation. This design can make system assembly and maintenance more practical for commercial projects.

Parallel Expansion

The C&I ESS platform supports parallel expansion, allowing the overall storage arrangement to be scaled for projects requiring additional energy capacity.

Final expansion planning should follow the compatible inverter, battery configuration and installation requirements.

High Current Capability

The IB-H40-X-G1 has a maximum current of 100A, with a recommended current of 50A. These limits should be considered when matching the battery with the inverter and designing the charging and discharging system.

Best For

The itel C&I ESS 40.96kWh battery is suitable for:

• Commercial solar energy storage
• Industrial energy storage systems
• Solar self-consumption applications
• Commercial backup power systems
• Larger hybrid solar installations
• Projects requiring high-voltage battery storage
• Energy-storage projects where parallel expansion may be required
• Businesses looking for modular battery storage

Not Ideal For

This battery should not be selected simply on energy capacity alone. It may not be suitable where:

• The inverter does not support its 409.6V high-voltage architecture
• The battery voltage range does not match the connected energy-storage system
• The required system current exceeds the battery’s operating limits
• A small residential low-voltage battery system is specifically required
• The project requires battery communication or compatibility that has not been confirmed

Before installation, confirm the inverter’s battery voltage range, communication requirements, charging limits and discharge requirements.

Battery Capacity: kWh and System Voltage Explained

The 40.96kWh figure represents the battery’s nominal energy capacity, while 409.6V represents its nominal system voltage.

These are different specifications and should not be treated as interchangeable. Battery sizing should consider the expected load, required backup duration, inverter efficiency, operating limits and the amount of energy that can actually be used by the system.

For commercial projects, the required storage capacity should therefore be calculated from the site’s load profile and backup requirements rather than selecting a battery only by its kWh rating.

Battery Chemistry and Construction

The IB-H40-X-G1 uses LiFePO4 battery chemistry with Grade-A cells. The system is arranged in a modular rack configuration, making it appropriate for structured commercial and industrial energy-storage installations.

Its modular approach also supports expansion planning where the energy-storage requirement can increase over time.

Battery Management and Safety

Battery management is an important part of any high-voltage lithium energy-storage installation. The IB-H40-X-G1 should be installed with a compatible energy-storage system and operated within its specified voltage and current limits.

The battery’s 345.6–460.8V system voltage range, 100A maximum current and 50A recommended current should be considered during system design.

Detailed BMS communication protocols and individual protection functions are not provided in the supplied product sheet, so they are not listed here as confirmed specifications.

Charging and Discharging Performance

The IB-H40-X-G1 has a maximum current of 100A and a recommended current of 50A.

The correct charging and discharging current should be selected according to the connected inverter, battery configuration and system operating requirements. Operating the battery within the recommended current range can help maintain an appropriate system design.

Inverter Compatibility

Compatibility should be checked before purchasing or installing the itel 40.96KWh Lithium Battery.

The connected inverter should support:

• 409.6V nominal battery voltage
• 345.6–460.8V battery voltage range
• Appropriate charging and discharging current
• Compatible battery communication requirements
• The required C&I energy-storage configuration

Hajvery Solar can help buyers check the battery and inverter combination before purchase.

Parallel Expansion

The C&I ESS platform supports parallel expansion, providing a scalable approach for larger energy-storage projects.

Expansion planning should take into account the number of battery systems required, inverter compatibility, electrical configuration and the installation requirements of the complete energy-storage system.

Estimated Backup Time

Backup duration depends on the usable battery energy, inverter efficiency and actual connected load.

A 40.96kWh nominal battery should not automatically be treated as providing 40.96kWh of usable AC backup energy. Actual runtime depends on the complete system configuration, battery operating limits and load conditions.

For an accurate backup calculation, the connected load and complete inverter-battery configuration should be reviewed before installation.

Lithium Battery Use in Pakistan

For commercial and industrial users in Pakistan, energy storage can support solar self-consumption and backup requirements where the electrical system is designed appropriately.

The itel C&I ESS 40.96kWh battery provides a high-voltage storage architecture for projects that require more substantial energy storage than conventional small residential battery systems.

Installation conditions are also important. The battery should be installed according to its specified operating environment and with suitable electrical protection, ventilation and system integration.

The supplied product sheet gives an operating temperature of 0°C to 55°C for charging and -20°C to 55°C for discharging.

itel Commercial & Industrial ESS 41 KWH Battery Price in Pakistan

The price of the itel Commercial & Industrial ESS 41 KWH Battery is available on booking. C&I ESS prices can vary with import duties and dollar-rate variations, so the final amount may change according to prevailing import and currency conditions.

For the updated and final price, contact Hajvery Solar Energy directly.

The itel commercial & industrial ess 41 kwh battery price in pakistan can therefore be confirmed at the time of booking according to the latest applicable pricing.

For dealers and commercial projects, contact Hajvery Solar for current availability and project requirements.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy is an itel Official Distributor for genuine itel energy products.

As an itel authorized dealer, Hajvery Solar Energy can help buyers check the correct battery model and system requirements before purchase.

For customers looking for an Official itel Distributor, Hajvery Solar Energy provides product guidance for commercial and industrial energy-storage requirements.

Buying through an authorized itel dealer, Hajvery Solar Energy, provides a direct route for product, compatibility and warranty guidance.

For a C&I installation, confirm the IB-H40-X-G1 model, required energy capacity, inverter compatibility and applicable warranty before finalising the order.

Warranty

The itel IB-H40-X-G1 comes with a 5-year manufacturer replacement warranty.

Warranty coverage should be handled according to the applicable manufacturer warranty terms. Customers should retain the required product and purchase information and confirm the warranty claim requirements with Hajvery Solar before purchase.

Before You Buy

Before purchasing the itel 40.96KWh 409.6V Lithium Battery, confirm:

• Required battery energy capacity
• Inverter compatibility
• High-voltage battery support
• Required battery voltage range
• Charging and discharging current
• BMS communication requirements
• Required parallel expansion
• Installation environment
• Backup load requirements
• Applicable warranty terms

FAQs

What is the model of the itel 41KWh C&I battery?

The model is IB-H40-X-G1.

What is the energy capacity of the IB-H40-X-G1?

The battery has a 40.96kWh nominal energy capacity.

What is the voltage of the itel IB-H40-X-G1?

The battery has a 409.6V nominal system voltage, with a 345.6–460.8V system voltage range.

Is the itel C&I ESS battery a lithium battery?

Yes. The IB-H40-X-G1 uses Grade-A LiFePO4 cells.

What is the maximum current of the IB-H40-X-G1?

The maximum current is 100A, while the recommended current is 50A.

Can the itel C&I ESS battery be expanded?

Yes. The C&I ESS platform supports parallel expansion, allowing larger storage configurations where the complete system design supports it.

What is the itel commercial & industrial ess 41 kwh battery price?

The itel commercial & industrial ess 41 kwh battery price is available on booking. Import duties and dollar-rate variations can affect the final price. Contact Hajvery Solar Energy for the updated and final price.

What warranty does the IB-H40-X-G1 have?

The battery comes with a 5-year manufacturer replacement warranty.

Buy itel 40.96KWh C&I ESS Lithium Battery from Hajvery Solar

The itel 40.96KWh 409.6V C&I ESS Lithium Battery is available from Hajvery Solar Energy for commercial and industrial energy-storage requirements.

For the itel c&i lithium battery price in pakistan, booking availability, inverter compatibility and project requirements, contact Hajvery Solar Energy.
