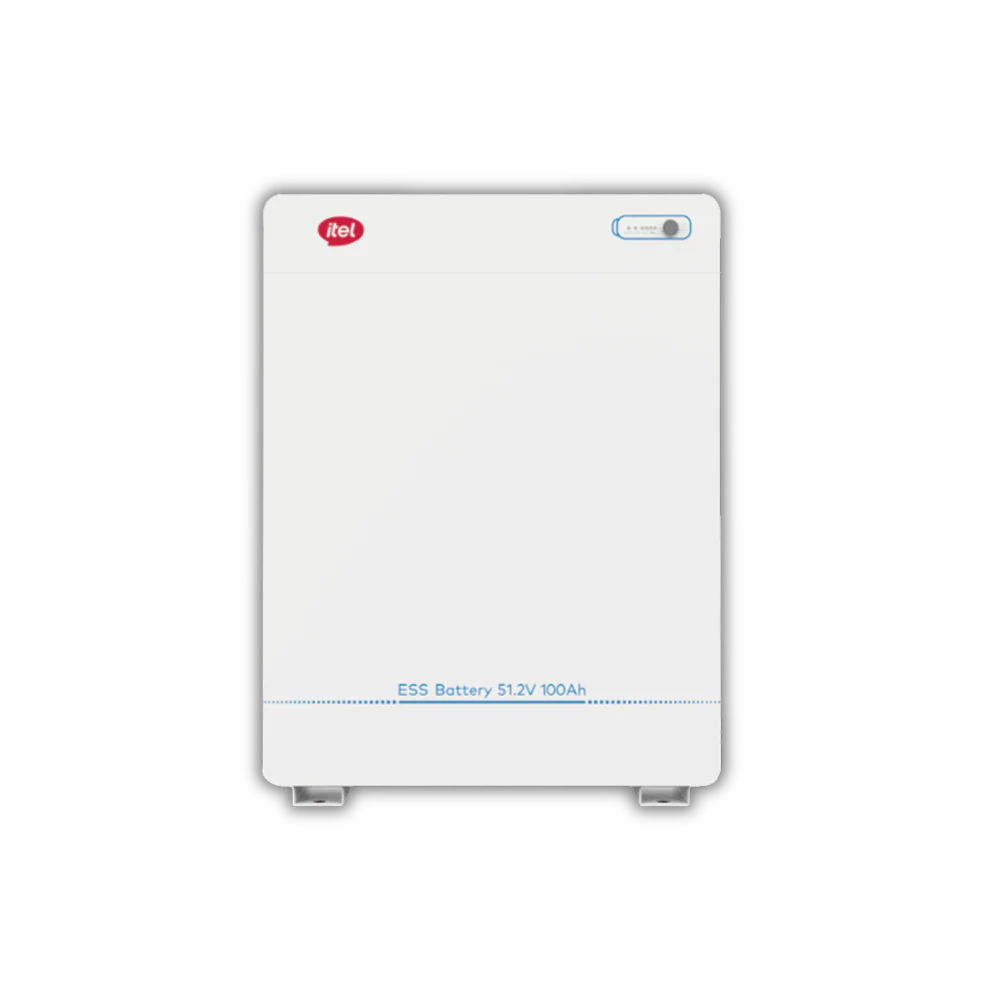

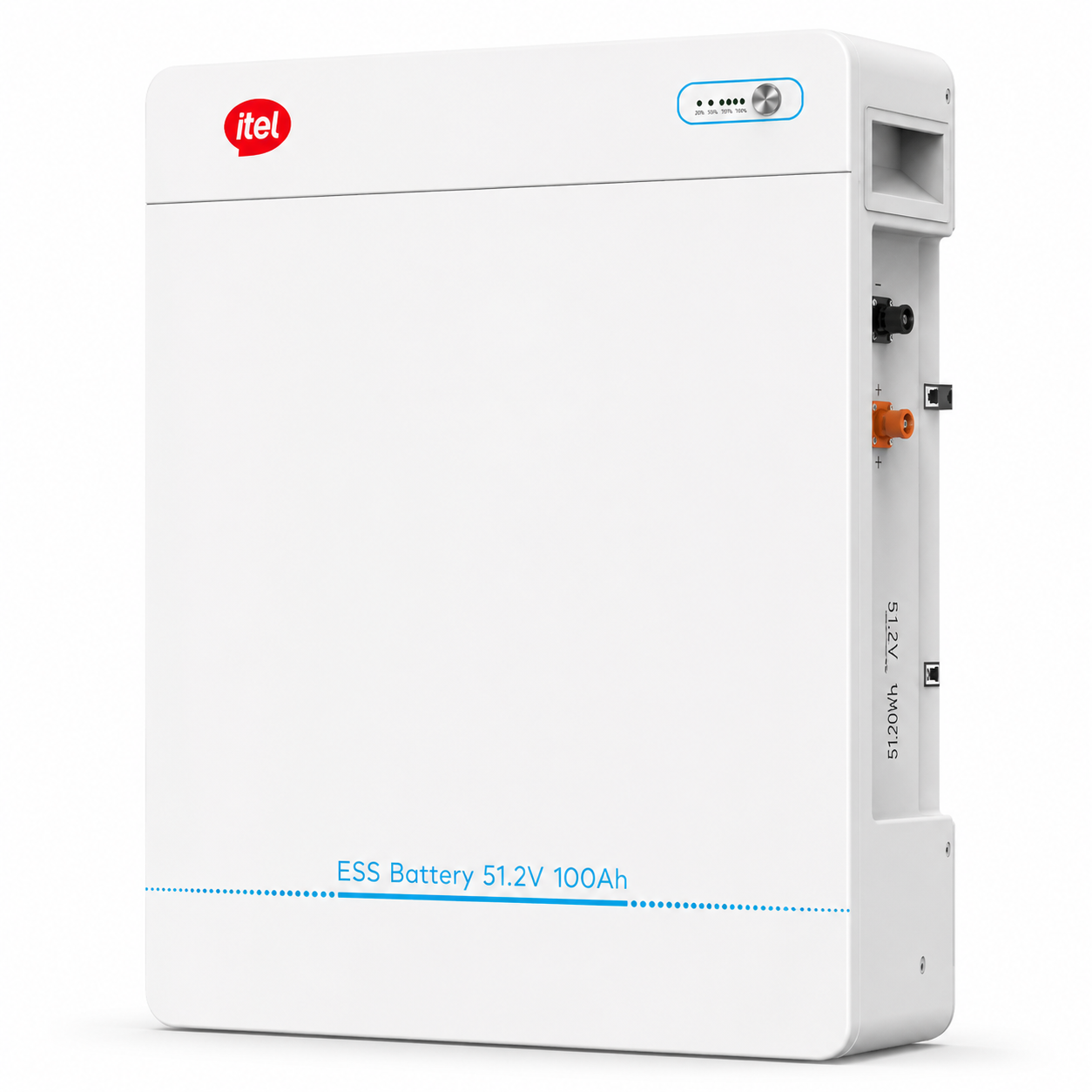

Itel 51.2V 100Ah Lithium Battery

itel 5.12kWh 51.2V 100Ah Lithium Battery Overview

The itel 5.12kWh 51.2V 100Ah Lithium Battery is a LiFePO₄ battery designed for solar energy storage and backup applications. Its 51.2V architecture makes it suitable for compatible low-voltage battery systems.With a nominal energy capacity of 5.12kWh and a nominal capacity of 100Ah, this battery stores solar energy for use when solar generation is low or unavailable. It supports a maximum continuous charging current of 100A and a maximum continuous discharge current of 100A. In addition, its maximum pulse discharge current reaches 150A. Looking for the itel 51.2V 100Ah Lithium Battery price in Pakistan? The itel 5.12kWh LiFePO₄ battery offeRs. 212,000Ah capacity, an intelligent BMS, and parallel expansion support for compatible solar energy storage systems.

The battery also features an intelligent Battery Management System (BMS) with more than 50 protection algorithms. Furthermore, its RS485, CAN and RS232 communication interfaces support integration with compatible energy-storage equipment.

Key Features and Buyer Benefits

LiFePO₄ Battery Chemistry

The itel lithium battery uses LiFePO₄ chemistry, making it suitable for solar energy storage applications that require regular charging and discharging.

Its specified cycle life exceeds 6,000 cycles at 25°C, 0.5C and 80% depth of discharge (DOD). However, actual performance depends on operating conditions and how the battery is used.

Intelligent Battery Management System (BMS)

The built-in intelligent BMS features more than 50 protection algorithms. It helps manage battery operation and monitor important electrical and safety-related conditions.

As a result, users can benefit from built-in battery management when the battery is installed and configured correctly.

100Ah Capacity and 5.12kWh Energy

The battery provides 100Ah nominal capacity, 51.2V nominal voltage and 5.12kWh nominal energy. Buyers should consider these three values together when assessing their energy-storage requirements.

When comparing a 51.2V 100Ah lithium battery, consider both its nominal energy and the electrical limits of the connected equipment.

High Charging and Discharging Capability

The battery supports a standard charging current of 50A and a maximum continuous charging current of 100A. Its standard and maximum continuous discharge current is 100A, while its maximum pulse discharge current is 150A.

Therefore, configure the inverter’s charging and discharging settings within the battery’s specified electrical limits.

Parallel Expansion

The battery supports up to 15 batteries connected in parallel, provided the complete system supports this configuration. This feature gives suitable installations an option to increase total energy storage.

Before expanding a battery bank, check the inverter capacity, protection equipment, communication settings and installation requirements.

Communication Interfaces

The battery includes RS485, CAN and RS232 communication ports for use with compatible equipment. Before installation, verify the inverter’s supported BMS protocol, communication cable and pin configuration.

For additional information click Itel Official Website.

Best For

The itel 51.2V 100Ah lithium battery may suit the following applications:

• Residential solar backup systems
• Hybrid solar energy storage
• Load-shedding backup applications
• Commercial energy storage
• Systems designed for a 51.2V low-voltage battery
• Solar systems that require additional storage through parallel battery connections

Before installation, check the inverter’s battery voltage requirements, communication protocol and charging and discharging limits.

Not Ideal For

Although the battery offers 5.12kWh of nominal energy, it may not suit every solar installation. Consider another system configuration if:

• The inverter requires a different battery voltage architecture.
• The inverter does not support the required BMS communication.
• The connected load exceeds the battery’s continuous current capability.
• The installation environment falls outside the battery’s specified operating conditions.
• The system requires more storage capacity from a single battery unit.

Battery Capacity: kWh, Ah and Backup Time

Kilowatt-hours (kWh) and ampere-hours (Ah) measure different aspects of a battery’s capacity. The itel lithium battery has a nominal voltage of 51.2V and a nominal capacity of 100Ah, giving it a nominal energy rating of 5.12kWh.

The basic energy relationship is:

Voltage × Ah ÷ 1,000 = nominal kWh

For this battery:

51.2 × 100 ÷ 1,000 = 5.12kWh

However, actual usable backup energy can be lower than nominal energy. Inverter efficiency, battery operating limits, temperature, battery condition and the connected load all affect real-world performance.

Estimated Backup Time

The following figures are theoretical estimates based solely on the battery’s 5.12kWh nominal energy. They do not guarantee actual running times and do not account for inverter losses or the battery’s operating limits.

When estimating backup time for an actual installation, consider usable energy and inverter efficiency. Therefore, 51 2v 100ah lithium battery backup time depends on the actual load and operating conditions rather than a fixed duration.

Battery Management System and Safety

The battery’s intelligent BMS incorporates more than 50 protection algorithms. It also includes a pre-charge function, a current-limiting function and LED indications.

The specified operating limits include:

• Charge Voltage Range: 40V–58.4V
• Cut-Off Charging Voltage: 58.4V
• Cut-Off Charging Current: 2A
• Cut-Off Discharge Voltage: 40V
• Cut-Off Discharge Current: 2A
• Current-Limiting Function: 10A
• Pre-Charge Function: Enabled
• Display: LED

For reliable operation, use compatible equipment and configure charging parameters within the battery’s specified limits.

Charging and Discharging Performance

The battery supports charging and discharging in compatible solar energy-storage systems. Its main electrical limits are:

• Standard Charging Current: 50A
• Maximum Continuous Charging Current: 100A
• Standard Discharging Current: 100A
• Maximum Continuous Discharging Current: 100A
• Maximum Pulse Discharge Current: 150A
• Cut-Off Charging Voltage: 58.4V
• Cut-Off Discharge Voltage: 40V

Consequently, check the inverter’s charging settings before connecting the battery. The selected settings must remain within the battery’s specified electrical limits.

Inverter Compatibility

Before connecting the itel 51.2V 100Ah lithium battery to a solar inverter, confirm the following requirements:

• Battery Voltage: Check compatibility with a 51.2V battery system.
• Charge and Discharge Current: Match inverter settings to the battery’s current limits.
• Communication Ports: Check CAN, RS485 or RS232 requirements.
• BMS Communication Protocol: Confirm that the inverter supports the required protocol.
• Communication Wiring: Verify the cable and pin configuration.
• Parallel Support: Check the maximum number of batteries supported by the complete system.

Importantly, matching the battery voltage alone does not guarantee inverter compatibility. Hajvery Solar Energy can help buyers check battery and inverter compatibility before purchase.

Parallel Expansion

The itel 51.2V 100Ah battery supports up to 15 batteries in parallel, subject to the requirements of the complete system.

This arrangement can increase total energy storage when the inverter and other system components support multiple battery units. However, check the communication setup, inverter capacity, protection equipment and installation configuration before expanding the battery bank.

Technical Specifications

General Specifications

Charging and Discharging Specifications

Communication and Expansion

Operating Conditions

Lithium Battery Use in Pakistan

A 51.2V lithium battery can store solar energy during the day for use when solar generation decreases or grid electricity is unavailable.

For solar installations in Pakistan, choose battery capacity according to the connected load, required backup duration, daily energy consumption and available charging time. In addition, consider inverter efficiency and the battery’s charging and discharging limits.

Proper ventilation, compatible inverter settings and suitable installation conditions are also important for reliable operation.

itel Lithium Battery Price in Pakistan

The current price of itel 5.12kWh 51.2V 100Ah Lithium Battery in Pakistan is Rs. 212,000 per unit.

Buyers searching for itel 51 2 v 100ah lithium battery price in pakistan, itel 51 2 v 100ah price or itel lithium battery price in pakistan can consider this model’s 5.12kWh nominal energy, 51.2V voltage and 100Ah capacity.

For the latest availability and quantity information, contact Hajvery Solar Energy.

Hajvery Solar Energy is an itel Official Distributor for this product category.

Hajvery Solar Compatibility and Authenticity Check

Before purchasing the itel IPW-51100, confirm the exact model, battery voltage, inverter compatibility and BMS communication requirements.

Hajvery Solar Energy is an itel authorized dealer, helping customers check product identification and compatibility considerations before installation.

For parallel systems, verify the number of supported battery units along with the electrical and communication requirements of the complete installation.

Warranty and After-Sales Support

This battery comes with a 5-year official replacement/brand warranty.

Warranty claims must follow the applicable brand warranty terms. Keep the relevant purchase and product details available when requesting warranty assistance.

Hajvery Solar Energy is an Official itel Distributor and can assist customers with product and warranty-related enquiries.

Buying from Hajvery Solar Energy, an authorized itel dealer, also provides a point of contact for compatibility and warranty-related questions.

Before You Buy

Before ordering the itel 51.2V 100Ah lithium battery, review the following points:

• Battery Voltage: Confirm compatibility with a 51.2V system.
• Required Storage: Check whether 5.12kWh nominal energy meets your needs.
• Inverter Compatibility: Verify the voltage and battery architecture.
• BMS Communication: Check CAN, RS485 or RS232 requirements.
• Maximum Load: Keep demand within the battery’s continuous discharge capability.
• Charging Current: Configure charging within the battery’s specified limits.
• Parallel Requirement: Confirm support for up to 15 units in the complete system.
• Installation Environment: Check temperature, humidity and IP20 requirements.

Frequently Asked Questions

What is the capacity of the itel 51.2V 100Ah Lithium Battery?

The battery has a 100Ah nominal capacity, a 51.2V nominal voltage and 5.12kWh nominal energy. These values help buyers assess the battery’s storage capacity and system requirements.

What type of battery chemistry does the IPW-51100 use?

The itel IPW-51100 uses LiFePO₄ lithium battery chemistry, making it suitable for compatible solar energy-storage applications.

What is the maximum continuous discharge current?

The battery supports a maximum continuous discharge current of 100A. Its maximum pulse discharge current is 150A. Keep connected equipment within the battery’s operating limits.

How many batteries can be connected in parallel?

The battery supports up to 15 batteries in parallel, provided that the inverter, protection equipment and complete system configuration support this arrangement.

Which communication ports does the battery have?

The battery includes RS485, CAN and RS232 communication interfaces. Before installation, check the inverter’s supported BMS protocol and wiring requirements.

What is the backup time of a 51.2V 100Ah lithium battery?

Backup time depends on the connected load and system efficiency. Based on its 5.12kWh nominal energy, a 1kW load gives a theoretical estimate of 5.12 hours. However, actual backup time may be shorter because of inverter losses, battery operating limits and other conditions.

What is the current price of the itel 51.2V 100Ah lithium battery in Pakistan?

The current price of itel 5.12kWh 51.2V 100Ah Lithium Battery in Pakistan is Rs. 212,000 per unit. Contact Hajvery Solar Energy for the latest availability and quantity details.

What warranty does the IPW-51100 have?

The battery comes with a 5-year official replacement/brand warranty. Warranty claims remain subject to the applicable brand warranty terms.

Buy the itel 5.12kWh 51.2V 100Ah Lithium Battery from Hajvery Solar Energy

The itel IPW-51100 is a 51.2V LiFePO₄ battery with 5.12kWh nominal energy, 100Ah capacity, an intelligent BMS, high continuous current capability and parallel expansion support. It is designed for compatible low-voltage solar storage and backup systems.

Hajvery Solar Energy can assist buyers, installers and dealers with battery selection, inverter compatibility and product-related guidance before purchase.
