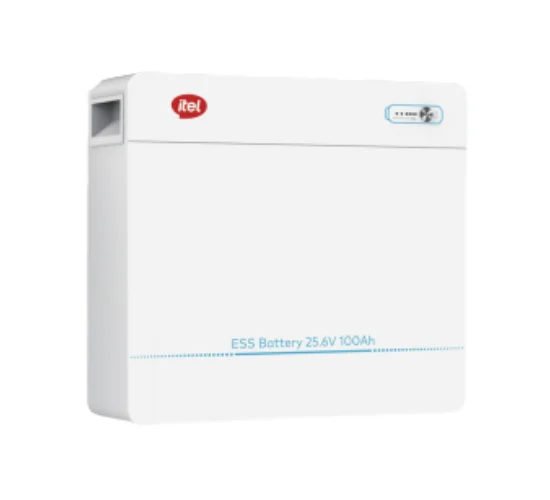

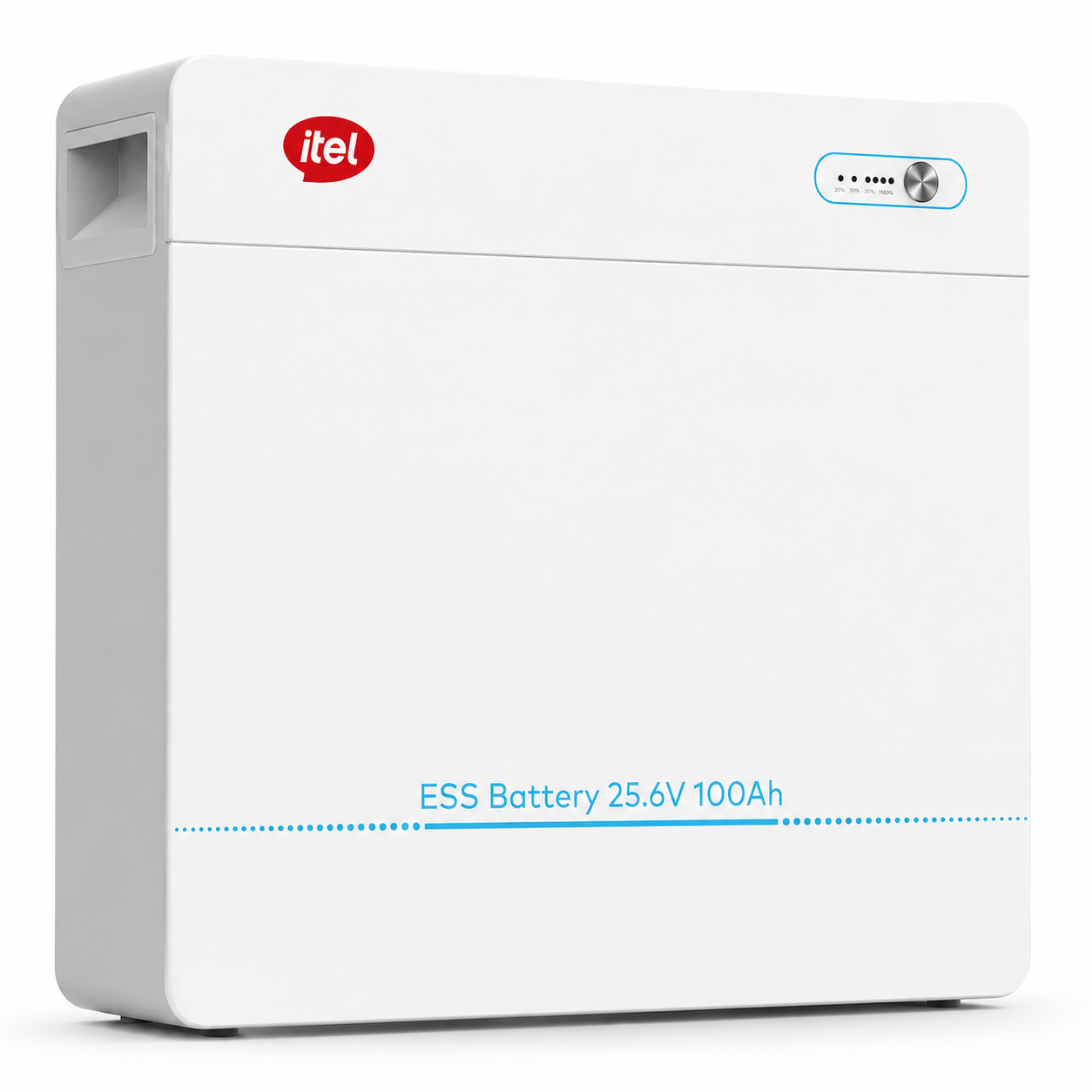

Itel 25.6V 100Ah Lithium Battery

itel 2.56kWh 25.6V 100Ah Lithium Battery Overview

The itel 2.56kWh 25.6V 100Ah Lithium Battery uses LiFePO4 battery chemistry and provides 100Ah of storage capacity at a nominal voltage of 25.6V. Its nominal energy is 2.56kWh, making it suitable for solar energy storage, backup power and battery-based energy management in systems that require a 25.6V battery architecture. Looking for the itel 25.6V 100Ah Lithium Battery price in Pakistan? This battery offeRs. 115,000kWh nominal energy capacity for compatible solar energy storage and backup systems.

In addition, the battery uses Class-A LiFePO4 cells and an intelligent Battery Management System (BMS) for battery management and protection. It also supports communication through RS485, CAN and RS232, allowing it to interface with compatible energy-storage equipment.

When additional storage is required, the battery supports the parallel connection of up to 15 units. This configuration can increase the total storage capacity, provided that the complete installation and connected equipment support the arrangement.

Hajvery Solar Energy is an itel Official Distributor, offering buyers product information and assistance with applicable warranty support.

Key Features and Buyer Benefits

Class-A LiFePO4 Battery Chemistry

The battery uses Class-A LiFePO4 cells, a lithium battery chemistry designed for energy-storage applications. It provides 2.56kWh nominal energy and a cycle life above 6,000 cycles under the specified test conditions.

As a result, the battery can support repeated charging and discharging in compatible solar-storage applications. However, actual service life depends on operating temperature, charging and discharging practices, depth of discharge and installation conditions.

Intelligent BMS

An intelligent Battery Management System (BMS) manages important battery operating functions and provides multiple protection algorithms.

The battery includes 50+ protection algorithms to support battery protection and operation. In addition, installers should configure the BMS communication and battery settings correctly when connecting the unit to a compatible inverter or energy-storage system.

100Ah Battery Capacity

With a 100Ah nominal capacity, the itel 2.56kWh 25.6V 100Ah Lithium Battery provides a storage option for compatible 25.6V systems.

Its 2.56kWh nominal energy can support backup and solar energy storage. However, actual usable energy and backup duration depend on the connected system, operating limits, inverter efficiency and load.

High Charge and Discharge Capability

The battery has a 50A standard charging current and a 100A maximum continuous charging current.

For discharge, the standard discharge current is 50A, while the maximum continuous discharge current is 100A. It also supports a 150A maximum pulse discharge current under the specified operating conditions.

Therefore, installers should configure the charging and discharging limits according to the battery requirements and the compatible inverter.

Expandable Parallel Configuration

The battery supports the parallel connection of up to 15 units, giving installers the option to expand energy storage when required.

Before connecting multiple batteries, installers should confirm battery compatibility, communication links, cabling, electrical protection and inverter capacity. This preparation helps ensure that the complete system supports the intended configuration.

Multiple Communication Interfaces

The battery provides RS485, CAN and RS232 communication ports. These interfaces allow it to communicate with compatible energy-storage equipment when the required protocol and configuration are supported.

However, the presence of a communication port alone does not guarantee compatibility. Always confirm the inverter’s supported battery protocols before installation.

For additional information click Itel Official Website.

Best For

The itel 25.6V 100Ah lithium battery may suit the following applications when the system meets its electrical and communication requirements:

• Residential solar backup systems
• Solar energy storage
• Load-shedding backup applications
• 25.6V battery-based systems
• Expandable battery banks
• Users looking for LiFePO4 battery storage
• Installations requiring battery communication through CAN or RS485

Not Ideal For

Buyers should not select a battery based only on voltage or capacity. Instead, they should assess the requirements of the complete installation.

This battery may not be suitable where:

• The inverter requires a different battery voltage arrangement.
• The inverter does not support the required BMS communication.
• The continuous load exceeds the battery’s supported current limits.
• The installation requires a higher ingress protection rating than IP20.
• The system must operate outside the battery’s specified temperature range.

Before installation, check the battery voltage, charging and discharging current limits, inverter requirements and communication compatibility.

Battery Capacity: kWh, Ah and Usable Energy Explained

Ah and kWh describe different battery characteristics. Ampere-hours (Ah) refer to nominal electrical capacity, while kilowatt-hours (kWh) refer to energy.

For the itel 2.56kWh 25.6V 100Ah Lithium Battery, the calculation is:

25.6V × 100Ah ÷ 1,000 = 2.56kWh

Therefore, 100Ah describes the nominal capacity, while 2.56kWh describes the nominal stored energy.

Actual usable energy can vary depending on battery operating limits, inverter settings, load and overall system conditions. For this reason, use the nominal energy as the product capacity rather than assuming that the entire amount will reach AC appliances.

Battery Chemistry and Cycle Life

The battery uses LiFePO4 chemistry and has a cycle-life rating of more than 6,000 cycles at 25°C and 80% depth of discharge (DOD) under the specified test conditions.

However, cycle life should not be treated as a guaranteed number of years. Operating temperature, charging and discharging practices, depth of discharge, installation conditions and system settings can all affect the battery’s actual service life.

The battery also has a stated 10-year design life. Design life and cycle life are different measures, so actual performance depends on the conditions in which the battery operates.

Battery Management System and Safety

The integrated intelligent Battery Management System (BMS) manages battery operation and protection functions.

In addition, the battery includes 50+ protection algorithms to help manage operating conditions during charging and discharging. Nevertheless, the BMS does not replace correct installation or suitable electrical protection.

Installers should configure the battery according to the requirements of the connected inverter and battery system. They should also confirm communication compatibility and the appropriate charging and discharging limits before operating the system.

Charging and Discharging Performance

The battery operates within a 20V–28.8V operating voltage range. Its main charging specifications are:

• Standard Charging Current: 50A
• Maximum Continuous Charging Current: 100A
• Cut-Off Charging Voltage: 28.8V
• Cut-Off Charging Current: 2A

Its discharge specifications are:

• Standard Discharge Current: 50A
• Maximum Continuous Discharge Current: 100A
• Maximum Pulse Discharge Current: 150A
• Cut-Off Discharge Voltage: 20V
• Cut-Off Discharge Current: 2A

For reliable operation, configure the charging and discharging limits according to the complete battery-inverter system.

Inverter Compatibility

The itel 25.6V 100Ah lithium battery requires an inverter that supports its voltage range, current requirements and communication protocol.

The available communication interfaces are RS485, CAN and RS232. However, matching the battery voltage alone does not establish full BMS compatibility. The inverter must also support the required communication protocol and configuration.

As an itel authorized dealer, Hajvery Solar Energy can help buyers review battery and inverter requirements before purchase. Confirm the exact inverter model and supported battery communication options before installation.

Parallel Expansion

The battery supports up to 15 units in parallel.

Consequently, a compatible battery bank can provide more nominal storage than a single 2.56kWh battery. This option may be useful when one battery does not provide enough storage for the required system.

Before expanding a battery bank, confirm the compatible parallel configuration, communication arrangement, cabling, electrical protection and inverter capacity. The final number of batteries should match the system’s storage target and load requirements.

Technical Specifications

Estimated Backup Time

Backup duration depends on usable battery energy, inverter efficiency and the actual connected load. Although the battery has a nominal capacity of 2.56kWh, the complete system may not deliver all that energy to AC appliances.

For example, a system powering lights, fans, networking equipment and selected household loads will have a different backup duration from a system carrying high-power appliances.

Therefore, estimate backup time only after considering the appliances, their power consumption, inverter efficiency and the battery’s operating limits. A fixed runtime should not be promised without those details.

Lithium Battery Use in Pakistan

The itel 25.6V 100Ah Lithium Battery can be considered for compatible solar-storage and backup applications in Pakistan, particularly where battery storage is needed during grid outages and load shedding.

For reliable operation, the installation should account for:

• Battery temperature
• Proper ventilation
• Correct inverter settings
• Charging and discharging limits
• Suitable electrical protection
• Correct BMS communication
• An appropriate installation location

The charging temperature range is 0°C to 60°C, while the discharging temperature range is -20°C to 60°C. Therefore, check the expected installation conditions before setting up the system.

itel 2.56kWh 25.6V 100Ah Lithium Battery Price in Pakistan

The current price of the itel 2.56kWh 25.6V 100Ah Lithium Battery in Pakistan is Rs. 115,000 per unit.

The number of batteries required depends on the system size, storage target, connected load and installation requirements. In addition, buyers should confirm inverter voltage and communication compatibility before ordering.

Hajvery Solar Energy is an itel authorized dealer and can assist buyers with product information and compatibility questions.

Hajvery Compatibility and Authenticity Check

Before purchasing, confirm the exact IPW-25100 model, required battery voltage, inverter compatibility and BMS communication requirements.

Hajvery Solar Energy is an Official itel Distributor and can assist buyers with product identification, compatibility checking and applicable warranty guidance.

For a multi-battery system, confirm the required number of units, supported parallel configuration and inverter capacity before ordering. These checks help buyers select a suitable setup for their intended application.

Warranty and After-Sales Support

This battery comes with a 5-year replacement warranty.

Buyers should retain the relevant purchase and product information and follow the applicable warranty terms when seeking assistance. In addition, they should confirm any specific claim requirements at the time of purchase.

Hajvery Solar Energy, an authorized itel dealer, can provide product and warranty guidance for customers purchasing this battery.

Before You Buy

Before ordering the itel 25.6V 100Ah lithium battery, check the following:

• Is your inverter compatible with a 25.6V LiFePO4 battery?
• Does the inverter support the required BMS communication?
• What continuous load will the battery need to support?
• Are the battery’s 100A maximum continuous charge and discharge limits suitable for the system?
• Do you need one battery or a parallel battery bank?
• Will the installation remain within the specified temperature range?
• Does the installation require a higher protection rating than IP20?

Reviewing these points before purchase can help you avoid compatibility problems and plan the battery system more effectively.

FAQs

What is the capacity of the itel 2.56kWh 25.6V 100Ah Lithium Battery?

The battery has a 100Ah nominal capacity, a 25.6V nominal voltage and 2.56kWh nominal energy.

What type of battery is the itel 25.6V 100Ah model?

It is a LiFePO4 lithium battery that uses Class-A LiFePO4 cells.

What is the current price of the itel 2.56kWh 25.6V 100Ah Lithium Battery in Pakistan?

The current price of the itel 2.56kWh 25.6V 100Ah Lithium Battery in Pakistan is Rs. 115,000 per unit.

What is the cycle life of this lithium battery?

The battery has a cycle-life rating of more than 6,000 cycles at 25°C and 80% DOD under the specified test conditions. However, actual service life depends on operating and installation conditions.

Does the battery support parallel connection?

Yes. The battery supports up to 15 units in parallel, provided that the complete system supports the required configuration.

What communication ports are available?

The battery provides RS485, CAN and RS232 communication interfaces. The connected inverter must support the required communication protocol and configuration.

What warranty does the battery have?

The battery comes with a 5-year replacement warranty. Buyers should confirm the applicable warranty terms when purchasing.

Can this battery work with any solar inverter?

Not necessarily. The inverter must support the battery’s 25.6V architecture, charging and discharging limits, and required BMS communication. Confirm compatibility before installation.

Buy itel 2.56kWh 25.6V 100Ah Lithium Battery from Hajvery Solar

Choose the itel 2.56kWh 25.6V 100Ah Lithium Battery when you need a LiFePO4 energy-storage solution with 2.56kWh nominal energy, an intelligent BMS, multiple communication interfaces and parallel expansion support.

Hajvery Solar Energy offers itel products for residential, commercial and solar-storage requirements. Buyers can contact the team for product information, inverter compatibility guidance and details about the applicable replacement warranty before purchase.
