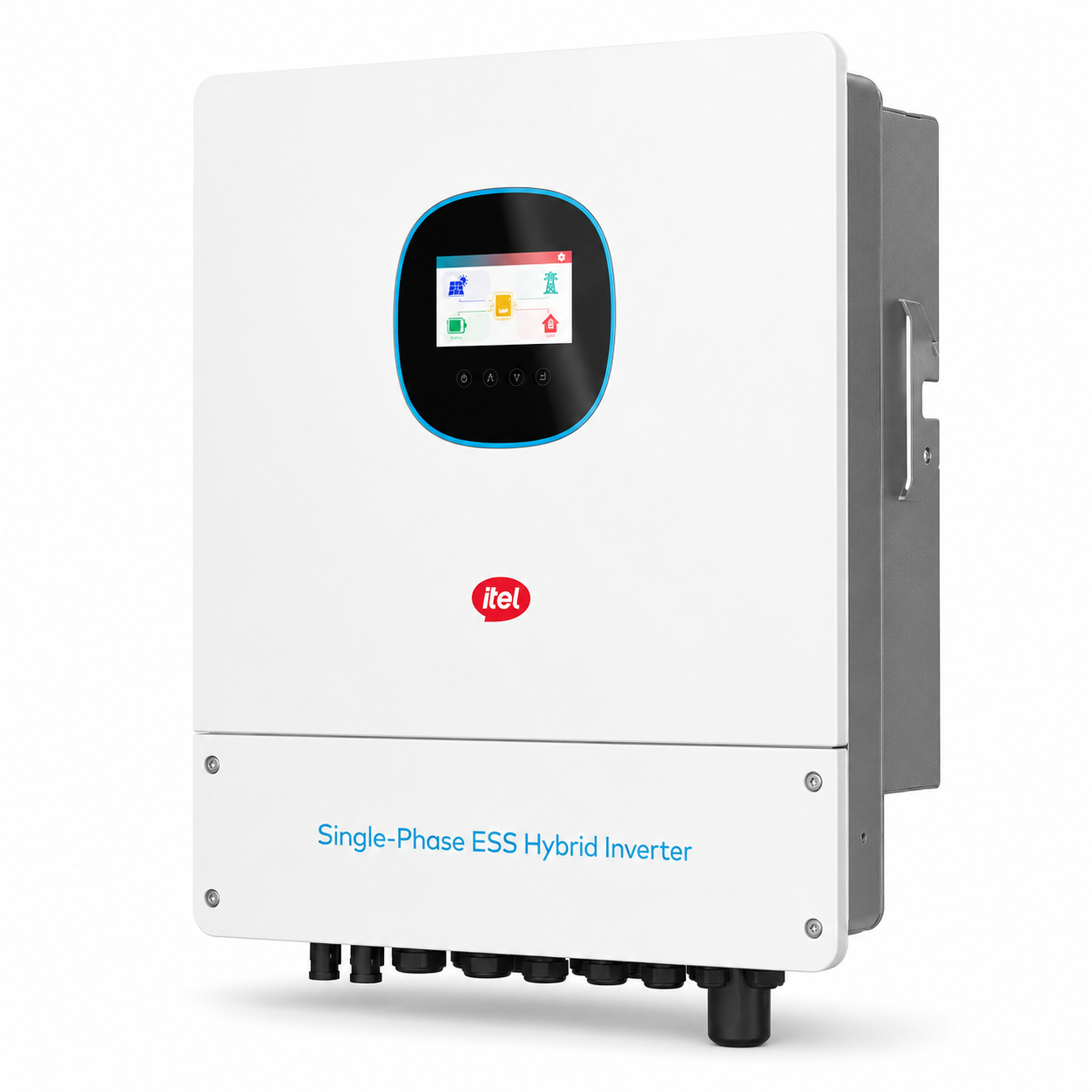

Itel 6KW IP66 Hybrid Inverter

Itel 6KW Hybrid Inverter Overview

The itel 6KW Hybrid Inverter, model IHY-6KL1A, is a hybrid inverter for a single-phase energy storage system with an AC output of 6,000W and a 48V battery system. It is usually searched for as an itel 6kw inverter and as an itel 6kw hybrid inverter, and people who are looking for a single-phase unit tend to search for an itel 6kw single-phase hybrid solar inverter.

It doesn’t merely function as a solar-to-grid inverter but instead incorporates PV generation, battery storage, power from the grid, and backup load management into one system. When people in Pakistan are comparing the price of the itel 6kw single-phase hybrid solar inverter, the key specifications to take into account should be its PV capacity, battery architecture, backup output, and the range of operating functions available, not the price alone.

One of its useful design features is the 7,500W maximum PV input, which provides the installer with more PV capacity than the inverter’s 6,000W nominal AC output. The PV side uses two MPPT trackers with a 150–450V MPPT operating range. On the battery side, the inverter supports lead-acid and lithium-ion batteries, with a 40–60V battery operating range and up to 120A charging and discharging current.

The inverter has a dedicated AC backup output which is stated to switch on within 10ms, has a nominal output of 6,000W and a peak output of up to 12,000VA for 15 seconds. It also supports the use of diesel generators, smart loads and parallel operation.

Why This Hybrid Inverter Stands Out

7,500W PV Input on a 6KW Inverter

The inverter can take in up to 7,500W of power from a photovoltaic system, although its nominal AC output is 6,000W; this means that system designers have the possibility of constructing a bigger solar array within the manufacturer’s voltage and current restrictions.

For a buyer, the important point is that the 6KW rating refers to the inverter’s AC output, not the maximum amount of solar PV that can be connected. The 7,500W PV figure should be checked when comparing an itel 6kw inverter with other 6KW hybrid models.

Two MPPT Trackers

The IHY-6KL1A has 2 MPPT trackers. Multiple MPPTs can be useful when the solar array has different string conditions, such as separate roof sections or different orientations, provided the final design remains within each MPPT’s electrical limits.

The datasheet specifies a 150–450V MPPT voltage range, 500V maximum DC input voltage and 18A/18A maximum input current.

The supplied itel 6kW inverter datasheet PDF is the technical reference for these specifications and should be used when the installer checks the proposed PV configuration.

120A Battery Charging and Discharging

The 48V battery system supports up to 120A MPPT charging current, 120A mains/generator charging current, and 120A maximum discharging current according to the supplied datasheet.

This gives the inverter substantial battery-side current capability for a 6KW system. Battery selection should still account for the battery manufacturer’s continuous charge/discharge limits rather than sizing a battery solely around the inverter’s maximum current.

Customers searching for an itel 6kw battery should therefore check the battery’s voltage, current rating and BMS communication requirements instead of assuming that every 48V battery is automatically compatible.

10ms Backup Switching

The backup output is said to have a switch time of 10ms and the inverter has a nominal backup output of 6,000W together with a peak output of up to 12,000VA for 15 seconds and a 200% overload capacity for 15 seconds.

This means that the backup section is especially important for users in Pakistan who need certain domestic or business loads to continue receiving power when the grid power is not available.

Generator and Smart Load Support

The datasheet provided does indeed state that it supports both diesel generators and smart loads; this means that when designing a system based on varying grid availability, battery storage, and controllable loads installers have more choices available to them.

The product is sometimes searched for as itel 6kw pro, but buyers should confirm the exact model number before ordering, as product names used in online searches can vary.

Best For

The itel 6KW Hybrid Inverter is worth considering for:

• Homes that are single-phase and which have relatively heavy electrical loads.
• Homes that require battery backup when there is load shedding.
• Solar systems in which the PV capacity is greater than the inverter’s 6 kW AC rating.
• People who are thinking of using 48V lithium-ion or lead-acid battery storage.
• Installations requiring generator integration.
• Instances in which a smart-load output is of use.
• Projects that may later require parallel inverter expansion.
• Small commercial or mixed-use single-phase applications where the 6KW output is appropriate.

Not Ideal For

This inverter may not be the right fit when:

• The property requires a three-phase inverter rather than a single-phase system.
• The planned battery system does not operate within the specified 40–60V battery range.
• The solar array exceeds the inverter’s 500V maximum DC input voltage or MPPT/current limits.
• The project requires an HV battery architecture.
• The required AC output is substantially higher than 6 kW, and parallel expansion is not suitable.
• The buyer only needs a straightforward battery-free on-grid inverter, not a hybrid system.
• A buyer is specifically looking for an IP54 model after searching for the price of a 6 kW IP54 inverter in Pakistan. The supplied model is specified as IP66; the exact protection rating and model should be verified before purchase.

Solar PV Input and MPPT Performance

The PV section has a maximum PV input power of 7,500W, with a maximum DC input voltage of 500V and a startup voltage of 125V; the MPPT operating range is 150 to 450V.

The datasheet indicates that there are two MPPT trackers, each having a maximum input current of 18 amperes, and that the MPPT tracking efficiency is 99.9% while the maximum PV conversion efficiency is 97.6%.

When designing the panel strings, the specifications are important. A suggested solar array should be verified in relation to the module’s:

• Voc;
• Vmp;
• Isc;
• operating temperature;
• number of modules per string;
• MPPT voltage range;
• MPPT input-current limit.

The 7,500W PV figure must not be taken as approval to connect any 7.5KW array without first carrying out electrical design checks; the final string configuration should be confirmed by a qualified solar installer using the actual module specifications and the site temperatures.

Battery Compatibility and Energy Storage

The system is based on a 48V battery design and has a specified battery operating range of 40 to 60 V. According to the datasheet, it supports Lead-acid / Lithium-ion / User Defined battery types.

Maximum battery-side figures are:

• MPPT charging current: 120A
• Mains/generator charging current: 120A
• Maximum discharging current: 120A

The documentation given does not include a specific list of battery brands or models which have been approved. On that account, it cannot be assumed that a certain lithium battery brand is compatible just because it works at 48V.

When checking battery compatibility, reference should be made to the battery’s voltage range, its charge and discharge limits as well as the BMS communication requirements. Although the datasheet lists Wi-Fi, RS485, CAN and dry contact under the communication section, it does not specify the battery BMS protocols or name any approved battery. Anyone looking for the price of the itel 6kw lithium battery price in Pakistan should note that the inverter price and the lithium battery price are two separate matters. The appropriate battery must first be chosen on the basis of the inverter’s 48V design, its operating range, its current requirements and its communication compatibility.mpatibility.

Battery Compatibility: The documentation provided does not specify any particular battery brand or model, so the batteries intended for use should be verified against the inverter’s requirements regarding voltage, current, and communication before they are installed.nstallation.

Backup Power and Load-Shedding Performance

The backup output is rated at 6,000W nominal power and a maximum apparent power of 6,000VA. The datasheet specifies a 12,000 VA peak output for 15 seconds, together with 200% overload capacity for 1The advertised backup switching time is 10ms, the nominal backup output voltage being 230VAC and the frequency 50/60Hz. This backup unit can provide power to a number of essential appliances during a power failure in a Pakistani house or small company. The appliances that can be operated together will depend on their total running power and on their starting or surge requirements.equirements.

The inverter doesn’t determine the length of time for which backup power is available; this mainly comes down to the usable capacity of the battery, the amount of load connected, the state of charge of the battery, the efficiency of the inverter, and the battery’s operating limits.

Generator Support and Smart Load Control

The IHY-6KL1A datasheet confirms support for diesel generators (Yes) and smart loads (Yes).

It can be of use in cases where a generator is kept as an extra backup supply or when some loads require individual control. Since the document available does not include a detailed procedure for wiring the generator or a complete explanation of the smart-load operating logic, the necessary information regarding installation should be checked in the relevant installation documentation.

Parallel Operation and System Expansion

The datasheet lists Number of Parallel: 12, indicating support for up to 12 units operating in parallel.

This provides an expansion path when a single 6 kW inverter is not sufficient for the intended system capacity. However, the supplied datasheet does not explain the exact parallel configuration, required accessories, commissioning procedure or whether every possible phase arrangement is supported.

Those details should be confirmed from the manufacturer’s installation documentation before designing a multi-inverter system.

Monitoring and Communication

The supplied specification lists:

• Wi-Fi
• RS485
• CAN
• Dry contact

These interfaces can support system communication and control functions, but the supplied document does not name a specific monitoring application, web portal or mobile app.

For installations where remote monitoring is important, the exact communication accessories and supported monitoring platform should be confirmed before purchase.

Technical Specifications

Solar PV Input

Battery

AC / Grid Output

Backup / EPS Output

General Specifications

Recommended Solar System Size

The inverter has a 6,000W rated AC output but accepts up to 7,500W of PV input. Therefore, the maximum PV input specification should not be confused with the inverter’s AC output rating.

A solar array that is to be used in practice should be designed taking into account the manufacturer’s limit of 7,500W PV, a maximum DC voltage of 500V, an MPPT range of 150 to 450V, and input current limits of 18A/18A.

The exact number of panels needed will depend on the wattage of the module and its Voc, Vmp and Isc values, and the temperature must be taken into account since the panel voltage changes with the operating conditions.

A qualified installer must verify the final size of the PV system and the string configuration.

Hybrid Inverter Use in Pakistan

For Pakistani users the principal practical benefit of a hybrid system is the possibility of combining solar power generation during the day with battery storage and also supplying backup loads. The 6 kW output offers a good amount of single-phase capacity for use in homes and is appropriate for small commercial purposes.

The 10ms backup switching time is relevant where selected loads need to transfer to backup quickly during grid failure. The 48V battery architecture also provides installers with a clear low-voltage battery framework, while the 120A charging and discharging capability offers considerable battery-side current capacity.

In Punjab and Lahore, installation conditions also matter. The IP66 enclosure can help protect the inverter against dust and water ingress, but it does not remove the need for a suitable installation location, correct ventilation and proper electrical protection. The datasheet specifies operation from -25°C to +60°C with power derating, so high summer temperatures and installation conditions should be considered during system planning.

itel 6KW Hybrid Inverter Price in Pakistan

The price of the itel 6KW Hybrid Inverter in Pakistan can vary based on stock availability, exchange rates, distributor pricing and market conditions. Buyers may also search for “itel 6kw hybrid inverter price in pakistan” or “itel 6kw single phase hybrid solar inverter price in pakistan” when comparing current market listings.

The price of the itel 6kw single-phase hybrid solar inverter in Pakistan can vary depending on stock availability, distributor pricing and market conditions. Check the latest price shown on the Hajvery Solar product page for the current listed rate.

Customers searching for itel 6kw pro inverter price in Pakistan should confirm the exact model number, because product names and search terms can sometimes refer to different variants. The supplied model for this page is IHY-6KL1A.

Dealers, installers and bulk buyers can contact Hajvery Solar for current wholesale rates and quantity-based availability.

Hajvery Verified Product Information

Brand: itel

Exact Model: IHY-6KL1A

Product Type: Hybrid Solar Inverter

Technical Data Source: Supplied manufacturer datasheet

Specification Status: Verified against the manufacturer documentation reviewed

Battery Compatibility Status: No specific battery models verified in the supplied documentation; compatibility confirmation. Before issuing its technical specifications, Hajvery Solar examines the manufacturer’s available documentation and also allows customers to check the product model, serial number, applicable warranty, and battery compatibility prior to making a purchase. The product datasheet which has been provided includes a 5-Year Replacement and a 5-Year Service Warranty in the section on product features. Warranty under the product features section.

The exact application of these warranty terms should be confirmed against the applicable manufacturer/distributor warranty conditions before purchase. Warranty coverage can depend on the manufacturer’s terms, correct installation, serial number, pHajvery Solar can also provide customers with information about products, help them to check compatibility and offer after-sales support where this is available.ng and after-sales support where applicable.

Before You Buy

1. Check that the property needs a single-phase inverter.
2. Make sure that the battery is designed to operate within the 40 to 60 volt range.
3. Check that the type of battery you have chosen—whether it’s a lead-acid or a lithium-ion—is one that is supported.
4. BMS Communication: Make sure the battery’s communication requirements are confirmed before installation.
5. In the case of a failure of the power grid, make a list of the appliances and equipment that need to remain running.
6. PV Design: Keep the proposed solar array. We need to confirm whether the system requires the documented diesel generator support. Does the system need the documented diesel generator support?
7. Installation Location: Consider IP protection, ventilation, ambient temperature and the sIs the itel 6KW Hybrid Inverter single phase or three phase?ons

Is the itel 6KW Hybrid Inverter single-phase or three-phase?

The IHY-6KL1A is a single-phase hybrid inverter with a nominal 6,000W AC output. It is therefore relevant to buyers specifically. Does the iTel 6 kW Hybrid Inverter have lithium batteries?r.

Does the iTel 6 kW Hybrid Inverter support lithium batteries?

Yes. The supplied datasheet lists Lithium-ion, Lead-acid, and User Defined battery types. The specified battery voltage range is 40–60V with a 48V rated battery voltage.

Which batteries are compatible with the itel 6KW Hybrid Inverter?

The supplied documentation does not provide a verified list of specific battery brands or models. Battery compatibility should be checked using the battery’s voltage, current and BMS communication requirements before installation.

How much solar PV can be connected to the iTel 6 kW Hybrid Inverter?

The manufacturer’s supplied datasheet specifies a maximum PV input power of 7,500W. The PV design must also remain within the 500V maximum DC input voltage, 150–450V MPPT range, and 18A/18A maximum input current limits.

Can the itel 6KW Hybrid Inverter provide backup during load shedding?

Yes. The inverter has a dedicated backup output rated at 6,000W, a stated 10ms switching time and up to 12,000VA peak output at 15 seconds. Actual backup duration depends on battery capacity and connected load.

Does the itel 6KW Hybrid Inverter support a generator?

Yes. The supplied datasheet confirms support for diesel generators.

Can multiple units be connected?

The datasheet lists 12 under Number of Parallel, indicating support for up to 12 units operating in parallel. Exact system configurations and required accessories should be confirmed from the manufacturer’s installation documentation.

What is the price of the Itel 6 kW Hybrid Inverter in Pakistan?

The current price depends on stock, market conditions and distributor pricing. Check the latest price displayed on the Hajvery Solar product page or contact Hajvery Solar for the current retail or dealer rate.

Customers comparing itel 6kw ip54 inverter price in pakistan should verify the exact model and protection rating before making a purchase, as the supplied IHY-6KL1A documentation specifies IP66, not IP54.

What is the price of the Itel 6 kW Pro inverter in Pakistan?

Searches for itel 6kw pro inverter price in pakistan may refer to a product or variant using the “Pro” search term. The exact model should be confirmed before comparing prices. The model covered on this page is IHY-6KL1A.

Buy itel 6KW Hybrid Inverter from Hajvery Solar.

Hajvery Solar supplies solar equipment for residential and commercial applications, with product information checked against available manufacturer documentation. Customers can contact the team for battery compatibility checking, PV sizing guidance and product verification before ordering.

For buyers searching for itel 6kw pro, itel 6kw inverter, or itel 6kw hybrid inverter price in Pakistan, confirming the exact model and technical specifications before purchase is important.
