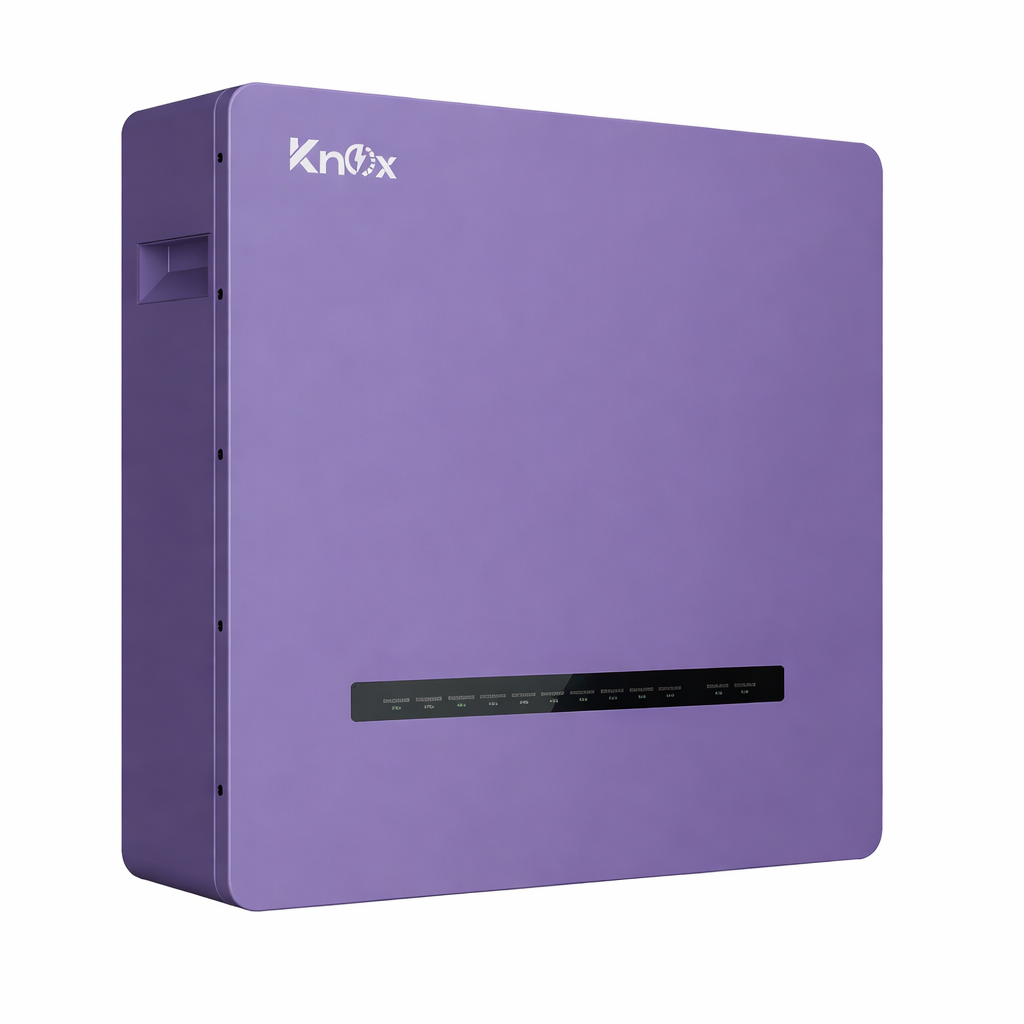

Knox Powerwall 6.0 51.2V 100Ah Lithium Battery

Product Description

The Knox Powerwall 6.0 51.2V 100Ah Lithium-ion Battery is a high-efficiency wall-mounted energy storage solution designed for residential and commercial solar power systems. Built using A-grade LiFePO4 prismatic cells powered by REPT, this battery ensures superior safety, long operational life, and reliable power delivery.

The Powerwall 6.0 features a durable metal enclosure that provides excellent heat dissipation and enhanced safety during operation. Equipped with an intelligent PACE Battery Management System (BMS), the battery delivers complete protection against overcharge, over-discharge, overcurrent, short circuit, and temperature fluctuations.

Its LED indicator display allows users to easily monitor battery operating status, while multiple communication interfaces ensure seamless compatibility with leading inverter brands. With scalable parallel expansion capability and more than 6000 charge cycles, the Knox Powerwall 6.0 is an ideal long-term energy storage solution for modern solar installations.

Powerwall-6.0-Data-Sheet

Key Features

• A-grade LiFePO4 lithium battery technology

• Intelligent PACE BMS protection system

• Wall-mounted compact design

• LED status indicator display

• Excellent heat dissipation metal casing

• Cell balancing function

• Maintenance-free operation

• Wide inverter compatibility

• Long service life with high safety performance

Electrical Parameters

• Charge Cut-off Voltage: 57.6V

• Discharge Cut-off Voltage: 44V

• Maximum Charging Current: 100A

• Continuous Discharge Current: 100A

• Peak Discharge Current: 120A

• Recommended Discharge Current: 50A

• Recommended Depth of Discharge: 80%

Communication & Expansion

• Communication Interfaces: RS485 / RS232 / CAN

• Display Type: LED Indicators

• Parallel Connection: Up to 8 Units

• Installation Type: Wall Mounted

Operating Conditions

• Charging Temperature: 0°C to +55°C

• Discharging Temperature: -20°C to +60°C

• Optimal Storage Temperature: 5°C to +35°C

• Humidity Range: 40% – 80% RH

Mechanical Specifications

• Dimensions (L × W × H): 533 × 500 × 150 mm

• Weight: 45.1 ± 0.5 kg

• Terminal Type: M6

Protection Features

The advanced PACE BMS ensures complete battery safety including:

• Over Charge Protection

• Over Discharge Protection

• Over Current Protection

• Over Temperature Protection

• Low Temperature Protection

• Short Circuit Protection

• Cell Balancing Function

Applications

• Residential Solar Energy Storage

• Home Backup Power Systems

• Hybrid Solar Systems

• Off-Grid Solar Installations

• Small Commercial Energy Storage
