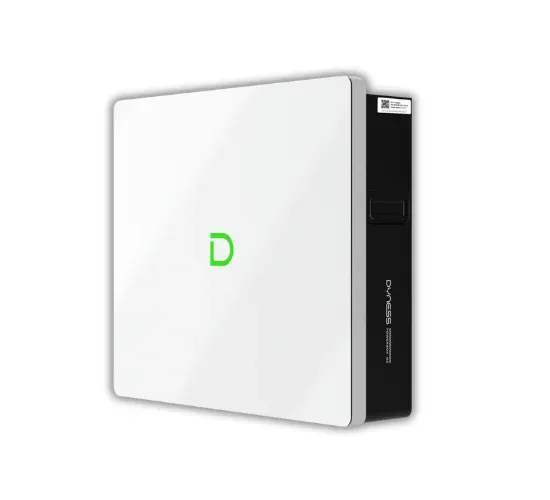

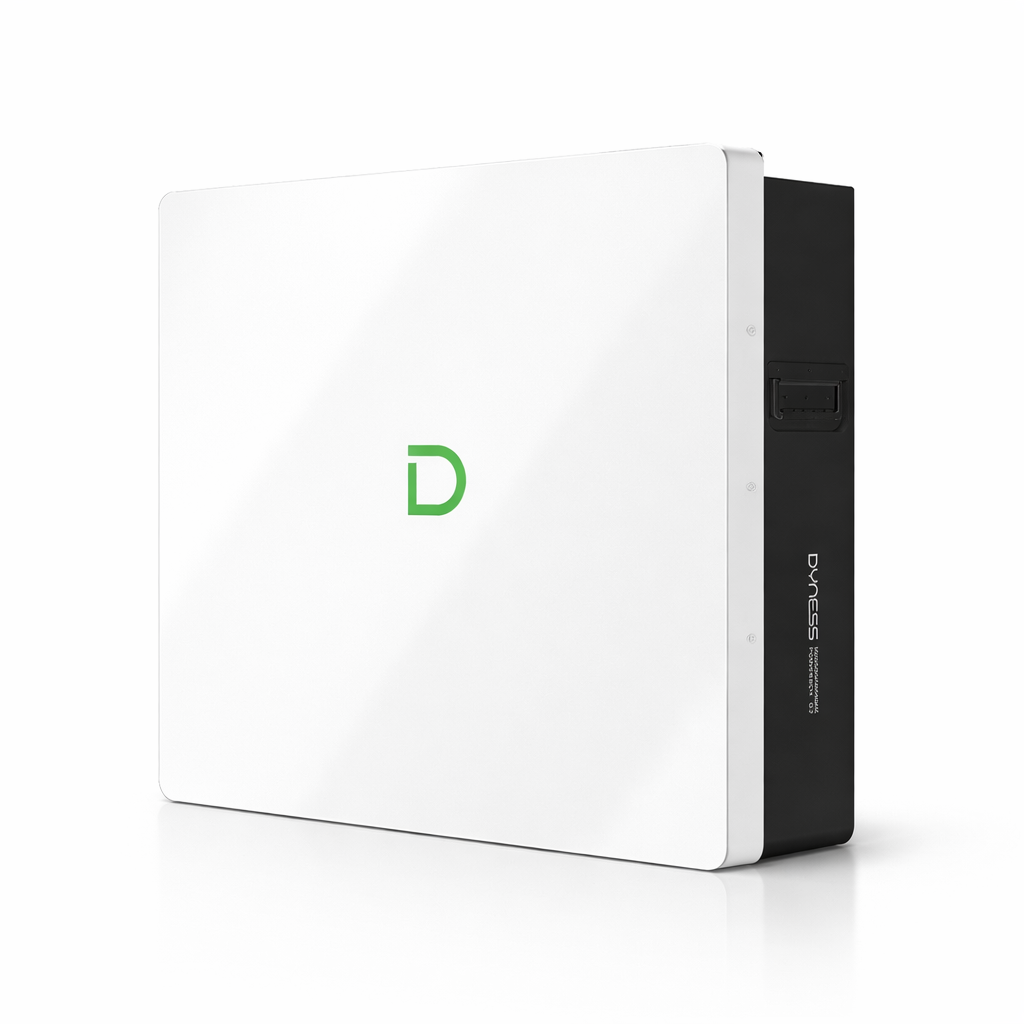

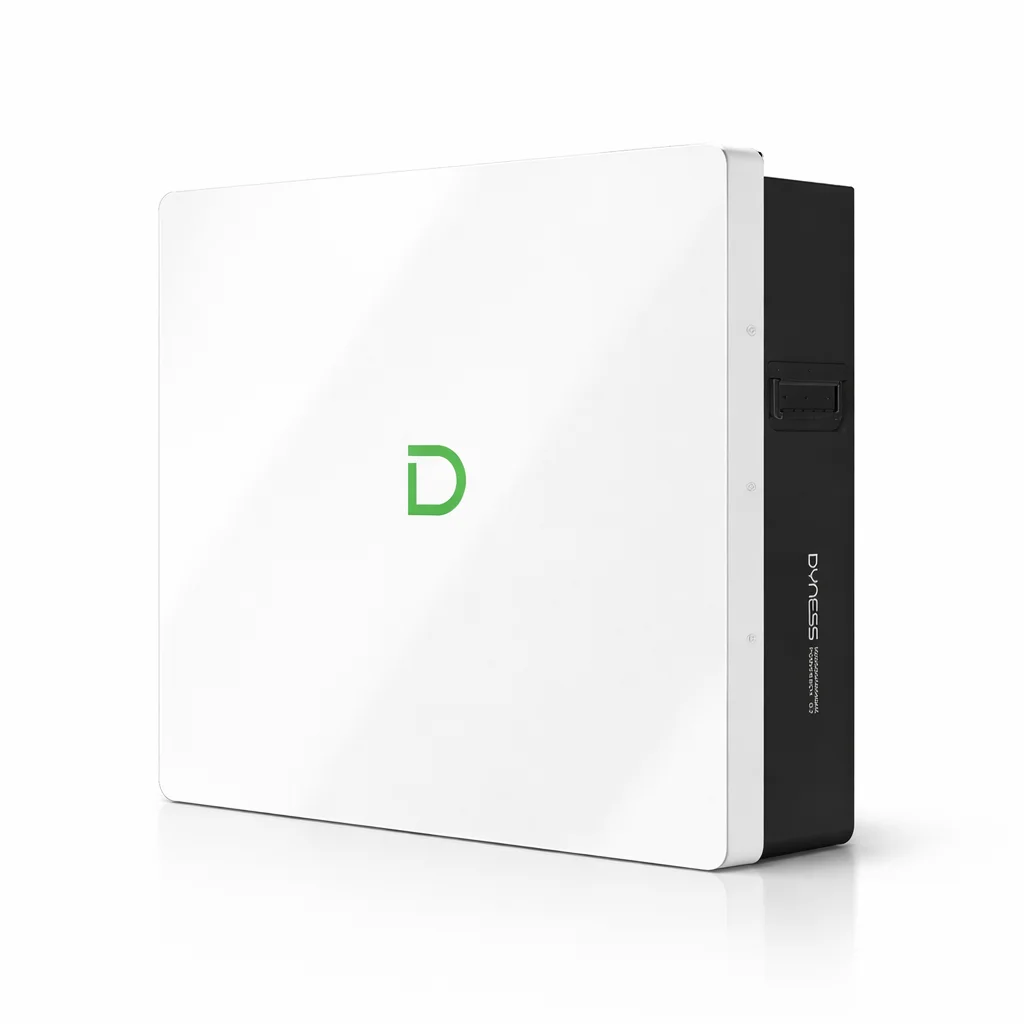

Dyness PowerBox G2 10.24kWh Lithium Battery

Dyness PowerBox G2 10.24kWh 51.2V 200Ah Lithium Battery Overview

The Dyness PowerBox G2 Lithium Battery is a 10.24kWh low-voltage energy storage battery built around LiFePO₄ chemistry. With a 51.2V nominal voltage, 200Ah capacity, and 9.728kWh usable energy, it provides substantial storage for solar backup and residential energy-storage systems.

The PowerBox G2 is built with a focus on reliable battery capacity, good discharge performance, and the possibility of future expansion. It has a nominal charge and discharge power of 5.12kW and is capable of a maximum discharge power of 10.24kW. The maximum discharge current is 200A, and the peak discharge can amount to 300A for a period of 2 minutes when the temperature is 25°C.

The battery includes support for CAN and RS485 communication, has built-in Wi-Fi, provides APP monitoring and enables OTA functionality. Up to 50 units can be connected in parallel, which allows the storage system to be expanded as the demand for energy increases.

Key Features and Buyer Benefits

10.24kWh Energy Storage

The PowerBox G2 has a considerable storage capacity for solar energy systems because of its nominal energy capacity of 10.24kWh. Nine point seven28kWh is the amount of energy that can be usefully made available for system operation within the specified depth-of-discharge limit.

LiFePO₄ Battery Chemistry

The PowerBox G2 is based on LiFePO₄ lithium battery technology and therefore offers an appropriate solution as a storage system for domestic solar and backup use when long service life and stable battery performance are important.

51.2V Low-Voltage Architecture

This is a low-voltage lithium battery since its nominal voltage is 51.2V and its operating voltage range is 44.8 to 57.6V. It is essential that the battery voltage is matched to the inverter’s required battery voltage before installation.

High Discharge Capability

The battery is rated for a recommended charge and discharge current of 100A and can discharge at a maximum current of 200A. Its ability to discharge at peak levels reaches 300A for a duration of 2 minutes when the temperature is 25°C, thus giving the system additional capacity for short-duration power demands.

Up to 50 Units in Parallel

The PowerBox G2 can have up to 50 units connected in parallel. It is thus possible to construct bigger energy-storage systems by increasing the number of battery units in accordance with system requirements and the compatible installation design.

IP65 Protection

An IP65 protection rating provides protection against dust ingress and water jets, making the battery suitable for appropriately designed indoor or outdoor installations within its specified operating environment.

Built-In Monitoring and Communication

The battery is equipped with CAN/RS485 communication and has a built-in Wi-Fi module that provides APP and OTA functionality. This enables a practical method of monitoring battery information and allows for software updates where the system’s configuration permits it.

Best For

The Dyness PowerBox G2 battery is suitable for:

• Residential solar backup systems
• Low-voltage hybrid solar systems
• Homes requiring substantial battery storage
• Solar users dealing with load shedding
• Systems requiring expandable battery capacity
• Installations requiring CAN or RS485 battery communication
• Solar systems designed around compatible low-voltage lithium batteries
• People who are looking for a lithium battery with a capacity of 10.24kWh

The battery could also be taken into account in the case of larger storage systems which involve connecting multiple compatible units in parallel.

Not Ideal For

The PowerBox G2 should not be selected without checking compatibility when:

• The inverter requires a high-voltage battery system
• The battery voltage of the inverter is not in the range of 44.8 to 57.6 volts.
• The required battery current exceeds the specified limits
• The inverter does not support the required CAN/RS485 communication
• The installation environment falls outside the specified temperature range
• The system requires a battery with different physical dimensions or installation requirements

Before you install it, make sure that the battery matches the inverter’s requirements with regard to voltage, current, and communication.

Battery Capacity: kWh, Ah and Usable Energy Explained

The figure of 10.24kWh refers to the battery’s nominal energy capacity, and the 200Ah figure refers to its nominal electrical capacity at 51.2V.

The basic relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

The stated nominal values for the PowerBox G2 are approximately 10.24kWh.

The battery has 9.728kWh of usable energy and a suggested depth of discharge of 95%. The amount of energy that is actually available in the entire solar system may differ depending on inverter efficiency, operating conditions, battery temperature, ageing and the system’s configuration.

Battery Chemistry and Cycle Life

The PowerBox G2 is based on LiFePO₄ chemistry and has a specified cycle life of at least 8,000 cycles over a period of 10 years.

Cycle performance is influenced by the operating conditions, the way it is charged and discharged, the temperature and other system factors. It follows that the cycle figure given should be regarded as applicable to the battery’s intended operating conditions and not as a guarantee that the same result will be obtained in every installation.

Battery Management and Safety

The PowerBox G2 has an active fire protection system which includes a built-in aerosol fire extinguisher.

Protection and management are provided by the integrated battery system architecture. It is still essential to have the inverter settings correct, the wiring to be proper, communication to function and the installation to be carried out correctly for safe operation.

A heating function, which is optional, can be used. With the heating function the charging temperature range is -20 to 55°C, otherwise it is 0 to 55°C, and the discharging temperature range is -20 to 55°C.

Charging and Discharging Performance

The battery has:

• Recommended Charge/Discharge Current: 100A
• Maximum Discharge Current: 200A
• Peak Discharge Current: 300A for 2 minutes at 25°C
• Nominal Charge/Discharge Power: 5.12kW
• Maximum Discharge Power: 10.24kW
• The recommended charge and discharge C rate is 0.5C.
• Maximum Discharge C Rate: 1C
• Recommended Depth of Discharge: 95%

The inverter that is connected has to be set within the electrical limits specified for the battery.

Inverter Compatibility

The Dyness PowerBox G2 supports communication through CAN/RS485 and is compatible with inverter brands including Solis, Deye, Luxpower, Voltronic, Hoymiles, Growatt, GoodWe, SMA, Victron, Ingeteam, Delios, SAJ and APS, as applicable to the specific inverter configuration.

Before installing it, you should still check the compatibility for the specific inverter model, the battery voltage range, the communication protocol, the firmware and the required settings.

Parallel Expansion

The PowerBox G2 supports up to 50 units in parallel.

This expansion capability allows the total energy-storage capacity to be increased by adding compatible battery units. The final number of batteries should be determined according to inverter compatibility, communication requirements, installation design and the required energy capacity.

Estimated Backup Time

The PowerBox G2 has 9.728kWh of usable energy and a basic estimate based on a battery alone can be obtained by dividing the usable energy by the connected load.

For example:

• For a 500W load, the time required is about 19.46 hours.
• A 1kW load will take about 9.73 hours.
• For a load of 2kW it takes about 4.86 hours.
• A 3kW load will take about 3.24 hours.
• A 5kW load will take about 1.95 hours.

The figures given are theoretical and do not take into account inverter losses or other system factors; the actual backup time will depend on the efficiency of the inverter, the battery’s operating limits, temperature, the condition of the battery, and the load that is connected.

Dyness PowerBox G2 Installation and Dimensions

The battery dimensions are 710 × 165 × 640mm, with a net weight of 96kg.

The area in which the equipment is physically installed must allow for adequate clearance, have proper structural support, provide sufficient ventilation, and include access so that safe installation and maintenance can take place.

Anyone searching for dyness powerbox g2 installation or dyness powerbox g2 installation manual should ensure that the installation follows the requirements applicable to the exact system configuration.

For buyers looking for dyness powerbox g2 dimensions, the specified dimensions are 710 × 165 × 640mm.

Lithium Battery Use in Pakistan

The Dyness PowerBox G2 can be used in residential solar-storage applications where a low-voltage battery system is appropriate. In Pakistan, battery storage can help solar users maintain access to stored energy during periods when solar generation is unavailable or grid supply is interrupted.

Proper installation is particularly important in warm environments. The PowerBox G2 supports a -20°C to 55°C discharge temperature range, while charging is supported from 0°C to 55°C, with optional heating functionality extending the applicable charging range.

The installation must also offer adequate protection, ventilation and environmental conditions for the battery.

Dyness PowerBox G2 Price in Pakistan

If you are searching for dyness powerbox g2 lithium battery price in pakistan, dyness powerbox g2 price in pakistan, dyness powerbox g2 lithium battery price, or dyness lithium battery price in pakistan, the price is currently not available at Hajvery Solar. For the latest price, please contact Hajvery Solar Energy.

Dealers and installers can also raise the question of availability and quantity directly with Hajvery Solar.

Hajvery Compatibility and Authenticity Check

Before purchasing the Dyness PowerBox G2 battery, confirm the exact battery model, required battery voltage, inverter compatibility and communication requirements.

Hajvery Solar Energy will enable buyers to check whether the battery is suitable for use with their intended solar system and to verify the relevant product and warranty information.

Hajvery Solar Energy is a Dyness Official Distributor for customers looking for genuine Dyness energy-storage products.

Warranty and After-Sales Support

The Dyness PowerBox G2 comes with a 10-year manufacturer warranty.

Warranty coverage must be carried out in accordance with the relevant warranty terms and conditions and ensure that the product information and purchase details are available when you are asking for warranty assistance.

As a Dyness authorized dealer, Hajvery Solar Energy can assist customers with product-related guidance and warranty enquiries.

For customers looking for an Official Dyness Distributor, Hajvery Solar Energy provides a direct route for product enquiries and compatibility guidance.

Buying through Hajvery Solar Energy, an authorized Dyness dealer, gives customers access to product guidance before purchase and support for applicable warranty enquiries.

Before You Buy

Before purchasing the Dyness PowerBox G2, check:

• Battery voltage: 51.2V nominal
• Battery capacity: 200Ah
• Usable energy: 9.728kWh
• Inverter compatibility
• CAN/RS485 communication
• Required charge/discharge current
• Required backup capacity
• Installation space: 710 × 165 × 640mm
• Operating temperature
• Parallel expansion requirement
• Warranty requirements

The inverter that is connected should be compatible with the battery’s low-voltage setup and its communication requirements.

Frequently Asked Questions

What is the Dyness PowerBox G2 battery?

The Dyness PowerBox G2 battery is a 10.24kWh LiFePO₄ low-voltage lithium battery with 51.2V nominal voltage and 200Ah capacity.

Is the Dyness PowerBox G2 fitted with a 51.2V lithium battery?

Yes. The battery has a 51.2V nominal voltage and an operating voltage range of 44.8–57.6V.

How much capacity does the Dyness PowerBox G2 have?

The battery has 9.728kWh usable energy from its 10.24kWh nominal energy capacity.

Is the Dyness PowerBox G2 appropriate for use with a low-voltage solar system?

Yes. The PowerBox G2 is a low-voltage lithium battery designed for compatible LV energy-storage systems. The inverter’s battery voltage and communication requirements should be checked before installation.

How many Dyness PowerBox G2 batteries are you able to connect together?

Up to 50 units can be connected in parallel, subject to the complete system’s compatibility and installation requirements.

What warranty does the Dyness PowerBox G2 have?

The battery comes with a 10-year manufacturer warranty.

How much does the Dyness PowerBox G2 cost in Pakistan?

The price is currently not available at Hajvery Solar. Please contact Hajvery Solar Energy for the latest price and availability.

I’m looking for the datasheet or manual for the Dyness powerbox g2—where can I find it?

Customers searching for the dyness powerbox g2 datasheet or dyness powerbox g2 manual can contact Hajvery Solar for product information and installation guidance. The exact installation requirements should be followed for the intended system configuration.

What do I need to know regarding charging this battery?

For searches such as how to charge lithium deep cycle batteries and how to fast charge lithium ion batteries, charging must always remain within the battery’s specified voltage and current limits. The PowerBox G2 has a 100A recommended charge/discharge current.

Is the Dyness PowerBox G2 a lithium-ion battery?

Yes. The Dyness lithium ion battery category includes lithium-based chemistries such as LiFePO₄, and the PowerBox G2 specifically uses LiFePO₄ chemistry.

What place can I get a review from regarding the Dyness PowerBox G2?

A dyness powerbox g2 lithium battery review, dyness powerbox g2 10.24 kwh lithium battery review, or dyness powerbox g2 review should be considered alongside the battery’s actual specifications, compatibility and intended application before purchase.

When unboxing a Dyness battery, what should I check?

During a dyness battery unboxing, check the product model, physical condition, accessories and packaging information before installation. The exact battery identity should match the product ordered.

Buy Dyness PowerBox G2 from Hajvery Solar

The Dyness PowerBox G2 10.24kWh 51.2V 200Ah Lithium Battery is designed for buyers who need substantial low-voltage energy storage with LiFePO₄ chemistry, 9.728kWh usable energy, CAN/RS485 communication, IP65 protection and parallel expansion.

For dyness powerbox g2 price, availability, compatibility or warranty enquiries, contact Hajvery Solar Energy before purchase.
