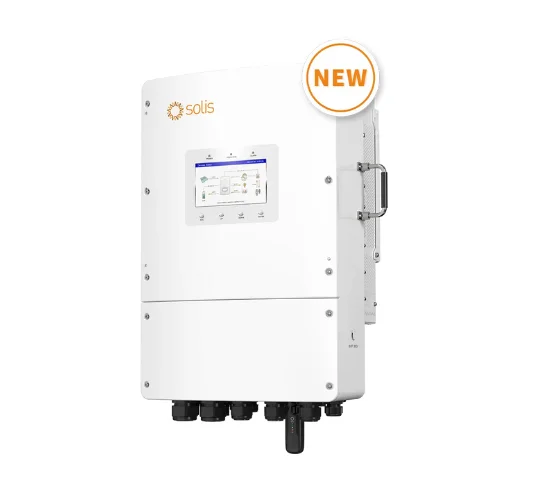

Solis 15KW Solarator Hybrid Inverter Overview

The Solis 15KW Solarator Hybrid Inverter is a three-phase low-voltage energy storage inverter built for solar systems that need more than daytime PV generation. It can coordinate solar power, battery storage, grid electricity, generator input and backup loads, giving installers flexibility when designing larger residential and commercial energy systems.

The inverter provides 15 kW rated AC output and supports a substantial solar array, with a 30 kW recommended maximum PV array size and 24 kW maximum usable PV input power. Its low-voltage battery architecture operates across 40–60V, while the battery section supports both Li-ion and lead-acid batteries.

A particularly useful feature for three-phase applications is its ability to support three-phase unbalanced output, with up to 50% of rated inverter power per phase. The system also provides <10 ms backup switching, generator input, parallel expansion and AC coupling capability, making it suitable for installations where system flexibility and backup performance are important.

Why This Hybrid Inverter Stands Out

High PV Capacity for a 15 kW Inverter

The Solis 15KW allows for a maximum recommended PV array of 30 kW even though its maximum usable PV input power is 24 kW, giving installers a good deal of flexibility when planning a system that makes heavy use of solar power and allowing the inverter’s AC output rating to be differentiated from its permitted PV capacity.

The PV capacity for the Solis 15KW hybrid inverter should still be based on the actual module’s Voc, Isc, MPPT voltage and current limits rather than merely on the panel’s wattage.

Strong Low-Voltage Battery Performance

The inverter operates using a battery voltage range of 40 to 60 volts and is capable of providing a maximum charge or discharge current of 290 amperes in the 15 kW model; accordingly, the electrical design on the battery side becomes an important aspect of the installation, especially when dealing with higher loads and substantial backup power requirements.

Fast Backup Switching

The inverter can quickly switch to backup operation since the backup output has a switching time of less than 10 ms when the supply power is not available. However, the real performance of the backup system still depends on the availability of the battery, the amount of load connected and the proper setting of the system.

Three-Phase Unbalanced Output

The inverter can provide an unbalanced three-phase output, with each phase supplying up to 50% of the rated inverter power. This feature may be useful in three-phase installations in which the connected loads are not evenly distributed among all phases.

Generator and System Expansion Support

The inverter has a dedicated generator input, and the 15 kW model can support an input power of up to 15 kW. The system can also make use of parallel connections and AC coupling when the full installation design allows for these functions.

Best For

The Solis 15KW hybrid inverter is a strong option for:

• Larger homes with significant three-phase electrical loads
• Commercial and small-business solar systems
• Installations requiring low-voltage battery storage
• Solar systems designed around substantial PV capacity
• Sites affected by regular load shedding
• Users who require battery backup for selected or important loads
• Systems where generator integration is required
• Installations that may need parallel expansion or AC coupling
• Buyers looking for a three-phase hybrid inverter with outdoor-oriented protection

The 15 kW AC output means that it is better suited to use in situations which have higher demands than in small residential backup systems.

Not Ideal For

The Solis 15KW Solarator Hybrid Inverter may not be the right choice where:

• The project requires a high-voltage battery architecture
• The required battery voltage falls outside the 40–60V operating range
• The installation only needs a basic on-grid inverter without battery storage
• The site’s PV array exceeds the inverter’s electrical limits
• The project requires a different phase configuration
• The connected loads require more power than the inverter and battery system can safely provide

Before finalising the selection of the system, the battery voltage, current, BMS communication and the full load profile should all be checked.

Solar PV Input and MPPT Performance

The Solis 15KW features a flexible PV input configuration suitable for bigger solar installations and includes two MPPTs, supporting up to four PV input strings in the 15 kW model.

The PV section has a maximum input voltage of 1000V, a rated voltage of 550V, a startup voltage of 160V and an MPPT voltage range going from 200 to 850V. The 15 kW model is capable of a maximum PV input current of 40A / 40A and a maximum short-circuit current of 50A / 50A for the two MPPTs.

The maximum recommended size for the PV array is 30 kW and the maximum usable PV input power is 24 kW; however, these values should not be taken as a substitute for a thorough string design. It is necessary for installers to calculate the module’s Voc and Isc under the expected temperature conditions and to make sure that each string stays within the MPPT voltage and current limits.

Battery Compatibility and Energy Storage

The Solis 15KW hybrid inverter is based on a low-voltage battery system with a battery voltage ranging from 40 to 60 volts and is compatible with both Li-ion and lead-acid batteries, which gives installers the flexibility they need when choosing a suitable storage technology.

The maximum battery charge and discharge current for the 15 kW model is 290A and battery communication is achieved via CAN and RS485 interfaces.

Before installing the battery it is necessary to check the specific compatibility of the battery brand against the full battery system requirements, such as voltage, BMS communication, current limits and communication configuration.

Backup Power and Load-Shedding Performance

For Pakistani solar installations, backup capability is often as important as daytime solar generation. The Solis 15KW provides a dedicated backup output rated at 15 kW, with a maximum apparent output capability of 2 times rated power for 10 seconds.

The backup switching time is under 10 ms and the maximum continuous AC passthrough current is 50 A; the backup output is designed for three-phase operation.

The length of time that the backup supply lasts will vary according to the capacity of the battery, the condition of the battery, the efficiency of the inverter, and the amount of power being drawn. Before being put into the backup circuit, individual assessment should be made of high-power appliances.

Generator Support and Parallel Operation

The Solis 15KW supports generator input. Its maximum generator input power for the 15 kW version is 15 kW, with a maximum input current of 22.8A.

The system also allows for parallel connections and AC coupling in order to increase its system capacity where the entire system architecture enables it.

It makes the inverter useful in cases where solar power, batteries, power from the grid, and generator power all need to be used together rather than depending on a single energy source.

Monitoring and Communication

The inverter is fitted with a 7-inch LCD screen which displays information about the local system and allows for setup; it also supports Bluetooth and has an app for convenient configuration.

Communication interfaces include:

• CAN
• RS485
• Ethernet
• Bluetooth + App
• Optional Wi-Fi
• Optional Cellular
• Optional LAN

With regard to battery communication, CAN and RS485 are especially relevant, while the network options can provide for remote monitoring and system management according to the communication configuration that has been selected.

Technical Specifications

Solar PV Input

Battery

AC/Grid Output

Backup Output

General Specifications

Recommended Solar System Size

The figure of 15 kW refers to the inverter’s rating and the maximum PV array size are two separate design specifications. The inverter has a rated AC output of 15 kW, the recommended maximum PV array is 30 kW and the maximum usable PV input power is 24 kW.

A final solar array should be designed by checking:

• Module Voc
• Module Isc
• MPPT voltage range
• Maximum MPPT input current
• Temperature-related voltage changes
• Number of strings
• Actual site conditions

It is not enough to use the highest PV array figure without first checking the electrical characteristics of the solar panels that have been selected.

Hybrid Inverter Use in Pakistan

The Solis 15KW hybrid inverter can be considered for Pakistani systems where solar generation, battery backup and grid power need to operate together. Its three-phase output, low-voltage battery architecture and dedicated backup output make system planning especially important for homes and commercial sites with multiple loads.

When fitting batteries for use during load-shedding, installers must determine which appliances need to have a backup and then base the size of the battery on the anticipated load profile. Equipment with high demand, such as pumps, air conditioners and other heavy loads, can greatly increase the amount of current that the battery has to supply.

The inverter can operate within a temperature range of -40°C to +60°C and has an IP66 rating, but it is still necessary to provide suitable ventilation, use the correct protection equipment, size the cable properly and ensure that the environment is appropriate for the whole solar system.

Solis 15KW Hybrid Inverter Price in Pakistan

The present price of the Solis 15KW Solarator Hybrid Inverter is Rs. 0, which means that the product is currently out of stock and restocking is due shortly. For the most up-to-date information on availability, please contact Hajvery Solar.

The solis 15kw price in pakistan can change with future stock availability, market conditions and supplier pricing. Buyers should confirm the latest availability before placing an order.

If you are a dealer, an installer, or a commercial buyer, you can get information from Hajvery Solar regarding current availability and on the basis of quantity.

Hajvery Solar Energy is an Solis Official Distributor for this product range and can assist buyers with product and system-related enquiries.

Hajvery Verified Product Information

• Brand: Solis
• Product Name: Solis 15KW Solarator Hybrid Inverter
• Exact Model: S6-EH3P15K02-NV-YD-L
• Product Type: Three-Phase Low-Voltage Hybrid / Energy Storage Inverter
• Rated Output: 15 kW
• Battery Architecture: Low Voltage
• Battery Voltage Range: 40–60 V
• Maximum Usable PV Input: 24 kW
• Recommended Maximum PV Array: 30 kW
• MPPT: 2 MPPTs / 4 maximum PV strings
• Protection Rating: IP66

As an Solis authorized dealer, Hajvery Solar Energy can help buyers review product requirements and confirm suitable system configuration before purchase.

For solis 15kw hybrid inverter installations, confirm the exact model, battery voltage, BMS communication, PV string configuration and required backup load before finalizing the system.

Warranty and After-Sales Support

The Solis 15KW Solarator Hybrid Inverter comes with a 5-year replacement/standard warranty.

Hajvery Solar Energy is an Official Solis Distributor, providing a direct point of contact for product enquiries and warranty-related guidance. Customers should retain the product information, purchase record and relevant warranty details for future support.

Buying from Hajvery Solar Energy, an authorized Solis dealer, also allows customers to discuss battery compatibility, PV sizing and system requirements before purchase.

Before You Buy

Before selecting the Solis 15KW, check the following:

• Make sure that your site needs a three-phase hybrid inverter.
• Make sure that the battery you have selected works within the 40 to 60 volt low-voltage range.
• Check that the battery’s BMS communication and the supported CAN/RS485 configuration are correct.
• Check that the solar panel’s Voc and Isc match the inverter’s PV limits.
• Design the PV strings to be within the 200 to 850 volt MPPT range.
• For each MPPT, check the maximum current.
• Identify which loads require backup during load shedding.
• Make sure that the battery is able to deliver the current needed by the intended loads.
• Check whether generator integration is required.
• Consider whether parallel expansion or AC coupling is part of the future system plan.
• Provide suitable ventilation and installation protection for the operating environment.

Frequently Asked Questions

What is the Solis 15KW hybrid inverter?

The Solis 15KW Solarator Hybrid Inverter is a three-phase low-voltage hybrid inverter designed to integrate solar PV, batteries, grid power, generator input and backup loads.

What is the battery voltage of the Solis 15KW?

The inverter supports a 40–60V battery voltage range and works with Li-ion and lead-acid batteries.

What is the Solis 15KW hybrid inverter PV capacity?

The inverter has a 24 kW maximum usable PV input power and a 30 kW recommended maximum PV array size.

What is the solis 15kw 3 phase hybrid inverter switching time?

The backup switching time is less than 10 ms, making the inverter suitable for systems that require fast transfer to backup operation.

What is the solis 15kw inverter price in pakistan?

The current price is Rs. 0. If the listed price is zero, the product is temporarily out of stock and restocking is expected soon. Contact Hajvery Solar for the latest availability update.

Does the Solis 15KW support a generator?

Yes. The inverter provides a dedicated generator input, and the 15 kW version supports up to 15 kW generator input power.

Is the Solis 15KW suitable for load shedding?

Yes. Its dedicated 15 kW backup output, <10 ms switching time and battery-storage capability make it suitable for hybrid backup systems. Actual backup duration depends on battery capacity and connected loads.

What warranty does the Solis 15KW have?

The product comes with a 5-year replacement/standard warranty.

What is the solis 15kw hybrid inverter manual requirement?

For buyers searching for solis 15kw hybrid inverter manual pdf or solis 15kw hybrid inverter manual pdf free download, always use the correct documentation for the exact S6-EH3P15K02-NV-YD-L model. The exact model should be matched before using installation or configuration instructions.

Is this a Solis 15KW on-grid inverter?

This product is a hybrid energy storage inverter, not an on-grid-only product. Buyers searching for solis 15kw on grid inverter price in pakistan should first distinguish between an on-grid inverter and a hybrid inverter because their battery and backup functions are different.

Buy Solis 15KW Solarator Hybrid Inverter from Hajvery Solar

The Solis 15KW Solarator Hybrid Inverter is designed for buyers who need three-phase solar, low-voltage battery storage and backup power in a larger system. Its high PV capacity, strong battery current capability, generator input, fast backup switching and IP66 protection make it suitable for carefully designed residential and commercial installations.

For the solis 15kw hybrid inverter price in pakistan, current availability and purchasing information, contact Hajvery Solar Energy. Product compatibility, PV sizing, battery requirements and backup-load planning should be confirmed before installation.
