Solis 12kw S6 LV Single Phase Hybrid Inverter

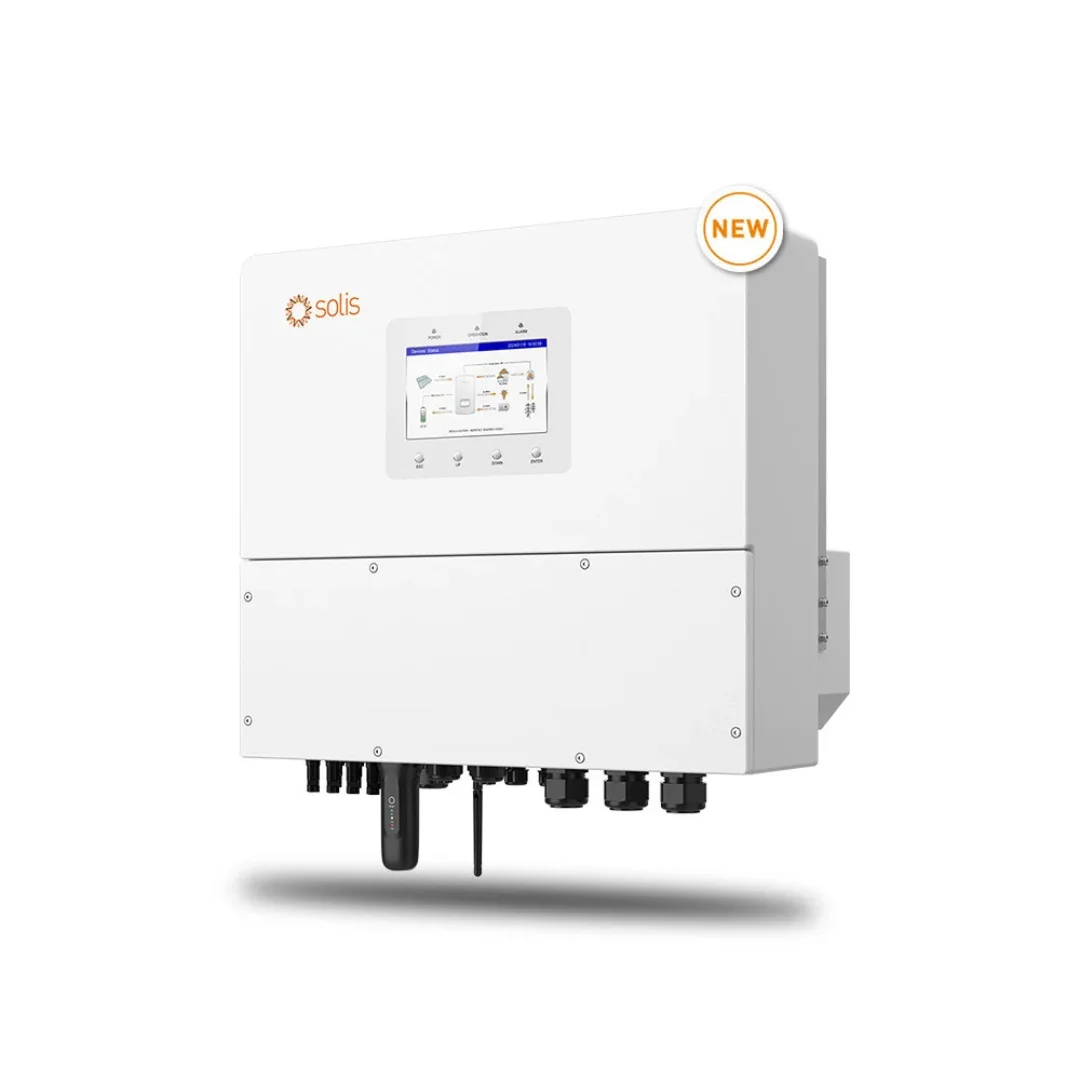

Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter Overview

The Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter combines solar PV generation, battery storage, grid power and backup output in one energy-management system. With 12kW rated AC output, it is designed for single-phase installations where higher solar generation and substantial battery backup are required.

Its low-voltage battery architecture supports a battery voltage range of 40–60V, with both Li-ion and lead-acid battery types supported. On the solar side, the inverter allows a recommended maximum PV array size of 24kW and provides up to 19.2kW maximum usable PV input power.

For backup applications, the inverter provides a 12kW backup output and supports up to twice its rated power for 10 seconds. The less-than-10ms backup switching time helps reduce the interruption experienced by connected backup loads during a grid outage.

The combination of high PV capacity, strong low-voltage battery current, generator support, parallel expansion and IP66 protection makes this model particularly relevant for large residential and demanding single-phase solar-storage installations.

Why This Hybrid Inverter Stands Out

High PV Input Capacity

One of the main strengths of this inverter is its ability to work with a substantially oversized solar array. It supports a 24kW recommended maximum PV array while the maximum usable PV input power is 19.2kW.

For buyers researching solis 12kw hybrid inverter pv capacity, this distinction is important. The inverter’s 12kW AC rating and its permitted PV array size are different specifications. Proper string design still needs to remain within the inverter’s voltage, current and MPPT limits.

Three MPPTs for Flexible Solar String Design

The inverter has 3 MPPTs and supports up to 6 PV strings. Its MPPT voltage range is 80–520V, with a maximum PV input voltage of 550V.

Multiple MPPTs allow installers to manage different PV string configurations more effectively, particularly where roof orientations or array sections are not identical.

Fast Backup Switching and High Overload Capability

The backup output is rated at 12kW, with up to 200% of rated power for 10 seconds. This is useful for installations containing loads with higher starting requirements, provided the complete system and connected equipment remain within the applicable limits.

The backup switching time is less than 10ms, helping the system move quickly from grid operation to backup power.

Generator and Parallel Operation

The inverter supports generator input with a maximum generator input power of 12kW. It also supports up to 6 units in parallel, allowing system capacity to be expanded where the complete installation is designed for parallel operation.

IP66 Protection and Smart Monitoring

The IP66 protection rating gives the inverter a robust enclosure for demanding installation environments. It uses intelligent fan cooling and operates across an ambient temperature range of -25°C to +60°C.

Local operation is supported through a 7-inch LCD display, while communication options include RS485 and optional cellular, Wi-Fi and LAN connectivity. The system also supports SolisCloud for remote control, monitoring and troubleshooting.

Best For

The Solis 12KW hybrid inverter is particularly suitable for:

• Large single-phase homes with high daytime electricity consumption.
• Solar systems requiring a large PV array relative to inverter AC output.
• Installations requiring low-voltage battery storage.
• Users who need backup power during load shedding.
• Systems where generator integration is required.
• Buyers planning future parallel inverter expansion.
• Installations requiring strong enclosure protection for challenging environments.
• Solar systems where multiple PV array sections benefit from 3 MPPT tracking.

Not Ideal For

This inverter is not the right choice where the project specifically requires a three-phase inverter. It is a single-phase model and should be matched with a compatible single-phase electrical system.

It is also not suitable for a project that requires an HV battery architecture, because this model uses a 40–60V low-voltage battery range.

Buyers should also avoid exceeding the inverter’s PV voltage, current, battery current or output limits. Final system design should be completed according to the actual PV module electrical characteristics and installation conditions.

Solar PV Input and MPPT Performance

The solar input section provides substantial flexibility for a 12kW hybrid inverter. The recommended maximum PV array size is 24kW, while the maximum usable PV input power is 19.2kW.

Key PV specifications include:

• Maximum PV Input Voltage: 550V DC
• Rated PV Voltage: 380V DC
• Start-up Voltage: 100V DC
• MPPT Voltage Range: 80–520V DC
• MPPT Count: 3
• Maximum PV Strings: 6
• Maximum Input Current: 40A per MPPT
• Maximum Short-Circuit Current: 50A per MPPT

When checking solis 12kw hybrid inverter datasheet, installers should pay attention to the difference between the recommended PV array size, usable PV input power, voltage range and current limits.

When designing PV strings, use the Voc, Vmp, Isc and Imp values of the selected module together with a temperature correction; do not exceed the maximum inverter voltage and the MPPT operating range.

Battery Compatibility and Energy Storage

It is a hybrid inverter of low voltage having a battery voltage range from 40 to 60 volts.

Supported battery types include:

• Li-ion
• Lead-acid12kW model of the inverter can supportpports a ma 250A charge/discharge cuof 250A and communes with the battery via CAN and RS485cation.

The low-voltage architecture provides flexibility for compatible battery systems, but battery selection should not be based on voltage alone. The battery’s BMS communication, charge/discharge limits, supported protocol and complete system compatibility should be checked before installation.

For users searching solis 12kw hybrid, the low-voltage battery architecture is one of the key characteristics that separates this model from high-voltage storage systems.

Backup Power and Load-Shedding Performance

The backup output of the inverter is 12kW, which is the same as its rated AC output capacity.

Its backup section supports:

• 12kW rated backup output
• 200% overload for 10 seconds
• Less than 10ms backup switching
• 220V / 230V output
• 50Hz / 60Hz operation
• 54.5A / 52.2A rated output current
• Less than 3% THDv at linear load

Because of its high overload capacity it is possible to deal with heavy starting loads such as those of motors, pumps and air conditioners provided that the entire system is properly designed.

In Pakistan’s situation with load shedding, the ability to switch quickly to backup power and to have battery storage can be of use in keeping certain household or commercial loads running when power from the grid is not available.

The actual duration of the backup will vary depending on the capacity of the battery, its state of charge, the amount of power being drawn and the operating conditions. The fact that an inverter has a 12kW rating does not mean that each installation should run continuously at 12kW.

Generator and Parallel Operation

The inverter supports generator input up to 12kW, with generator operation at 50Hz or 60Hz.

Generator integration can be useful where battery capacity alone is not sufficient for extended backup requirements or where grid availability is unreliable.

The system also supports up to 6 units in parallel. Parallel installation requires correct system configuration, compatible communication and appropriate electrical protection. It should be planned by a qualified installer rather than treating the parallel feature as an automatic capacity increase.

Monitoring and Communication

The inverter includes a 7-inch LCD display for local operation and supports Bluetooth with app connectivity.

Communication features include:

• RS485
• CAN
• Optional Cellular
• Optional Wi-Fi
• Optional LAN
• SolisCloud monitoring platform

These functions can help users and installers monitor system operation, review performance and manage the solar-storage system remotely where the required communication hardware and connectivity are available.

Technical Specifications

Solar PV Input

Battery

AC/Grid Output

Backup Output

General Specifications

Recommended Solar System Size

The 12kW inverter output should not be confused with its 24kW recommended maximum PV array size.

A larger PV array can provide more solar generation during periods when sunlight is weaker or when system loads are high, while the inverter still operates within its permitted usable PV input.

For string planning, installers should check:

• PV module Voc
• PV module Vmp
• PV module Isc
• PV module Imp
• Maximum inverter PV voltage
• MPPT operating range
• Maximum input current
• Temperature effects
• Number of strings per MPPT

The final array design should remain within all applicable electrical limits.

Hybrid Inverter Use in Pakistan

For Pakistani solar users, a hybrid inverter can provide more flexibility than a system designed only for daytime solar generation. The Solis 12KW low-voltage hybrid inverter can combine solar production with battery storage, grid power and backup operation.

During the day, the PV system can supply connected loads and charge the battery. During grid outages, stored energy can be used through the backup output. The generator input provides another energy source where longer backup periods require additional support.

The 40–60V battery range should be considered carefully when selecting storage. Battery capacity should also be matched with the actual load profile rather than selecting a battery solely because it operates within the inverter’s voltage range.

For installations in Pakistan’s hot summers, proper ventilation and installation clearance are important. The inverter’s specified operating temperature range extends from -25°C to +60°C, but the installation environment should still allow appropriate heat dissipation.

Correct AC/DC protection, suitable cabling, PV string design and professional installation are essential for reliable operation.

Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter Price in Pakistan

The solis 12kw price is an important consideration for buyers comparing high-capacity single-phase hybrid systems.

The current price of Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter in Pakistan is Rs. 460,000.

The final project cost can vary depending on battery selection, PV array size, mounting requirements, protection equipment, installation work and other system components.

For buyers specifically searching solis 12kw hybrid inverter price in pakistan, this price applies to the inverter unit supplied by Hajvery Solar Energy.

Hajvery Solar Energy is a Solis Official Distributor providing product guidance and purchase support for this model.

Hajvery Verified Product Information

As a Solis authorized dealer, Hajvery Solar Energy can help buyers select the appropriate battery, PV configuration and system setup for this inverter.

Warranty and After-Sales Support

The Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter comes with a 5-year manufacturer warranty.

The manufacturer warranty should be kept separate from seller-side assistance. Hajvery Solar Energy can provide guidance regarding product selection, installation requirements, compatibility considerations and the appropriate warranty-support route.

Buying from an authorized Solis dealer, such as Hajvery Solar Energy, also makes it easier to confirm the exact product model and applicable warranty details before installation.

Before You Buy

Before purchasing this inverter, check the following:

• Confirm that your electrical system requires a single-phase inverter.
• Confirm that your battery is within the 40–60V low-voltage range.
• Check battery BMS communication and compatibility.
• Confirm the required backup load.
• Check PV module Voc, Vmp, Isc and Imp.
• Keep PV voltage and current within inverter limits.
• Confirm whether generator integration is required.
• Consider whether parallel expansion will be needed in the future.
• Ensure the installation location can provide appropriate ventilation.
• Use suitable AC/DC protection and correctly sized cabling.

If you are comparing solis 12kw lv single phase specs, the most important points to evaluate are the 12kW output, 24kW recommended PV array, 40–60V battery range, 3 MPPTs, 250A battery current, backup capability and IP66 protection.

Frequently Asked Questions

What is the Solis 12KW hybrid inverter?

The solis 12kw inverter is a single-phase low-voltage hybrid inverter designed to combine solar PV, battery storage, grid power and backup operation. It provides 12kW rated AC output.

Is the Solis 12KW a single-phase inverter?

Yes. The solis 12kw hybrid inverter single phase configuration is designed for single-phase electrical systems with 220V/230V output.

The phrase solis 12kw single phase hybrid inverter accurately describes its phase and hybrid configuration.

What battery voltage does the Solis 12KW support?

The inverter supports a 40–60V low-voltage battery range and supports Li-ion and lead-acid battery types. Battery BMS communication and complete compatibility should be checked before installation.

How much solar PV can be connected to the inverter?

The recommended maximum PV array size is 24kW, while the maximum usable PV input power is 19.2kW. This is why searches for solis 12kw hybrid inverter pv capacity should distinguish between recommended PV array size and maximum usable PV input.

Does the Solis 12KW support backup during load shedding?

Yes. It provides a 12kW backup output and a backup switching time of less than 10ms. The system requires suitable battery storage for battery-based backup operation.

Can the Solis 12KW work with a generator?

Yes. The inverter supports generator input with a maximum input power of 12kW. Generator integration should be configured according to the complete system design.

Can multiple Solis 12KW units work together?

Yes. The inverter supports up to 6 units in parallel, allowing system expansion when the installation is designed and configured for parallel operation.

What is the warranty and current price?

The current price of the Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter in Pakistan is Rs. 460,000. It comes with a 5-year manufacturer warranty.

Buyers researching solis 12kw price, solis 12kw inverter price, or solis 12kw lv single phase price in pakistan can contact Hajvery Solar Energy for current product availability and purchase assistance.

Buy Solis 12KW Solarator Series Single-Phase Low Voltage Hybrid Inverter from Hajvery Solar

For buyers searching solis 12kw, solis 12kw inverter, solis 12kw single phase inverter, or solis 12kw hybrid inverter, this model offers a strong combination of 12kW output, high PV capacity, low-voltage battery support, fast backup switching, generator integration and IP66 protection.

Hajvery Solar Energy is an Official Solis Distributor and can help buyers review the required PV capacity, battery voltage, backup load and communication requirements before purchase.

The search terms solis 12kw hybrid inverter manual pdf, solis 12kw hybrid inverter datasheet pdf, solis 12kw inverter manual, solis 12kw inverter datasheet, and solis 12kw hybrid inverter datasheet are commonly used by buyers researching this model before installation.

For customers comparing solis 12kw lv single phase price, solis 12kw lv single phase specifications, and solis 12kw lv single phase price in pakistan, the key decision should be based not only on inverter price but also on battery architecture, PV design, backup requirements and installation suitability.

Hajvery Solar Energy, an authorized Solis dealer, can assist with product selection and compatibility checking before purchase.
