Soluna BES 5K Pack 51.2V 100Ah
Electrical Specifications
-
Battery Chemistry: LiFePO₄ (LFP)
-
Nominal Voltage: 51.2 V
-
Capacity: 100 Ah
-
Energy Capacity: 5.12 kWh
-
Operating Voltage Range: 48 – 57.6 V
-
Max Charging Current: 75 A
-
Max Discharge Current: 100 A
-
Depth of Discharge (DoD): 90%
-
Round Trip Efficiency: >95%
-
Cycle Life: ≥6000 cycles
-
Internal Resistance: ≤60 mΩ
BMS & Communication
-
Communication Interfaces: CAN / RS485 / WiFi
-
Monitoring Parameters: Voltage, Current, Cell Voltage, Cell Temperature
-
Power Consumption:
-
Working Mode: <3 W
-
Sleep Mode: <100 mW
-
Operating Conditions
-
Operating Temperature: -10°C to 50°C
-
Recommended Operating Temperature: 15°C to 30°C
-
Storage Temperature: 15°C to 30°C
-
Humidity Range: 5% – 95%
-
Maximum Altitude: 2000 m
-
Cooling Method: Natural Convection
Protection & Certification
-
Ingress Protection: IP65
-
Certifications: IEC62619, EMC, RoHS
-
Transportation Standard: UN38.3
-
Hazardous Classification: Class 9
System Configuration & Warranty
-
Parallel Connection: Up to 16 Units
-
Maximum System Capacity: 81.92 kWh
-
Warranty: 7 Years

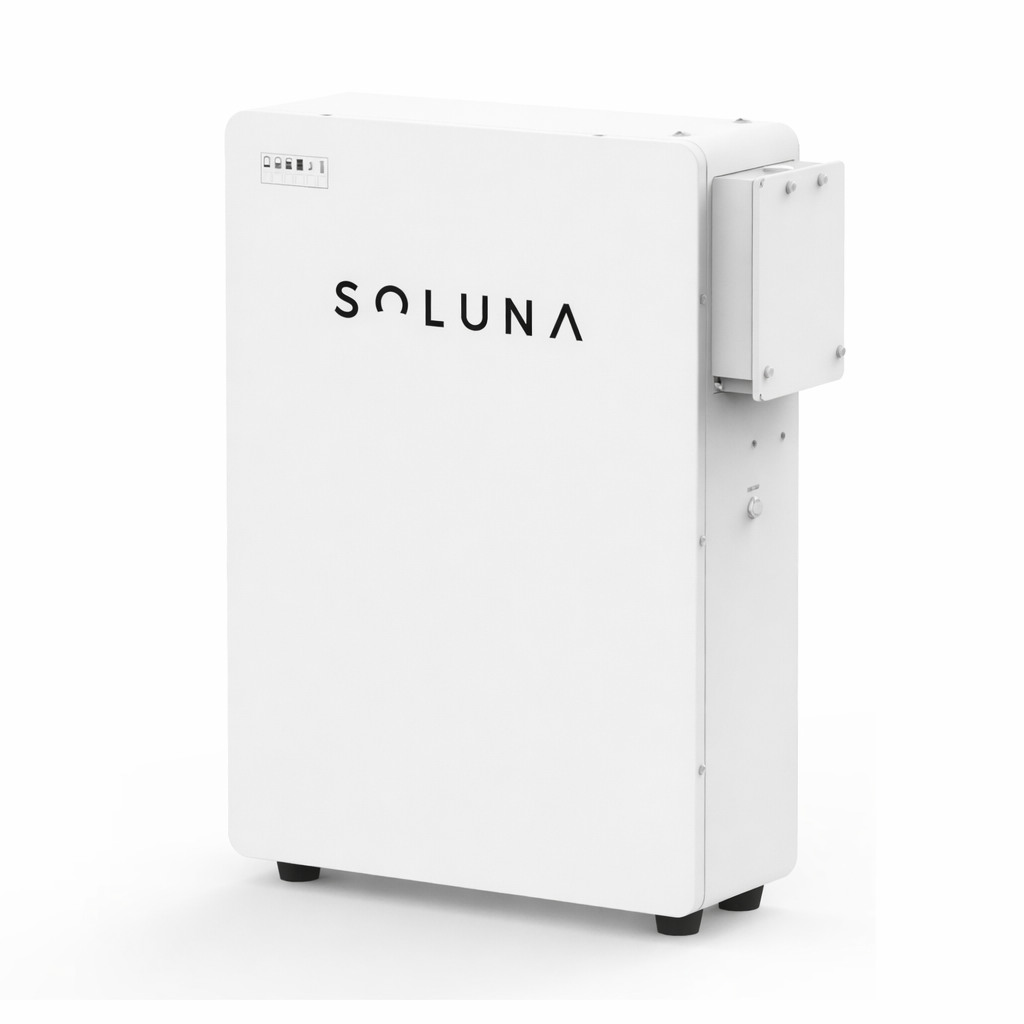

Soluna BES 5K Pack – 51.2V 100Ah LiFePO₄ (LFP) Home Energy Storage Battery | 5.12kWh, IP65
Product Description
The Soluna BES 5K Pack is a reliable low-voltage lithium energy storage battery designed for residential and commercial solar applications. Built using advanced LiFePO₄ (LFP) battery technology, it delivers enhanced safety, long service life, and stable performance for daily energy storage and backup power systems.
With a usable energy capacity of 5.12kWh, the battery supports parallel expansion up to 16 units, allowing system capacity to scale according to energy requirements. Its intelligent Battery Management System (BMS) ensures protection against overcharge, over-discharge, overheating, and short circuits, providing safe and efficient operation.
The compact design supports wall-mounted or floor installation, while the IP65 protection rating makes it suitable for both indoor and outdoor environments. High efficiency and long cycle life make the Soluna BES 5K Pack an ideal solution for solar self-consumption, backup power, and hybrid energy storage systems.
Key Features
-
Safe and stable LiFePO₄ lithium battery technology
-
5.12kWh energy storage capacity
-
Expandable system up to 81.92kWh (16 units in parallel)
-
Intelligent built-in Battery Management System (BMS)
-
Long lifespan up to 6000 cycles
-
High round-trip efficiency (>95%)
-
IP65 protection for indoor & outdoor installation
-
Flexible wall-mounted or floor-standing installation
