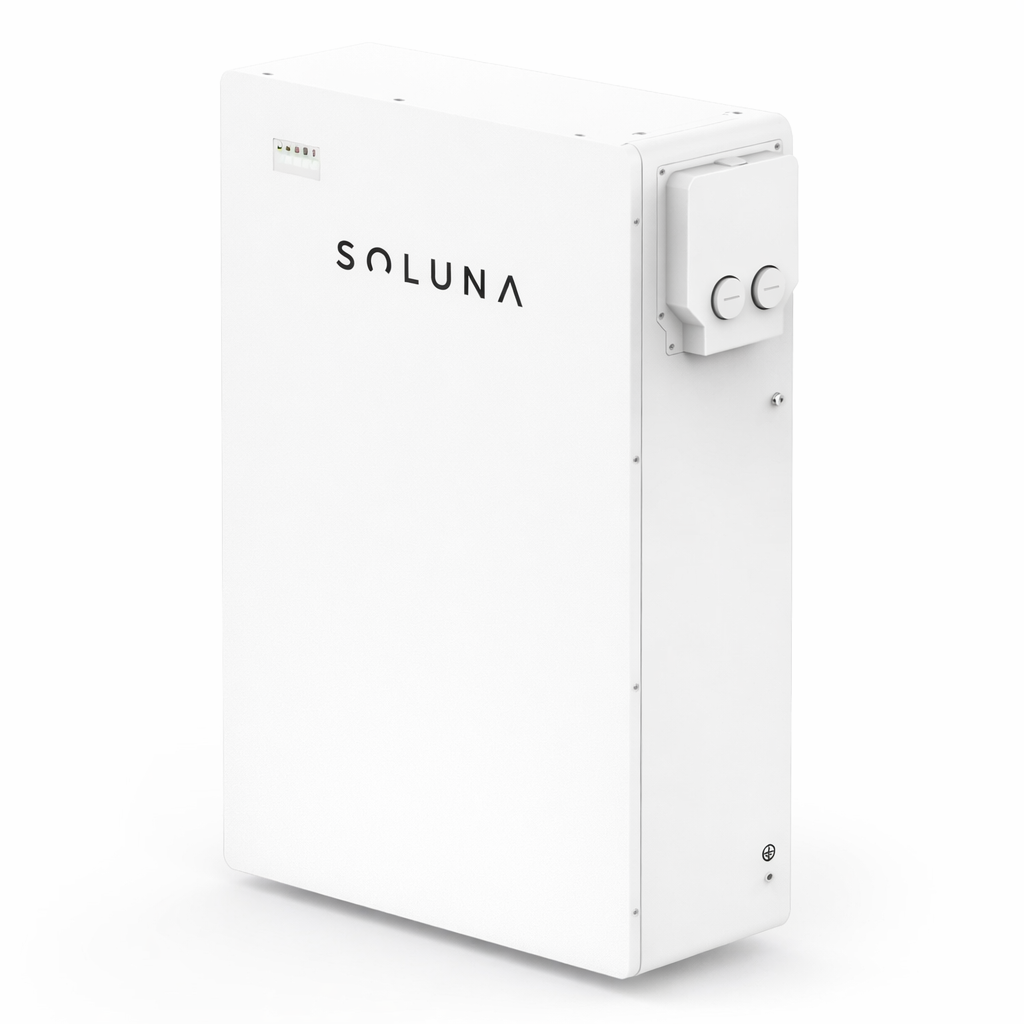

Soluna Venus 16K Pack LV 51.2V 314Ah
Specifications
Physical Specifications
-
Dimensions (W × D × H): 545 × 220 × 850 mm
-
Weight: 127 kg
-
Installation: Indoor / Outdoor
-
Mounting Options: Floor Mounted / Wall Mounted
Electrical Specifications
-
Battery Chemistry: LiFePO₄ (LFP)
-
Nominal Voltage: 51.2 V
-
Nominal Capacity: 314 Ah
-
Total Energy Capacity: 16.07 kWh
-
Usable Energy Capacity: 14.46 kWh
-
Usable Voltage Range: 44.8 – 56.8 V
-
Charge / Discharge Current: 150 A
-
Max Charge Current: 160 A
-
Max Discharge Current: 220 A
-
Charge / Discharge Power: 7.68 kW
-
Max Charge Power: 8.2 kW
-
Max Discharge Power: 11.2 kW
-
Recommended Depth of Discharge: 80%
-
Maximum Depth of Discharge: 90%
-
Cycle Life: ≥8000 cycles (25°C standard conditions)
-
DC Disconnect: Contactor / Fuse
BMS & Communication
-
Communication Interface: CAN
-
Monitoring Parameters:
-
System Voltage
-
System Current
-
Cell Voltage
-
Cell Temperature
-
SOC (State of Charge)
-
SOH (State of Health)
-
Operating Conditions
-
Operating Temperature: -10°C to 50°C
-
Recommended Operating Temperature: 15°C to 30°C
-
Storage Temperature: -20°C to 60°C
-
Humidity Range: 5% – 95%
-
Maximum Altitude: 2000 m
-
Cooling Method: Natural Convection
Protection, Certification & Warranty
-
Ingress Protection Rating: IP65
-
Certifications: UL1973, UL9540A, UL9540, IEC62619, EMC, RoHS
-
Transportation Standard: UN38.3
-
Parallel Connection: Up to 30 Units
-
Maximum System Capacity: 480 kWh
-
Warranty: 10 Years
Soluna Venus 16K Pack LV – 51.2V 314Ah LiFePO₄ Lithium Battery | 16.07kWh Energy Storage, IP65
Product Description
The Soluna Venus 16K Pack LV is a high-capacity lithium energy storage battery designed for residential and small commercial solar energy systems. Built with advanced LiFePO₄ (LFP) battery technology, it delivers superior safety, long service life, and reliable performance for energy storage and backup power applications.
With a total energy capacity of 16.07kWh and 14.46kWh usable energy, this battery ensures efficient energy utilization for daily consumption and power backup. The integrated intelligent Battery Management System (BMS) continuously monitors system voltage, current, cell temperature, SOC, and SOH to maintain safe and optimized operation.
The Venus 16K Pack LV supports parallel expansion up to 30 batteries, allowing system scalability up to 480kWh, making it suitable for expanding residential or commercial energy demands. Its IP65-rated enclosure, flexible wall or floor mounting, and 10-year warranty make it a durable and future-ready energy storage solution.
Soluna Venus 16K LV 51.2V 314Ah
Key Features
-
Advanced LiFePO₄ (LFP) lithium battery technology
-
16.07kWh energy capacity per unit
-
Expandable up to 480kWh system capacity
-
Intelligent integrated BMS protection
-
Long lifespan up to 8000 cycles
-
High-performance charge & discharge capability
-
IP65 protection for indoor and outdoor installation
-
Flexible wall-mounted or floor-standing installation
-
Ideal for residential & small commercial energy storage
