Sunflx FlxWall 16.0-48 51.2V 314Ah
Technical Specifications — Sunflx FlxWall 16.0-48
Electrical Specifications
| Specification | Details |
|---|---|
| Nominal Energy Capacity | 16.03 kWh (51.2V, 314Ah) |
| Nominal Voltage | 51.2 V DC |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Standard Charge Current | 314 A (≈1C) |
| Standard Discharge Current | 314 A (≈1C) |
| BMS Protection Current | 345 A (2s), 380 A (0.2s) |
| Depth of Discharge (DOD) | Up to 100% (Configurable) |
| Cycle Life | >6000 cycles (25 °C, 0.5C, 80% DOD) |
| Operating Voltage Range | 43.2 – 58.4 V DC |
| Low Voltage Cut-off (Default) | 46.4 V DC |
| High Voltage Cut-off (Default) | 58.4 V DC |

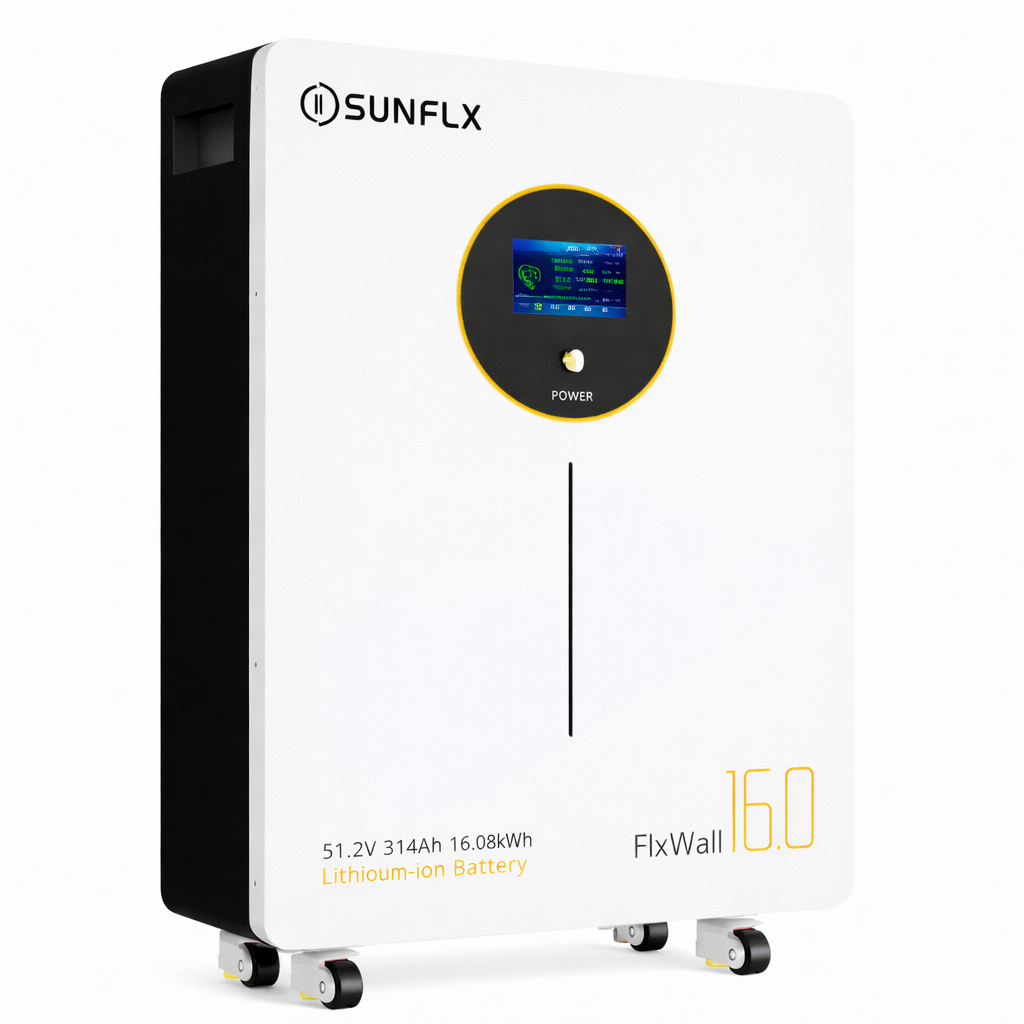

Sunflx FlxWall 16.0-48 — 51.2V 314Ah Lithium Battery
Product Description
The Sunflx FlxWall 16.0-48 (51.2V 314Ah) is a high-capacity LiFePO₄ (Lithium Iron Phosphate) battery energy storage system designed for advanced residential, commercial, and hybrid solar installations. Built with premium A+ grade prismatic cells and an intelligent Battery Management System (BMS), this battery delivers exceptional performance, long cycle life, and enhanced safety for demanding energy applications.
With a nominal energy capacity of 16.03 kWh, the FlxWall 16.0-48 maximizes usable power with up to 100% depth of discharge (DOD) and supports high continuous charge/discharge rates. Its modular design allows seamless scalability, supporting up to 15 units in parallel, enabling large-scale energy storage configurations.
The system features a 4.3-inch touchscreen display, built-in DC circuit breaker, Wi-Fi & Bluetooth real-time monitoring, and multiple communication interfaces (RS232, RS485, CAN) for integration with major hybrid and off-grid inverters. Designed for both wall-mount or floor installation, the FlxWall 16.0-48 offers a reliable, flexible, and scalable solution to power modern solar systems with superior efficiency and safety.
General & Mechanical Features
| Feature | Specification |
|---|---|
| Dimensions (H × W × D) | 550 × 765 × 165 mm |
| Weight | ~140 kg |
| Mounting Method | Wall mount or floor stand |
| Cooling Method | Natural convection |
| Display | 4.3″ Touchscreen + LED indicators |
| Maximum Parallel Units | Up to 15 batteries |
| Protection Rating | IP20 |
Communication & Monitoring
-
RS232, RS485, and CAN communication interfaces
-
Built-in Wi-Fi and Bluetooth monitoring
-
Compatible with major hybrid/off-grid inverters
Environmental Specifications
| Condition | Operating Range |
|---|---|
| Charge Temperature | 0 °C to +50 °C |
| Discharge Temperature | −20 °C to +60 °C |
| Storage Temperature | −10 °C to +50 °C |
| Humidity | ≤ 95 % (non-condensing) |
| Maximum Altitude | ≤ 4,000 m |
Built-In Protection Features
-
Over-charge and over-discharge protection
-
Over-current protection
-
Short-circuit protection
-
Over/under voltage protection
-
Over/under temperature protection
-
Cell balancing protection
-
MOSFET temperature protection
-
Integrated DC circuit breaker
Certifications & Warranty
-
Certifications: UN38.3, MSDS, RoHS
-
Warranty: 5 years
-
Design Lifespan: Up to 10 years
