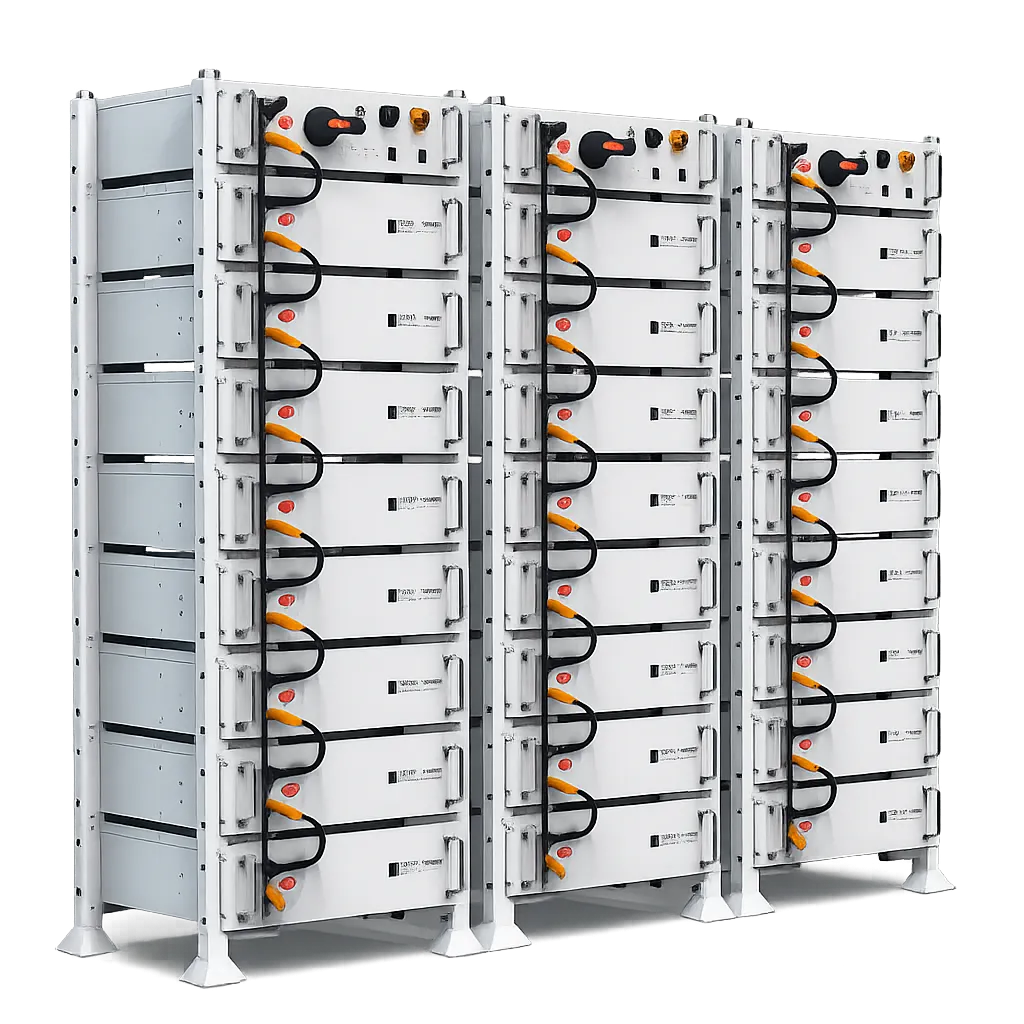

itel 71.68KWh 716.8V C&I ESS Lithium Battery Overview

The itel 71.68KWh 716.8V Lithium Battery is built for commercial and industrial energy storage (C&I ESS) applications that require substantial battery capacity in a high-voltage architecture. Its 71.68kWh nominal energy provides a large energy-storage base, while the 716.8V nominal voltage allows the system to operate within a high-voltage range of 604.8V to 806.4V.

The battery is made up of Grade-A LiFePO4 cells, combining the lithium iron phosphate chemistry with a modular system design. Its rack-based arrangement enables the battery system to be set up in a way that is suitable for commercial and industrial applications. The architecture permits a maximum of 14 modules in a single series, and parallel expansion is also offered for systems that need extra storage capacity.

For buyers researching an Itel c&i lithium Battery, this model provides a high-voltage storage configuration rather than the small low-voltage battery formats commonly used in residential applications.

Key Features and Buyer Benefits

71.68kWh High Energy Storage

The battery has a nominal energy output of 71.68kWh and is therefore appropriate for cases with large energy-storage needs in which a higher-capacity battery system is required. The capacity of the energy it can store makes it suitable for use in commercial and industrial applications that demand a large amount of stored electrical energy.

716.8V High-Voltage Architecture

This battery is based on a high-voltage energy-storage system since it has a nominal voltage of 716.8 V and a system voltage range of 604.8 V to 806.4 V. When carrying out system integration, it is essential to ensure that the battery’s voltage range and current requirements correspond with those of the energy-storage equipment chosen.

Grade-A LiFePO4 Cells

The battery is made use of Grade-A LiFePO4 cells, since lithium iron phosphate chemistry is suitable for use in energy storage. It is therefore appropriate for projects that are seeking a dedicated lithium-based storage solution.

Modular Rack System

The modular rack system is designed for fast installation and organized battery deployment. The configuration supports up to 14 modules in one series, while parallel expansion is available for larger system requirements.

100A Maximum Current

The system has a maximum charge/discharge current of 100A, although a current of 50A is recommended. It is essential to take these limits into account when matching the battery with the charging equipment, the inverter and the entire energy-storage system.

Best For

The 71.68kWh 716.8V lithium battery is appropriate for use in situations such as:

• Commercial energy storage systems
• Industrial energy storage projects
• Larger C&I ESS installations
• Systems requiring high-voltage lithium battery storage
• Projects requiring a modular rack battery configuration
• Energy-storage systems where parallel expansion may be required
• Commercial buyers and installers planning larger battery-storage systems

As this is a high-voltage C&I type battery setup, it is necessary to check system compatibility prior to buying it rather than treating it as a regular low-voltage residential battery.

Not Ideal For

One should not choose this battery merely on the basis of its energy capacity, as it may be unsuitable in certain cases such as:

• The battery voltage setup needs to be different for the inverter or the energy-storage equipment.
• The system will not function within the voltage range of the battery, that is, between 604.8 and 806.4 volts.
• The current needed for charging or discharging goes beyond the limits applicable to the battery.
• A residential battery of low voltage must be used.
• The modular rack system cannot be accommodated by the installation.

Before installing it, the battery’s voltage, the current limits, and system compatibility should be confirmed.

Battery Capacity and High-Voltage System Design

A 71.68kWh battery provides a substantial nominal energy-storage capacity, while the 716.8V nominal voltage defines the high-voltage electrical architecture of this system.

The system has a 604.8V–806.4V voltage range, so the connected energy-storage equipment must be compatible with this operating range. The battery also has a 71.68kW maximum continuous power rating, while the charge/discharge current specification is 100A maximum with 50A recommended current.

For installers, the battery should therefore be assessed together with the inverter or energy-storage PCS, protection equipment, cabling and system control requirements rather than being sized only by kWh.

LiFePO4 Battery Chemistry

The battery uses Grade-A LiFePO4 cells. LiFePO4 is commonly used for energy-storage applications where a dedicated lithium iron phosphate battery architecture is required. The exact performance of the complete energy-storage system will depend on operating conditions, connected equipment and system configuration.

Modular Expansion

The itel C&I ESS platform uses a modular approach. The target configuration supports 14 modules maximum in one series, resulting in the specified 716.8V nominal voltage and 71.68kWh nominal energy. Parallel expansion is also available within the system architecture.

This modular structure can be useful for commercial and industrial projects where the storage system needs to be planned around a larger energy requirement.

Technical Specifications

Lithium Battery Use in Pakistan

For commercial and industrial users in Pakistan, a high-capacity battery system can be considered where energy storage is required alongside an appropriate power-conversion system. The 71.68kWh capacity provides a substantial storage platform, while the high-voltage design requires careful system matching.

Pakistan’s summer temperatures also make operating conditions important. This battery supports charging from 0°C to 55°C and discharging from -20°C to 56°C. Installation should remain within these specified operating conditions.

Proper ventilation, electrical protection, compatible equipment and professional installation should be considered during system planning.

itel 71.68KWh 716.8V Lithium Battery Price in Pakistan

The current price of the itel 71.68KWh 716.8V Lithium Battery is available on booking. C&I ESS prices vary with import duties and dollar-rate variations. For the updated and final price, contact Hajvery Solar Energy.

If you are searching for itel c&i lithium battery price in pakistan, itel c&i lithium battery price, itel commercial & industrial ess 71 7 kwh battery price in pakistan, or itel commercial & industrial ess 71 7 kwh battery price, contact Hajvery Solar for the latest booking quotation.

Buyers also searching for itel energy lithium battery price in pakistan, itel commercial & industrial lithium battery price in pakistan, or itel commercial & industrial lithium battery price can confirm the exact model and current commercial quotation before ordering.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy can help buyers identify the exact IB-H70-X-G1 model and check the relevant system requirements before purchase.

As an itel authorized dealer, Hajvery Solar Energy can assist buyers with product selection and compatibility checking.

Hajvery Solar Energy is an itel Official Distributor for this product category, providing a direct route for product enquiries and purchasing support.

For customers searching battery itel or comparing an itel hybrid battery price in pakistan, the exact voltage architecture and energy-storage application should be checked before selecting a battery.

Choose Hajvery Solar Energy as an Official itel Distributor for current product availability and commercial enquiries.

Buying through Hajvery Solar Energy, an authorized itel dealer, gives customers a clear route for product and warranty guidance.

Warranty and After-Sales Support

The itel 71.68KWh 716.8V Lithium Battery comes with a 5-year official manufacturer warranty.

Warranty coverage should be retained with the purchase documentation, and applicable warranty requirements should be confirmed with Hajvery Solar Energy before ordering. Hajvery Solar can also assist with product-related enquiries and compatibility guidance.

Before You Buy

Before purchasing this C&I ESS lithium battery, confirm:

• Required battery energy capacity
• Required battery voltage architecture
• Compatibility with the selected inverter or PCS
• Required charge/discharge current
• Available installation space for the modular rack system
• Operating temperature at the installation location
• Required system expansion
• Protection and cabling requirements
• Applicable warranty requirements

FAQs

What is the capacity of the itel IB-H70-X-G1 battery?

The itel IB-H70-X-G1 has a 71.68kWh nominal energy capacity and 71.68kW maximum continuous power.

What is the voltage of this itel lithium battery?

It has a 716.8V nominal voltage with a 604.8V–806.4V system voltage range.

What battery chemistry does the IB-H70-X-G1 use?

The battery uses Grade-A LiFePO4 cells.

What is the maximum charge/discharge current?

The maximum charge/discharge current is 100A, while the recommended current is 50A.

What is the operating temperature of this battery?

The specified charging temperature is 0°C to 55°C, while the specified discharge temperature is -20°C to 56°C.

Is the itel IB-H70-X-G1 expandable?

Yes. The C&I ESS architecture supports parallel expansion, and the target configuration supports up to 14 modules in one series.

What is the current itel lithium battery price in Pakistan?

The current price is available on booking. C&I ESS prices can vary with import duties and dollar-rate variations. Contact Hajvery Solar Energy for the updated and final price.

What warranty does this battery have?

The itel IB-H70-X-G1 comes with a 5-year official manufacturer warranty.

Buy itel 71.68KWh 716.8V Lithium Battery from Hajvery Solar

The itel 71.68KWh 716.8V Lithium Battery is designed for larger commercial and industrial energy-storage applications, combining 71.68kWh nominal energy, high-voltage architecture, Grade-A LiFePO4 cells, modular rack installation and expansion capability.

Contact Hajvery Solar Energy for model verification, compatibility guidance, booking and the latest commercial quotation.
