Sunflx FlxWall 5.0-48 51.2V 100Ah
Technical Specifications — Sunflx FlxWall 5.0-48
Electrical Specifications
| Specification | Details |
|---|---|
| Nominal Energy Capacity | 5.12 kWh (51.2 V, 100 Ah) |
| Nominal Voltage | 51.2 V DC |
| Cell Technology | LiFePO₄ (Lithium Iron Phosphate) |
| Standard Charge Current | 100 A (≈ 1C) |
| Standard Discharge Current | 100 A (≈ 1C) |
| Peak BMS Protection Current | 120 A (2 s), 140 A (0.2 s) |
| Cycle Life | > 6000 cycles (25 °C, 0.5C, 80 % DOD) |
| Depth of Discharge (DOD) | Max. 100 % (Settable) |
| Operating Voltage Range | 41.6 – 58.4 V DC |
| Low Voltage Cut-off (Default) | 46.4 V DC |
| High Voltage Cut-off (Default) | 58.4 V DC |

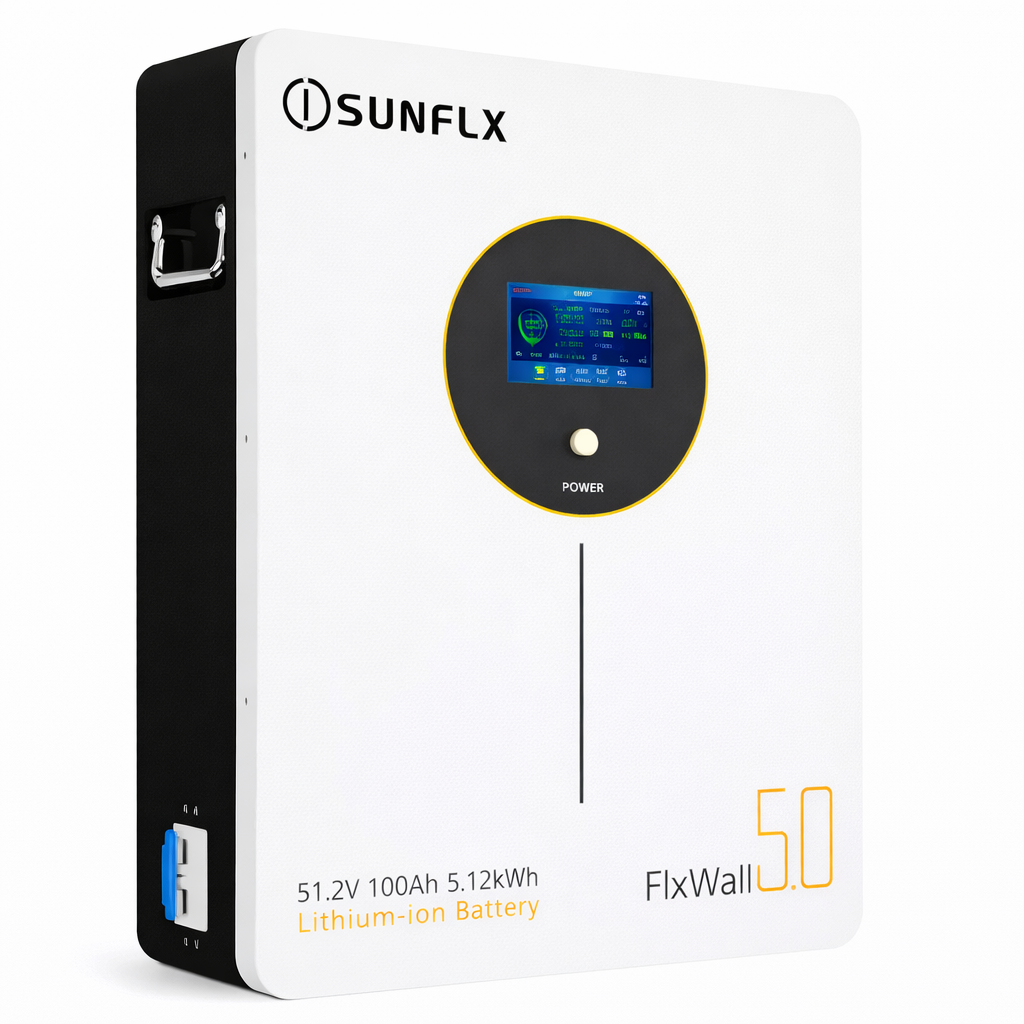

Sunflx FlxWall 5.0-48 — 51.2V 100Ah Lithium Battery
Product Description
The Sunflx FlxWall 5.0-48 (51.2V 100Ah) is a high-performance LiFePO₄ (Lithium Iron Phosphate) energy storage battery engineered for residential and commercial solar systems. With premium A+ prismatic cells and an advanced Battery Management System (BMS), this battery delivers reliable, efficient, and long-lasting power for both self-consumption and backup power applications.
Providing a nominal energy capacity of 5.12 kWh, the FlxWall 5.0-48 maximizes usable energy with 100 % depth of discharge (DOD) and supports high continuous charge and discharge currents. Its intelligent design offers enhanced safety protections, superior cycle life, and seamless integration with hybrid or off-grid inverters.
Featuring built-in Wi-Fi & Bluetooth monitoring, an intuitive 4.3-inch touchscreen display, and multiple communication interfaces, the FlxWall 5.0-48 keeps you connected and in full control of your energy system. Its modular design allows up to 15 units in parallel, making it scalable for larger energy storage needs.
General & Mechanical Features
| Feature | Specification |
|---|---|
| Dimensions (H × W × D) | 400 × 380 × 160 mm |
| Weight | ~56 kg |
| Cooling Method | Natural convection |
| Mounting | Wall mount or floor stand |
| Maximum Parallel Units | Up to 15 units |
| Display | 4.3″ Touchscreen + LED indicators |
| Protection Rating | IP20 |
Communication & Monitoring
-
RS232, RS485, CAN communication ports
-
Wi-Fi & Bluetooth remote monitoring
-
Compatible with major hybrid and off-grid inverters
Environmental Specifications
| Condition | Operating Range |
|---|---|
| Charge Temperature | 0 °C to +50 °C |
| Discharge Temperature | −20 °C to +60 °C |
| Storage Temperature | −10 °C to +50 °C |
| Humidity | ≤ 95 % non-condensing |
| Maximum Altitude | ≤ 4000 m |
Built-In Protection Features
-
Short-circuit protection
-
Over-current protection
-
Over-temperature & under-temperature protection
-
Over-voltage & under-voltage protection
-
Cell balancing
-
MOS temperature protection
-
Integrated DC circuit breaker
Certifications & Warranty
-
Certifications: UN38.3, MSDS, RoHS
-
Warranty: 5 years
-
Designed Lifespan: 10 years
