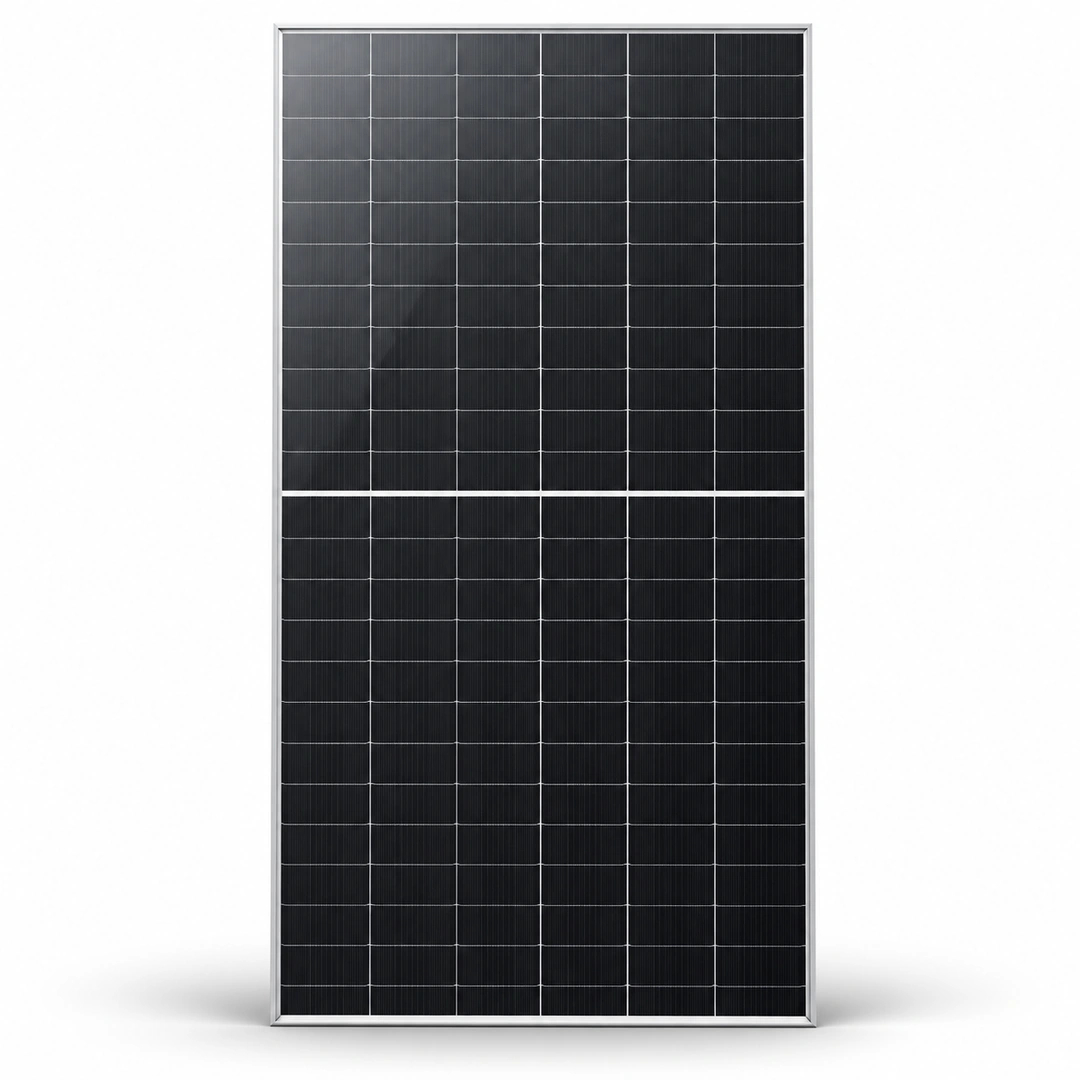

Aiko 625W Monofacial Solar Panel

Aiko 625W Monofacial Solar Panel Overview

The Aiko 625W Monofacial Solar Panel is designed for solar installations that need high power output from individual modules. It uses N-Type ABC (All Back Contact) cell technology, which places the electrical contacts on the rear side of the cells to create a clean front appearance without visible grid lines.

With a rated output of 625 watts and 23.7% module efficiency, this panel can help installers build higher-capacity solar arrays while making effective use of the available roof or installation area. Its monofacial design generates electricity primarily from the front surface, so system planning can focus on the panel’s front-side output and electrical characteristics.

The panel is suitable for residential rooftops, commercial buildings and larger solar projects where module dimensions, string voltage and input-current limits must be considered together. Its long-term performance specifications also make degradation an important factor when assessing the overall value of a solar installation.

For buyers comparing Aiko 625w monofacial solar panel price in pakistan, it is important to consider not only the purchase price but also module efficiency, installation requirements, warranty coverage and compatibility with the selected inverter.

Key Features and Benefits

N-Type ABC Cell Technology

The panel uses N-Type ABC cell technology, with electrical contacts positioned on the rear side of the cells. This creates a distinctive, clean front appearance without conventional visible grid lines.

For solar buyers, the technology offers a high-efficiency module option for projects where both power output and panel appearance are relevant. Correct system design and suitable installation conditions remain important for achieving expected energy production.
AIKO’s official information about its ABC technology is available here: Aiko 625W monoacial solar panel official website

High 625W Power Output

With a rated output of 625W, each panel contributes a substantial amount of nominal DC capacity to a solar array. This can help installers plan larger systems using fewer modules than would be required with lower-wattage panels, depending on the alternative module ratings and project requirements.

The actual number of panels needed depends on the target system capacity, roof space, inverter limits, electrical design and site conditions.

23.7% Module Efficiency

The 23.7% module efficiency makes this panel a strong option for installations where available space is an important consideration.

Higher module efficiency means a greater proportion of the solar energy reaching the module is converted into electrical power under the specified test conditions. Actual daily and annual generation will vary with sunlight, temperature, shading, dust and installation orientation.

Low Long-Term Power Degradation

The panel has a maximum first-year degradation figure of 1% and annual degradation of up to 0.35% from years 2 to 30 under its stated performance warranty conditions.

Lower degradation helps support long-term energy production. Actual output will still depend on operating conditions, installation quality and the applicable warranty terms.

Durable Module Construction

The panel features 3.2mm tempered glass, an anodized aluminium frame and an IP68 junction box with three bypass diodes. These construction features are relevant when assessing module protection and installation requirements.

Its specified static load ratings are 5400Pa on the front and 2400Pa on the back. Mounting structure design, clamping positions and installation procedures should comply with the applicable requirements.

Best For

The Aiko 625W Monofacial Solar Panel is worth considering for:

• Residential solar systems where high-wattage modules suit the available roof area.

• Commercial rooftops requiring substantial installed DC capacity.

• Industrial solar installations designed around compatible module electrical characteristics.

• Solar installers and dealers seeking a high-efficiency monofacial module.

• Solar capacity upgrades where the existing inverter and string configuration can accommodate the selected modules.

Final suitability depends on the project’s electrical design, mounting arrangement and installation conditions.

When Another Panel May Be Better

This panel may not be the right choice for every installation.

• Limited mounting space: Its dimensions of 2323 × 1134mm may not suit every roof layout.

• Lower current limits: Its operating current must remain within the inverter’s allowable MPPT input-current limits.

• Different voltage requirements: The module’s voltage characteristics must match the intended string configuration.

• Rear-side generation requirements: A monofacial module is intended primarily for front-side generation, so projects specifically designed around rear-side energy production need a different module configuration.

A solar installer should assess these factors before finalising the system design.

Cell and Module Technology

The Aiko 625W uses N-Type ABC cell technology in a monofacial, single-glass module construction.

The ABC architecture positions the cell contacts on the rear side, helping maintain a clean front surface. The panel contains 144 cells arranged in a 6 × 24 configuration.

Its monofacial construction is suited to installations designed around front-side solar generation. Panel placement, orientation, shading and cleaning practices influence real-world output.

The module measures 2323 × 1134 × 35mm and weighs approximately 29kg, with a ±3% tolerance. Installers should account for these dimensions and weight when planning roof layouts, handling procedures and support structures.

Technical Specifications

Performance and Degradation

Long-term performance is an important consideration when choosing a solar module. The Aiko 625W has a stated first-year degradation limit of 1% and annual degradation of up to 0.35% from year 2 through year 30.

These figures provide a basis for evaluating the panel’s long-term performance warranty. They should not be interpreted as a guarantee of identical annual electricity production because real output depends on sunlight, temperature, shading, soiling and other operating factors.

The panel’s −0.26%/°C power temperature coefficient describes how its maximum power changes as cell temperature moves above or below the reference temperature. As module temperature rises, its maximum power generally decreases.

Correct mounting, suitable ventilation and regular cleaning can help maintain system performance.

Performance Considerations for Pakistan

Pakistan’s solar installations can experience high summer temperatures, dust accumulation and changing seasonal sunlight. These conditions make installation quality and routine maintenance important.

The Aiko 625W’s temperature coefficient of −0.26%/°C is a useful specification when evaluating performance under elevated module temperatures. Actual performance depends on the temperature reached by the panel and the overall installation design.

Consider the following points:

• Mounting ventilation: Allow suitable airflow around the modules to help manage operating temperature.

• Dust and cleaning: Dust can reduce sunlight reaching the cells. Use safe, manufacturer-compatible cleaning practices.

• String design: Check the panel’s open-circuit voltage and operating current against the inverter’s electrical limits.

• Roof structure: Confirm that the mounting system can support the panel weight and applicable wind or mechanical loads.

• Electrical protection: Use appropriate cabling, connectors, overcurrent protection and installation practices.

A qualified installer should verify the complete system design before installation.

Aiko 625w solar panel price in pakistan

The Aiko 625w solar panel price in pakistan supplied for Hajvery Solar Energy is Rs. 26,406.25 per panel.

The total module cost depends on the number of panels required for the project. Buyers should also account for the mounting structure, inverter, cabling, protection equipment, installation labour and any other system components when planning the overall budget.

Solar prices and availability can change. Contact Hajvery Solar Energy to confirm the current price, stock availability and quantity-based pricing before placing an order.

Tier 1, A-Grade and Product Authenticity

When choosing a solar panel, buyers should distinguish between verified product identity, physical condition and broader market descriptions.

A-Grade describes a product-condition claim that should be supported by actual inspection or supplier verification. It should not be assumed solely from the brand or model name.

Similarly, a Tier 1 claim should be based on relevant, current evidence rather than treated as a direct measure of an individual panel’s efficiency or quality.

Before purchasing, check the exact model code, serial information, physical condition and applicable warranty. Buyers searching for aiko solar panel verification online should use the appropriate official verification route where available and confirm any concerns with their supplier.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers identify the correct solar product for their intended installation.

Before ordering the Aiko 625W panel, confirm the following:

• The panel’s model code matches the required product.

• The product’s physical condition is acceptable.

• The applicable product and performance warranty terms are clear.

• The module’s electrical specifications suit the intended inverter.

• The installer has checked the number of panels, string voltage and current limits.

• The panel dimensions are compatible with the planned mounting structure.

These checks help buyers and installers make a more informed purchase decision.

Warranty

The Aiko 625W Monofacial Solar Panel has a 15-year product warranty and a separate 30-year linear performance warranty.

These warranties serve different purposes. The product warranty concerns the module itself, while the performance warranty relates to its warranted power output over time under the applicable terms.

Buyers should confirm the applicable warranty conditions, claim procedure and responsible warranty provider with Hajvery Solar Energy before ordering. Warranty coverage should not be interpreted as a promise that the panel will deliver identical energy production under every site condition.

Frequently Asked Questions

1. What is the efficiency of the Aiko 625W Monofacial Solar Panel?

The panel has a module efficiency of 23.7%. Actual energy production depends on sunlight, temperature, shading, dust and system design.

2. Is the Aiko 625W panel monofacial or bifacial?

It is a monofacial solar panel, designed primarily to generate electricity from its front surface.

3. What is the model number of the Aiko 625W panel?

The exact model is AIKO-A625-MAH72Mw, from the N-Type ABC Comet Series.

4. What are the dimensions of the Aiko 625W panel?

The panel measures 2323 × 1134 × 35mm and weighs approximately 29kg ±3%.

5. What is the warranty of the Aiko 625W solar panel?

It has a 15-year product warranty and a 30-year linear performance warranty. Applicable terms and the claim process should be confirmed before purchase.

6. What is the Aiko 625W solar panel price in Pakistan?

The current price of the Aiko 625W Monofacial Solar Panel in Pakistan is Rs. 26,406.25 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

7. How can I check whether this panel is suitable for my inverter?

Check the panel’s Voc, Vmp, Isc and Imp against the inverter’s maximum DC voltage, MPPT operating range and input-current limits. Temperature-related voltage changes and the number of panels connected in series must also be considered.

Buy Aiko 625W Monofacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy offers solar product options for residential, commercial and industrial projects in Pakistan. If you are considering the Aiko 625W Monofacial Solar Panel, confirm its availability, warranty terms and suitability for your planned solar system before ordering.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team for product and installation-related guidance.
